COMPRESSOR DRIVE BELT

INSPECTION
D Check compressor drive belt (1) for wear and cracks, and replace
as necessary.

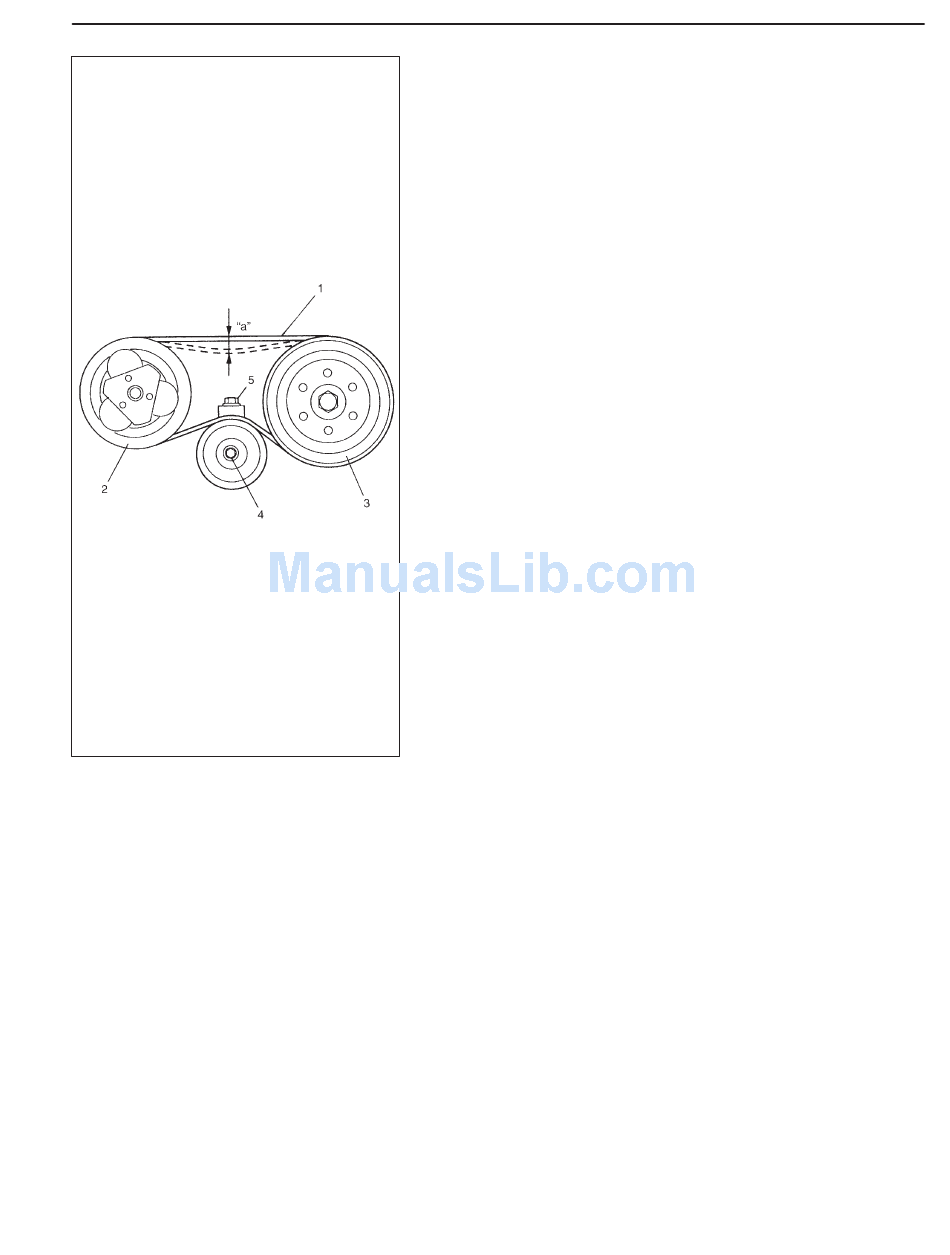

D Check compressor drive belt (1) tension by measuring how much
it deflects when pushed at intermediate point between compres-
sor pulley (2) and crank shaft additional pulley (3) with about 100
N (10 kg) force after crankshaft additional pulley 1 rotating.
If belt tension is without specification, adjust belt tension referring
to below procedures.
Compressor drive belt tension
"a": 9 mm (0.35 in.)
ADJUSTMENT
1) Loosen tension pulley nut (4).
2) Adjust belt tension by tighten or loosen tension pulley adjusting
bolt (5).
3) Tighten tension pulley nut (4).
4) Turn the crankshaft additional pulley (3) 1 revolution, then check
belt tension.
REPLACEMENT
1) Loosen tension pulley nut (4).
2) Loosen belt tension by loosen tension pulley adjusting bolt (5).
3) Remove compressor drive belt (1).
4) Install new compressor drive belt.
5) Adjust belt tension referring to above procedure.
AIR CONDITIONING (OPTIONAL) 1B-11
