Setting Conditions for Communications with Host by Using Memory Switches

6-7-5 Setting the Memory Link Method

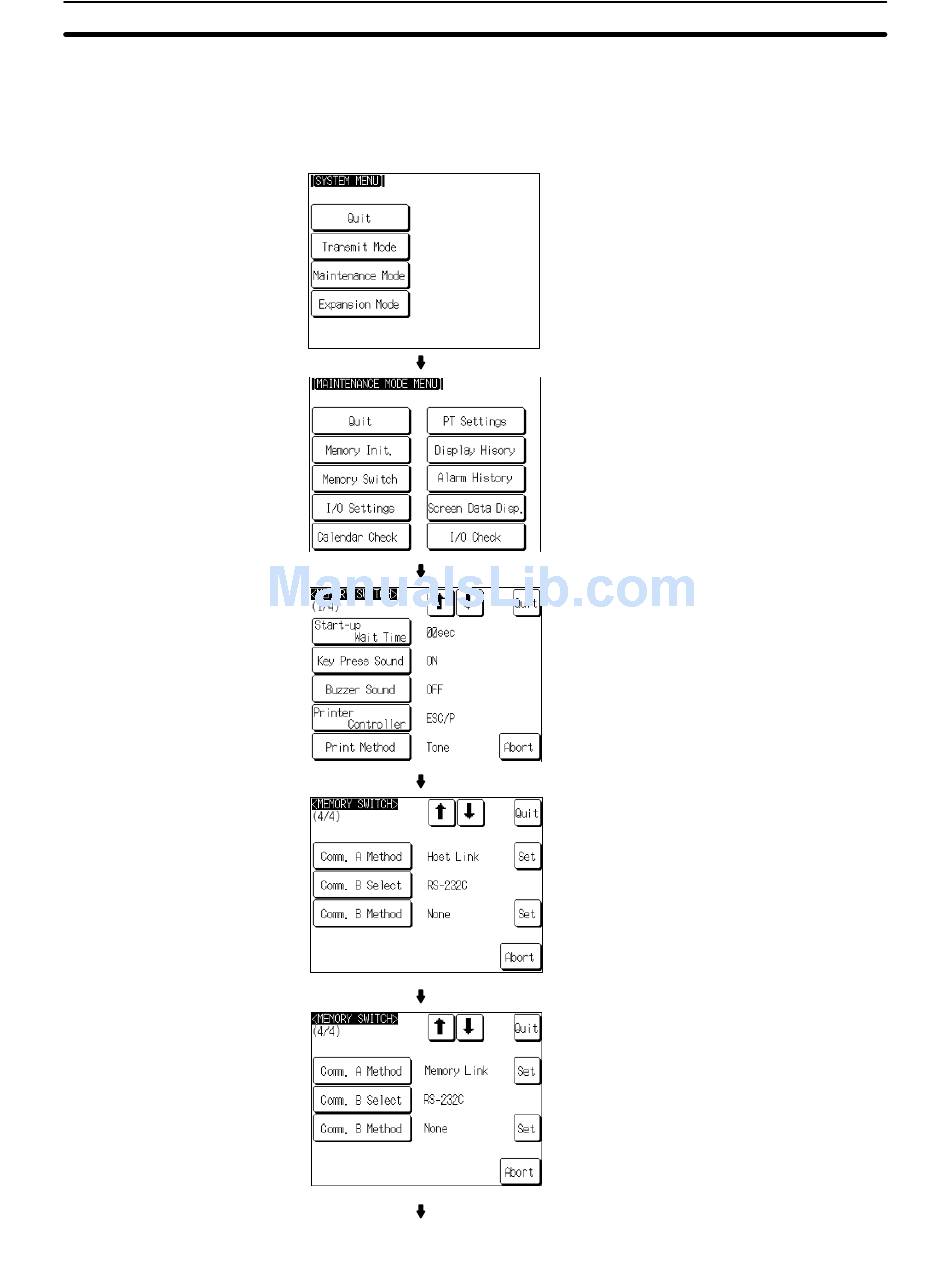

Set the communication conditions for the host link method at serial port A or seri-
al port B by following the operation from the System Menu shown below. Check
the communication settings of the host to be used.
Ver 3.10
Select Maintenance Mode.
Select Memory Switch.
Display the fourth memory switch screen by
pressing the [↓] (next screen) or [↑] (previous
screen) touch switch.
Press the touch switch corresponding to the
port at which the memory link method is to be
set (Comm. A Method or Comm. B Method) to
display the setting option Memory Link.
The setting option changes each time the
touch switch is pressed.
In this example, serial port A is used.
Press the Set touch switch to the right of the
port at which the setting has been made.
In this example, serial port A is used.
Section 6-7
165
