Setting The Time-Out Interval - Omron Programmable Terminals NT31 NT31C Setup Manual

System Settings

6-9-12 Setting the Time-out Interval

Reference: Whether or not an error screen is displayed when a time-out error occurs is deter-
The NT31/NT31C goes into the time-out error status if no response is received
from the host within a fixed time. The Time-out Interval setting specifies the time
lapse at which time-out is judged to have occurred.
The setting range is 1 to 10 seconds. The default (factory) setting is 1 second.
mined by the setting for the Comm. Auto-return memory switch.

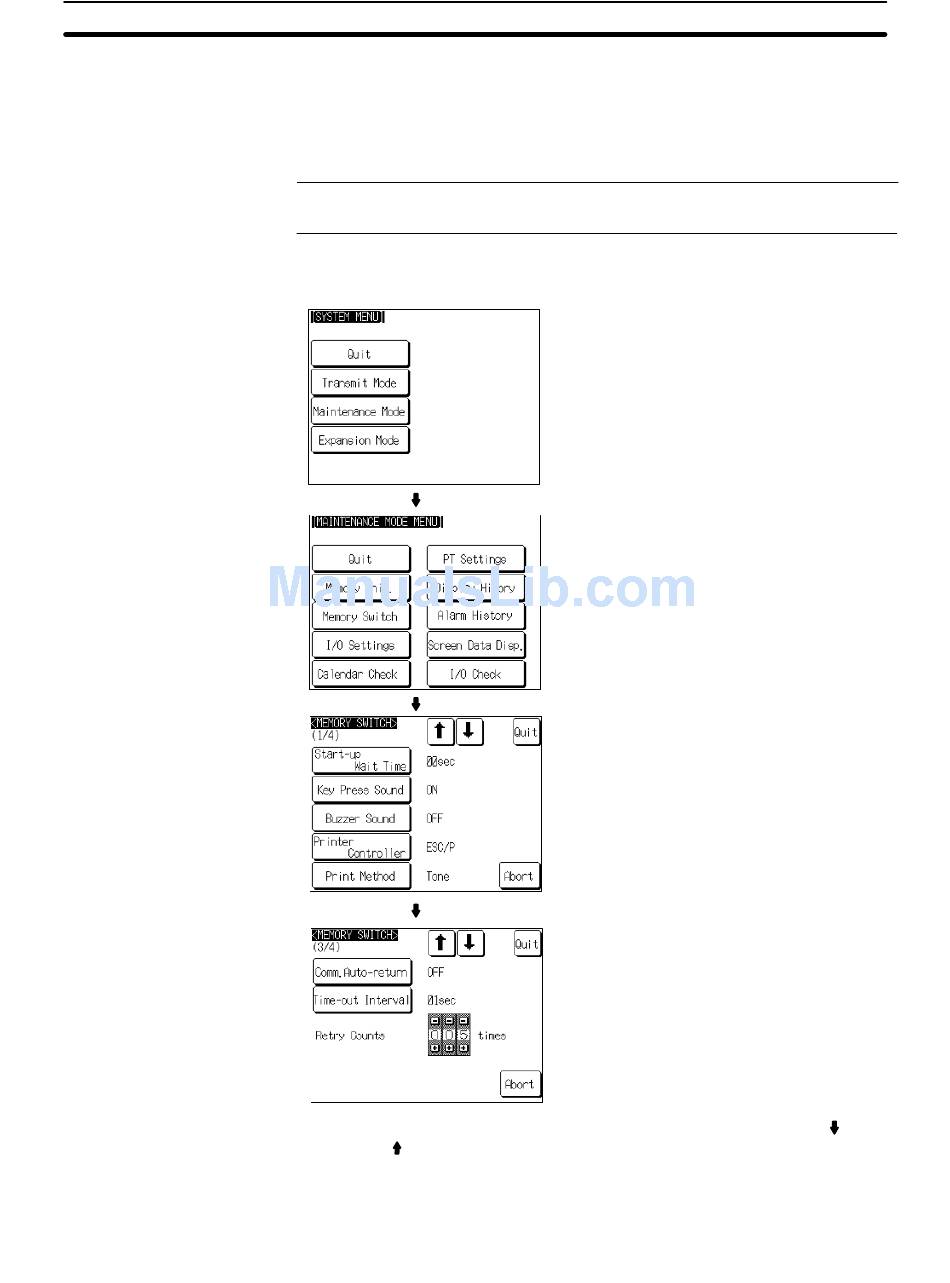

Set the time-out interval by following the menu operation from the System Menu
shown below.
To set other memory switches, select the relevant screen using the [ ] (next
screen) or [ ] (previous screen) touch switch, then make the setting.
• To confirm the settings and quit the memory switch setting screen, press the
Quit touch switch. The settings made last will be set and the NT31/NT31C will
return to the MAINTENANCE MODE MENU screen.
Ver 3.10
Select Maintenance Mode.
Select Memory Switch.
Press [↓] (next screen) or [↑] (previous
screen) to display the third memory switch
setting screen.
Press Time-out Interval to display the re-
quired time lapse.
The setting option changes each time the
touch switch is pressed, according to the fol-
lowing sequence.
01 02 03 .... 09 10 01 ....
Section 6-9
