Connecting to the Host's RS-422A/485 Port

5-2-3 Direct Connection between RS-485 Ports at Both Units

Reference: When RS-485 is used at the PT side, only the NT link (1:N) method (standard or
Connecting an NT31/NT31C and Host

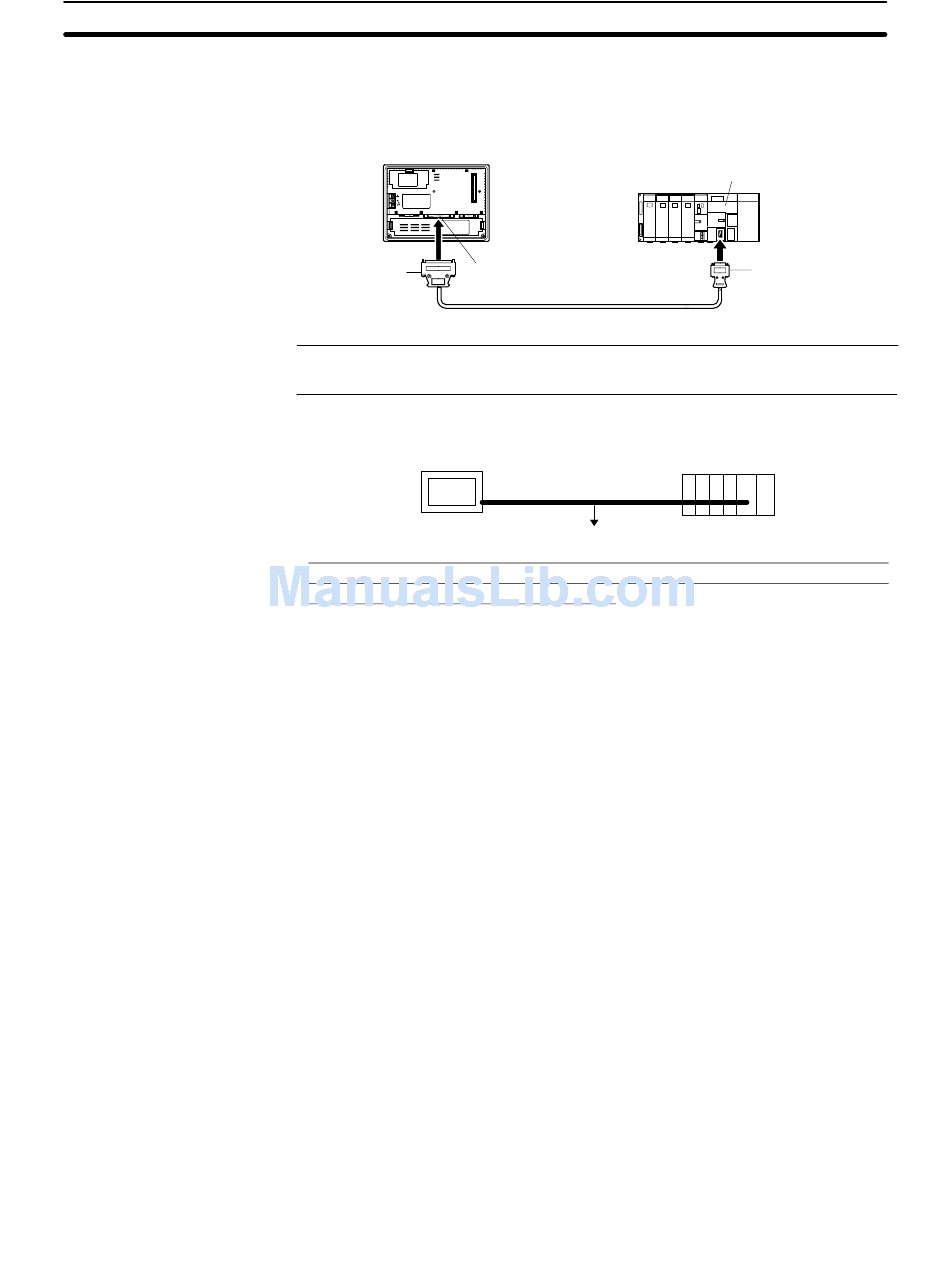

The connection method in which the RS-485 ports of an NT31/NT31C and a host
are connected is described here.
NT31/NT31C
Serial port B
25-pin connector
(RS-485, 25-pin type)
RS-485 cable with connectors (max. length: 500 m)
high-speed) can be used.
NT31/NT31C
Wiring When Connecting a CS1-series CS1G/H Serial Communications
Board and C Series C200HX/HG/HE(-Z)E Communications Board, or
CQM1H Serial Communications Board
Applicable units:
CS1G-CPU42-E(V1)
CS1G-CPU44-E(V1)
CS1H-CPU63-E(V1)
CS1H-CPU65-E(V1)
CS1H-CPU67-E(V1)
C200HE-CPU32-(Z)E
C200HG-CPU33-(Z)E
C200HG-CPU53-(Z)E
C200HX-CPU34-(Z)E
C200HX-CPU54-(Z)E
CPU
Host
RS-485
CS1G-CPU43-E(V1)
CS1G-CPU45-E(V1)
CS1H-CPU64-E(V1)
CS1H-CPU66-E(V1)
C200HE-CPU42-(Z)E
C200HG-CPU43-(Z)E
C200HG-CPU63-(Z)E
C200HX-CPU44-(Z)E
C200HX-CPU64-(Z)E
Section 5-2
CS1G/H
C200HX/HG/HE(-Z)E
CQM1H
9-pin connector
121
