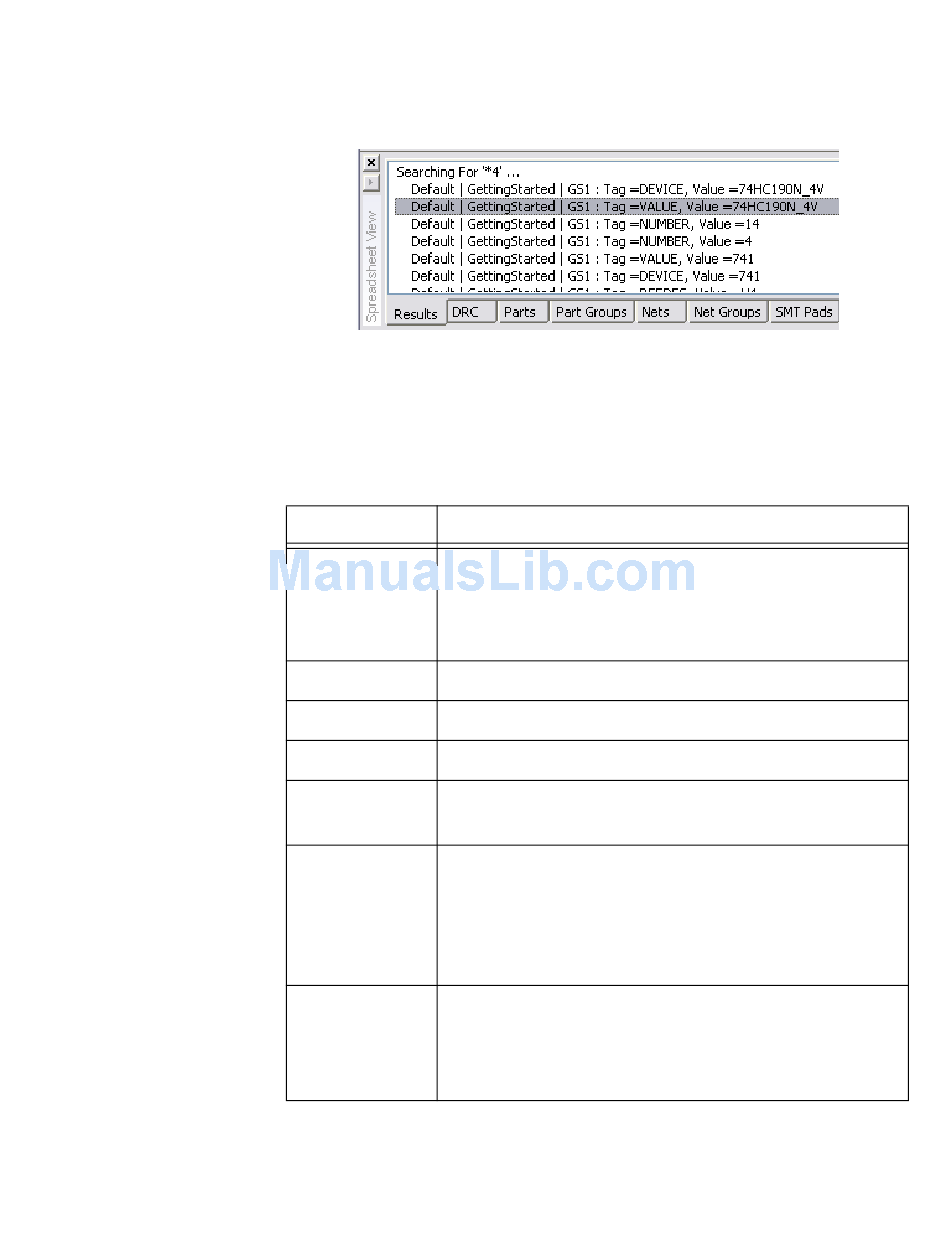

Spreadsheet View: Parts Tab
© National Instruments Corporation
You can also right-click an item to display a popup that contains Copy;
Clear Results; Go to.
Use the Parts tab to work with the parts in your design. Refer to the
the Parts Tab in the Spreadsheet View
Parts, for more information.
Column
(unlabelled)
The colored circle indicates whether the part has been
placed on the board outline (bright green), or is off to
the side awaiting placement (dark green). Orange
indicates the part has been locked.
RefDes
The part's Reference Designator (unique identifier).
Value
The part's value, for example, 150 pF for a capacitor.
Shape
The physical footprint of the part.
Locked
Yes indicates that the part cannot be moved. No
indicates that the part can be moved.
Trace
This is the minimum spacing allowed between the
Clearance
part and any trace. You can enter a value here, or use
the Group Editor. Refer to the
Group Editor
Design, for more information.
Part Spacing
This is the minimum spacing allowed between parts.
You can enter a value here, or use the Group Editor.
Refer to the
Chapter 3,
section of Chapter 4,
Description
section of Chapter 3,
Working with the Group Editor
Setting Up a
Design, for more information.
1-33
Chapter 1
User Interface
Using
Working with
Working with the
Setting Up a
section of
NI Ultiboard User Manual
