Copying a Copper Route
© National Instruments Corporation
You can copy the routing of traces between two identical parts groups that
have been set up using the Group Replica command.
Complete the following steps to copy copper routing between groups:
1.
Create two identical part groups. Refer to the
section of Chapter 4,
2.

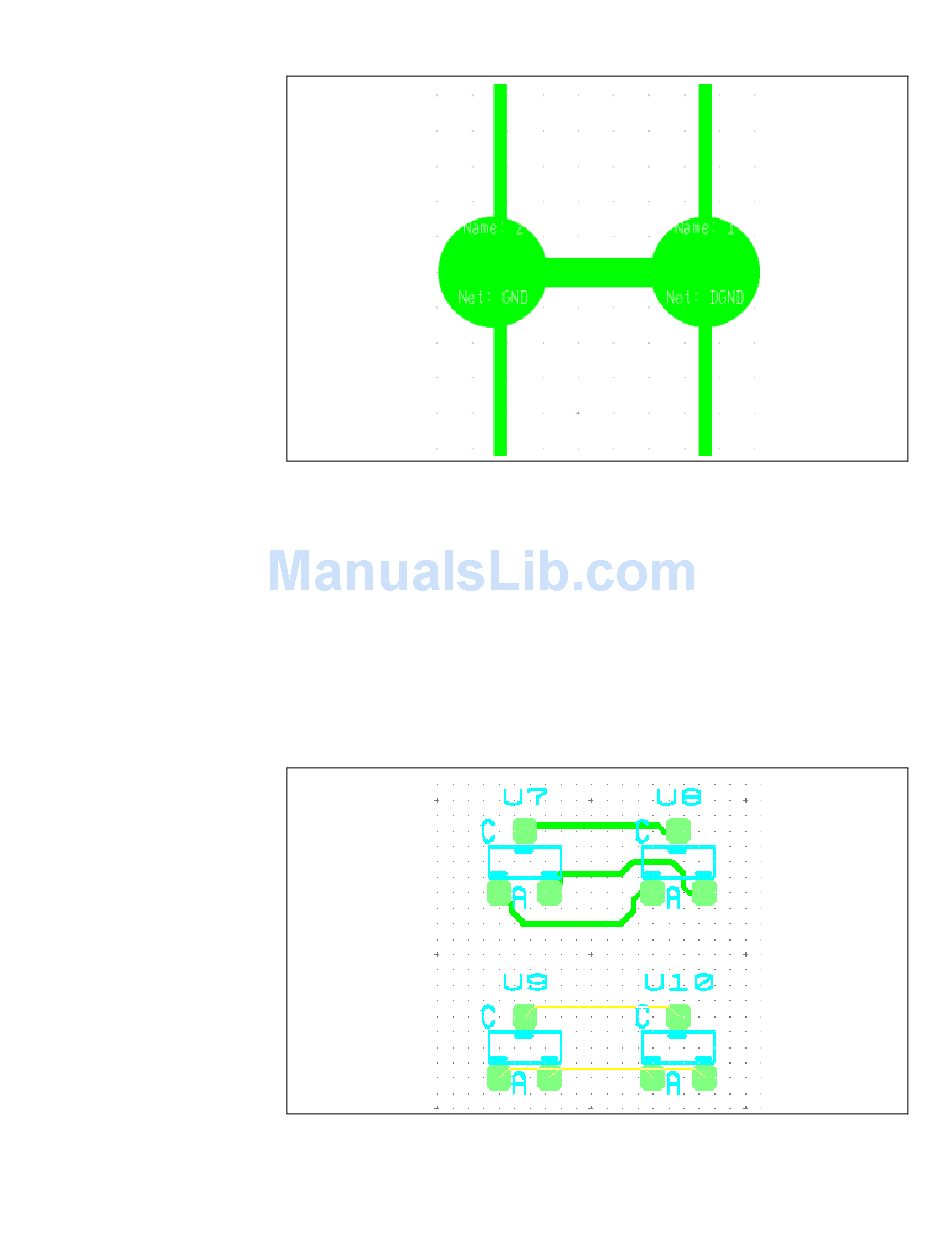

Route the traces for one of the groups. In the example below, Part
Group A consists of U7 and U8. Part Group B consists of U9 and U10.
Chapter 5
Working with
Parts, for more information.
5-33
Working with Traces and Copper
Replicating a Group
NI Ultiboard User Manual
