Draytek Vigor2920n User Manual page 62

nd
2 IP Address
nd
2 Subnet Mask
nd
2 DHCP Server
RIP Protocol Control
Vigor2920 Series User's Guide
Disable.
Type in secondary IP address for connecting to a subnet. (Default:
192.168.2.1/ 24)
An address code that determines the size of the network. (Default:
255.255.255.0/ 24)

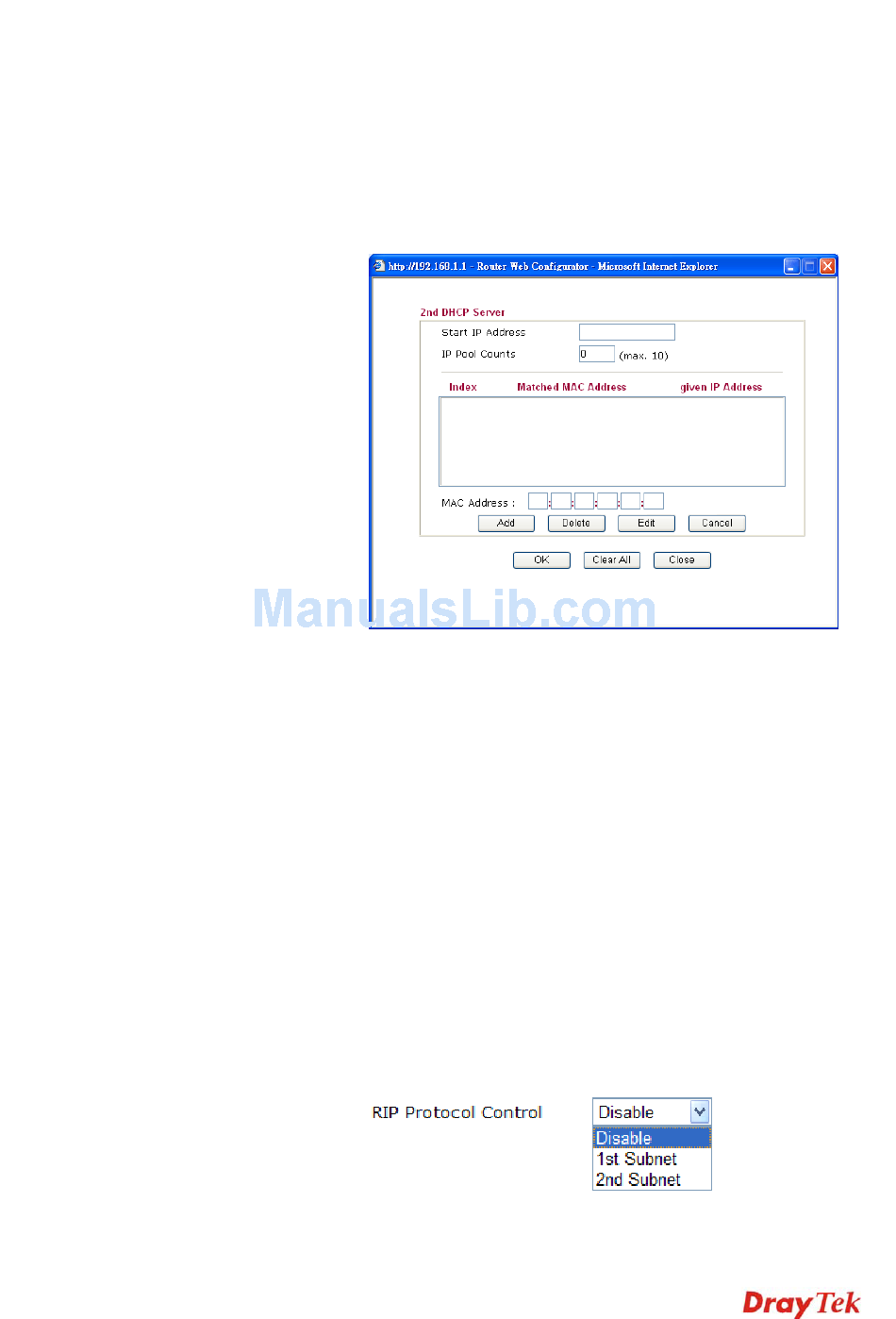

You can configure the router to serve as a DHCP server for the
2nd subnet.
Start IP Address: Enter a value of the IP address pool for the
DHCP server to start with when issuing IP addresses. If the 2nd
IP address of your router is 220.135.240.1, the starting IP
address must be 220.135.240.2 or greater, but smaller than
220.135.240.254.
IP Pool Counts: Enter the number of IP addresses in the pool.
The maximum is 10. For example, if you type 3 and the 2nd IP
address of your router is 220.135.240.1, the range of IP address
by the DHCP server will be from 220.135.240.2 to
220.135.240.11.
MAC Address: Enter the MAC Address of the host one by one
and click Add to create a list of hosts to be assigned, deleted or
edited IP address from above pool. Set a list of MAC Address
nd
for 2 DHCP server will help router to assign the correct IP
address of the correct subnet to the correct host. So those hosts
nd
in 2 subnet won't get an IP address belonging to 1
Disable - deactivates the RIP protocol. It will lead to a stoppage
of the exchange of routing information between routers.
(Default)
1st Subnet - Select the router to change the RIP information of
50
st
subnet.
