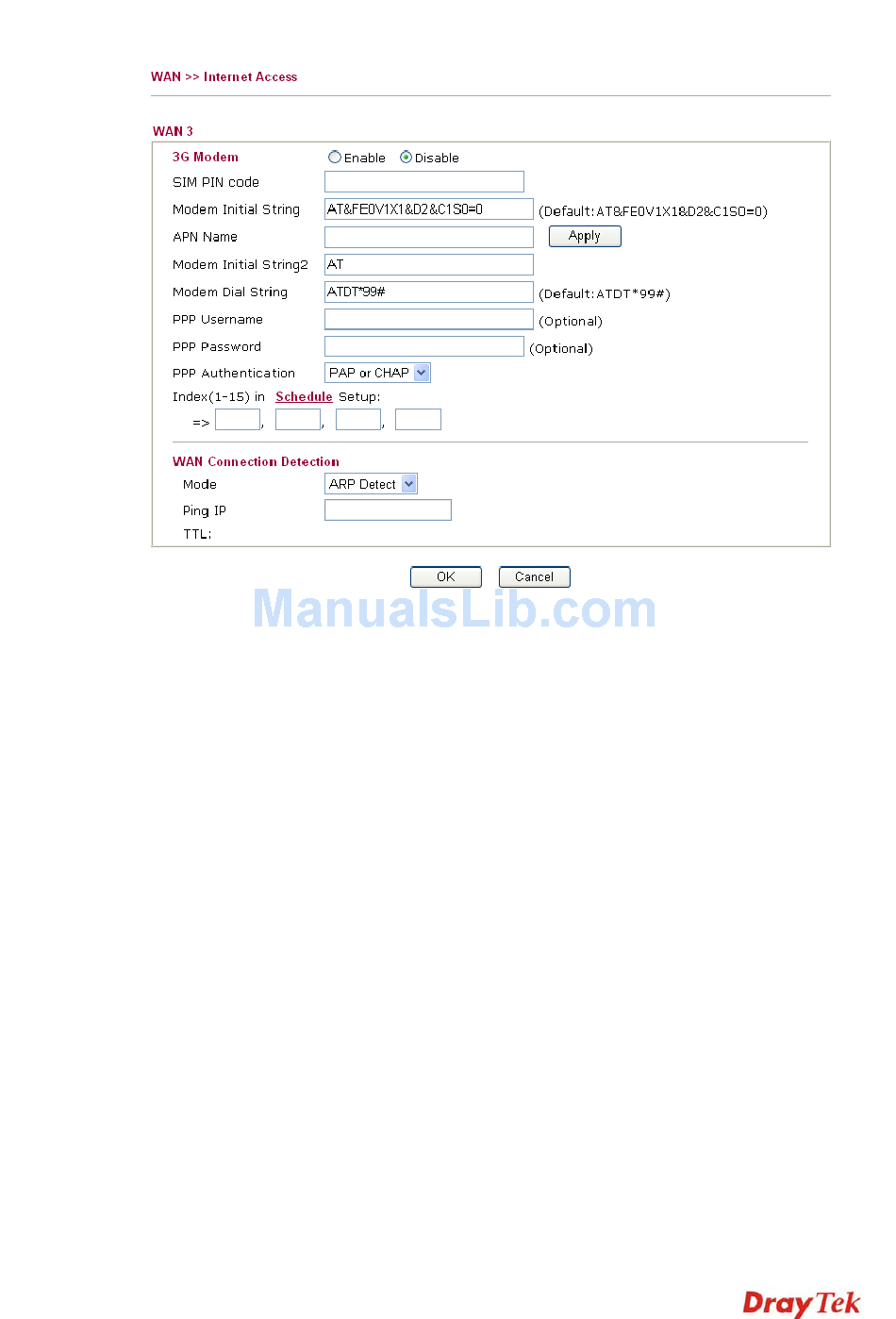

Draytek Vigor2920n User Manual page 130

Enable / Disable
SIM PIN code
Modem Initial String
APN Name
Modem Initial String2
Modem Dial String
PPP Username
PPP Password
Index (1-15)
WAN Connection
Detection
Vigor2920 Series User's Guide
Click Enable for activating this function. If you click Disable,
this function will be closed and all the settings that you adjusted
in this page will be invalid.
Type PIN code of the SIM card that will be used to access
Internet.
Such value is used to initialize USB modem. Please use the
default value. If you have any question, please contact to your
ISP.
APN means Access Point Name which is provided and required
by some ISPs. Type the name and click Apply.
The initial string 1 is shared with APN.
In some cases, users may need another initial AT command to
restrict 3G band or do any special settings.
Such value is used to dial through USB mode. Please use the
default value. If you have any question, please contact to your
ISP.
Type the PPP username (optional).
Type the PPP password (optional).
Set the PCs on LAN to work at certain time interval only. You
may choose up to 4 schedules out of the 15 schedules
pre-defined in Applications >> Schedule setup. The default
setting of this filed is blank and the function will always work.
Such function allows you to verify whether network connection
is alive or not through ARP Detect or Ping Detect.
118
