You can set up to 15 schedules. Then you can apply them to your Internet Access or VPN
and Remote Access >> LAN-to-LAN settings.

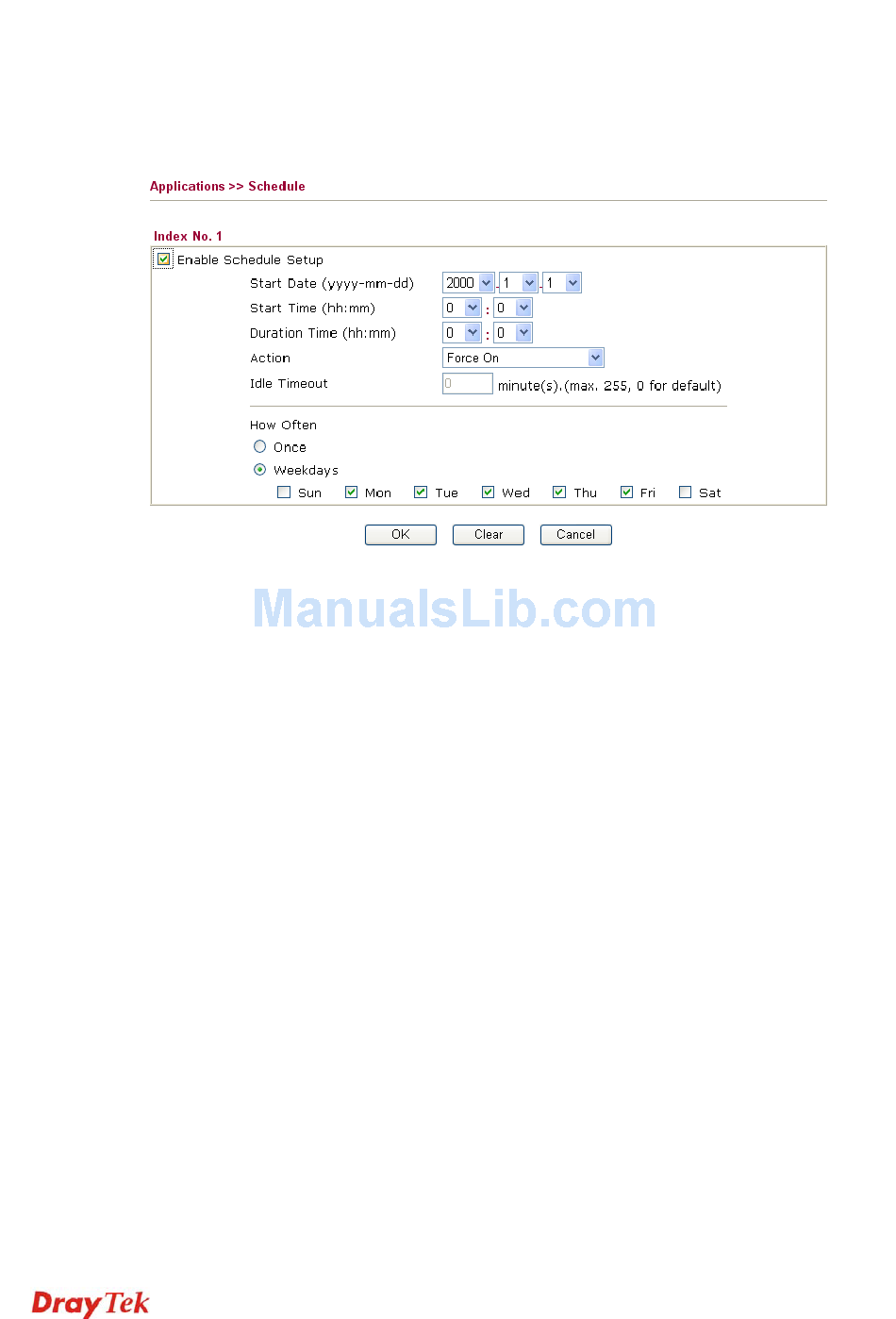

To add a schedule, please click any index, say Index No. 1. The detailed settings of the call
schedule with index 1 are shown below.
Enable Schedule Setup
Start Date (yyyy-mm-dd)
Start Time (hh:mm)
Duration Time (hh:mm)
Action
Idle Timeout
Example
Suppose you want to control the PPPoE Internet access connection to be always on (Force On)
from 9:00 to 18:00 for whole week. Other time the Internet access connection should be
disconnected (Force Down).
Check to enable the schedule.
Specify the starting date of the schedule.
Specify the starting time of the schedule.
Specify the duration (or period) for the schedule.
Specify which action Call Schedule should apply during the
period of the schedule.
Force On -Force the connection to be always on.
Force Down -Force the connection to be always down.
Enable Dial-On-Demand -Specify the connection to be
dial-on-demand and the value of idle timeout should be
specified in Idle Timeout field.
Disable Dial-On-Demand -Specify the connection to be up
when it has traffic on the line. Once there is no traffic over idle
timeout, the connection will be down and never up again
during the schedule.
Specify the duration (or period) for the schedule.
How often -Specify how often the schedule will be applied
Once -The schedule will be applied just once
Weekdays -Specify which days in one week should perform
the schedule.
