D e t a i l s P a g e f o r P
D e t a i l s P a g e f o r P

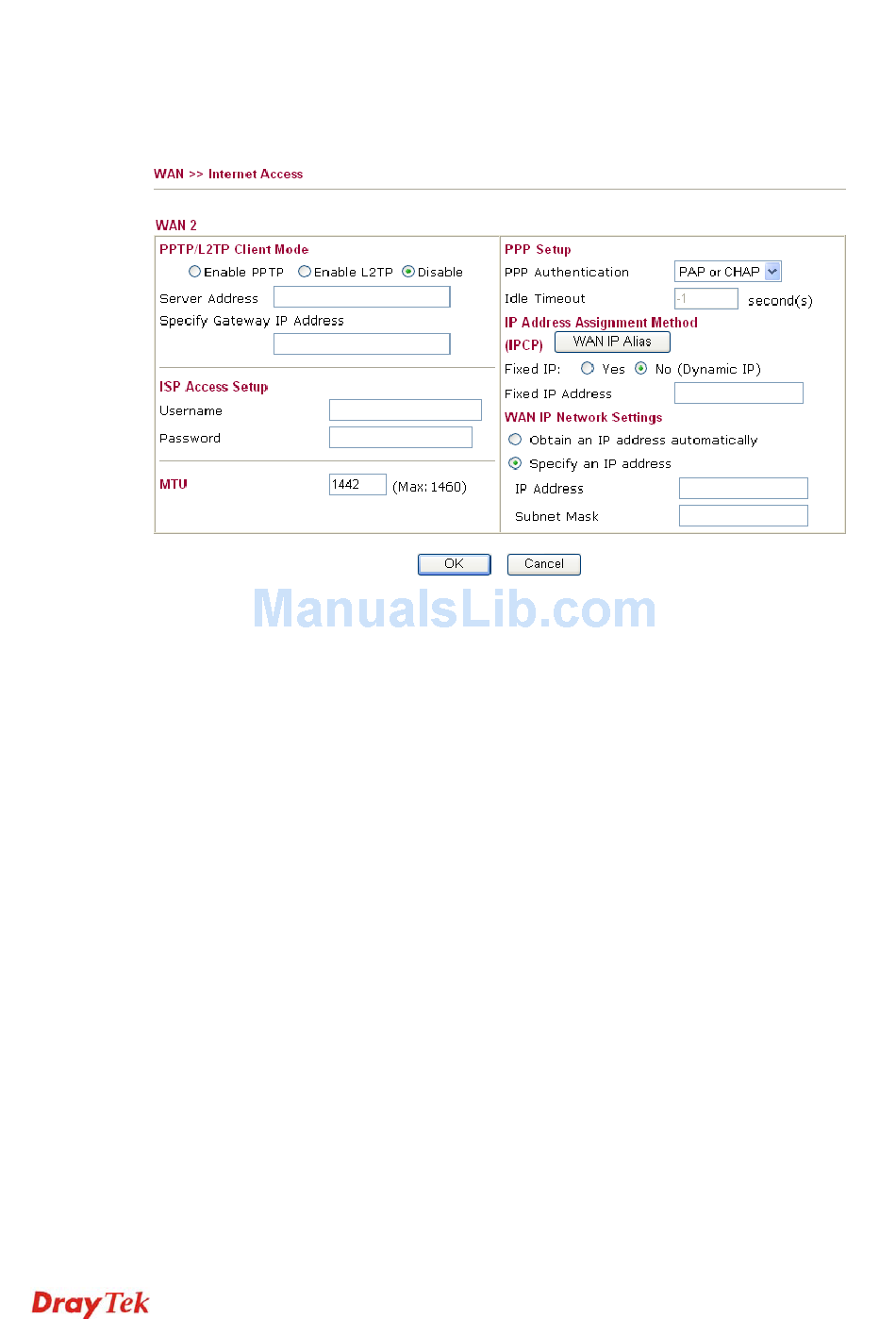

To use PPTP/L2TP as the accessing protocol of the internet, please choose PPTP/L2TP from
Internet Access menu. The following web page will be shown.
PPTP/L2TP Client Mode Enable PPTP- Click this radio button to enable a PPTP client
ISP Access Setup
MTU
PPP Setup
IP Address Assignment
Method(IPCP)
P T P / L 2 T P i n W A N
P T P / L 2 T P i n W A N
to establish a tunnel to a DSL modem on the WAN interface.
Enable L2TP - Click this radio button to enable a L2TP client
to establish a tunnel to a DSL modem on the WAN interface.
Disable – Click this radio button to close the connection
through PPTP or L2TP.
Server Address - Specify the IP address of the PPTP/L2TP
server if you enable PPTP/L2TP client mode.
Specify Gateway IP Address – Specify the gateway IP
address for DHCP server.
Username -Type in the username provided by ISP in this field.
Password -Type in the password provided by ISP in this field.
It means Max Transmit Unit for packet. The default setting is
1442.
PPP Authentication - Select PAP only or PAP or CHAP for
PPP.
Idle Timeout - Set the timeout for breaking down the Internet
after passing through the time without any action.
Fixed IP - Usually ISP dynamically assigns IP address to you
each time you connect to it and request. In some case, your ISP
provides service to always assign you the same IP address
whenever you request. In this case, you can fill in this IP
address in the Fixed IP field. Please contact your ISP before
you want to use this function. Click Yes to use this function
and type in a fixed IP address in the box.
43
1 / W A N 2
1 / W A N 2
Vigor2920 Series User's Guide
