PPP/MP Setup
IP Address Assignment
Method (IPCP)
After finishing all the settings here, please click OK to activate them.
D e t a i l s P a g e f o r S
D e t a i l s P a g e f o r S
For static IP mode, you usually receive a fixed public IP address or a public subnet, namely
multiple public IP addresses from your ISP service providers. In most cases, a Cable service
provider will offer a fixed public IP. If you have a public subnet, you could assign an IP
address or many IP address to the WAN interface.
1442.
PPP Authentication – Select PAP only or PAP or CHAP for
PPP. If you want to connect to Internet all the time, you can
check Always On.
Idle Timeout – Set the timeout for breaking down the Internet
after passing through the time without any action.
Usually ISP dynamically assigns IP address to you each time
you connect to it and request. In some case, your ISP provides
service to always assign you the same IP address whenever you
request. In this case, you can fill in this IP address in the Fixed
IP field. Please contact your ISP before you want to use this
function.

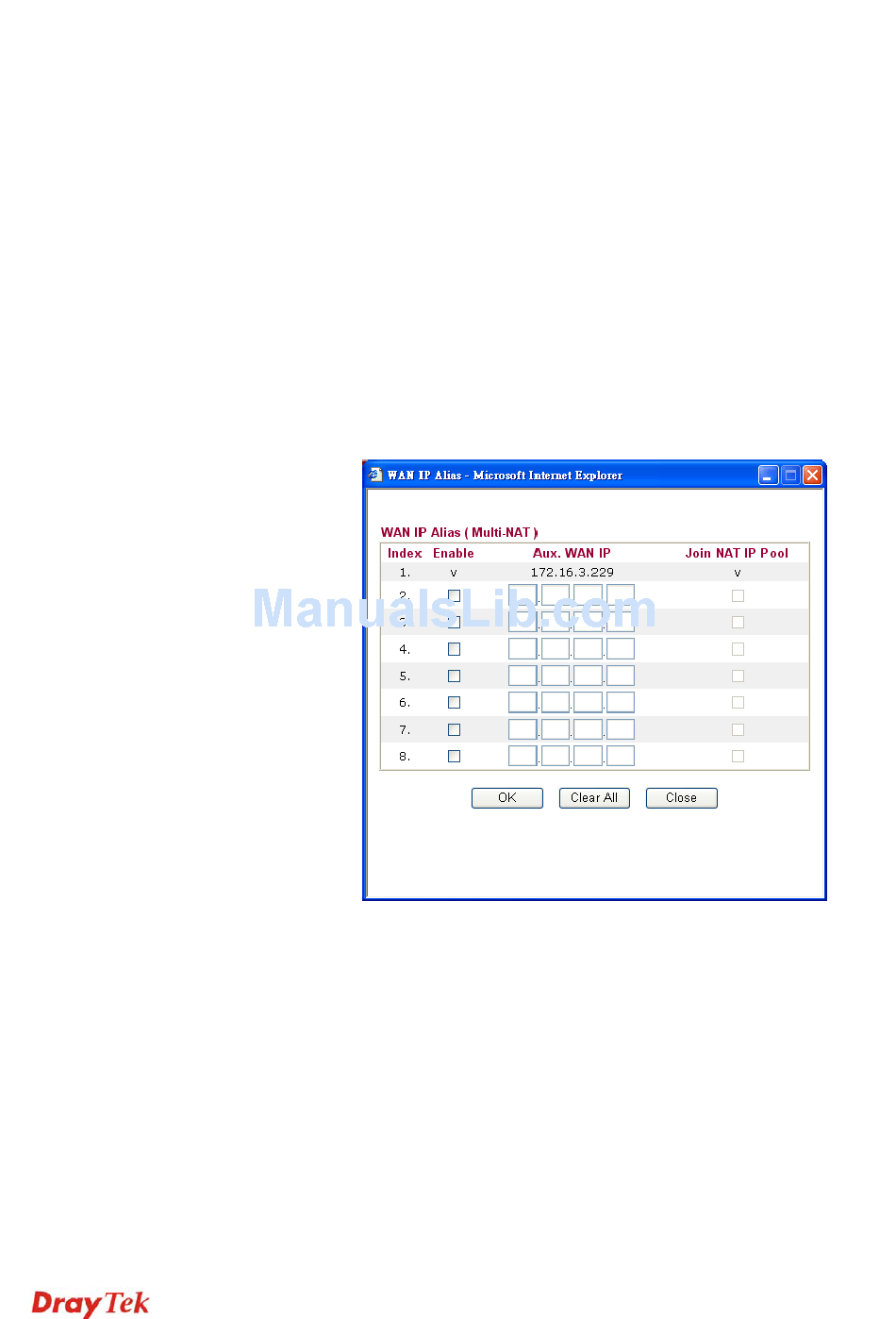

WAN IP Alias - If you have multiple public IP addresses and
would like to utilize them on the WAN interface, please use
WAN IP Alias. You can set up to 8 public IP addresses other
than the current one you are using.
Fixed IP – Click Yes to use this function and type in a fixed IP
address in the box of Fixed IP Address.
Default MAC Address – You can use Default MAC Address
or specify another MAC address by typing on the boxes of
MAC Address for the router.
Specify a MAC Address – Type the MAC address for the
router manually.
t a t i c o r D y n a m i c I
t a t i c o r D y n a m i c I
113
