Connectors, Switches, and LEDs

RJ-45 Patch Panel Connectors

Use Figure 4-3 and Table 4-3 to identify the RJ-45 patch panel connectors.

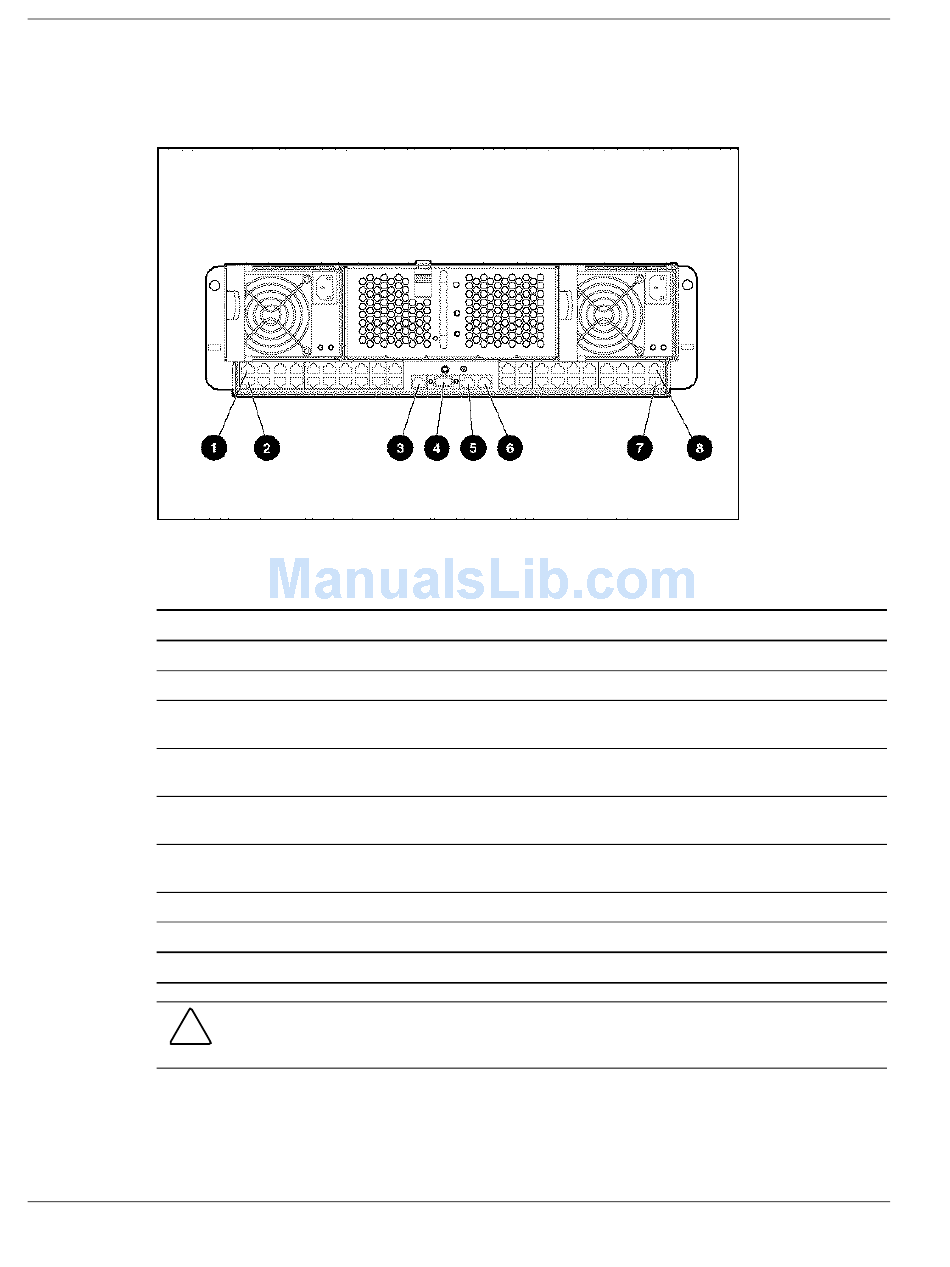

Figure 4-3: RJ-45 patch panel connectors
Table 4-3: RJ-45 Patch Panel Connectors
Item
1
2
3
4
5
6
7
8
* These items denote connectors for the Integrated Administrator module.
4-4
HP CONFIDENTIAL Codename: Kerr Part Number: 249066-004 Last Saved On: 5/12/03 3:07 PM
Description
RJ-45 connector for server blade bay 20 NIC 1
RJ-45 connector for server blade bay 20 NIC 2
Integrated Administrator management connector
(10/100 Ethernet)*
Integrated Administrator console connector (serial)*
Enclosure link (reserved for future use)*
Enclosure link (reserved for future use)*
RJ-45 connector for server blade bay 1 NIC 1
RJ-45 connector for server blade bay 1 NIC 2
CAUTION: See QuickSpecs for supported uses of the enclosure link (RJ-45) connectors on
the Integrated Administrator module. Connecting an unsupported external device to the
enclosure link (RJ-45) connecters may damage your external device.
HP ProLiant BL e-Class System Maintenance and Service Guide
Location
RJ-45 patch panel
RJ-45 patch panel
Integrated Administrator
module
Integrated Administrator
module
Integrated Administrator
module
Integrated Administrator
module
RJ-45 patch panel
RJ-45 patch panel
