QuickSpecs

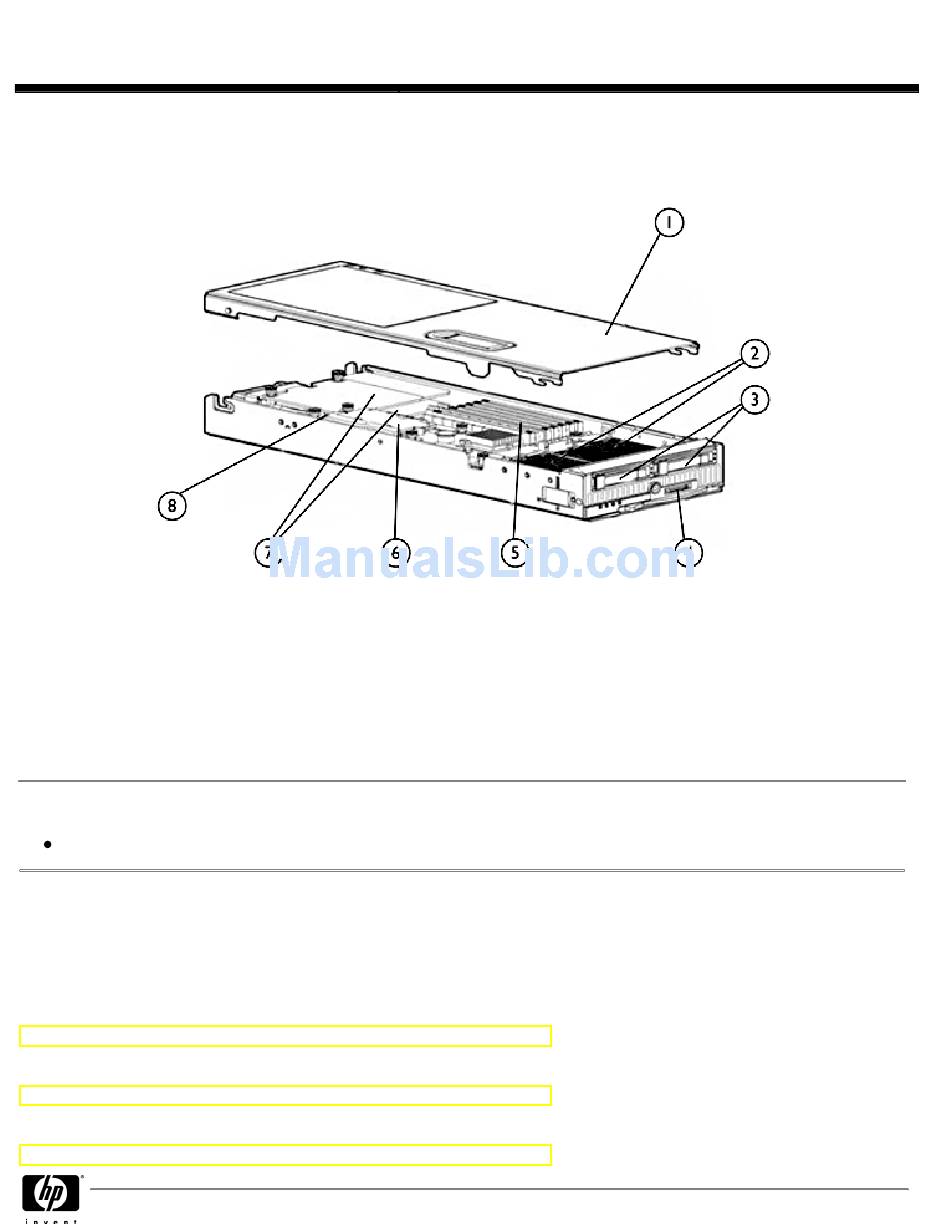

Overview

1. Access Panel

2. Up to two Quad-Core Intel® Xeon® 5000 Sequence

processors

3. Small form factor (SFF) hot-plug drive bays

4. Local I/O connector

What's New

Support for Hot Plug SAS Midline 500GB 6G SAS 7.3K SFF DP MDL Hard Drive

At A Glance

This document covers the HP ProLiant BL460c G5 server blade only. For more information on HP BladeSystems c-Class

Infrastructure and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs:

HP BladeSystem c-Class Enclosures QuickSpecs:

HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html

HP BladeSystem c-Class Interconnect Components QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.html

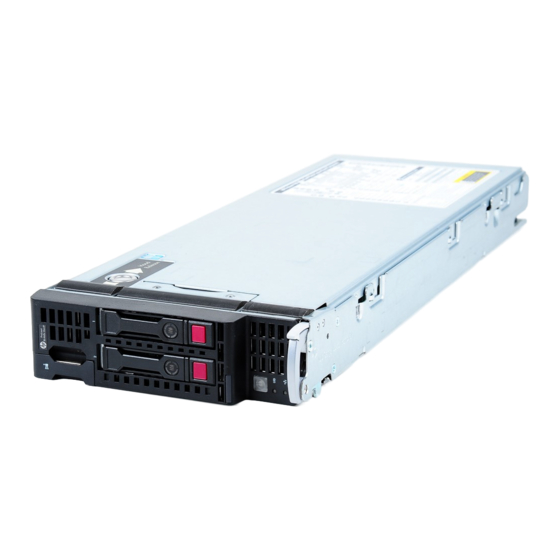

HP ProLiant BL460c G5 Server Blade

DA - 13166

North America — Version 8 — October 9, 2009

HP ProLiant BL460c Generation 5 (G5) Server Blade

5. Eight (8) PC2-5300, Fully Buffered DIMMs (DDR2-667)

Memory Slots

6. HP Smart Array E200i Controller with optional battery-

backed write cache

7. Two Mezzanine slots

8. Internal USB Connector

Page 1

Table of Contents

Summary of Contents for HP ProLiant BL460c

Page 1 At A Glance At A Glance This document covers the HP ProLiant BL460c G5 server blade only. For more information on HP BladeSystems c-Class Infrastructure and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs: HP BladeSystem c-Class Enclosures QuickSpecs: HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html...
Page 2 Enclosures: HP offers three different c-Class server blade enclosures to meet your individual needs: The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 16 ProLiant BL460c G5 servers plugged DA - 13166 North America — Version 8 — October 9, 2009...
Page 3 Overview vertically. The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 8 HP ProLiant BL460c G5 servers plugged horizontally. The HP BladeSystem c3000 tower enclosure is designed with casters for sites without racks and holds up to 8 HP ProLiant BL460c G5 servers plugged vertically.
Page 4: Standard Features
QuickSpecs HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Standard Features Processor Processor Processor Processor Quad-Core Processor Option Kits...
Page 5 OS image from the iSCSI target disk. The iSCSI boot option ROM is supplied by HP at no cost. The additional cost and mezzanine slot usage of an add-in iSCSI HBA card is not required. Additionally, the HP iSCSI boot solution includes scripts to significantly simplify the installation process.
Page 6 Fibre Channel Support Fibre Channel Support Two optional Fibre Channel HBAs are supported by the HP ProLiant BL460c G5. Both mezzanine circuit boards connect directly to the server blade system board. These Fibre Channel HBAs are available via option kits and must be ordered separately.
Page 7 Control suite for Linux, and HP Insight Control suite. See www.hp.com/go/insightcontrol HP Insight Control suites include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
Page 8 NOTE: NOTE: NOTE: NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/supportos our driver download page http://www.hp.com/support/BL460cG5...
Page 9 HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
Page 10 IT and business needs. The HP Care Pack service for HP ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
Page 11 Form Factor Form Factor Form Factor Up to 8 half-height blades supported in HP BladeSystem c3000 Enclosure Up to 16 half-height blades supported in HP BladeSystem c7000 Enclosure DA - 13166 North America — Version 8 — October 9, 2009...
Page 12: Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
Page 13 NOTE: NOTE: NOTE: Integrated HP Smart Array E200i RAID controller supporting RAID 0/1 Controller cache module selection is required for all blades that support hard disk drives. Select either the standard 64 MB module above or the optional 128 MB module below.
Page 14: Core Options
467799-B21 NOTE: NOTE: NOTE: NOTE: The NC532m network adapter card is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 3-4 (HP BladeSystem c3000 Enclosure). NOTE: NOTE: NOTE: NOTE: The NC532m requires a minimum of 2 GB of server memory.
Page 15 QuickSpecs HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Core Options Hard Drives Hard Drives Hard Drives...
Page 16: Additional Options
Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
Page 17 HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Additional Options HP Insight Rapid Deployment software, No Media 1-Server License including 1 year of 452151-B21 24x7 Technical Support and Updates NOTE:...
Page 18 Service and Support Service and Support NOTE: NOTE: NOTE: NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server Offerings Offerings Offerings Offerings blades, cover the server blade and all HP branded hardware options qualified for the (HP Care Pack Services) server, purchased at the same time or afterwards, internal to the server.
Page 19 QuickSpecs HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Memory NOTE: NOTE: NOTE: NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Page 20 QuickSpecs HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Storage 2 x SFF SAS or SATA Hot Plug Hard Drives...
Page 21 QuickSpecs HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Storage External Storage External Storage External Storage...
Page 22: Technical Specifications
12790_na.html HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_na/ 12810_na.html To review typical system power ratings use the HP BladeSystem Power Sizer which is available via the online tool located at URL: http://www.hp.com/go/bladesystem/powercalculator System Inlet Temperature System Inlet Temperature System Inlet Temperature System Inlet Temperature Operating 10°...
Page 23 QuickSpecs HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade HP ProLiant BL460c Generation 5 (G5) Server Blade Technical Specifications HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_na/...
Page 24 Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
