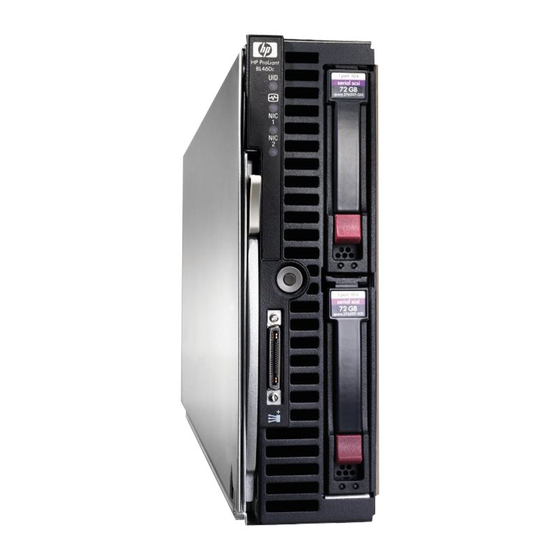

HP ProLiant BL460c Quickspecs

Server blade
Hide thumbs Also See for ProLiant BL460c:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Maintenance and Service Manual
QuickSpecs
Overview

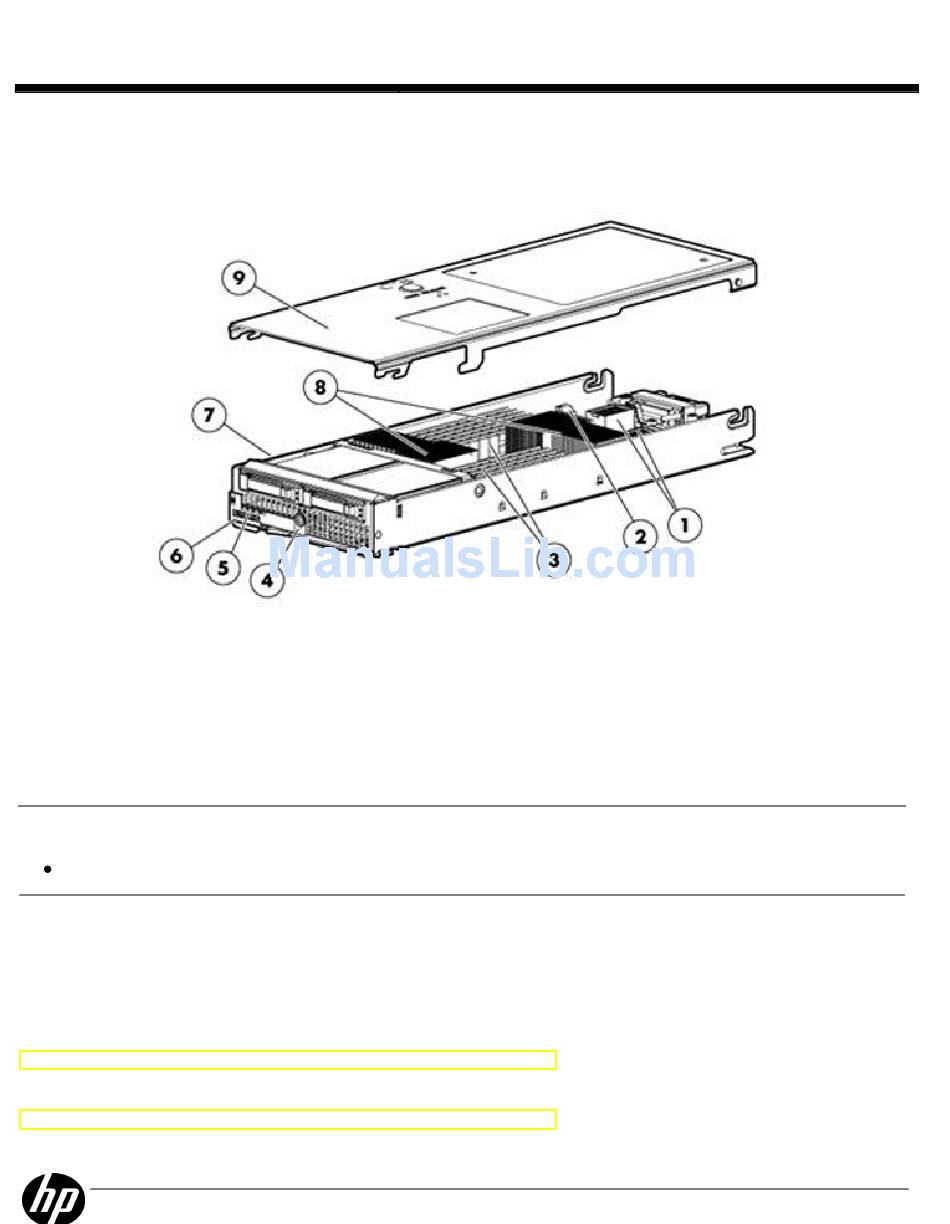

1. Two (2) mezzanine I/O expansion slots
2. Internal USB connector
3. Twelve (12) DDR3 Registered or Unbuffered DIMM Memory
Slots
4. HP Smart Array P410i Controller
What's New
What's New
What's New
What's New
Support for HP 900GB 6G SAS 10K SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive
At A Glance
At A Glance
At A Glance
At A Glance
This document covers the HP ProLiant BL460c G6 server blade only. For more information on HP BladeSystems c-Class Enclosures
and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:
HP BladeSystem c-Class Enclosures QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect and Mezzanine Components:
HP ProLiant BL460c Generation 6 (G6) Server Blade
HP ProLiant BL460c Generation 6 (G6) Server Blade
HP ProLiant BL460c Generation 6 (G6) Server Blade
HP ProLiant BL460c Generation 6 (G6) Server Blade
HP ProLiant BL460c G6 Server Blade
HP ProLiant BL460c G6 Server Blade
HP ProLiant BL460c G6 Server Blade
HP ProLiant BL460c G6 Server Blade
DA - 13238
Worldwide — Version 22 — June 22, 2011
5. Two (2) small form factor (SFF) hot-plug drive bays
6. Local I/O Connector
7. Internal SD card slot
8. Up to two (2) Intel® Xeon® 5500 or 5600 series processors
9. Access Panel
Page 1
