Switches; Front Panel Switches; Server Blade And Enclosure Front Panel Buttons; Server Blade And Enclosure Front Panel Buttons - HP ProLiant BL e-Class System Maintenance And Service Manual

Connectors, Switches, and LEDs

Switches

With system switches, you can enable or disable certain settings or perform advanced
diagnostic procedures.

Front Panel Switches

Use Figure 4-8 and Table 4-6 to determine the location and function of the switches on the
front panel of the enclosure and server blade.

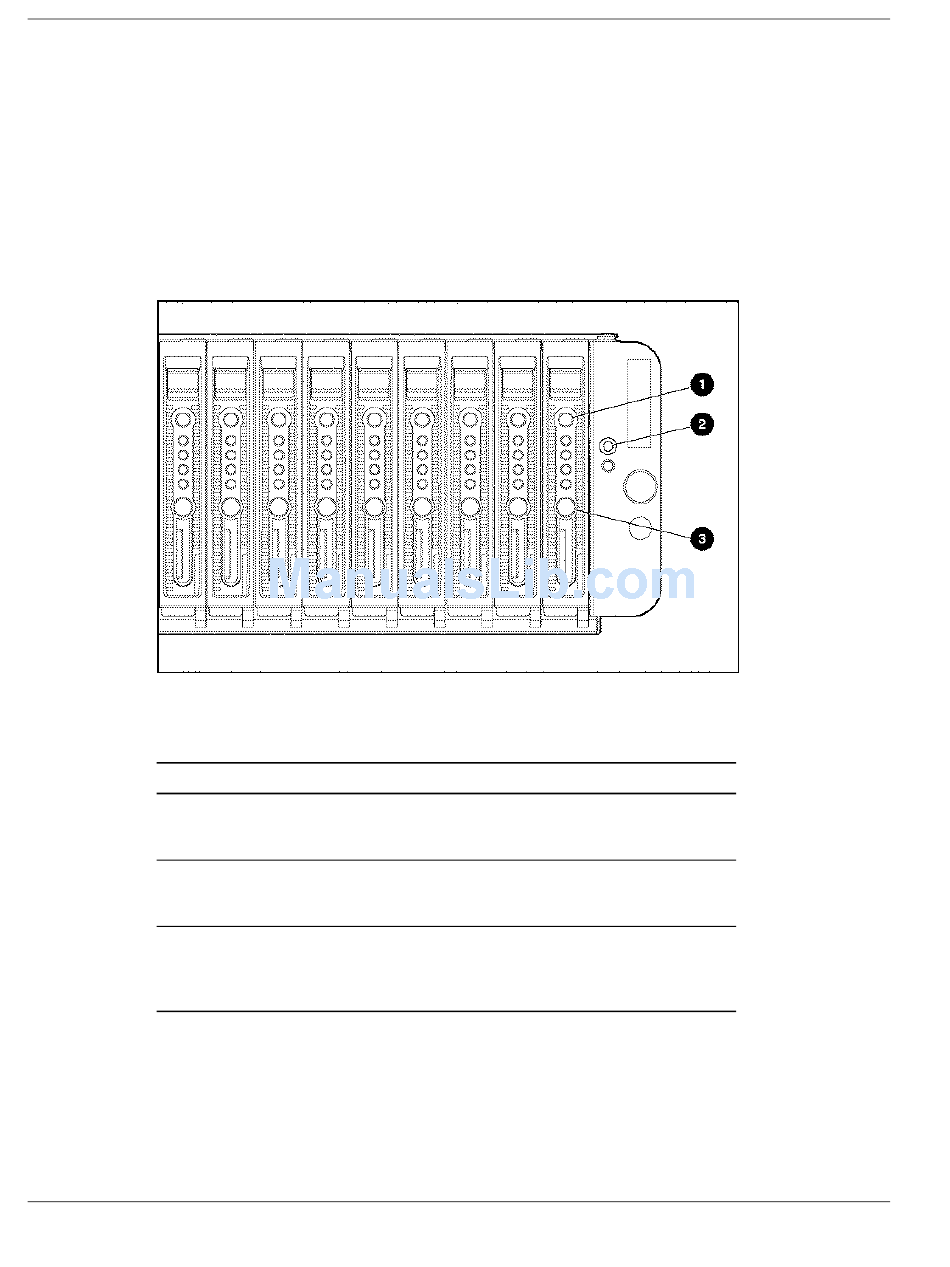

Figure 4-8: Server blade and enclosure front panel buttons
Table 4-6: Server Blade and Enclosure Front Panel Buttons
Item
1
2
3
4-8
HP CONFIDENTIAL Codename: Kerr Part Number: 249066-004 Last Saved On: 5/12/03 3:07 PM
Description
Server blade unit
identification button
Enclosure unit identification
button
Server blade power button
HP ProLiant BL e-Class System Maintenance and Service Guide
Function
Activates the unit identification
LED for easy server blade
identification
Activates the unit identification
LED for easy enclosure
identification
Powers up or down a server
blade. (Hold down for 4 seconds
to perform an emergency
shutdown.)
