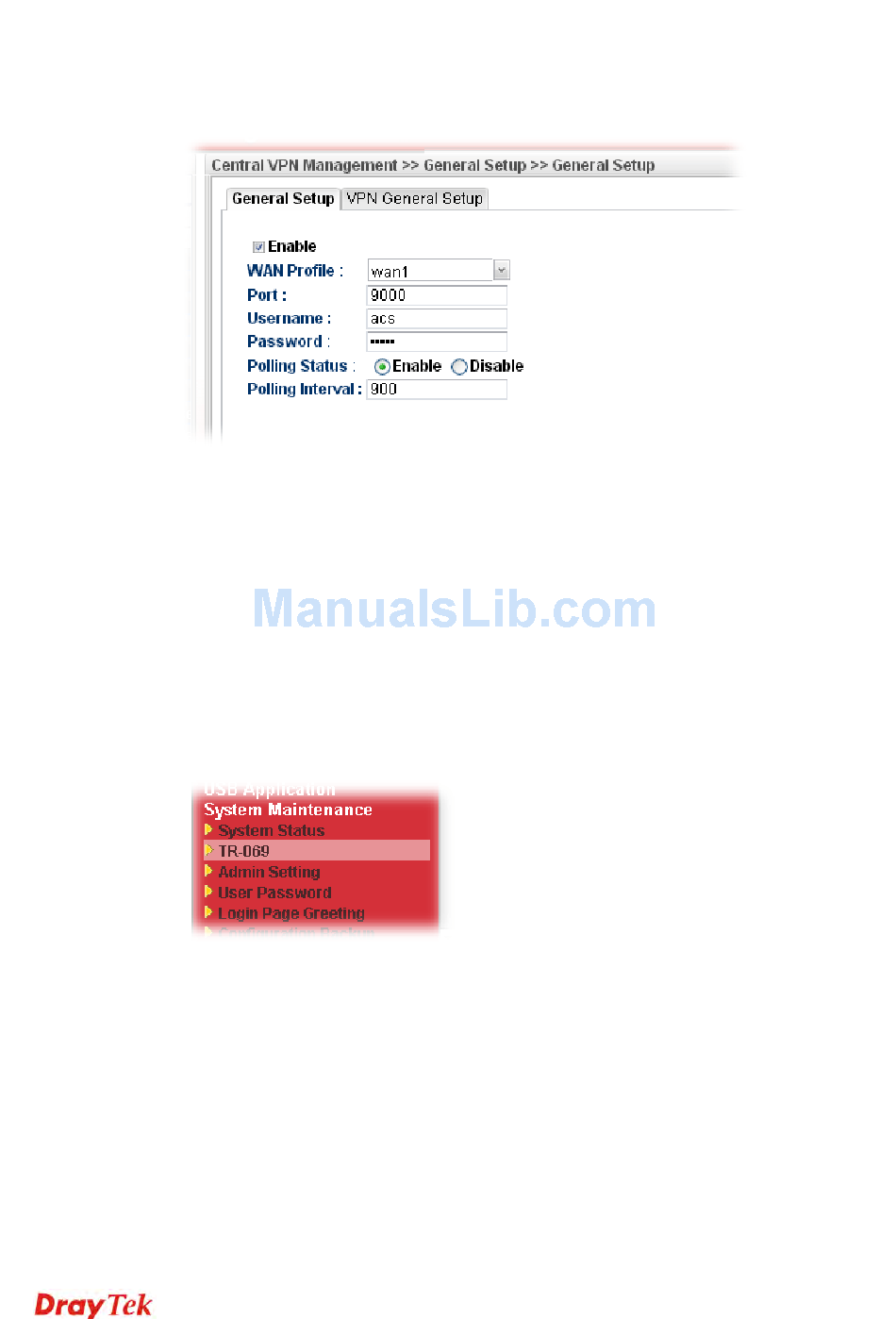

5. Click the General Setup tab. Check the Enable box. Specify the WAN interface from
the WAN Profile drop down list. Type the values for Port, Username, and Password
respectively. Remember the values configured in this page.
6. Click Apply to save the settings.
3 . 7 . 2 C o n f i g u r e S e
3 . 7 . 2 C o n f i g u r e S e
To manage CPEs through Vigor3900, you have to set ACS URL on CPE first and set
username and password for Vigor3900.
1. Connect one CPE (e.g., Vigor2830 series) and get ready to access into the web user
interface of the CPE.
2. Open a web browser (for example, IE, Mozilla Firefox or Netscape) on your computer
and type http://192.168.1.1.
3. Please type username and password on the window. If you don't know the correct
username and password, please consult our dealer to get them.
4. Open System Maintenance >> TR-069.
5. In the field of ACS Server, type the URL (IP address with port number) of Vigor3900:
"http://{IP address of Vigor3900}:{CVM port}/ACSServer/services/ACSServlet"
and type the same Username and Password defined on the page of Central VPN
Management>>General Setup in Vigor3900. Then, click Enable for CPE Client and
then click OK to save the settings.
t t i n g s o n C P E
t t i n g s o n C P E
