Enable
Local IP Object
Remote IP Object
Service Type
Match Type
DSCP
TOS
Traffic Class
H o w t o a d d a Q o S
H o w t o a d d a Q o S

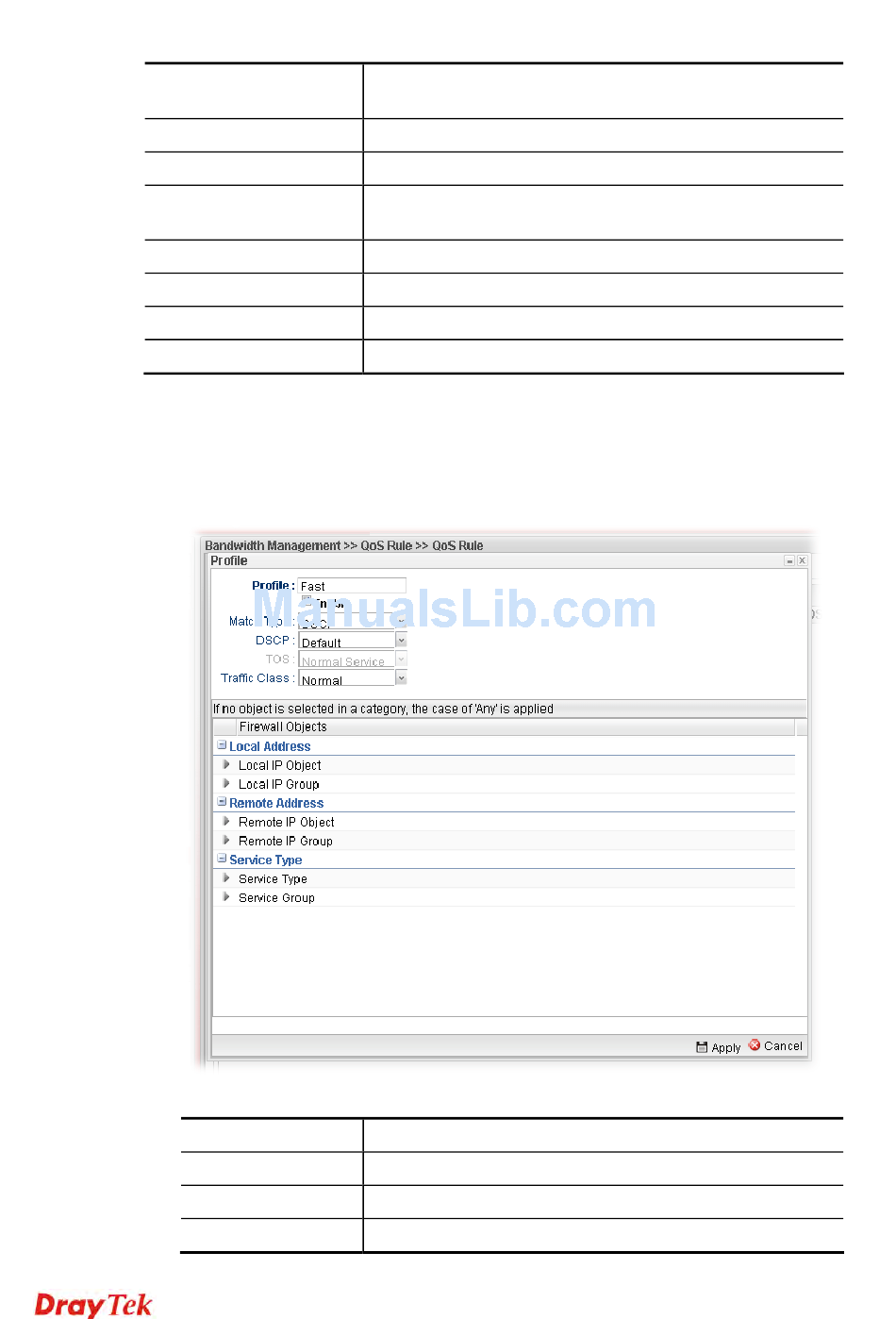

1. Open Bandwidth Management>> QoS Rule.
2. Simply click the Add button.
3. The following dialog will appear.
Available parameters are listed as follows:
Item
Profile
Enable
Match Type
Display the status of the profile. False means disabled; True
means enabled.
Display the source IP address for the filter.
Display the destination IP address for the filter.
Display the service type (e.g., IKE, HTTP, AUTH and etc)
for the filter.
Display the match type (e.g., TOS or DSCP) for the filter.
Display the setting of DSCP.
Display the setting of TOS.
Display the queue number that such filter is categorized.
r u l e p r o f i l e
r u l e p r o f i l e
Description
Type the name of the filter profile.
Check this box to enable such profile.
Use the drop down list to specify a suitable match type.
