Draytek Vigor2832 Series Quick Start Manual

Adsl2/2 + security firewall
Hide thumbs

Advertisement

Quick Links

Download this manual
i

Advertisement

loading

Related Manuals for Draytek Vigor2832 Series

Summary of Contents for Draytek Vigor2832 Series

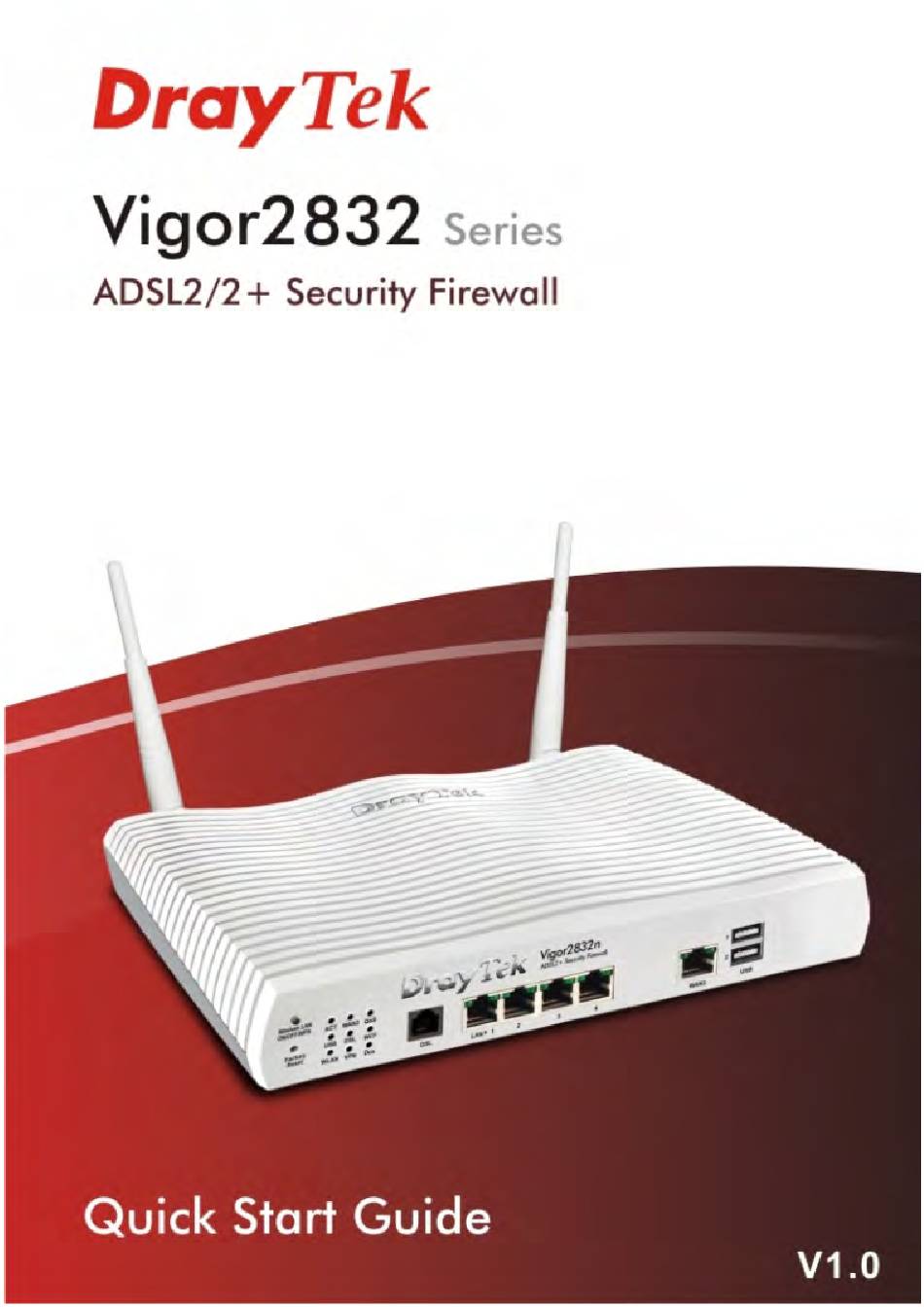

  • Page 2 Vigor2832 Series ADSL2/2+ Security Firewall Quick Start Guide Version: 1.0 Firmware Version: V3.8.3_RC2 (For future update, please visit DrayTek web site) Date: October 16, 2015...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
  • Page 4 County, Taiwan 303 Product: Vigor2832 Series DrayTek Corp. declares that Vigor2832 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
  • Page 5 Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 6: Table Of Contents

    1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 4. Hardware Installation ................... 5 5. Software Configuration ..................6 6. Customer Service ....................11...

  • Page 7: Introduction

    Vigor2832 series is an ADSL2/2+ router. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the performance of VPN greatly, and offers several protocols (such as IPSec/PPTP/L2TP) with up to 32 VPN tunnels.

  • Page 8: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router Quick Start Guide RJ-45 Cat-5 Ethernet Cable Antenna (for “n” model) RJ-11 to RJ-45 Cable (Annex B) RJ-11 to RJ-11 Cable (Annex A) The type of the power adapter depends on the country that the router will be installed.

  • Page 9: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. (Activity) The router is powered off. USB1~USB2 / A USB device is connected and active. Blinking The data is transmitting. WLAN Wireless access point is ready. Blinking Ethernet packets are transmitting over wireless LAN. The WLAN function is inactive.
  • Page 10 Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
  • Page 11 This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router (taking Vigor2832n for example), you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45).

  • Page 12: Hardware Installation

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 13 3. Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
  • Page 14 On the next page as shown below, please select the WAN interface (WAN 1 to WAN4) that you use. If DSL interface is used, please choose WAN1. If Ethernet interface is used, please choose WAN2. If USB interface is used, choose WAN3 or WAN4.
  • Page 15 PPPoE: If you click PPPoE as the protocol, after clicking Next, you will get the following web page. Please manually enter the Username/Password provided by your ISP. Then click Next. PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please type in all the information originally provided by your ISP.
  • Page 16 Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step. DHCP: if you click DHCP, you will get the following page. Simply click Next to continue.

  • Page 17: Customer Service

    Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
