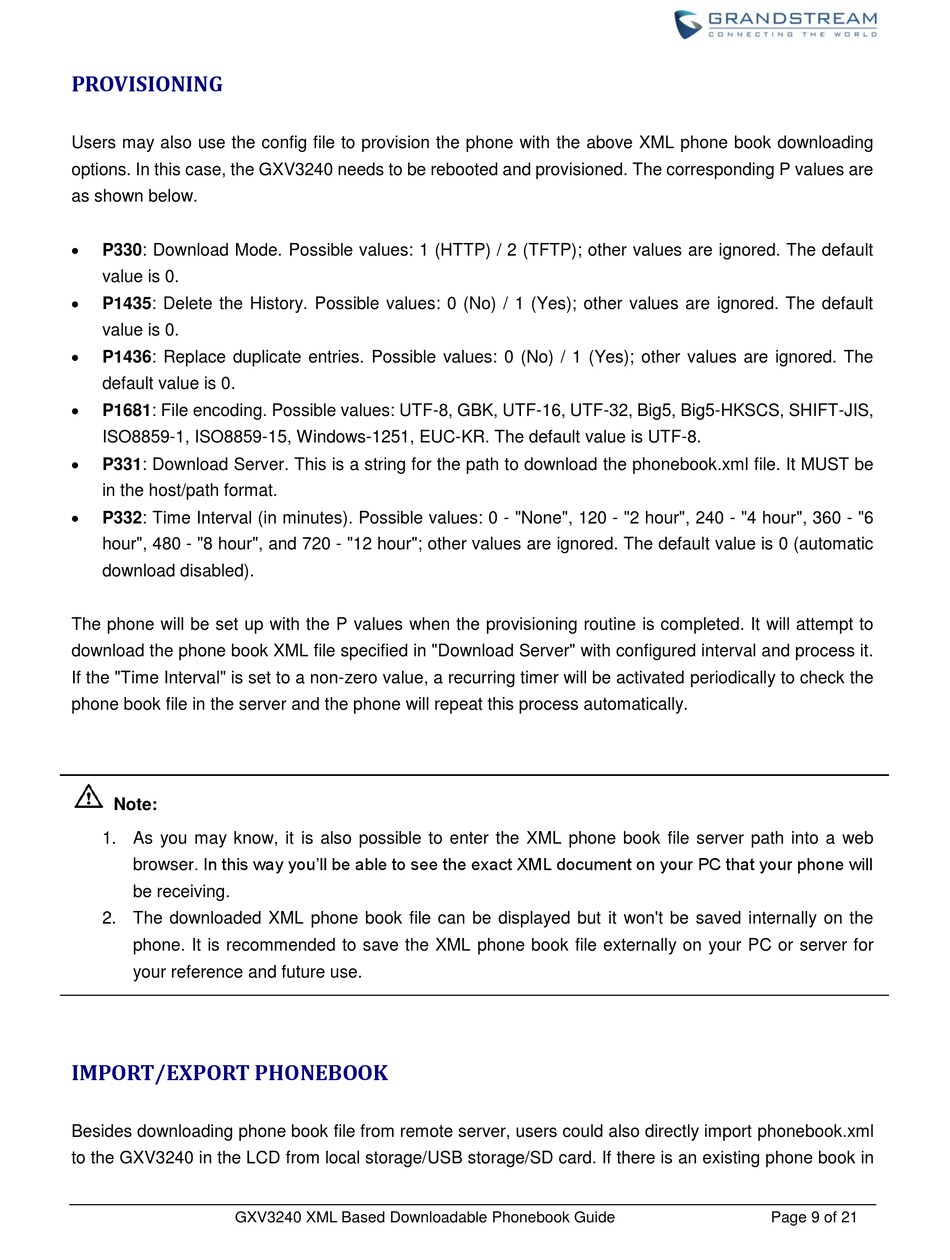

PROVISIONING

Users may also use the config file to provision the phone with the above XML phone book downloading
options. In this case, the GXV3240 needs to be rebooted and provisioned. The corresponding P values are
as shown below.

P330: Download Mode. Possible values: 1 (HTTP) / 2 (TFTP); other values are ignored. The default
value is 0.

P1435: Delete the History. Possible values: 0 (No) / 1 (Yes); other values are ignored. The default
value is 0.

P1436: Replace duplicate entries. Possible values: 0 (No) / 1 (Yes); other values are ignored. The
default value is 0.

P1681: File encoding. Possible values: UTF-8, GBK, UTF-16, UTF-32, Big5, Big5-HKSCS, SHIFT-JIS,
ISO8859-1, ISO8859-15, Windows-1251, EUC-KR. The default value is UTF-8.

P331: Download Server. This is a string for the path to download the phonebook.xml file. It MUST be
in the host/path format.

P332: Time Interval (in minutes). Possible values: 0 - "None", 120 - "2 hour", 240 - "4 hour", 360 - "6
hour", 480 - "8 hour", and 720 - "12 hour"; other values are ignored. The default value is 0 (automatic
download disabled).
The phone will be set up with the P values when the provisioning routine is completed. It will attempt to
download the phone book XML file specified in "Download Server" with configured interval and process it.
If the "Time Interval" is set to a non-zero value, a recurring timer will be activated periodically to check the
phone book file in the server and the phone will repeat this process automatically.
Note:
1. As you may know, it is also possible to enter the XML phone book file server path into a web
browser. In this way you'll be able to see the exact XML document on your PC that your phone will
be receiving.
2. The downloaded XML phone book file can be displayed but it won't be saved internally on the
phone. It is recommended to save the XML phone book file externally on your PC or server for
your reference and future use.

IMPORT/EXPORT PHONEBOOK

Besides downloading phone book file from remote server, users could also directly import phonebook.xml
to the GXV3240 in the LCD from local storage/USB storage/SD card. If there is an existing phone book in
GXV3240 XML Based Downloadable Phonebook Guide Page 9 of 21
