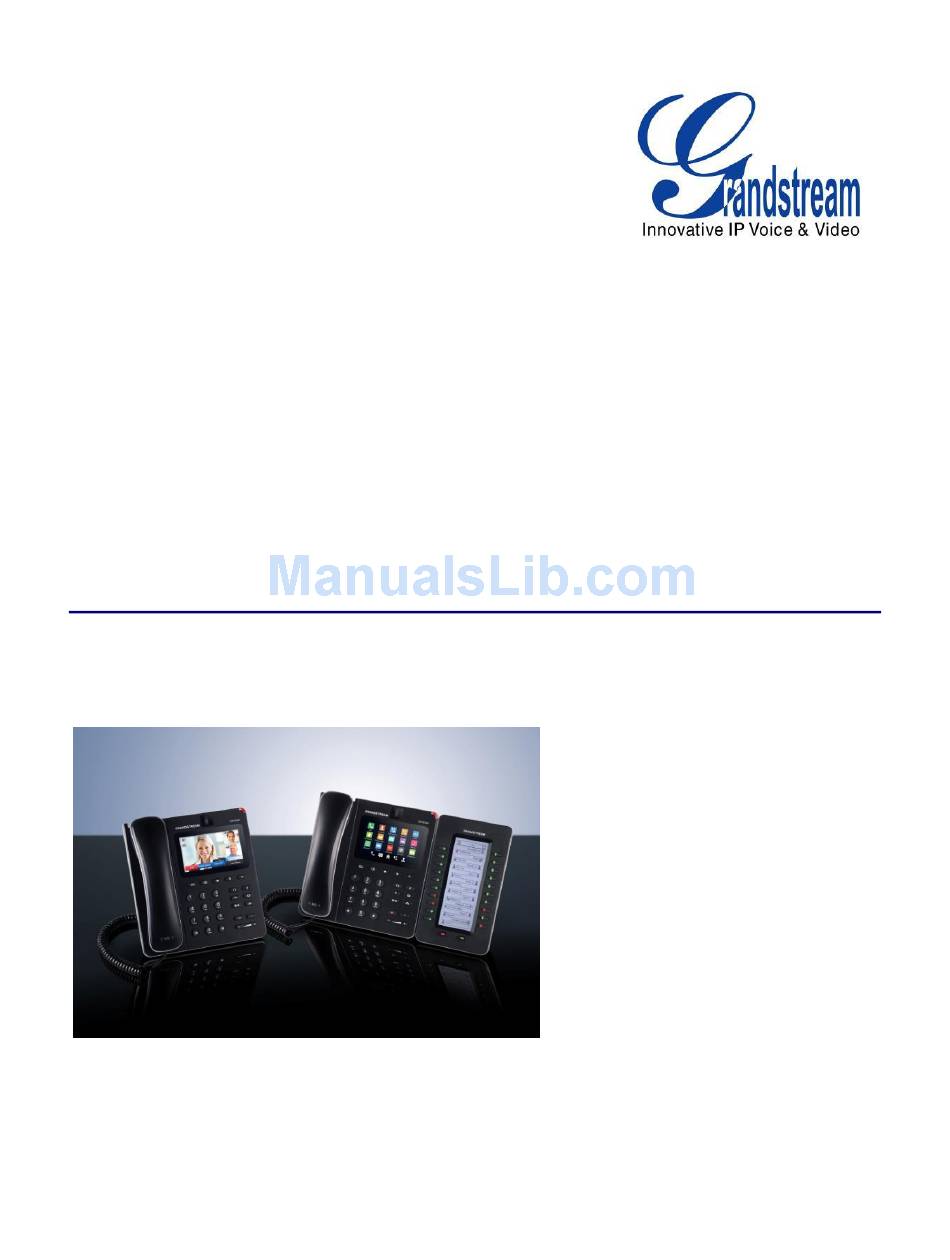

- Page 1 Grandstream Networks, Inc. GXV3240 IP Multimedia Phone for Android Wi-Fi User Guide GXV3240 Wi-Fi User Guide...
-
Page 2: Table Of Contents
GXV3240 Wi-Fi User Guide Index INTRODUCTION ................... 3 CONNECT TO WI-FI ..................4 TURN ON/OFF WI-FI........................... 4 ADD WI-FI NETWORKS ........................6 CONFIGURING WI-FI FROM PROVISIONING ................... 8 WI-FI SETTINGS ................... 9 ACCESS WI-FI SETTINGS ......................... 9 SCAN ..............................9 ADD WI-FI NETWORK MANUALLY .................... - Page 3 Figure 12: GXV3240 Connect to a WPS Network ..................13 Figure 13: GXV3240 Wi-Fi WPS Pin Entry ....................14 Figure 14: GXV3240 Connected to a Wi-Fi WPS Pin Entry Network ............14 Figure 15: GXV3240 Wi-Fi Direct: Search Available Device ..............15 Figure 16: GXV3240 Wi-Fi Direct: Connected ..................
-
Page 4: Gxv3240 Wi-Fi User Guide
The GXV3240 has integrated Wi-Fi that supports 802.11b/g/n for network flexibility. This User Guide describes how to use the Wi-Fi function to connect the GXV3240 into your local network. To learn more about GXV3240's basic and advanced features, please visit link http://www.grandstream.com/support... -
Page 5: Connect To Wi-Fi
Wi-Fi is supported and built-in on the GXV3240. GXV3240 can be connected to network if Wi-Fi is available within the area. By default, Wi-Fi is turned off on the GXV3240. Users can turn on Wi-Fi from web UI, LCD settings->system settings or provisioning. -
Page 6: Figure 2: Turn On/Off Wi-Fi From Settings
Figure 2: Turn On/Off Wi-Fi From Settings To turn on/off Wi-Fi from web UI 1. Log in the GXV3240 web UI. 2. Go to Maintenance->Wi-Fi Settings: Wi-Fi Basics. 3. Click on "Enable" or "Disable" for "Wi-Fi Function". Figure 3: Turn On/Off Wi-Fi From Web UI... -
Page 7: Add Wi-Fi Networks
ADD WI-FI NETWORKS Add Wi-Fi networks from LCD 1. Once Wi-Fi is turned on, GXV3240 will automatically start the scanning within the range. 2. On GXV3240 idle screen, press MENU softkey on the bottom of the LCD. 3. Select Settings 4. -
Page 8: Figure 5: Gxv3240 Connect To Wi-Fi
8. Once authenticated, the phone will obtain IP address via DHCP and connect to the Wi-Fi network. 9. After successfully connected, the password will be remembered. When the GXV3240 has Wi-Fi turned on in the future, it will connect to this network if the SSID is within the range. -
Page 9: Configuring Wi-Fi From Provisioning
P7830 This is the WEP default key. The maximum length allowed is 64 characters. For more details about the GXV3240 configuration template and provisioning, please refer to the configuration tool, templates and documentation in the following link: http://www.grandstream.com/support/tools GXV3240 Wi-Fi User Guide... -
Page 10: Wi-Fi Settings
WI-FI SETTINGS ACCESS WI-FI SETTINGS 1. When the GXV3240 is on idle screen, press MENU softkey on the bottom of the LCD. 2. Select Settings 3. Select Wireless & Networks. 4. Tap on Wi-Fi Settings. A list of available Wi-Fi network within the range will be displayed in "Wi-Fi Settings"... -
Page 11: Add Wi-Fi Network Manually
If the Wi-Fi network SSID doesn't show up in the scan list, or users would like to set up advanced options for the Wi-Fi network, users could add the Wi-Fi network manually under "Wi-Fi Settings". 1. When the GXV3240 is on idle screen, press MENU softkey on the bottom of the LCD. -
Page 12: Wps Push Button
Under "Wi-Fi Settings" menu, press MENU button and select "WPS Push Button" for an easy and secure Wi-Fi network setup. 1. When the GXV3240 is on idle screen, press MENU icon on the bottom of the LCD. 2. Select Settings 3. -
Page 13: Figure 10: Gxv3240 Wps Available Network
5. On the Wi-Fi Settings screen, tap on MENU button and select " WPS Push Button". Figure 11: GXV3240 Wi-Fi WPS Push Button 6. Check your router and press the Wi-Fi Protected Setup (WPS) button on the router to make a connection automatically. -
Page 14: Wps Pin Entry
Under "Wi-Fi Settings" menu, press MENU button and select "WPS Pin Entry" for an easy and secure Wi-Fi network setup. 1. When the GXV3240 is on idle screen, press MENU softkey on the bottom of the LCD. 2. Select Settings 3. -
Page 15: Figure 13: Gxv3240 Wi-Fi Wps Pin Entry
7. Users must typt the PIN numbers to the router and make a connection. After for a while, the phone will display the connection to a network. Figure 14: GXV3240 Connected to a Wi-Fi WPS Pin Entry Network GXV3240 Wi-Fi User Guide... -
Page 16: Wi-Fi Direct
Wi-Fi Direct devices. To share data and sync files using Wi- Fi Direct, users must download and install sharing applications (3rd party application) to send/receive files. To connect Wi-Fi Direct: 1. When the GXV3240 is on idle screen, press MENU softkey on the bottom of the LCD. 2. Select Settings 3. -
Page 17: Advanced Settings
Under "Wi-Fi Settings" menu, press MENU button and select "Advanced". Users will see the following advanced settings related to Wi-Fi connections. Figure 17: GXV3240 Wi-Fi Settings - Advanced Network Notification. If enabled, the phone will show notification on the top status bar indicating an open network is... -
Page 18: Figure 18: Gxv3240 Wi-Fi Advanced Settings
If enabled, Wi-Fi network won't be used unless the connection is good. By default it's disabled. MAC address. This shows the MAC address of the phone. IP address This shows the IP address of the phone from Wi-Fi network. Figure 18: GXV3240 Wi-Fi Advanced Settings GXV3240 Wi-Fi User Guide Page 17 of 18... -
Page 19: Portable Hotspot
PORTABLE HOTSPOT The GXV3240 can be served as a Wi-Fi access point for other devices to connect to wireless network if hotspot is turned on. 1. On the GXV3240 idle screen, press MENU softkey on the bottom of the LCD.
