Grandstream Networks, Inc.
TM

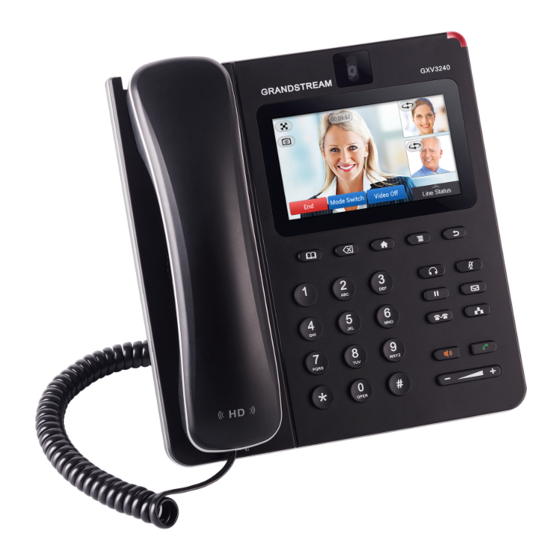

GXV3240 IP Multimedia Phone for Android
LDAP User Guide
GXV3240 LDAP User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXV3240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grandstream Networks GXV3240

Summary of Contents for Grandstream Networks GXV3240

  • Page 1 Grandstream Networks, Inc. GXV3240 IP Multimedia Phone for Android LDAP User Guide GXV3240 LDAP User Guide...

  • Page 2: Table Of Contents

    ADD LDAP CONTACTS TO LOCAL PHONEBOOK ................16 USE LDAP WITH UCM6100 SERIES IPPBX ..........18 UCM6100 SERIES IPPBX LDAP SERVER ..................18 GXV3240 LDAP CONFIGURATION FOR UCM6100 DEFAULT LDAP PHONEBOOK ...... 19 GXV3240 LDAP User Guide Page 1 of 21...
  • Page 3 Figure 10: GXV3240 LDAP Book - Search Contacts Using Onscreen Keyboard ........15 Figure 11: GXV3240 LDAP Book - Search Result..................15 Figure 12: GXV3240 LDAP Book - Add Single LDAP Contact to Local Phonebook ......... 16 Figure 13: GXV3240 LDAP Book - Add Multiple LDAP Contacts to Local Phonebook ......17 Figure 14: UCM6100 LDAP Server ......................

  • Page 4: Gxv3240 Ldap User Guide

    RFCs (Request for Comments) from IETF (Internet Engineering Task Force). LDAP is a client-server protocol and the GXV3240 can be used as LDAP client to access the directory and search contacts remotely from the LDAP server. This User Guide describes how to use the LDAP directory on the GXV3240 and a sample configuration is provided with the built-in LDAP server on the Grandstream UCM6100 series IPPBX.

  • Page 5: Requirement

     A properly installed and configured LDAP server The LDAP configuration on the GXV3240 relies on the LDAP server setup in order to retrieve the stored contacts information. Therefore, before starting using the LDAP directory on the GXV3240, please make sure the LDAP server is properly installed and configured.

  • Page 6: Ldap Configuration On Gxv3240

    DN. The LDAP client needs to be properly configured to access the LDAP server, perform search within the DN and retrieve the result. On the GXV3240, LDAP configurations can be done via web UI, LCD or configuration file provisioning. This section describes how to configure LDAP settings on the GXV3240 via these three methods.
  • Page 7  - The entered string is used as prefix number and "Mobile" field set.  (sipAccount=%) This returns all the records which have the "sipAccount" field starting with the entered searching number. GXV3240 LDAP User Guide Page 6 of 21...

  • Page 8: Figure 1: Gxv3240 Web Ui Ldap Settings

    The default setting is Disable Call disabled. ] shows the GXV3240 web UI LDAP settings web page, with all Figure 1: GXV3240 Web UI LDAP Settings the options set to default value. GXV3240 LDAP User Guide Page 7 of 21...

  • Page 9: Configure Ldap Via Lcd

    Figure 1: GXV3240 Web UI LDAP Settings CONFIGURE LDAP VIA LCD 1. On the GXV3240 idle screen, tap on onscreen menu icon to access the phone's menu. GXV3240 LDAP User Guide Page 8 of 21...

  • Page 10: Figure 2: Gxv3240 Idle Screen

    Figure 2: GXV3240 Idle Screen 2. In the menu, tap on "LDAP Book" icon to launch LDAP Book application. Figure 3: GXV3240 Menu 3. In the LDAP Book application, tap on the setting icon on the upper right of the screen. LDAP configuration options will display.

  • Page 11: Figure 4: Gxv3240 Ldap Book - Settings

    Figure 4: GXV3240 LDAP Book - Settings Figure 5: GXV3240 LDAP Settings via LCD 4. Select the option and tap on the input field to configure the LDAP settings using the onscreen keyboard (e.g., input server address 192.168.0.44 in the figure below). Please refer to [ Table 1: LDAP ] for detailed description and example for each option.

  • Page 12: Configure Ldap Via Configuration File

    Figure 6: GXV3240 LDAP Settings - Configure Server Address CONFIGURE LDAP VIA CONFIGURATION FILE The following table shows the P parameters for the LDAP configuration options. Assign the proper value for each P parameters in the configure template and provisioning the phone. After successful provisioning, the phone will boot up with LDAP configuration set up and LDAP will be ready to use.
  • Page 13 LDAP Lookup For Incoming Calls P8035 P8035=0 - for "Disable" (default value) For more details about the GXV3240 configuration template and provisioning, please refer to the configuration tool, templates and documentation in the following link: http://www.grandstream.com/support/tools GXV3240 LDAP User Guide...

  • Page 14: Use Gxv3240 Ldap Book

    USE GXV3240 LDAP BOOK SEARCH CONTACTS IN LDAP BOOK Once the LDAP configuration is done, users can start using the LDAP Book application on the GXV3240 to search directory information from the LDAP server. 1. On the GXV3240 idle screen, tap on onscreen menu icon to access the phone's menu.

  • Page 15: Figure 8: Gxv3240 Menu

    3. Tap on icon and a search bar will be displayed on the top or the LDAP book application. Figure 9: GXV3240 LDAP Book - Search 4. Enter number using the keypad, the related contacts information returned from the searching result in the LDAP server will be automatically displayed under the search bar.

  • Page 16: Figure 10: Gxv3240 Ldap Book - Search Contacts Using Onscreen Keyboard

    Figure 10: GXV3240 LDAP Book - Search Contacts Using Onscreen Keyboard Tap on Back button to return to the previous screen. The result returned from LDAP server will be displayed under the search bar. Figure 11: GXV3240 LDAP Book - Search Result 6.

  • Page 17: Add Ldap Contacts To Local Phonebook

    ADD LDAP CONTACTS TO LOCAL PHONEBOOK After the LDAP searching result is returned to the GXV3240 as shown in [Figure 11: GXV3240 LDAP Book - , users can use the following two methods to add the contacts to local phonebook.

  • Page 18: Figure 13: Gxv3240 Ldap Book - Add Multiple Ldap Contacts To Local Phonebook

    Figure 13: GXV3240 LDAP Book - Add Multiple LDAP Contacts to Local Phonebook GXV3240 LDAP User Guide Page 17 of 21...

  • Page 19: Use Ldap With Ucm6100 Series Ippbx

    Figure 14: UCM6100 LDAP Server 3. The UCM6100 has a default LDAP Phonebook with phonebook DN "ou=pbx,dc=pbx,dc=com", which contains all the extensions created on the PBX. Tap on icon to check the phonebook entries. GXV3240 LDAP User Guide Page 18 of 21...

  • Page 20: Gxv3240 Ldap Configuration For Ucm6100 Default Ldap Phonebook

    Figure 16: UCM6100 LDAP Default Phonebook Entries GXV3240 LDAP CONFIGURATION FOR UCM6100 DEFAULT LDAP PHONEBOOK The GXV3240 can be configured as shown in the figure below in order to use the default LDAP phonebook on the UCM6100 LDAP server described in section [...

  • Page 21: Figure 17: Configure Gxv3240 Ldap With Ucm6100 Ldap Default Phonebook

    Figure 17: Configure GXV3240 LDAP With UCM6100 LDAP Default Phonebook Users could also change the above filters and attributes as preferred according to the LDAP client sample configuration from the UCM6100 web UI->Settings->LDAP Server. GXV3240 LDAP User Guide Page 20 of 21...

  • Page 22: Figure 18: Ldap Client Configuration Sample From Ucm6100

    Figure 18: LDAP Client Configuration Sample From UCM6100 GXV3240 LDAP User Guide Page 21 of 21...
