response with XML content in BODY, it displays the information.
Two types of XML API architecture are introduced below, depending on whether the transaction is via LAN
or Internet.
1. A transaction in the LAN may exchange information in the following manner. The GXV3240 sends a
request to the web server via HTTP/TFTP and waits for a response with the XML contents. The web
server will handle the request and communicate with the application server to get the information for
the XML phone book content display. The following figure shows downloading XML phone book file via
HTTP within a LAN.
2. If the above Web Server accesses Internet, it could interact with outside web server and respond with
real-time content to the GXV3240.
GXV3240 XML Based Downloadable Phonebook Guide

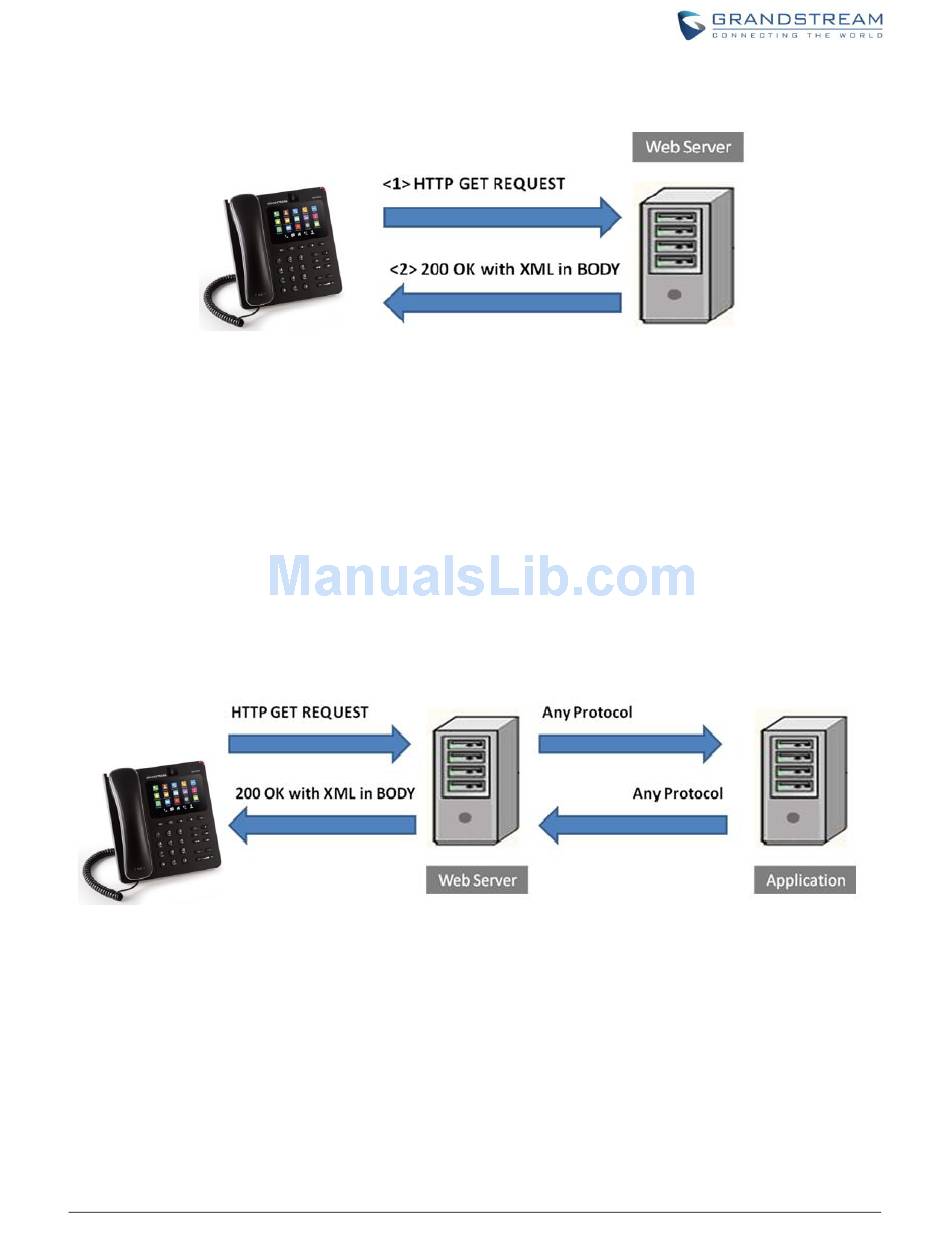

Figure 1: GXV3240 XML API via HTTP

Figure 2: GXV3240 XML API Structure 1
