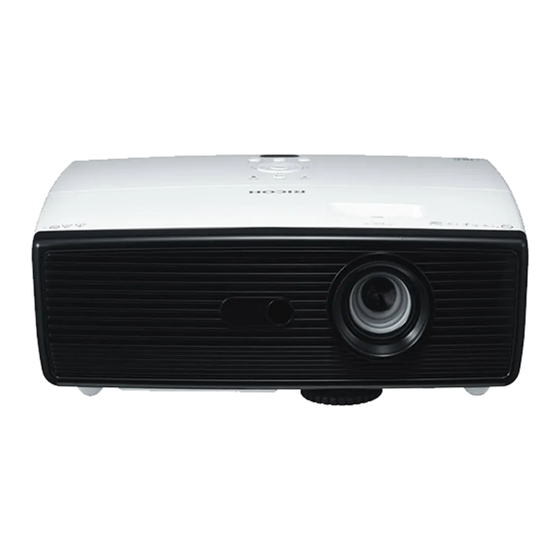

Ricoh PJX5140 User Manual
  1. Manuals
  2. Brands
  3. Ricoh Manuals
  4. Projector
  5. PJX5140
  6. User manual

Ricoh PJX5140 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PJ X5140/WX5140/WX5150
1. Controlling the projector via a web browser................................. 2
1.1 Connecting to the projector..............................................................................2
1.2 Login ................................................................................................................3
1.3 Home................................................................................................................4
1.4 Projector Control Panel....................................................................................5
1.5 Network Setting ...............................................................................................7
1.7 Logout ............................................................................................................12
2.1 Installing Projector Management Utility .......................................................13
2.2 Register projectors. ........................................................................................14

Table of Contents

PJ X5260
LAN control function
User's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJX5140 and is the answer not in the manual?

Questions and answers

寿县
June 7, 2025

投影上的页面左右翻转了，怎么调整

0

Related Manuals for Ricoh PJX5140

Summary of Contents for Ricoh PJX5140

  • Page 1: Table Of Contents

    PJ X5140/WX5140/WX5150 PJ X5260 LAN control function User’s manual Table of Contents 1. Controlling the projector via a web browser......... 2 1.1 Connecting to the projector................2 1.2 Login ........................3 1.3 Home........................4 1.4 Projector Control Panel..................5 1.5 Network Setting ....................7 1.7 Logout ......................12 2.

  • Page 2: Controlling The Projector Via A Web Browser

    1. Controlling the projector via a web browser You can control the projector by using a web browser from a PC. <Note> -If you want to connect an existing network system, consult the network administrator for network settings. -Network settings such as password will be reset when you set “Default settings 2” > “Reset All” in the projector menu system.

  • Page 3: Login

    1.2 Login 1. The web browser shows a login page. 2. Select a user. You can use all functions (Control Panel, Network setting and Alert setting) when you select “administrator”. And you can use only “Control Panel” when you select “user”. 3.

  • Page 4: Home

    1.3 Home This is Home page which shows basic information of your projector. There is no control on this page. 1. Projector Status: System Status: It shows the current system status of the projector. It includes Standby, Warm-up, Power-on, cooling, Power-off and Unknown. -Input: [PJ X5140, WX5140, WX5150] It shows the current input source of the projector.

  • Page 5: Projector Control Panel

    <Note> The projector status will show “Unknown” if the projector is not set properly. Check the control method setting in the OSD menu at this situation. Set it to “LAN” if you want to control the projector via network. 1.4 Projector Control Panel This page shows the control items of your projector.

  • Page 6: Control Buttons

    Control Buttons Execute a function when the button is clicked. [Power ON] Power is turned on. [Power OFF] Power is turned off. [Auto Set] Automatically adjust the RGB signal from the computer. [Input] Switch among Computer1, Computer2, Component, Video, S-Video, DVI-D and HDMI Setting Buttons Setting is toggled On and Off by clicking the button.

  • Page 7: Network Setting

    1.5 Network Setting Projector Setting Projector name which is displayed in this web page can be changed. Enter a new projector name in the box and clock [Apply] button. <Note> This projector name is also used in PJLink control. Up to 32 alphanumeric characters and symbols are accepted. PJLink setting Settings of PJLink password can be changed in this section.

  • Page 8: Password Setting

    -Disable the password when enabled. Check "Disable" in PJLink password. Enter the current password in current password box. Click [Apply] button. <Note> -Up to 32 alphanumeric characters and symbols are accepted for a password. -When entered the new password and the confirm password are not the same, an error message will be displayed.
  • Page 9 Enter the current password in current password box. Enter a new password in both New Password box and Confirm Password box. Click [Apply] button. -Enable the password when disabled. Check "Enable" in PJLink password. Enter a new password in both New Password box and Confirm Password box. Click [Apply] button.

  • Page 10: Alert Setting

    1.6 Alert Setting Alert setting: This projector can send E-mail when an error occurs in the projector. <Note> Be sure Email setting and SMTP setting are correct. Email test is recommended after alert setting is set. -Email setting Enter Email settings in the boxes. [To], [Cc] Enter an alert mail destination.
  • Page 11 An alert mail is sent when a cooling fan is stopped. The body of the mail is "Fan Lock:xxx.xxx.xxx.xxx*" Over Temperature An alert mail is sent when internal temperature is too high. The body of the mail is "Over Temperture:xxx.xxx.xxx.xxx*" Lamp Hours Running Out An alert mail is sent when lamp life is ending.

  • Page 12: Logout

    1.7 Logout Click Logout tab to logout from this projector control web site. This page will appear for 2 seconds and then jump to login page...

  • Page 13: Control The Projector Via The Projector Management Utility

    2. Control the Projector via the Projector Management Utility Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be managed using one computer. Projector Management Utility operating environment is described below.

  • Page 14: Register Projectors

    2.2 Register projectors. 1. Registers the projectors with Auto search. -Click [Register Projector] button. -Click [Auto Search] button.
  • Page 15 -List of projectors which support PJLink are displayed in the window. Projector name is displayed as “********” until authorization if password is enable. -Select the desired projector and click [Register] button. Password authorization is required if password of the projector is set to enable. -Click [OK] button to return to the original screen.
  • Page 16 -Registered projectors are displayed in the original window. Click [Remote Control] tab for control the projector. 2. Directly specifies the IP address and registers the projector. -Enter IP address of the desired projector and click [Confirm] button then the projector name will be displayed.

  • Page 17: Control The Projector With The Projector Management Utility

    2.3 Control the projector with the projector Management Utility Click [Remote Control] tab and select the desired projector in the list. You can control the selected projector by clicking control buttons in the bottom of the window. [Power] button Turn "On/Off" the power of the projectors or groups selected from the Projector (/Group) List. [Input] button Switches the input source of the projectors or groups selected from the Projector (/Group) List.
  • Page 18 Y017-6172 ©2012 Ricoh Co., Ltd.
