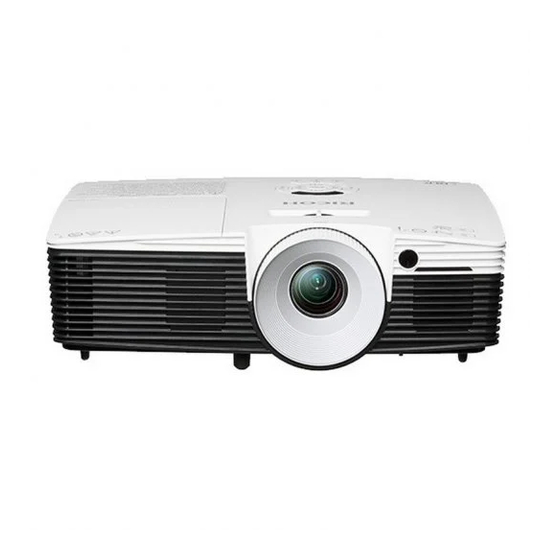

RICOH PJ X5462 / WX5462 / HD5452

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ X5462 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricoh PJ X5462

Summary of Contents for Ricoh PJ X5462

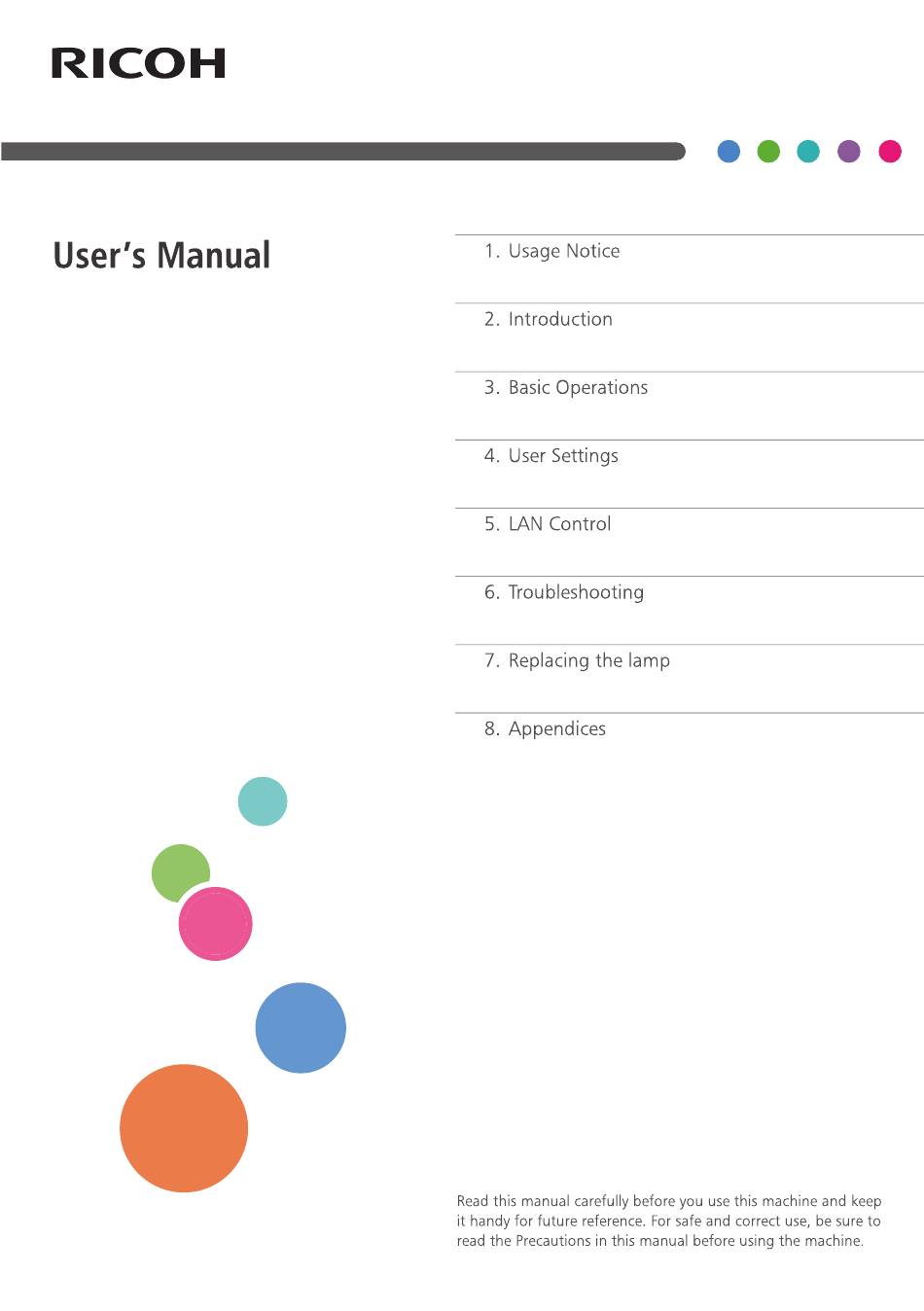

  • Page 1 RICOH PJ X5462 / WX5462 / HD5452...
  • Page 2 RICOH PJ X5462 is only for China RICOH PJ X5462 is only for China...

  • Page 3: Table Of Contents

    Table of Contents Usage Notice ........2 3D ............58 Precautions .........2 LAN Control ........60 Safety Labels of This Machine ..12 Controlling this Device with Web Regulation & Safety Notices .....13 Browser ..........60 Other Information ......18 Connecting to the device ...... 60 Log in............

  • Page 4: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. ■ Indicates a potentially hazardous situation which, if Indicates a potentially hazardous situation which, if Warning- instructions are not followed, could result in death or instructions are not followed, could result in death or serious injury.
  • Page 5 Usage Notice ■ Warning- The supplied power cord is for use with this machine only. Do not use it with other appliances. Also, do not use power cord other than the one supplied with this machine. Doing so could result in fire or electric shock. ■...
  • Page 6 Usage Notice ■ Warning- If the machine emits smoke or odours, or if it behaves unusually, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem.
  • Page 7 - Use brackets that are strong enough to support the projector. * PJ X5462 / WX5462 / HD5452 Series weighs less than 3.2kg. - The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.
  • Page 8 Usage Notice ■ Caution- Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur. ■ Caution- Do not place the machine or use it in an environment where it might get wet such as from snow, rain, or being near water.
  • Page 9 Failing to take these precautions could result in fire or electric shock. ■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product. ■ Caution-...
  • Page 10 Usage Notice e) The product has been dropped or damaged in any way. (If the cabinet should break, please handle with care to avoid injury.) ■ Caution- This product incorporates glass components, including a lens and a lamp. If these should break, please handle with care to avoid injury and contact your sales representative for repair service.
  • Page 11 Usage Notice ABOUT THE LAMP ■ Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”.
  • Page 12 Usage Notice ■ If the lamp explodes, a very small amount of mercury vapor in the lamp tube and broken glass pieces may be ejected from the vents or other opening. What to do if a lamp has exploded What to do if a lamp has exploded If the lamp explodes, remove the power cord from If the lamp explodes, remove the power cord from the projector, leave the room while making sure it is...
  • Page 13 Usage Notice REMOTE CONTROL BATTERY Warning • Never throw batteries into a fire. Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor.

  • Page 14: Safety Labels Of This Machine

    4. This product should be operated only from the type of power source which does not exceed the voltage range specified on the rating label and the power cord. Menu Enter Mute RICOH PJ WX5462 100-240V ～ 50/60Hz 3.6-1.3A 360W...

  • Page 15: Regulation & Safety Notices

    This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ X5462 / WX5462 / HD5452 TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ X5462 / WX5462 / HD5452...
  • Page 16 Usage Notice RESPONSIBLE PARTY: Ricoh USA Inc. 300 Eagleview Boulevard, Suite 200 Exton, PA 19341, U.S.A. Telephone number: 610-296-8000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
  • Page 17 Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: RICOH Europe SCM B.V. Blankenweg 24, 4612 RC Bergen op Zoom, The Netherlands User Information on Electrical and Electronic Equipment Users in the countries where this symbol shown in this section has been specified in national law on collection and treatment of E-waste.
  • Page 18 Usage Notice • The lamp contains mercury. Please dispose of this product or used lamps in accordance with local regulations. The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available.
  • Page 19 Usage Notice Notice: Users in the EU Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.

  • Page 20: Other Information

    Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •...

  • Page 21: Introduction

    Introduction Product Features Outstanding features include: True 1024 x 768(XGA) / 1280 x 800(WXGA) / ■ 1920 x 1080(1080p) resolution, 16.7M for XGA / WXGA, 1073M for 1080p True colors Light weight <7.05lb (3.2 kg) ■ Manual focus projection 1:1.36 zoom lens ■...

  • Page 22: Package Overview

    Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. AV Mute Auto Input Enter Menu Keystone Volume Computer Video HDMI Digital A Digital B Magnify Aspect...

  • Page 23: Product Overview

    Introduction Product Overview 1. Control panel 9. Zoom lever 2. Speaker 10. Adjustable feet 3. Ventilation (inlet) 11. Anti-theft lock hole 4. Filter (Kensington™ lock) 5. Connection ports 12. Lens Shift 6. Remote receiver 13. Lens 7. Lens cap 14. Ventilation (outlet) 8.

  • Page 24: Connection Ports

    Introduction Connection Ports 1. S-Video In terminal  The interface is subject to model’s 2. Monitor Out terminal specifications. 3. Computer In terminal  Compatible with 4. HDMI 1/MHL terminal MHL version 2.2, the charging current 5. Service terminal 5V@0.9A. 6. AC In socket 7.

  • Page 25: Control Panel

    Introduction Control Panel Menu Enter Mute Four to select items or , , or Directional make adjustments to your selection. Select Keys AV Mute Momentarily turn off/on the audio and video. Power Refer to the “Power On/Off the Projector” section. (See pages 30~31) Temp indicator Indicate the inside of the projector’s temperature status.

  • Page 26: Remote Control

    Introduction Remote Control AV Mute Auto Input Enter Menu Keystone Volume Computer Video HDMI Digital A Digital B Magnify Aspect Freeze Status Picture Power Refer to the “Power On/Off the Projector” section. (See pages 30~31) Input Press “Input” to choose your desired input source.
  • Page 27 Introduction Dim the projector lamp which will lower power consumption and extend the lamp life. Volume +/- Increase or decrease speaker volume. Video Press “Video” to choose between Video In and S-Video In terminal. HDMI Press “HDMI” to choose between HDMI1/MHL In and HDMI2 In terminal.

  • Page 28: Remote Control Battery Installation

    Introduction Remote Control Battery Installation Push the clip to Install new batteries (AAA/ Close the battery cover release the battery R03). Ensure that you have and press it down until it cover. the batteries’ polarity (+/–) clicks into place. Do not mix aligned correctly.

  • Page 29: Remote Control Operating Range

    Introduction Remote Control Operating Range Point the remote control toward the projector (Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 23.0’ (7m) and ±30° (horizontally), ±20° (vertically) in front of the projector. 23.0’ (7m) ±30°...

  • Page 30: Basic Operations

    Basic Operations Connecting the Projector Connect to Computer/Notebook Monitor  Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.  The AC outlet must be near this equipment and must be easily accessible.

  • Page 31: Connect To Av Equipment

    Basic Operations Connect to AV Equipment  Make sure that the DVD player, HDTV receiver power plug is fully inserted into both the projector AC inlet and the wall outlet. Component  The AC outlet must be near this equipment and must be easily accessible.

  • Page 32: Powering On/Off The Projector

    Basic Operations Powering On/Off the Projector Powering On the Projector 1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. 2. Remove the lens cap.  3. Turn on the lamp by pressing the button on the control panel or the button on the remote control.

  • Page 33: Powering Off The Projector

    Basic Operations Powering Off the Projector 1. Press the button and you will see a message as below on  If you want to turn off the power, wait at the on-screen display. least 1 minute after turning it on. Power Off? Press power key again.

  • Page 34: Warning Indicator

    Basic Operations Warning Indicator When the “Temp” indicator lights red, it indicates the  projector has overheated. The projector will automatically shut itself down. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C. When the projector has detected that the lamp is ...

  • Page 35: Adjusting The Projected Image

    Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with adjustable feet to raise and lower the image to fill the screen. 1. Locate the adjustable foot you wish to modify on the underside of the projector.

  • Page 36: Adjusting The Projector Zoom And Focus

    Basic Operations Adjusting the Projector Zoom and Focus You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear. Focus at distances from:  - XGA: 4.27 to 27.89 feet (1.3 to 8.5m) - WXGA and 1080p: 4.27 to 23.62 feet (1.3 to 7.2m) Zoom Lever Focus Ring...

  • Page 37: Adjusting The Lens Position

    Basic Operations Adjusting the Lens Position To shift the lens upward:  - Remove a rubber cap covered the Lens Shift slot on the control panel. - Using a 4mm (5/32 inch) hex key, place it into the Lens Shift slot and turn it clockwise to move the projected image up.

  • Page 38: Adjusting Projection Image Size

    Basic Operations Adjusting Projection Image Size Projection Image Size for XGA:  - Wide: Adjustable from 46” to 300.7” (Focus range) (Diagonal). - Tele: Adjustable from 33.6” to 219.8” (Focus range) (Diagonal). Projection Image Size for WXGA:  - Wide: Adjustable from 54.23” to 300.3” (Focus range) (Diagonal).
  • Page 39 User Settings X5462 Diagonal Screen Size W x H Projection Distance (D) Offset (Hd) length (inch) (inch) (feet) (cm) (feet) size of 4:3 Width Height Width Height Wide Tele Wide Tele Screen 0.68 0.51 27.00 20.00 4.27 -0.03 0.30 0.81 0.61 32.00 24.00...
  • Page 40 User Settings HD5452 Diagonal Screen Size W x H Projection Distance (D) Offset (Hd) length (inch) (inch) (feet) (cm) (feet) size of 16:9 Width Height Width Height Wide Tele Wide Tele Screen 0.89 0.50 35.04 19.69 1.28 4.20 0.23 1.33 0.75 52.36 29.53...

  • Page 41: User Settings

    User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control.

  • Page 42: Picture

    User Settings Picture Picture Mode Standard Brightness Contrast Saturation Sharpness Gamma Color Temperature Picture Advanced Select Enter Exit Picture Mode There are factory presets optimized for various types of images. The available options: Bright Standard Vivid sRGB DICOM SIM. Picture Mode Bright: Mode for emphasizing brightness.
  • Page 43 User Settings Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Contrast Press the key to decrease the contrast. ...
  • Page 44 User Settings Color Temperature Use this function to select the preset color temperature. The available options: 5500/ 6500 / 7500 / Native. Color Temperature Native NCE (Natural Color Enhancer) Use this function to enhance color and reproduce vivid colors. On: Enable NCE. ...
  • Page 45 User Settings NCE Settings: Configure the image color settings.  NCE Settings Color Saturation Gain Reset Select Enter Exit - Color: Use the key to select the red, green, blue, cyan, yellow, magenta, and white. When Red / Green / Blue / Cyan / Yellow / Magenta is selected in Color: - Hue: Use the key to adjust the color balance.

  • Page 46: Screen

    User Settings Screen Aspect Ratio Auto Phase Clock H. Position V. Position Keystone Projection Mode Normal Screen Advanced Select Enter Exit Aspect Ratio Use this function to choose your desired aspect ratio. Aspect Ratio Auto Auto: Automatically selects the appropriate display format. ...
  • Page 47 User Settings H. Position (Horizontal Position) Shift the projected image position horizontally.  “H. Position” H. Position and “V. Position” functions are only Press the key to move the image left.  supported under Computer Signal Press the key to move the image right. ...
  • Page 48 User Settings Four Corner: Compensate for image distortion by adjusting one  corner at a time. Four Corner Select Enter Exit Reset: Return the keystone settings to the factory default values.  Reset Cancel Exit Projection Mode Use this function to select the projector mode, depending upon how the projector is mounted.
  • Page 49 User Settings Advanced Configure the advanced screen settings. Advanced Magnify RGB Input Range Auto Start-up Screen Logo Background Color Logo Test Pattern Select Enter Exit Magnify: Use the key to zoom in or zoom out the image.   “RGB Input Range” In magnified mode, press [Enter] to erase magnify scale function is only display.
  • Page 50 User Settings Background Color: Set the background color.  Background Color Logo Blue Black - Logo: Display logo screen when no signal is available. - Blue: Display blue screen when no signal is available. - Black: Display black screen when no signal is available. ...

  • Page 51: Setting

    User Settings Setting Language English Auto Power Off (Min.) Monitor Out (Standby) Network (Standby) Network Security Reset Setting Select Enter Exit Language Choose the multilingual OSD. Press “Enter” to open the sub menu and then use the key to select your preferred language.
  • Page 52 User Settings Auto Power Off (Min.) Set the countdown timer interval (in minutes). The countdown timer will start, when there is no signal being sent to the projector.  Default value of The projector will automatically power off when the countdown “Auto Power Off (Min.)”...
  • Page 53 User Settings Status: Display the network connection status.  DHCP: Select “On” to allow the projector to obtain an IP  address automatically from your network. Select “Off” to manually assign IP, Subnet Mask and Gateway configuration. DHCP IP Address: Set an IP address or display IP address provided ...
  • Page 54 User Settings Security Configure the security settings.  The default security code is Security “123456”. Security Change Password Select Enter Exit Security: Select “On“ to use the security verification when  turning on the projector. Select “Off” to be able to switch on the projector without a password verification.
  • Page 55 User Settings Audio Mute Volume Audio Input Default Audio Select Enter Exit Mute Temporarily turn off the sound.  “Mute” function affects both internal Mute and external speaker volume. Choose “On” to mute the sound.   Choose “Off” to turn mute off. Volume Adjust the volume level.

  • Page 56: Options

    User Settings Options Auto Source Input Source Direct Power On Lamp Settings Filter Settings High Altitude Information Options Select Enter Exit Auto Source When this function is turned “On”, the projector will search for other signals if the current input signal is lost. When this function is turned “Off”, it will only search a specified connection port.
  • Page 57 User Settings Direct Power On Select “On” to automatically power on the projector when the AC power is supplied. If this option is set to “Off”, user needs to press button the control panel or the button on the remote control to power on the projector.
  • Page 58 User Settings Filter Settings Use this option to view the filter status and configure the filter settings. Press the “Enter” key to enter the sub menu and configure the desired settings. This item is disabled for the projector sold in some regions. Filter Settings Filter Hours Used Filter Reminder...
  • Page 59 User Settings Information Display the projector information. Information Source Computer Resolution Color Space No Data 0 hr Filter Hours Used Lamp Time 0 hr Lamp Power Normal FW Version Enter Exit Source: Display the current source.  Resolution: Display the related information of the current ...
  • Page 60 User Settings 3D Sync Invert 3D Format Auto Select Enter Exit 3D Sync Invert Use this option to enable/disable the 3D sync invert function.  Compatible 3D 3D Sync Invert source, 3D content and Optical 3D glasses Off: Choose “Off” for default frame contents. ...
  • Page 61 User Settings Auto: Use this mode to let the system to automatically select  the appropriate 3D format content. Side-by-Side: Use this mode for “Side-by-Side” format 3D  content. Top and Bottom: Use this mode for “Top and Bottom” format ...

  • Page 62: Lan Control

    LAN Control Controlling this Device with Web Browser When you are  You can control this device from a PC by using a web browser. connecting the device to an existing network, Connecting to the device set according to the instructions of the 1.

  • Page 63: Log In

    LAN Control Log in 1. When you first open the web page for the first time, you will see a screen like the one below. You need to set a password in order to log in later. 2. When you open the web page, you will see a screen like the one below.

  • Page 64: System Status

    LAN Control When you log in, a navigation bar for setting the projector will be displayed on the left side of the home screen. System Status The current status of the projector is displayed. You can check projector model name, firmware version, current LAN configuration, and change the interface language if needed.

  • Page 65: General Setup

    LAN Control General Setup You can change the projector name and password with this item. The projector name  set here is also used in PJLink control. Only alphanumeric  characters can be used as projector name. The maximum number of characters is 32.

  • Page 66: Projector Control

    LAN Control Projector Control You can control the projector with this item. The items for control are described in this section. Control button: When you click a button, the corresponding function will be performed. Power On The power of the projector turns on. To turn ON, click "Setting"...
  • Page 67 LAN Control Adjustment button: Projector can be adjusted by +/ - button. Auto Power Set the countdown timer interval in minutes. Off (Min.) Brightness Adjust brightness by +/ - button. Value will return to the initial value when you click the Reset button. Contrast Adjust contrast by +/- button.

  • Page 68: Network Setup

    LAN Control Network Setup Set the network of the projector. ► Automatically configuring the network settings from DHCP. IPV6 cannot be used  in this device. Check automatic setting and then click “Apply”. ► Configuring the network settings manually. Check manual setting, enter appropriate values in the IP address, Subnet Mask, Default Gateway (Gateway) and DNS Server fields, and then click “Apply”.

  • Page 69: Alert Setup

    LAN Control Alert Setup You can send email alerts when an error occurs. Only alphanumeric  You can carry out settings for alert mail in this section. characters and symbols can be used in the password. The maximum number of characters is 32.

  • Page 70: Crestron

    LAN Control Crestron You can use the control of projectors that uses Crestron.  When projector is in standby mode, only the “Power” button will work. ► Power: Switch ON/OFF the power. ► Source List: Correspondence between the input display and input terminal of the device is as follows.

  • Page 71: Crestron Tools

    LAN Control Crestron Tools You can perform settings of the projector network and Crestron Room View. After setting the  user password, you will be able to access Crestron’s page by entering the password. After enabling the  Admin password, you will be able to access the page of Crestron tool only upon entering...

  • Page 72: Contacting The It Administrator Of Crestron

    LAN Control Contacting the IT administrator of Crestron You can contact the IT administrators who are using X-Panel. Crestron offers  Xpanel.exe. Reset to Default You can reset the network to factory settings. Click “Apply” to reset the network settings. The webpage password will be cleaned and the new webpage password need be set again.

  • Page 73: Reboot The Lan Control System

    LAN Control Reboot the LAN Control System You can restart the system. Click “Apply” to restart the system. English English...

  • Page 74: Control The Projector Via The Projector Management Utility

    LAN Control Control the Projector via the Projector Management Utility Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. This software  A maximum of 100 projectors connected to the network can be is to control and managed using one computer.
  • Page 75 LAN Control 6. Install the application by following the on-screen instruction. 7. When the installation is complete, exit the installer. A shortcut icon is created on the desktop. Register projectors 1. Registers the projectors with Auto search -Click [Register Projector] button. -Click [Auto Search] button.
  • Page 76 LAN Control -List of projectors which support PJLink are displayed in the window. Projector name is displayed as “********“ until authorization if password is enable. -Select the desired projector and click [Register] button. Password authorization is required if password of the projector is set to enable.

  • Page 77: Control The Projector With The Projector Management Utility

    LAN Control 2. Directly specifies the IP address and registers the projector. -Enter IP address of the desired projector and click [Confirm] button then the projector name will be displayed. After confirming the projector name, click [Register] button. Control the projector with the projector Management Utility Click [Remote Control] tab and select the desired projector in the list.
  • Page 78 LAN Control [Mute] button Turn "On/Off " the muting of the projectors or groups selected from the Projector (/Group) List. The projector only supports Video & Audio mute. [Detail Information] button Show detail information of the selected projector. English...

  • Page 79: Troubleshooting

    Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 80 Troubleshooting Problem: The screen of the Notebook computer is not displaying a presentation If you are using a Notebook PC:  Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
  • Page 81 Troubleshooting Problem: Image is reversed Select “Screen > Projection Mode” from the OSD menu to adjust  the image. Problem: Lamp burns out or makes a popping sound When the lamp reaches its end of life, it will burn out and may ...
  • Page 82 Troubleshooting Problem: Message Reminders Temperature Error - the projector is overheat inside. Check the  environmental condition. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C. Replacing the lamp - the lamp is about to reach its maximum ...

  • Page 83: Replacing The Lamp

    Replacing the lamp The projector will detect the lamp life itself. It will show you a warning message Warning! Lamp Lamp is approaching the end of its useful life. R e p l a c e m e n t S u g g e s t e d ! When you see this message, change the lamp as soon as possible.
  • Page 84 Replacing the lamp Used Lamps This projector’s lamp contains trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose of them in accordance with local regulations or contact your sales representative. English...

  • Page 85: Appendices

    Appendices List of Compatible Signals A. VGA Analog (1) VGA Analog - PC Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 480 31.47 640 x 480 37.86 640 x 480 37.5 640 x 480 43.27 800 x 600 35.2 800 x 600 37.88 SVGA...
  • Page 86 Appendices A. VGA Analog (2) VGA Analog - Extended Wide Timing V.Frequency H.Frequency Modes Resolution (Hz) (kHz) WSVGA 1024 x 600 37.3 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 44.8 1280 x 800 49.6 1366 x 768 47.71...
  • Page 87 Appendices B. HDMI (1) HDMI - PC Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 480 31.47 640 x 480 37.86 640 x 480 37.5 640 x 480 43.27 800 x 600 35.2 800 x 600 37.88 SVGA 800 x 600 48.08 800 x 600 46.88...
  • Page 88 Appendices B. HDMI (2) HDMI - Extended Wide Timing V.Frequency H.Frequency Modes Resolution (Hz) (kHz) WSVGA 1024 x 600 37.3 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 44.8 1280 x 800 49.6 1366 x 768 47.71...
  • Page 89 Appendices C. 3D Timing Input timing 1280 X 720P @ 50Hz Top - and - Bottom 1280 X 720P @ 60Hz Top - and - Bottom HDMI 3D 1280 X 720P @ 50Hz Frame packing Input (with 3D 1280 X 720P @ 60Hz Frame packing Info Frame 1920 X 1080i @ 50 Hz...

  • Page 90: Configurations Of Terminals

    Appendices Configurations of Terminals Terminal: Computer In (Mini D-sub 15 pin) [Monitor Out] Red (R/Cr) Input [R Output] DDC 5V [NC*] Green (G/Y) Input [G Output] Ground (Ver. sync.) Blue (B/Cb) Input [B Output] DDC Data [NC*] Ground (Horiz.sync.) Horiz. sync. Input [Output] (Composite H/V sync.

  • Page 91: Specifications

    Appendices Specifications ■ List of general specifications RICOH PJ X5462 RICOH PJ WX5462 RICOH PJ HD5452 Item DLP chip 0.55” DMD XGA 0.65” DMD WXGA 0.65” DMD 1080P Lamp Type 240W Projection Lens F#2.5 - 2.93, f=15.98 - 21.42mm @ 60”, 1.36x Zoom Lens Projection 1.3~8.5m (Mechanical...

  • Page 92: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm 314.2 154.3 RICOH PJ WX5462 100-240V ～ 50/60Hz 3.6-1.3A 360W CODE Y0F8-27 RICOH COMPANY,LTD. 3-6, Naka-magome 1-Chome, Ohta-ku, Tokyo, 143-8555, Japan Made in China 定格電圧　100V～ 機種コード Y0F8-00 定格周波数 50/60Hz 定格電流 3.6A 定格電力 360W 株式会社リコー 85.0 Holes for ceiling mount 140.0...

  • Page 93: Copyrights

    Appendices Copyrights This projector uses open source and/or third party software. To check the information about software copyrights, see the documents in the “OSS” folder on the supplied CD-ROM. You can also view and download the source code from: http://www.support-download.com/bb/html/dr_ut_e/oss/ index.htm Trademarks •...
