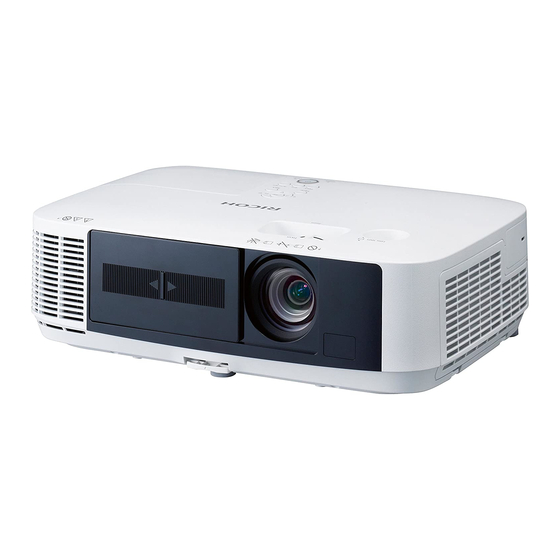

User's Manual
Introduction
1.
2.
Projecting an Image (Basic Operation)
3.
Convenient Features
4.
Using the Viewer
5.
Using On-Screen Menu
6.
Installation and Connections
7.
Maintenance
8.
User Supportware
9.
Appendix
Read this manual carefully before you use this machine and keep
it handy for future reference. For safe and correct use, be sure to
read the Important Information in this manual before using the
machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ WX5361N and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh PJ WX5361N

Summary of Contents for Ricoh PJ WX5361N

  • Page 1 User’s Manual Introduction Projecting an Image (Basic Operation) Convenient Features Using the Viewer Using On-Screen Menu Installation and Connections Maintenance User Supportware Appendix Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Important Information in this manual before using the machine.
  • Page 2 • Intel and Intel Core are trademarks of Intel Corporation in the U.S. and/or other countries. • PowerPC is a registered trademark of the International Business Machines Corporation. • MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands. • HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas. • Wi-Fi , Wi-Fi Alliance , and Wi-Fi Protected Access (WPA, WPA2) are registered trademarks of the Wi-Fi Alliance. ® ® ® • Blu-ray is a trademark of Blu-ray Disc Association • CRESTRON and ROOMVIEW are registered trademarks of Crestron Electronics, Inc. in the United States and other countries. • Other product and company names mentioned in this user’s manual may be the trademarks or registered trademarks of their respective holders. • GPL/LGPL Software Licenses The product includes software licensed under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), and others. For more information about the software, see the readme.pdf file on the supplied CD-ROM. The readme.pdf file is in the about GPL&LGPL folder in the OSS folder. NOTES (1) The contents of this user’s manual may not be reprinted in part or whole without permission. (2) The contents of this user’s manual are subject to change without notice. (3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), Ricoh will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

  • Page 3: Important Information

    Important Information Safety Cautions Precautions Please read this manual carefully before using your RICOH projector and keep the manual handy for future reference. CAUTION To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible. CAUTION TO PREVENT SHOCK, DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit. This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems. WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED. DOC Compliance Notice (for Canada only) This Class B digital apparatus complies with Canadian ICES-3(B)/NMB-3(B). Machine Noise Information Regulation - 3. GPSGV, The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779. CAUTION Avoid displaying stationary images for a prolonged period of time.
  • Page 4 Important Information The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions you ensure that this product is treated correctly and help to reduce potential impacts on the environment and human health, which could otherwise result from inappropriate handling. Recycling of products helps to conserve natural resources and protect the environment. For more detailed information on collection and recycling systems for this product, please contact the shop where you purchased it, your local dealer or sales/service representatives. All Other Users If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives. For Turkey only Note for the Battery and/or Accumulator Symbol (For EU countries only) In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste. In the EU, there are separate collection systems for not only used electrical and electronic products but also batteries and accumulators. Please dispose of them correctly at your local community waste collection/recycling centre. Disposing of your used product EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

  • Page 5: Important Safeguards

    Important Information RF Interference (for USA only) WARNING The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Ricoh Americas Corporation in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. For UK only: In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier. Important Safeguards These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings. Installation • Do not place the projector in the following conditions: - on an unstable cart, stand, or table. - near water, baths, or damp rooms. - in direct sunlight, near heaters, or heat radiating appliances. - in a dusty, smoky or steamy environment. - on a sheet of paper or cloth, rugs or carpets. - in an air-tight location, such as inside a box. Doing so may result in malfunctions and/or a shorter service life for your projector. • If you wish to have the projector installed on the ceiling: - Do not attempt to install the projector yourself. - The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.
  • Page 6 Important Information Place the projector in a horizontal position Be sure to use the projector within a tilt angle range from 30° above horizontal to 30°below (including the maximum tilt angle 10° created by extending the tilt foot). Using the projector in any way other than the desktop and ceiling mount may result in failures of the projector. If the projector is used over a tilt angle of 10° above horizontal or 10°below, the lamp life will decrease*. * I f using the projector within a range from ± (plus or minus) 10° to ± (plus or minus) 30° (shown by shaded area), it is recommended to replace the lamp when the remaining lamp life reaches 25% . Even if the remaining lamp life shows 25 % or more, the lamp may break or fail to illuminate depending on individual lamp characteristics and usage conditions. To show the remaining life of the lamp, press the Help button on the remote control and select [INFO.] → [USAGE TIME] from the projector on-screen menu. (→ page 109) Up to +30° Up to +30° +10° +10° Desktop 0° Ceiling mount 0° -10° -10° Up to -30° Up to -30°...
  • Page 7 Important Information Fire and Shock Precautions • Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall. • Do not try to touch the exhaust vent on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off. Parts of the projector may become temporarily heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. • Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel. • Do not place any objects on top of the projector. • Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire. • The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply fits this requirement before attempting to use your projector. • Do not look into the lens while the projector is on. Serious damage to your eyes could result. • Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes. • Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent. Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust. • Do not splash water over the projector. Doing so can cause electrical shock or fire. If the projector gets wet, turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel. • Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or fire. - Do not use any power cord other than the one supplied with the projector.

  • Page 8: Lamp Replacement

    Important Information CAUTION • Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hang- ing on the wall can cause damage to the projector. • Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged. • Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] → [OPTIONS(1)] → [FAN MODE] → [HIGH].) • The projector's power cannot be turned off, even if you turn off the power switch, while the Power indicator is flickering blue. Do not turn off the AC power to turn off the power while the Power indicator is flickering blue. Doing so may cause the lamp to explode or may greatly shorten the lamp's life. Remote Control Precautions • Handle the remote control carefully. • If the remote control gets wet, wipe it dry immediately. • Avoid excessive heat and humidity. • Do not short, heat, or take apart batteries. • Do not throw batteries into fire. • If you will not be using the remote control for a long time, remove the batteries. • Ensure that you have the batteries’ polarity (+/−) aligned correctly. • Do not use new and old batteries together, or use different types of batteries together. • Dispose of used batteries according to your local regulations. Note for US Residents The lamp in this product contains mercury. Please dispose according to Local, State or Federal Laws.

  • Page 9: Power Management Function

    Important Information About High Altitude mode • Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1700 meters or higher. Using the projector at altitudes approximately 5500 feet/1700 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector. • Using the projector at altitudes less than approximately 5500 feet/1700 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO]. • Using the projector at altitudes approximately 5500 feet/1700 meters or higher can shorten the life of optical com- ponents such as the lamp. About Copyright of original projected pictures: Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following func- tions may raise concern about the infringement of copyrights which are protected by copyright law. [ASPECT], [KEYSTONE], Magnifying feature and other similar features. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflec- tions at visual display workplaces this device must not be placed in the direct field of view. Power management function The projector has power management functions. To reduce power consumption, the power management functions (1 and 2) are factory preset as shown below.

  • Page 10: Safety Labels Of This Machine

    Important Information Safety Labels of This Machine 1 Do not look into the lens while the projector is on. Serious damage to your eyes could result. Do not use any other object than the projector's sliding lens cover to cover the lens while the projector is on. Doing so can cause the object to get extremely hot, and possibly resulting in a fire or damage due to the heat emitted from the light output. 2 Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projec- tor is turned on and immediately after the projector is turned off. Parts of the projector may become temporarily heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. 3 Do not remove any screws except the lamp cover screws. Do not block or cover the vents. 4 To replace the lamp, first unplug the power cord then wait for more than 1 hour. The lamp might be broken. Be careful of pieces of broken glass. viii...

  • Page 11: Table Of Contents

    Table of Contents Important Information ....................i 1. Introduction ......................1 ❶ What’s in the Box? ......................1 ❷ Introduction to the Projector ................... 2 Congratulations on Your Purchase of the Projector ..........2 Features you’ll enjoy: ....................2 About this user’s manual ..................3 ❸ Part Names of the Projector ..................4 Front/Top ........................4 Rear ......................... 5 Top Features ......................6 Terminal Panel Features ..................7 ❹ Part Names of the Remote Control ................8 Battery Installation ....................
  • Page 12 Table of Contents ❻ Using 4-Point Corner to Correct Keystone Distortion [CORNERSTONE] ....36 Cornerstone ......................36 ❼ Operating Your Computer’s Mouse Functions from the Projector’s Remote Control via the USB Cable (Remote Mouse Function) ............39 ❽ Projecting Your Computer’s Screen Image from the Projector via the USB Cable (USB Display) ......................40 ❾ Controlling the Projector by Using an HTTP Browser ..........42 ❿ Projecting Your Computer’s Screen Image from the Projector via a Network [NETWORK PROJECTOR] ..................49 ⓫ Using the Projector to Operate Your Computer via a Network [REMOTE DESKTOP] .................... 53 ⓬ Connecting Your Microphone ..................58 4. Using the Viewer ..................... 59 ❶ What you can do with the Viewer ................. 59 ❷ Preparing presentation materials .
  • Page 13 Table of Contents [MENU] ........................99 [INSTALLATION] ....................101 [OPTIONS(1)] .......................103 [OPTIONS(2)] .......................106 ❼ Menu Descriptions & Functions [INFO.] ..............109 [USAGE TIME] ......................109 [SOURCE(1)] ......................110 [SOURCE(2)] ......................110 [WIRED LAN] ......................110 [WIRELESS LAN] ....................111 [VERSION(1)] ....................... 111 [VERSION(2)] ....................... 111 [OTHERS] ......................112 ❽ Menu Descriptions & Functions [RESET] ..............113 Returning to Factory Default [RESET] ..............113 ❾ Application Menu ......................114 ADVANCED NETWORK / PROJECTION UTILITY ..........114 NETWORK PROJECTOR ..................115 REMOTE DESKTOP CONNECTION ..............115 NETWORK SETTINGS .
  • Page 14 Table of Contents ❸ Projecting an Image from an Angle (Geometric Correction Tool in Projection Utility) ............171 What you can do with GCT ...................171 Projecting an Image from an Angle (GCT) ............171 ❹ Projecting Images from the Projector over a LAN (Advanced Network Utility)....173 What you can do with Advanced Network Utility ...........173 Connecting the projector to a LAN ................ 174 Basic Operation of Advanced Network Utility ............175 ❺ Converting Presentation Files to JPEG Files Using JPEG Conversion Tool ....179 Operating environment..................179 Installing JPEG Conversion Tool ................179 ❻ Managing the Projector Using Projector Management Utility ........181 Operating environment..................181 Installing Projector Management Utility ..............181 9. Appendix ......................182 ❶ Troubleshooting ......................182 Indicator Messages ....................182 Common Problems & Solutions ................183 If there is no picture, or the picture is not displayed correctly........184 ❷ Specifications ......................185 ❸ Cabinet Dimensions ....................187 ❹ Pin Assignments of D-Sub Computer Input Connector ..........188 ❺ Compatible Input Signal List .

  • Page 15: Introduction

    1. Introduction ❶ What’s in the Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector. NOTE: The bundled items may vary depending on the product destination. Projector Power cord Computer cable (VGA) Remote control Batteries (AAA × 2) (Y156079) CD-ROM User’s manual (PDF), the utility software and the source code • Important Infomation • Quick Setup Guide Unless otherwise described in the user’s manual, the drawings for the projector cabinet show examples of the RICOH PJ X5371N.

  • Page 16: ❷ Introduction To The Projector

    1. Introduction ❷ Introduction to the Projector This section introduces you to your new projector and describes the features and controls. Congratulations on Your Purchase of the Projector This projector is one of the very best projectors available today. The projector enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Mac computer (desktop or notebook), VCR, DVD player, or document camera. You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling* . The remote control can be used wirelessly. Do not attempt to mount the projector on a ceiling yourself. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information. Features you’ll enjoy: • Quick start (3 seconds* ), Quick Power Off, Direct Power Off 3 seconds* after turning on the power, the projector is ready to display PC or video images.

  • Page 17: About This User's Manual

    The projector is equipped with a LAN port (RJ-45) for connection to a wired LAN for transferring images from a computer to the projector, controlling the projector from a computer, etc. Furthermore, the projector can be used in a wireless LAN by mounting the separately sold wireless LAN unit (NP02LM). • Software programs (User Supportware) contained in the supplied CD-ROM The supplied RICOH Projector includes programs: Projection Utility, Advanced Network Utility, Projection Utility for Mac OS, JPEG Conversion Tool, and Projector Management Utility. • LAN-compatible Viewer The projector’s built-in Viewer allows you to view images or movie files in the shared folder of your PC connected to a wired or wireless LAN. * The Viewer supports the Media Sharing function of Windows Media Player 11.

  • Page 18: ❸ Part Names Of The Projector

    1. Introduction ❸ Part Names of the Projector Front/Top Controls Zoom Lever (→ page 22) (→ page 6) Focus Lever Lens Shift Dial (Vertical) (→ page 21) (→ page 20) Exhaust Vent Intake Vent / Filter Cover Heated air is exhausted from here. (→ page 151, 159) Lens Cover Adjustable Tilt Foot Lever Remote Sensor (→ page 23) (→ page 9) Adjustable Tilt Foot Lens (→ page 23)

  • Page 19: Rear

    1. Introduction Rear Port Cover for Optional USB Lamp Cover (→ page 157) Wireless LAN Unit When using the optional USB Wireless LAN Unit, first remove Security chain opening the cover. (→ page 148) Attach an anti-theft device. The security chain opening ac- cepts security wires or chains up to Monaural Speaker (16 W) 0.18 inch/4.6 mm in diameter. Terminal Panel (→ page 7) Built-in Security Slot ( )* AC Input Connect the supplied power cord’s three-pin plug here, and plug the other end into an active wall outlet. Rear Foot (→ page 23) (→ page 14) * This security slot supports the MicroSaver Security System. ® Opening and closing the lens cover Slide the lens cover to the left to uncover the lens. To cover the lens, slide the lens cover to the right. NOTE: • The lens cover works in conjunction with the AV-MUTE function. Closing the lens cover will turn off the image and sound during normal projector operation;...

  • Page 20: Top Features

    1. Introduction Top Features (Power) Button (→ page 15, 27) 2. Power Indicator (→ page 14, 15, 27, 182) 3. Status Indicator (→ page 182) 4. Lamp Indicator (→ page 155, 182) 5. Eco Button (→ page 30) 6. Input Button (→ page 17) 7. Auto Set Button (→ page 26) 8. Menu Button (→ page 83) 9.  / Volume Buttons  / Keystone Button  (→ page 24, 26) 10.

  • Page 21: Terminal Panel Features

    1. Introduction Terminal Panel Features 1. Computer In / Component Input Connector (Mini D-Sub 15 Pin) (→ page 141, 145) 2. Audio In Mini Jack (Stereo Mini) (→ page 141, 145) 3. HDMI 1 In Connector (Type A) (→ page 141, 146) 4. HDMI 2 In Connector (Type A) (→ page 141, 146) 5.

  • Page 22: ❹ Part Names Of The Remote Control

    1. Introduction ❹ Part Names of the Remote Control 11. Viewer Button (→ page 17, 63) 12. Network Button (→ page 17) 13. USB Display Button (→ page 17) 14. ID Set Button (→ page 102) 15. Numeric Keypad Button/Clear Button (→ page 102) 16. Freeze Button (→ page 29) 17. AV Mute Button (→ page 29) 18.

  • Page 23: Battery Installation

    1. Introduction Battery Installation Press firmly and slide the battery Install new batteries (AAA). Ensure Slip the cover back over the batter- cover off. that you have the batteries’ polarity ies until it snaps into place. Do not (+/−) aligned correctly. mix different types of batteries or new and old batteries. Remote Control Precautions • Handle the remote control carefully. • If the remote control gets wet, wipe it dry immediately. • Avoid excessive heat and humidity. • Do not short, heat, or take apart batteries. • Do not throw batteries into fire. • If you will not be using the remote control for a long time, remove the batteries. • Ensure that you have the batteries’ polarity (+/−) aligned correctly. • Do not use new and old batteries together, or use different types of batteries together. • Dispose of used batteries according to your local regulations. Operating Range for Wireless Remote Control 22 feet/7 m 30°...

  • Page 24: ❺ Operating Environment For Software Included On Cd-Rom

    1. Introduction ❺ Operating Environment for Software Included on CD-ROM Names and Features of Bundled Software Programs Name of software program Features Projection Utility • This is a software program used to project your computer’s screen, streaming movie, or sound from the computer over the USB cable* or the wired/wireless network. The computer cable (VGA) is not required. (→ page 40, page 164) * Streaming movies cannot be played with USB Display connection. • This software program can be used to control the power ON/OFF and source selection of the projector from your computer. • The Geometric Correction Tool (GCT) and audio function allows you to correct distortion of images projected on a curved wall. (→ page 171) The GCT function is not available for streaming video. Projection Utility for Mac OS • This is a software program used to project your computer’s screen over the wired/wireless network. The computer cable (VGA) is not required. (→ page 40, 170) • This software program can be used to control the power ON/OFF and source selection of the projector from your computer. * “Audio transmission” , “USB Display” , and “GCT” functions are not supported by Mac. Advanced Network Utility • This is a software program used to send the screens of your personal comput- ers to the projector via wired/wireless LAN (Meeting mode).

  • Page 25: Operating Environment

    Pentium M 1.0 GHz equivalent or higher required Dual core 1.0 GHz or higher recommended Memory • Windows 8/Windows 7/Windows Vista 512 MB or more required 1 GB or more recommended • Windows XP 256 MB or more required 512 MB or more recommended * More memory may be required to run additional applications simultaneously. Graphic processor • Windows 8/Windows 7/Windows Vista The “Graphics” score 3.0 or more of “Windows Experience Index” recommended. Network environment TCP/IP-compatible wired LAN or wireless LAN * Use a wireless LAN unit complying with the Wi-Fi standard. * Audio transfer capability requires 3 Mbps or more throughput. Resolution • Windows 8/Windows 7/Windows Vista SVGA (800 × 600) or higher required XGA (1024 × 768) recommended • Windows XP VGA (640 × 480) or higher required XGA (1024 × 768) recommended 1024 dots × 768 lines - 1280 dots × 800 lines recommended (RICOH PJ WX5361N) Screen Colors High Color (15 bits, 16 bits) True Color (24 bits, 32 bits) (recommended) • 256 or fewer colors are not supported. • S upport for Windows XP Our projector’s will no longer support Windows XP, in line with Microsoft’s end of support for Windows XP.
  • Page 26 1. Introduction [Mac] Supported OS Mac OS X v10.6, v10.7, v10.8 Processor (CPU) Intel Core™ Duo processor 1.5 GHz or higher required ® Intel Core™ 2 Duo processor 1.6 GHz or higher recommended ® * PowerPC is not supported ® Memory 512 MB or higher required Network environment Wired or wireless LAN required that supports TCP/IP * The following LAN adapters are verified to work with Projection Utility: • Wired LAN adapter built into Mac • Wireless LAN adapter built into Mac • Apple USB Ethernet adapter “Easy Connection” supports only wireless LAN. Supported Resolution SVGA (800 × 600) or higher required XGA (1024 × 768) recommended (1024 × 768 – 1280 × 800 recommended for RICOH PJ WX5361N) Supported Screen Colors 16.70 million colors required...

  • Page 27: Projecting An Image (Basic Operation)

    2. Projecting an Image (Basic Operation) This section describes how to turn on the projector and to project a picture onto the screen. ❶ Flow of Projecting an Image Step 1 • Connecting your computer / Connecting the power cord (→ page 14) Step 2 • Turning on the projector (→ page 15) Step 3 • Selecting a source (→ page 17) Step 4 • Adjusting the picture size and position (→ page 19) • Correcting keystone distortion [KEYSTONE] (→ page 24) Step 5 • Adjusting a picture and sound - Optimizing a computer signal automatically (→ page 26) - Turning up or down volume (→ page 26) Step 6 • Making a presentation Step 7 • Turning off the projector (→ page 27) Step 8 • After use (→ page 28)

  • Page 28: ❷ Connecting Your Computer/Connecting The Power Cord

    2. Projecting an Image (Basic Operation) ❷ Connecting Your Computer/Connecting the Power Cord 1. Connect your computer to the projector. This section will show you a basic connection to a computer. For information about other connections, see "❷ Making Connections" on page 141. Connect the computer cable (VGA) between the projector’s Computer In connector and the computer’s port (mini D-Sub 15 Pin). Turn two thumb screws of both connectors to fix the computer cable (VGA). 2. Connect the supplied power cord to the projector. First connect the supplied power cord’s three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cord in the wall outlet. The projector’s Power indicator will flash for a few seconds and then will light red* (standby mode). * T his will apply for indicator when [POWER-SAVING] is selected for [STANDBY MODE]. See the Power Indicator section.(→ page 182) Make sure that the prongs are fully inserted into both the AC IN and the wall outlet. → To wall outlet CAUTION: Parts of the projector may become temporarily heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector.

  • Page 29: ❸ Turning On The Projector

    2. Projecting an Image (Basic Operation) ❸ Turning on the Projector 1. Slide the lens cover to the left to uncover the lens. 2. Press the (Power) button on the projector cabinet or the Power On button on the remote control. The Power indicator will turn to blue and the projector will become ready to use. TIP: • When the message “Projector is locked! Enter your password.” is displayed, it means that the [SECURITY] feature is turned on. (→...

  • Page 30: Note On Startup Screen (Menu Language Select Screen)

    2. Projecting an Image (Basic Operation) Note on Startup screen (Menu Language Select screen) When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 19 menu languages. To select a menu language, follow these steps: 1. Use the , ,  or  button to select one of the 19 languages from the menu. 2. Press the Enter button to execute the selection.

  • Page 31: ❹ Selecting A Source

    2. Projecting an Image (Basic Operation) ❹ Selecting a Source Selecting the computer or video source NOTE: Turn on the computer or video source equipment connected to the projector. Detecting the Signal Automatically Press the Input button once. The projector will search for the available input source and display it. The input source will change as follows: COMPUTER → HDMI1 → HDMI2 → VIDEO → S-VIDEO → VIEWER → USB DISPLAY → COMPUTER → ... • With the INPUT screen displayed, you can press the Input button a few times to select the input source. TIP: If no input signal is present, the input will be skipped.
  • Page 32 2. Projecting an Image (Basic Operation) Selecting Default Source You can set a source as the default source so that it will be displayed each time the projector is turned on. 1. Press the Menu button. The menu will be displayed. 2. Press the  button twice to select [SETUP] and press the  button or the Enter button to select [GENERAL]. 3. Press the  button four times to select [OPTIONS(2)]. 4. Press the  button five times to select [DEFAULT SOURCE SELECT] and press the Enter button. The [DEFAULT SOURCE SELECT] screen will be displayed. (→ page 107) 5. Select a source as the default source, and press the Enter button. 6. Press the Back button a few times to close the menu. 7. Restart the projector. The source you selected in step 5 will be projected. NOTE: Even when [AUTO] is turned on, the [NETWORK] will not be automatically selected.

  • Page 33: ❺ Adjusting The Picture Size And Position

    2. Projecting an Image (Basic Operation) ❺ Adjusting the Picture Size and Position Use the Lens Shift dial, the adjustable tilt foot lever, the Zoom lever and the Focus lever to adjust the picture size and position. In this chapter drawings and cables are omitted for clarity. Adjusting the vertical position of a projected image Adjusting the focus [Lens shift] [Focus lever] (→ page 20) (→ page 21) Finely adjusting the size of an image Adjusting the throw angle (the height of an image) [Zoom lever] [Tilt foot] *¹ (→ page 22) (→ page 23) Adjusting the left and right tilt of an image Adjusting the vertical and horizontal keystone correction [Rear foot] [Keystone] (→ page 23) (→ page 24) NOTE*1: Adjust the throw angle (the height of an image) when the image position is higher than the lens shift adjustable range.

  • Page 34: Adjusting The Vertical Position Of A Projected Image (Lens Shift)

    Lens shift can be adjusted with the range below. If you wish to move up the image higher than this limit, use the tilt foot of the projector. Desktop front projection [RICOH PJ X5371N] Height of projected image Vertical shift range (0 to 0.5V) [RICOH PJ WX5361N] Height of projected image Vertical shift range (0 to 0.6V)

  • Page 35: Focus

    2. Projecting an Image (Basic Operation) Ceiling front projection [RICOH PJ X5371N] Vertical shift range (0 to 0.5V) Height of projected image [RICOH PJ WX5361N] Vertical shift range (0 to 0.6V) Height of projected image Focus Use the Focus lever to obtain the best focus. Focus Lever...

  • Page 36: Zoom

    2. Projecting an Image (Basic Operation) Zoom Use the Zoom lever to adjust the image size on the screen. Zoom Lever...

  • Page 37: Adjust The Tilt Foot

    2. Projecting an Image (Basic Operation) Adjust the Tilt Foot 1. Lift the front edge of the projector. CAUTION: Do not try to touch the ventilation outlet during Tilt Foot adjustment as it can become heated while the projector is turned on and after it is turned off. 2. Push up and hold the Adjustable Tilt Foot Lever on the front of the projector to extend the adjustable tilt foot. Adjustable Tilt Foot Adjustable Tilt Foot 3. Lower the front of the projector to the desired height. Lever 4. Release the Adjustable Tilt Foot Lever to lock the Adjustable tilt foot. The tilt foot can be extended up to 1.6 inch/40 mm. There is approximately 10 degrees (up) of adjustment for the front of the projector. Rotate the rear foot to the desired height in order to square the image on the projection surface. CAUTION: • Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector. Adjusting the left and right tilt of an image [Rear foot] • Rotate the rear foot.

  • Page 38: ❻ Correcting Keystone Distortion [Keystone]

    When the projector is not exactly perpendicular to the screen, keystone distortion occurs. To overcome it, you can use the “Keystone” function, a digital technology that can adjust for keystone-type distortion, resulting in a crisp, square image. The following procedure explains how to use the [KEYSTONE] screen from the menu to correct trapezoidal distortions. When the projector is placed diagonally to the screen, When the projector is set up at an angle in relation to the screen, adjust the Horizontal option of the Keystone menu so that the top and bottom of sides of the projected image are parallel. NOTE: • Before performing the horizontal keystone correction, set the lens shift to the position of 0.5 V (RICOH PJ X5371N)/0.6 V (RICOH PJ WX5361N). 1. Press the  button on the projector cabinet. The Keystone screen will be displayed on the screen. • Press the Keystone button when using the remote control. • See page for PINCUSHION. • See page for CORNERSTONE. • See page for RESET.
  • Page 39 2. Projecting an Image (Basic Operation) 4. Press the  button to select [KEYSTONE HORIZONTAL] and then use the  or  so that the top and bottom sides of the projected image are parallel. • Adjust the horizontal keystone distortion. 5. Repeat steps 2 and 4 to correct keystone distortion. 6. After completing Keystone correction, press the Exit button. The Keystone screen will disappear. • To perform Keystone correction again, press the  button to display the Keystone screen and repeat above steps 1 to 6. To return the keystone adjustments to default: 1. Press the  button to select [RESET] and press the Enter button. 2. Press the  or  button to select [YES] and press the Enter button. The adjustments will be reset. All the adjustments for all the five items will be reset at the same time. • The KEYSTONE feature can cause an image to be slightly blurred because the correction is made electronically.

  • Page 40: ❼ Optimizing Computer Signal Automatically

    2. Projecting an Image (Basic Operation) ❼ Optimizing Computer Signal Automatically Adjusting the Image Using Auto Adjust Optimizing a computer image automatically. (COMPUTER) Press the Auto Set button to optimize a computer image automatically. This adjustment may be necessary when you connect your computer for the first time. [Poor picture] [Normal picture] NOTE: Some signals may take time to display or may not be displayed correctly. • If the Auto Adjust operation cannot optimize the computer signal, try to adjust [H-POSITION], [V-POSITION], [FREQUENCY], and [PHASE] manually.

  • Page 41: ❾ Turning Off The Projector

    2. Projecting an Image (Basic Operation) ❾ Turning off the Projector To turn off the projector: 1. First, press the (Power) button on the projector cabi- net or the Power Standby button on the remote control. The confirmation message will be displayed. 2. Secondly, press the Enter button or press the (Power) Power On Standby or the Power Standby button again. The lamp will turn off and the projector will go into standby mode. In standby mode, the Power indicator lights red if [POWER-SAVING] is selected for [STANDBY MODE]. Steady blue light Steady red light CAUTION: Parts of the projector may become temporarily heated if the projector is turned off with the Power button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. NOTE: •...

  • Page 42: ❿ After Use

    2. Projecting an Image (Basic Operation) ❿ After Use Preparation: Make sure that the projector is turned off. 1. Unplug the power cord. 2. Disconnect any other cables. • Remove the USB memory if it is inserted into the projector. 3. Retract adjustable tilt foot if extended. 4. Slide the lens cover to the right to cover the lens.

  • Page 43: Convenient Features

    3. Convenient Features ❶ Turning off the Image and Sound Press the AV Mute button to turn off the image and sound for a short period of time. Press again to restore the image and sound. The projector’s power-saving function will work 10 seconds after the im- age is turned off. As a result, the lamp power will be reduced. NOTE: • Even though the image is turned off, the menu still remains on the screen. • Sound from the Audio Out jack (Stereo mini) can be turned off. •...

  • Page 44: ❹ Changing Eco Mode/Checking Energy-Saving Effect

    3. Convenient Features 2. Press the  button. The area of the magnified image will be moved 3. Press the Magnify (−) button. Each time the Magnify (−) button is pressed, the image is reduced. NOTE: • The image will be enlarged or reduced at the center of the screen. • Displaying the menu will cancel the current magnification. ❹ Changing Eco Mode/Checking Energy-Saving Effect Using Eco Mode [LAMP POWER] The LAMP POWER (ECO1 and ECO2) increases lamp life, while lowering power consumption and cutting down on emissions.

  • Page 45: Checking Energy-Saving Effect [Carbon Meter]

    3. Convenient Features NOTE: • The [LAMP POWER] can be changed by using the menu. Select [SETUP] → [GENERAL] → [LAMP POWER]. • The lamp life remaining and lamp hours used can be checked in [USAGE TIME]. Select [INFO.] → [USAGE TIME]. •...
  • Page 46 3. Convenient Features TIP: • The formula as shown below is used to calculate the amount of CO emission reduction. Amount of CO emission reduction = (Power consumption in STND. for LAMP POWER − Power consumption in AUTO ECO/ECO1/ ECO2 for LAMP POWER) × CO conversion factor.* When the image is turned off with the AV Mute button or with the lens cover closed, the amount of CO emmission reduction will also increase.

  • Page 47: ❺ Preventing The Unauthorized Use Of The Projector [Security]

    3. Convenient Features ❺ Preventing the Unauthorized Use of the Projector [SECURITY] A keyword can be set for your projector using the Menu to avoid operation by an unauthorized user. When a keyword is set, turning on the projector will display the Keyword input screen. Unless the correct keyword is entered, the projector cannot project an image. • The [SECURITY] setting cannot be cancelled by using the [RESET] of the menu. To enable the Security function: 1. Press the Menu button. The menu will be displayed. 2. Press the  button twice to select [SETUP] and press the  button or the Enter button to select [GENERAL]. 3. Press the  button to select [INSTALLATION]. 4. Press the  button three times to select [SECURITY] and press the Enter button. The OFF/ON menu will be displayed. 5. Press the  button to select [ON] and press the Enter button. The [SECURITY KEYWORD] screen will be displayed. 6. Type in a combination of the four  buttons and press the Enter button. NOTE: A keyword must be 4 to 10 digits in length. The [CONFIRM KEYWORD] screen will be displayed.
  • Page 48 3. Convenient Features 7. Type in the same combination of  buttons and press the Enter button. The confirmation screen will be displayed. 8. Select [YES] and press the Enter button. The SECURITY function has been enabled. To turn on the projector when [SECURITY] is enabled: 1. Press the Power button. The projector will be turned on and display a message to the effect that the projector is locked. 2. Press the Menu button. 3. Type in the correct keyword and press the Enter button. The projector will display an image. NOTE: The security disable mode is maintained until the main power is turned off or unplugging the power cord.
  • Page 49 3. Convenient Features To disable the SECURITY function: 1. Press the Menu button. The menu will be displayed. 2. Select [SETUP] → [INSTALLATION] → [SECURITY] and press the Enter button. The OFF/ON menu will be displayed. 3. Select [OFF] and press the Enter button. The SECURITY KEYWORD screen will be displayed. 4. Type in your keyword and press the Enter button. When the correct keyword is entered, the SECURITY function will be disabled. NOTE: If you forget your keyword, contact your dealer. Your dealer will provide you with your keyword in exchange for your request code.

  • Page 50: ❻ Using 4-Point Corner To Correct Keystone Distortion [Cornerstone]

    3. Convenient Features ❻ Using 4-Point Corner to Correct Keystone Distortion [CORNERSTONE] Use the [CORNERSTONE] feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right side of the screen longer or shorter so that the projected image is rectangular Cornerstone 1. Press the Keystone button with no menu displayed. The KEYSTONE screen will be displayed. • Press the Keystone button when using the remote control. • See page for PINCUSHION. 2. Press the  button to select [CORNERSTONE] and press the Enter button. The drawing shows the upper left icon ( ) is selected. The CORNERSTONE screen will be displayed 3. Project an image so that the screen is smaller than the area of the raster. 4. Pick up any one of the corners and align the corner of the image with a corner of the screen. Projected image The drawing shows the upper right corner. TIP: If you are adjusting [KEYSTONE HORIZONTAL], [KEYSTONE VERTICAL], [PINCUSHION LEFT/RIGHT], or [PINCUSHION TOP/BOTTOM], the [CORNERSTONE] item will not be available. If this happens, reset the [KEY- STONE] adjustments. 5. Use the  button to select one icon () which points in the direction you wish to move the projected image frame. 6. Press the Enter button.
  • Page 51 3. Convenient Features 7. Use the  button to move the projected image frame as shown on the example. 8. Press the Enter button. 9. Use the  button to select another icon which points in the direction. On the Cornerstone adjustment screen, select [EXIT] or press the Exit button on the remote control. The confirmation screen is displayed. 10. Press the  or  button to highlight the [OK] and press the Enter button. This completes the Cornerstone correction. Selecting [CANCEL] will return to the adjustment screen without saving changes (Step 3). Selecting [RESET] will return to the factory default. Selecting [UNDO] will exit without saving changes..
  • Page 52 3. Convenient Features The adjustable ranges for 3D Reform are as follows: HORIZONTAL VERTICAL CORNERSTONE Max. +/− 30° approx. Max. +/− 30° approx. KEYSTONE * The following are conditions under which the maximum angle is achieved: • When the lens shift is set to the center When the lens shift is used and yet the image is not displayed in the center of the screen, the adjustable range will be increased or decreased. • Image is projected in maximum wide with the zoom NOTE: • Even when the projector is turned on, the last used correction values are applied. • If the Cornerstone screen is unavailable (grayed), reset the current correction data. The Cornerstone function becomes available. •...

  • Page 53: ❼ Operating Your Computer's Mouse Functions From The Projector's Remote Control Via The Usb Cable (Remote Mouse Function)

    3. Convenient Features ❼ Operating Your Computer’s Mouse Functions from the Projec- tor’s Remote Control via the USB Cable (Remote Mouse Function) The built-in remote mouse function enables you to operate your computer’s mouse functions from the supplied remote control when the projector is connected to a computer via a commercially available USB cable (compatible with USB 2.0 specifications). The Remote Mouse function works for the Computer input while the computer screen is displayed. The Remote Mouse function will not work while you freeze or magnify an image. - Using the USB cable to connect the projector and the computer will also start USB Display function. USB cable (not supplied) NOTE: • A USB cable must support the USB 2.0 Specifications. •...

  • Page 54: ❽ Projecting Your Computer's Screen Image From The Projector Via The Usb Cable (Usb Display)

    3. Convenient Features ❽ Projecting Your Computer’s Screen Image from the Projector via the USB Cable (USB Display) Using a commercially available USB cable (compatible with USB 2.0 specifications) to connect the computer with the projector allows you to send your computer screen image and audio to the projector for displaying. Power On/Off and source selection of the projector can be done from your computer without connecting a computer cable (VGA). NOTE: • To make USB DISPLAY available on Windows XP, the Windows user account must have “Administrator” privilege. • USB Display uses functions of Projection Utility contained on CD-ROM (→ page 164). Starting USB Display, however, will not install Projection Utility on your computer.
  • Page 55 3. Convenient Features 5. Operate the control window. (Source) ����� Selects an input source of the projector� (Picture) ���� Turns on or off AV-MUTE (Picture mute), and turns on or off FREEZE (Freeze a picture)� (Sound) ����� Turns on or off AV-MUTE (Sound mute), play the sound and turns up or down the volume� (Others) �����...

  • Page 56: ❾ Controlling The Projector By Using An Http Browser

    3. Convenient Features ❾ Controlling the Projector by Using an HTTP Browser Overview The HTTP Server function provides settings and operations for: 1. Setting for wired/wireless network (NETWORK SETTINGS) To use wireless LAN connection, the optional USB Wireless LAN Unit is required. (→ page 148) 2. Setting Alert Mail (ALERT MAIL) When the projector is connected to a wired/wireless network, lamp replace time or error messages will be sent via e-mail. 3. Operating the projector Power on/off, selecting input, volume control and picture adjustments are possible. 4. Configure the settings such as PJLink PASSWORD This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software. Two ways of access to the HTTP server function are available: • Start the Web browser on the computer via the network connected to the projector and enter the following URL : http://<the projector’s IP address> /index.html • Use Projection Utility contained on the supplied CD-ROM. TIP: The factory setting IP address is [DHCP ON]. NOTE: •...

  • Page 57: Handling Of The Address For Operation Via A Browser

    3. Convenient Features Handling of the Address for Operation via a Browser Regarding the actual address that is entered for the address or entered to the URL column when operation of the pro- jector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used. Example 1: W hen the host name of the projector has been set to “pj.ricoh.co.jp” , access is gained to the network setting by specifying http://pj.ricoh.co.jp/index.html for the address or the entry column of the URL. Example 2: W hen the IP address of the projector is “192.168.73.1” , access is gained to the network setting by specifying http://192.168.73.1/index.html for the address or the entry column of the URL. PROJECTOR ADJUSTMENT POWER: This controls the power of the projector. ON ������������������������� Power is switched on�...
  • Page 58 3. Convenient Features PICTURE: Controls the video adjustment of the projector. BRIGHTNESS  �����������������Increases the brightness adjustment value� BRIGHTNESS  �����������������Decreases the brightness adjustment value� CONTRAST  ���������������������Increases the contrast adjustment value� CONTRAST  ���������������������Decreases the contrast adjustment value� COLOR SATURATION  ���������������Increases the color adjustment value� COLOR SATURATION ...
  • Page 59 3. Convenient Features NETWORK SETTINGS • SETTINGS WIRED LAN or WIRELESS LAN SETTING Set for wired LAN or for wireless LAN. APPLY Apply your settings to wired LAN or wireless LAN. DHCP ON Automatically assign IP address, subnet mask, and gateway to the projector from your DHCP server. DHCP OFF Set IP address, subnet mask, and gateway to the projector assigned by your network administrator. IP ADDRESS Set your IP address of the network connected to the projector. SUBNET MASK Set your subnet mask number of the network connected to the projector. GATEWAY Set the default gateway of the network connected to the projector. WINS Set the IP address of your WINS server of the network connected to the projector when [DHCP] is turned on, this option is not available. AUTO DNS ON DHCP server will automatically assign IP address of DNS server connected to the projector.
  • Page 60 3. Convenient Features SITE SURVEY Displays a list of available SSIDs for wireless LAN on site. Select an SSID which you can access. COMMUNICATION Select communication method when using wireless LAN. MODE INFRASTRUCTURE: Select this option when communicating with one or more equip- ment connected to the wireless LAN network via a wireless access point. ADHOC: Select this option when using the wireless LAN to directly communicate with a computer in peer-to-peer mode. SECURITY TYPE Turn on or off the encryption mode for secure transmission. When turn on the encryp- tion mode, set WEP key or encrypted key. DISABLE Will not turn on the encryption feature. Your communications may be monitored by someone. WEP 64 bit Uses 64-bit datalength for secure transmission. WEP 128 bit Uses 128-bit datalength for secure transmission. This option will increase privacy and security when compared to use of 64-bit datalength encryption. WPA-PSK TKIP/ WPA-PSK AES/ These options provide stronger security WPA2-PSK TKIP/ WPA2-PSK AES/ than WEP. WPA-EAP TKIP EAP-TLS/ WPA-EAP AES EAP-TLS/ WPA-EAP TKIP PEAP-MSCHAP v2/ WPA-EAP AES PEAP-MSCHAP v2/ WPA2-EAP TKIP EAP-TLS/...
  • Page 61 Enter the domain name of the network connected to the projector. A domain name must be 60 characters or less. • ALERT MAIL ALERT MAIL (English This option will notify your computer of lamp replace time or error messages via e-mail only) when using wireless or wired LAN. Placing a checkmark will turn on the Alert Mail feature. Clearing a checkmark will turn off the Alert Mail feature. Sample of a message to be sent from the projector: The lamp and filters are at the end of its usable life. Please replace the lamp and filters. Projector Name: RICOH Projector Lamp Hours Used: 100 [H] SENDER’S ADDRESS Enter sender’s address. SMTP SERVER NAME Enter the SMTP server name to be connected to the projector. RECIPIENT’S ADDRESS Enter your recipient’s address. Up to three addresses can be entered. 1,2,3 TEST MAIL Send a test mail to check whether your settings are correct or not NOTE: • If you execute a test, you may not receive an Alert mail. Should this happen, check if network settings are correct.
  • Page 62 3. Convenient Features • NETWORK SERVICE PJLink PASSWORD Set a password for PJLink*. A password must be 32 characters or less. Do not forget your password. However, if you forget your password, consult with your dealer. HTTP PASSWORD Set a password for HTTP server. A password must be 10 characters or less. *What is PJLink? PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard pro- tocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005. The projector supports all the commands of PJLink Class 1. Setting of PJLink will not be affected even when [RESET] is done from the menu. CRESTRON ROOMVIEW compatibility The projector supports CRESTRON ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled from a computer or a controller. For more information, visit http://www.crestron.com <Setting Procedure> Access to the HTTP server function, and make necessary settings for [CRESTRON] in [NETWORK SETTINGS]. • ROOMVIEW for managing from the computer. DISABLE Disables ROOMVIEW. ENABLE Enables ROOMVIEW. • CRESTRON CONTROL for managing from the controller. DISABLE Disables CRESTRON CONTROL.

  • Page 63: ❿ Projecting Your Computer's Screen Image From The Projector Via A Network [Network Projector]

    3. Convenient Features ❿ Projecting Your Computer’s Screen Image from the Projector via a Network [NETWORK PROJECTOR] By selecting the projector connected to the same network as that of your PC, the PC screen image can be projected to the screen via network. There is no need of connection using the computer cable (VGA). Operation Environment Applicable OS Windows 8 Pro Windows 8 Enterprise Windows 7 Professional Windows 7 Ultimate Windows 7 Enterprise Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate Windows Vista Enterprise Hardware specifications The specifications recommended by Microsoft as the operation environment for Windows 8/Windows 7/Windows Vista should be satisfied. Network Environment Wired LAN or wireless LAN environment that supports TCP/IP is required. Screen color High Color (16 bits) True Color (24 bits and 32 bits) * Setting with 256 colors or less is not available. Setting the Projector to Network Projector Input Mode 1. With the projector turned on, press the Input button.
  • Page 64 3. Convenient Features 2. Press the SELECT  or  button to select [NETWORK] and press the Enter button. In the screen, the [APPLICATION MENU] menu is displayed. 3. From the [APPLICATION MENU] menu, select [NETWORK PROJECTOR]. The [PROJECTOR NAME/DISPLAY RESOLUTION/PASSWORD/URL] will be displayed.
  • Page 65 3. Convenient Features Projecting the Image with Network Projector Windows 7 / Vista 1. Click [Start] from the desktop of Windows 7. 2. Click [All Programs]. 3. Click [Accessories]. 4. Click [Connect to a Network Projector]. When the [Windows Firewall is blocking the network projector from communicating with your computer] window appears,click [Allow the network projector to communicate with my computer]. The “ Connect to a Network Projector” window appears. 5. Click [→ Search for a projector (recommended)]. In the “ Available projectors” box, “ X5371N/WX5361N” is displayed. 6. Click [X5371N/WX5361N]. The message “ Enter the password for the projector that you selected. ” is displayed at the bottom of the window.
  • Page 66 3. Convenient Features 7. Input the password to the password input box displayed by the operation at step 3 on page 50. 8. Click [Connect]. The network projector function works and the screen of Windows 7 is projected from the projector. • If the resolution of your computer’s screen is different from the projector’s screen resolution, the NETWORK PROJECTOR function may not work. If this happens, change the resolution of the computer’s screen to lower resolution than the one displayed at Step 3 on page 50. NOTE: When the network projector function works, the background color of the desktop changes to black. When the network projector function is stopped, the original background color is restored. Reference: If the projector cannot be found at Step 5, click [ →...

  • Page 67: ⓫ Using The Projector To Operate Your Computer Via A Network

    3. Convenient Features ⓫ Using the Projector to Operate Your Computer via a Network [REMOTE DESKTOP] • By selecting the PC connected to the same network as that of the projector, the PC screen image can be projected to the screen via network. Then, by operating the keyboard, you can operate Windows 8, Windows 7, Windows Vista or Windows XP on the PC connected with the network. • With the Remote Desktop function, you can remotely operate the PC placed at a distance from the projector. Meeting room Office NOTE: • The [REMOTE DESKTOP] function will work on the following Windows editions. Windows 8 Pro, Windows 8 Enterprise, Windows 7 Professional, Windows 7 Ultimate, Windows 7 Enterprise, Windows Vista Home Premium, Windows Vista Business, Windows Vista Ultimate, Windows Vista Enterprise, Windows XP Professional with Service Pack 3...
  • Page 68 3. Convenient Features Setting the password to the user account of Windows 7 TIP: If a password has been set for an account, the steps 1 to 9 can be skipped. 1. Click [Start] from the desktop of Windows 7. 2. Click [Control Panel]. 3. Click [Add or remove user accounts] displayed under [User Accounts and Family Safety]. 4. When the [User Account Control] confirmation window appears, click [Yes]. 5. Click [Administrator]. 6. Click [Create a password].
  • Page 69 3. Convenient Features 4. Click [Local Area Connection] displayed in blue on the right of [Connections] in the window. The [Local Area Connection Status] window appears. 5. Click [Details...]. Write down the value for “ IPv4 Address” (xxx.xxx.xxx.xxx) displayed. 6. Click [Close]. 7. Click [X] at the upper right of the window. The system goes back to the desktop. Starting the Remote Desktop 1. With the projector turned on, press the Input button. The input selection window appears. Another way to display the input selection window is to press the Network button on the remote control. The AP- PLICATION MENU screen will be displayed. Go to step 3.
  • Page 70 3. Convenient Features 2. Press the SELECT  or  button to select [NETWORK] and press the Enter button. The [APPLICATION MENU] menu will be displayed. 3. From the [APPLICATION MENU] menu, use the wireless keyboard to select [REMOTE DESKTOP CONNEC- TION]. The [REMOTE DESKTOP CONNECTION] window appears. 4. Operate the wireless keyboard to input the IP address of Windows 7 and click [CONNECTION]. The log-on screen of Windows 7 is displayed in the screen projected by the projector. 5. Operate the wireless keyboard to input the user’s password and press “Enter” . The remote desktop function is started. Windows 7 desktop is displayed in the screen projected by the projector. Log out the computer. Use the wireless keyboard connected to the projector to operate Windows 7 . NOTE: When the projection is made with the remote desktop function, the background color of the desktop is changed to solid color.
  • Page 71 3. Convenient Features Exiting the Remote Desktop 1. Operate the wireless keyboard to click [Start] from the desktop screen projected by the projector. 2. Click [X] on the right of the start menu. The remote desktop function is stopped. 3. Press the Input button of the projector to select an input terminal other than [NETWORK]. When using the remote control, press a button other than the Network button. TIP: Setting [ADVANCED] in REMOTE DESKTOP Clicking [ADVANCED] displays the [ADVANCED] screen. Making settings to [ADVANCED] will allow you to display the desktop background, or to enable the window animation function during the Remote Desktop operation.

  • Page 72: ⓬ Connecting Your Microphone

    3. Convenient Features ⓬ Connecting Your Microphone Connecting a commercially available dynamic microphone to the Mic input jack allows you to output your mic sound from the built-in speaker. Sound from COMPUTER, VIDEO, S-VIDEO, and HDMI audio inputs or sound of VIEWER/NETWORK input will be heard from the speaker with your microphone voice. Microphone sensitivity can be adjusted. From the menu, select [SETUP] → [INSTALLATION] → [MIC GAIN]. (→ page 103) NOTE: • The Mic input jack does not support plugin power microphones. • If there is no signal when either HDMI input is selected, sound output may not work.

  • Page 73: Using The Viewer

    4. Using the Viewer ❶ What you can do with the Viewer The Viewer feature allows you to view slides or movie files stored on a USB memory on the projector, or a shared folder in a computer connected to the network. The Viewer has the following features. • When a commercially available USB memory that stores image files is inserted into the USB port (Type A) of the projector, the Viewer allows you to view the image files on the USB memory. Even if no computer is available, presentations can be conducted simply with the projector. • Movie file with audio can be played back. • Image and movie files stored in a shared folder in a computer connected to a network can be projected. The computer with “Media Sharing” of Windows Media Player 11 turned on can be used as a media server. Supported graphic formats Format File name extension JPEG .jpg, .jpe, .jpeg (CMYK is not supported.) .bmp (bit field not supported) .png (Interlaced PNG and α channel PNG are not supported.) .gif (Interlaced GIF, transparation GIF, and animation GIF are not supported.) * If an unsupported image is selected, the icon will be displayed. NOTE: Maximum number of pixels of image which can be displayed are: •...

  • Page 74: Supported Usb Memory Devices

    4. Using the Viewer NOTE: • Movie files converted by using the video/audio format which is not supported by this projector cannot be played back. In this case, there will be no icon to show that playback is not possible. •...
  • Page 75 4. Using the Viewer Notices on shared folder and media server • Files from a shared folder or media server may not be projected if security or antivirus software is installed on your computer. • Open the following firewall ports: - Media server Port number Protocol 1900 2869 10243 10280-10284 - Shared folder Port number Protocol UDP/TCP UDP/TCP UDP/TCP UDP/TCP • Set your computer for sharing and security to grant access to files in the shared folder and set your security or antivirus software to grant access to files in the shared folder. Consult your network administrator for more informa- tion. • Movie files in the shared folder or the media server may not be played back correctly depending on your network environment or the bit rate of your file. NOTE •...

  • Page 76: ❷ Preparing Presentation Materials

    4. Using the Viewer ❷ Preparing presentation materials 1. Create your presentation materials and save them in a supported file format to your computer. 2. Save a file to your drive. To save a file to your USB memory: Use the Windows Explore to copy the file to your USB memory. To place a file in a shared folder you create in your computer, see page 74. To use “ Media Sharing” in Windows Media Player 11, see page 78.

  • Page 77: ❸ Projecting Images Stored In A Usb Memory Device

    4. Using the Viewer ❸ Projecting images stored in a USB memory device This section explains the basic operation of the Viewer. The explanation provides the operational procedure when the Viewer toolbar is set to the factory default. Preparation: Before starting the Viewer, store images to the USB memory using your computer. Starting the Viewer 1. Turn on the projector. (→ page 15) 2. Insert the USB memory into the USB port of the projec- tor. NOTE: • Do not remove the USB memory from the projector while it’s LED flashes. Doing so may corrupt the data. TIP: You can a USB memory insert the projector when the drive list screen is displayed.
  • Page 78 4. Using the Viewer 4. Press the  button to select “ USB1” and press the Enter button. The “ USB1” thumbnail screen will be displayed. TIP: • For more information about thumbnail screen, see page 68. 5. Use the  or  button to select an icon. • The → (arrow) symbol on the right indicates there are more pages. Pressing the Page  (page down) button will show the next page: pressing the Page  (page up) will show the previous page. 6. Press the Enter button. Operation varies depending on the selected file. • Still image The selected slide will be displayed. The  or  button can be used to select the next (right) slide or the previous (left) slide in the thumbnail screen. • Pressing the Enter button will display the control bar with which is used to select or rotate an slide.(→ page 69)

  • Page 79: Exiting The Viewer

    4. Using the Viewer • Movie file The movie file will start playing. After finishing the playback, the screen will turn to black. Press the Back button to return to the thumbnail screen. • Pressing the Enter button will display the movie’s control bar with which you can pause or fastforward and some other operations. 7. Remove the USB memory from the projector. Return to the drive list screen. Make sure that the LED on the USB memory is not flashing before removing the USB memory. NOTE: If you remove the USB memory from the projector with a slide displayed, the projector may not operate correctly. If this happens, turn off the projector and unplug the power cord.

  • Page 80: Names And Functions Of Viewer Screen

    4. Using the Viewer Names and functions of Viewer screen The Viewer has three screens: Drive list screen, Thumbnail screen, and Slide screen. Cursor (yellow) Scroll bar Menu Menu Cursor (yellow) Folder icon [Drive list screen] [Thumbnail screen] Path information Drive information/File information Operation button guide Menu guide Control bar * The operation for still image differs from that for movie. [Slide screen] • Drive list screen Displays a list of drives connected to the projector. Menu operation • Use the  or  button to move the cursor up or down. Select the menu item and press the Enter button to display the submenu. Operation for Drive list screen 1. Press the  button to move the cursor to the drive list.
  • Page 81 4. Using the Viewer Functions Name Description REFRESH Displays additional media servers in the drive list screen. OPTIONS Opens the OPTIONS menu. SLIDE SETTING Sets up slides. (→ page 71) MOVIE SETTING Sets up movie files. (→ page 72) AUTO PLAY SETTING Sets up auto play. (→ page 72) SHARED FOLDER Sets up a shared folder. (→ page 74) MEDIA SERVER Sets up a media server. (→ page 78) RETURN Closes the OPTIONS menu. SYSTEM SETTING Switches to the system setting menu. See wired LAN, wireless LAN, WPS, network information, mouse, and keyboard in "❾ Application Menu". (→ page 114) Displays the icon for a USB memory inserted into the USB port of the projector.
  • Page 82 4. Using the Viewer • Thumbnail screen Displays a list of folders, thumbnails, and icons in the drive selected on the drive list screen. Menu operation • Use the  or  button to move the cursor up or down. Select the menu item and press the Enter button to display the menu or setting screen. Operation for Thumbnail screen 1. Press the  button to move the cursor to the thumbnail screen when the OPTIONS menu is not displayed. 2. Press the , , , or  button to select a file or folder. 3. Press the Enter button to start slideshow or playback of the selected file. Selecting a folder will display its thumbnail screen. Functions Name Description Goes to one upper level menu. THUMBNAIL Switches two displays between thumbnail and icon. SORT SETTING Rearranges folders or files. DRIVE LIST Returns to the drive list screen. OPTIONS Changes to the OPTIONS menu. SYSTEM SET- Opens the system setting menu. TING Scroll bar Thumbnail screen will display 12 files with 4 by 3. If the thumbnail screen has twelve or more files or folders, the scroll bar will be displayed at the right side. Using the Page  or Page  button will scroll the whole screen down or up.
  • Page 83 4. Using the Viewer • Slide screen (still image/movie) Plays a file selected from a list of thumbnails or icons. Control bar operation • The control bar will be displayed only when a still image and a movie file is selected. • The control bar for still images differs from that for movie files. 1. Pressing the Enter button in Slide screen will display the control bar at the bottom of the screen. 2. Use the  or  button to select a file and press the Enter button. • The selected function will be executed. Functions of still image control bar Name Description PREV Goes back to the previous image PLAY Plays the image. This button also is used to stop or start playing an image. NEXT Goes to the next image. RIGHT Rotates the image 90° clockwise. • To cancel, select another folder. LEFT Rotates the image 90° counter clockwise.
  • Page 84 4. Using the Viewer Functions of movie control bar Name Description PREV Goes back to the beginning of a movie file. • Goes back to the beginning of the previous movie file if executed immediately after being started playing. Fast-rewinds a movie file for about 7 seconds. PLAY/PAUSE PLAY Plays a movie file. PAUSE Stops playing a movie file. Fast-forwards a movie file for about 7 seconds. NEXT Goes to the beginning of a next movie file. TIME Displays an elapsed time for playback or pause. SIZE BEST FIT Displays the image with its aspect ratio in the projector’s displayable maximum resolution.

  • Page 85: Viewer Option Settings

    4. Using the Viewer Viewer option settings • SLIDE SETTING Sets still images or slides. Name Options Description SCREEN SIZE BEST FIT Displays the image with its aspect ratio in the projector’s display- able maximum resolution. ACTUAL SIZE Displays the image in its actual size. PLAY MODE MANUAL Selects manual play. AUTO Selects auto play. DISPLAY INTERVAL 5 - 300 seconds Specifies interval time when [AUTO] is selected for PLAY MODE. REPEAT Check mark Turns on or off the repeat function. • To play one or more slides, place those files into a folder.
  • Page 86 4. Using the Viewer • MOVIE SETTING Sets the functions for a movie file. Name Options Description SCREEN SIZE BEST FIT Displays the image with its aspect ratio in the projector’s display- able maximum resolution. ACTUAL SIZE Displays the image in its actual size. REPEAT Turns on or off the repeat function. ONE REPEAT Repeats one file only. ALL REPEAT Repeats all files in the current folder. • Turning on [REPEAT] will display black screen during intermission between movies. • AUTO PLAY SETTING Sets auto play for slideshow when a USB memory device is inserted into the USB port of the projector, or when [VIEWER] is selected for [INPUT].
  • Page 87 4. Using the Viewer • SORT SETTING Sets the order of displaying thumbnails or slides. Name Options Description SORT NAME (ABC..) Displays the files alphabetically by name in ascending order. NAME (ZYX..) Displays the files alphabetically by name in descending order. EXT. (ABC..) Displays the files alphabetically by extension in ascending order. EXT. (ZYX..) Displays the files alphabetically by extension in descending order. DATE (NEW) Displays the files in reverse chronological order. DATE (OLD) Displays the files in chronological order. SIZE (BIG) Displays the files in descending order of its file size. SIZE (SMALL) Displays the files in ascending order of its file size.

  • Page 88: ❹ Projecting Data From Shared Folder

    4. Using the Viewer ❹ Projecting data from shared folder Shared folder Wireless LAN Projector Shared folder Preparation For projector: Connect the projector to the network. For computer: Place files to be projected in a shared folder and note the folder’s path. Memorize or write down the path for later use. • For sharing a folder, refer to your user guide or help file accompanied with your Windows computer. • Use a keyboard to give a name to the shared folder in alphanumeric characters. • To connect the shared folder beyond the subnet, set [WINS CONFIGURATION] in [NETWORK SETTINGS] from the menu. • Digital signature (SMB signature) is not supported. Connecting the projector to the shared folder 1. Press the Viewer button on the remote control. The drive list window will be displayed. • Another way to start the VIEWER is to press the Input button a few times on the projector cabinet. (→ page 17)
  • Page 89 4. Using the Viewer 2. Displays the [OPTIONS] menu. Press the  button to select the (OPTIONS) icon and press the Enter button. • When the OPTIONS menu is displayed, the drive list will not be displayed. 3. Display the [SHARED FOLDER] screen. Press the  button to select the (SHARED FOLDER) icon and press the Enter button. 4. Select a folder number and place to enable it. Press the  or  button to a shared folder number and press the  button to select [ENABLE], and then press the Enter button. 5. Enter the path, user name, and password for the shared folder. Press the  button to select the [SHARED FOLDER] field. The software keyboard will be displayed. For using the software keyboard, see page 127 • If your computer is not password protected, entering a password is not required. • Up to four shared folders can be added. • The maximum length of a path of the shared folder must be 15 alphanumeric characters for computer name and 23 alphanumeric characters for folder name.
  • Page 90 4. Using the Viewer 6. Exit the setting. Press the  button to select [OK] and press the Enter button. This will close the [SHARED FOLDER] screen. • If an error message appear, your settings are not correct. Try again.

  • Page 91: Disconnecting The Shared Folder From The Projector

    4. Using the Viewer Disconnecting the shared folder from the projector • Disable the number of a shared folder you wish to disconnect Press the  button to select [ENABLE] and press the Enter button to clear it. TIP: • Connecting settings for Shared folder Settings of up to four folders can be saved. Restarting the projector will display setting-saved shared folders in grey folder icon on the drive list screen. Selecting the grey icon folder will skip entry for a folder path.

  • Page 92: ❺ Projecting Data From Media Server

    4. Using the Viewer ❺ Projecting data from media server Media server Wireless LAN Media server Projector Media server Preparation For projector: Connect the projector to the network. For computer: Prepare image files or movie files to be projected, and set up “Media Sharing” in Windows Media Player 11 or Windows Media Player 12. NOTE: • Both the projector and the media server must be on the same subnet. Connecting to the media server beyond the subnet is not possible.
  • Page 93 4. Using the Viewer 3. Select “Share my media” check box, and then select OK. A list of accessible devices will be displayed. 4. Select “X5371N/WX5361N” and then “Allow” . A check mark will be added to the “ X5371N/WX5361N” icon. • The “ X5371N/WX5361N” is a projector name specified in [NETWORK SETTINGS]. 5. Select “OK” . This will make pictures and video in “ Library” available from the projector.

  • Page 94: Setting Up "Media Sharing" In Windows Media Player 12

    4. Using the Viewer Setting up “Media Sharing” in Windows Media Player 12 1. Start Windows Media Player 12. 2. Select “Stream” , and then select “Automatically allow devices to play my media” . The “ Allow All Media Devices” windows will be displayed. 3. Select “Automatically allow all computers and media devices” . Graphics and movie files in “ Library” can be used from the projector.

  • Page 95: Connecting The Projector To The Media Server

    4. Using the Viewer Connecting the projector to the media server Press the Viewer button on the remote control. The VIEWER will start. • Another way to start the VIEWER is to press the Input button a few times on the projector cabinet. (→ page 17) • This will start searching for a computer with “media sharing” enabled in the network and add it to the “Media server” of the thumbnail screen. Another way to do this is to point the cursor to “Media server” and select [REFRESH] from the thumbnail menu and press the Enter button. NOTE: • Up to four accessible media servers can be automatically searched and displayed. The fifth device or later cannot be displayed. (→ page 63)

  • Page 96: Disconnecting The Projector From The Media Server

    4. Using the Viewer Disconnecting the projector from the media server 1. Display the OPTIONS menu. Press the  button to select the [OPTIONS] icon and select the Enter button. 2. Display the MEDIA SERVER setting screen. Press the  button to select the MEDIA SERVER icon and press the Enter button. 3. Disable the connection. Press the Enter button to clear the checkmark to disable the connection. Press the  button to select [OK] and press the Enter button to close the MEDIA SERVER setting screen.

  • Page 97: Using On-Screen Menu

    5. Using On-Screen Menu ❶ Using the Menus NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected. 1. Press the Menu button on the remote control or the projector cabinet to display the menu. NOTE: The commands such as Enter, Back, ,  in the bottom show available buttons for your operation. 2. Press the  buttons on the remote control or the projector cabinet to display the submenu.

  • Page 98: ❷ Menu Elements

    5. Using On-Screen Menu ❷ Menu Elements Slide bar Solid triangle Available buttons Source Highlight Radio button Wireless symbol ECO mode symbol Off Timer remaining High Altitude symbol time Thermometer symbol Key Lock symbol Menu windows or dialog boxes typically have the following elements: Highlight �����������������������������Indicates the selected menu or item� Solid triangle ����������������������Indicates further choices are available� A highlighted triangle indicates the item is active� Tab ��������������������������������������Indicates a group of features in a dialog box�...

  • Page 99: ❸ List Of Menu Items

    CONTRAST R CONTRAST G CONTRAST B BRIGHTNESS R ADJUST BRIGHTNESS G BRIGHTNESS B CONTRAST BRIGHTNESS SHARPNESS COLOR SATURATION TINT RESET FREQUENCY PHASE H-POSITION V-POSITION OVERSCAN NORMAL, 0[%], 5[%], 10[%] IMAGE RICOH PJ X5371N: NORMAL, 4:3, 16:9, 15:9, 16:10, WIDE OPTIONS ZOOM, NATIVE ASPECT RICOH PJ WX5361N: NORMAL, 4:3, 16:9, 15:9, 16:10, LETTERBOX, NATIVE DETAILED SIGNAL SETTINGS (Not available on RICOH PJ WX5361N) AUDIO VOLUME KEYSTONE HORIZONTAL, KEYSTONE VERTICAL, KEYSTONE PINCUSHION LEFT/RIGHT, PINCUSHION TOP/BOTTOM, CORNERSTONE, RESET OFF, WHITEBOARD, BLACKBOARD, GRAY, LIGHT YELLOW, WALL COLOR MODE LIGHT GREEN, LIGHT BLUE, SKY BLUE, LIGHT ROSE, PINK LAMP POWER AUTO ECO STND., AUTO ECO, ECO1, ECO2...
  • Page 100 AUTO SET SIGNALS NORMAL OFF, NORMAL, FINE FAN MODE AUTO AUTO, HIGH, HIGH ALTITUDE RGB/ COMPUTER RGB/COMPONENT, RGB, COMPONENT COMPONENT AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SIGNAL SELECT VIDEO AUTO SECAM AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SETUP S-VIDEO AUTO SECAM RICOH PJ X5371N: OFF WXGA MODE OFF, ON RICOH PJ OPTIONS(1) WX5361N: ON DEINTERLACE OFF, ON RGB INPUT HDMI1 AUTO. AUTO., FULL, STANDARD HDMI RANGE SETTINGS RGB INPUT HDMI2 AUTO. AUTO., FULL, STANDARD...
  • Page 101 5. Using On-Screen Menu Menu Item Default Options LAMP LIFE REMAINING LAMP TIME USAGE TIME FILTER HOURS USED TOTAL CO2 REDUCTION TOTAL COST SAVINGS SOURCE NAME SOURCE INDEX HORIZONTAL FREQUENCY SOURCE(1) VERTICAL FREQUENCY SYNC TYPE SYNC POLARITY SCAN TYPE SIGNAL TYPE VIDEO MODE SOURCE(2) BIT DEPTH RGB INPUT RANGE IP ADDRESS SUBNET MASK WIRED LAN DEFAULT GATEWAY INFO. MAC ADDRESS IP ADDRESS SUBNET MASK DEFAULT GATEWAY MAC ADDRESS WIRELESS LAN SSID COMMUNICATION MODE WEP/WPA CHANNEL SIGNAL LEVEL FIRMWARE...

  • Page 102: ❹ Menu Descriptions & Functions [Input]

    5. Using On-Screen Menu ❹ Menu Descriptions & Functions [INPUT] COMPUTER Selects the computer connected to your COMPUTER input connector signal. NOTE: When the component input signal is connected to the Computer In connector, select [COMPUTER]. HDMI1 and 2 Selects the HDMI compatible equipment connected to your HDMI1 or 2 connector. VIDEO Selects what is connected to your VIDEO input-VCR, DVD player or document camera. S-VIDEO Selects what is connected to your S-VIDEO input-VCR or DVD player. NOTE: A frame may freeze for a brief period of time when a video is played back in fast-forward or fast-rewind with a Video or S- Video source.

  • Page 103: ❺ Menu Descriptions & Functions [Adjust]

    5. Using On-Screen Menu ❺ Menu Descriptions & Functions [ADJUST] [PICTURE] [PRESET] This function allows you to select optimized settings for your projected image. You can adjust neutral tint for yellow, cyan or magenta. There are seven factory presets optimized for various types of images. You can also use [DETAIL SETTINGS] to set user adjustable settings to customize each gamma or color. Your settings can be stored in [PRESET 1] to [PRESET 7]. BRIGHT ������������������ Recommended for use in a brightly lit room� PRESENTATION ���� Recommended for making a presentation using a PowerPoint file� VIDEO �������������������� Recommended for typical TV program viewing� MOVIE �������������������...
  • Page 104 5. Using On-Screen Menu [GENERAL] Storing Your Customized Settings [REFERENCE] This function allows you to store your customized settings in [PRESET 1] to [PRESET 7]. First, select a base preset mode from [REFERENCE], then set [GAMMA CORRECTION] and [COLOR TEMPERATURE]. BRIGHT ������������������ Recommended for use in a brightly lit room� PRESENTATION ����� Recommended for making a presentation using a PowerPoint file� VIDEO �������������������� Recommended for typical TV program viewing� MOVIE �������������������...

  • Page 105: Color Saturation

    5. Using On-Screen Menu Enhancing the Color [COLOR ENHANCEMENT] This function allows you to enhance the color of image. OFF ������������������������ Does not enhance the color� ON ������������������������� Enhances the color� NOTE: This function is available only when [PRESENTATION] is selected [REFERENCE]. Adjusting White Balance [WHITE BALANCE] This allows you to adjust the white balance. Contrast for each color (RGB) to adjust the white level of the screen; Brightness for each color (RGB) is used to adjust the black level of the screen. [CONTRAST] Adjusts the intensity of the image according to the incoming signal.

  • Page 106: [Image Options]

    5. Using On-Screen Menu [IMAGE OPTIONS] Adjusting Clock and Phase [FREQUENCY/PHASE] This allows you to manually adjust FREQUENCY and PHASE. FREQUENCY ���������� Use this item to fine tune the computer image or to remove any vertical banding that might appear� This function adjusts the clock frequencies that eliminate the horizontal banding in the image� This adjustment may be necessary when you connect your computer for the first time�...
  • Page 107 5. Using On-Screen Menu Adjusting Horizontal/Vertical Position [H-POSITION/V-POSITION] Adjusts the image location horizontally and vertically. NOTE: • The [H-POSITION] and [V-POSITION] items are not available for VIDEO, S-VIDEO, HDMI, VIEWER, NETWORK, and USB DISPLAY. • The H-POSITION and V-POSITION cannot be adjusted depending on the signal. - An image can be distorted during the adjustment of [FREQUENCY] and [PHASE]. This is not malfunction.
  • Page 108 [Example 2] When the incoming signal with the resolution of 800 × 600 is displayed on the RICOH PJ WX5361N: NOTE: • When a non-computer signal is displayed, the [NATIVE] is not available. • When a signal with a higher resolution than the projector’s native resolution is displayed, [NATIVE] is not available.
  • Page 109 The letterbox signal has aspect ratios with the vista size “1.85:1” or cinema scope size “2.35:1” for movie film. • The term “squeeze” refers to the compressed image of which aspect ratio is converted from 16:9 to 4:3. Adjusting the Vertical Position of Image [DETAILED SIGNAL SETTINGS] (not supported by RICOH PJ WX5361N) (only when [16:9], [15:9], or [16:10] is selected for [ASPECT]) When [16:9], [15:9], or [16:10] is selected in [ASPECT], the image is displayed with black borders on the top and bottom.

  • Page 110: [Audio]

    5. Using On-Screen Menu [AUDIO] Turning Up or Down Sound Adjusts the volume of the projector speaker and Audio Out (Stereo Mini Jack). TIP: • When no menus appear, the  and  buttons on the projector cabinet and the Volume +/− buttons on the remote control work as a volume control. (→ page 26)

  • Page 111: ❻ Menu Descriptions & Functions [Setup]

    5. Using On-Screen Menu ❻ Menu Descriptions & Functions [SETUP] [GENERAL] Correcting Keystone Distortion Manually [KEYSTONE] You can correct horizontal or vertical keystone, pincushion, or cornerstone distortion manually. NOTE: • Some items are not available when one item is activated. Unavailable items are shown in grey. • To change from one item to another item, reset the first item. •...
  • Page 112 5. Using On-Screen Menu Using the Wall Color Correction [WALL COLOR MODE] This function allows for quick adaptive color correction in applications where the screen material is not white. NOTE: Selecting [WHITEBOARD] reduces lamp brightness. Setting Eco Mode [LAMP POWER] The LAMP POWER increases lamp life, while lowering power consumption and cutting down on CO emissions. Four brightness modes of the lamp can be selected: [STND.], [AUTO ECO], [ECO1] and [ECO2] modes. (→ page 30)

  • Page 113: [Menu]

    5. Using On-Screen Menu Setting Closed Caption [CLOSED CAPTION] This option sets several closed caption modes that allow text to be superimposed on the projected image of Video or S-Video. OFF ������������������������ This exits the closed caption mode� CC 1-4 ������������������� Text is superimposed� T 1-4 ���������������������� Text is displayed� NOTE: • The closed caption is not available under the following conditions: - when messages or menus are displayed.
  • Page 114 5. Using On-Screen Menu Turning ON/OFF Control ID [ID DISPLAY] ID DISPLAY ����������� This option turns on or off the ID number which is displayed when the ID Set button on the remote control is pressed� Turning On / Off Eco Message [ECO MESSAGE] This option turns on or off the following messages when the projector is turned on.

  • Page 115: [Installation]

    5. Using On-Screen Menu [INSTALLATION] Selecting Projector Orientation [PROJECTION MODE] This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection. STANDARD REAR CEILING REAR CEILING Disabling the Cabinet Buttons [CONTROL PANEL LOCK] This option turns on or off the CONTROL PANEL LOCK function. NOTE: • This CONTROL PANEL LOCK does not affect the remote control functions. • When the control panel is locked, pressing and holding the Back button on the projector cabinet for about 10 seconds will change the setting to [OFF].
  • Page 116 5. Using On-Screen Menu Selecting Communication Speed [COMMUNICATION SPEED] This feature sets the baud rate of the PC Control port (D-Sub 9P). It supports data rates from 4800 to 38400 bps. The default is 9600 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equip- ment, a lower baud rate may be recommended for long cable runs). NOTE: Your selected communication speed will not be affected even when [RESET] is done from the menu. Turning On or Off Remote Sensor [REMOTE SENSOR] This option determines which remote sensor on the projector is enabled in wireless mode. The options are: FRONT/BACK, FRONT, and BACK. If the remote control system does not function when direct sunlight or strong illumination strikes the remote control sensor of the projector, change another option.

  • Page 117: [Options(1)]

    5. Using On-Screen Menu Using Test Pattern [TEST PATTERN] Displays the test pattern to check for image distortion at the time of the projector setup. Press the Enter button to display the test pattern; press the Back button to close the test pattern and return to the menu. Menu operation and keystone correction are not possible when the test pattern is displayed. Setting Mic Gain [MIC GAIN] This feature allows you to adjust your microphone sensitivity when it is connected to the Mic input jack of the projector. Microphone volume can be adjusted with the Volume +/− buttons on the remote control or the  or  on the projector cabinet. [NETWORK SETTINGS] See “APPLICATION MENU” on page 116. [OPTIONS(1)] Setting Auto Adjust [AUTO SET SIGNALS] This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE]. OFF ������������������������ The computer signal will not be automatically adjusted� You can manually optimize the computer signal� NORMAL ����������������...
  • Page 118 NOTE: • The [OFF] is selected at the time of shipment of RICOH PJ X5371N. • The [ON] is selected at the time of shipment of RICOH PJ WX5361N. Enabling the Deinterlace [DEINTERLACE] Turns on or off the deinterlace function for a telecine signal.
  • Page 119 5. Using On-Screen Menu Setting HDMI1/2 [HDMI SETTINGS] Make the settings for each video level when connecting HDMI equipment such as a DVD player. RGB INPUT RANGE ��� Select [AUTO�] to automatically detect video level� If automatic detection may not work well, select [FULL] to disable the [STANDARD] feature of your HDMI equipment or select [STANDARD] to improve image contrast and increase detail in the dark areas�...

  • Page 120: [Options(2)]

    5. Using On-Screen Menu [OPTIONS(2)] Selecting Power-saving in [STANDBY MODE] The projector has three standby modes: [NORMAL], [POWER-SAVING], and [NETWORK STANDBY]. The POWER-SAVING mode is the mode that allows you to put the projector in the power-saving condition which consumes less power than the NORMAL mode. NORMAL ���������������� Power indicator: Orange light/Status indicator: Green light - Mic sound will not be output from speaker during this mode� POWER-SAVING ���� Power indicator: Red light/Status indicator: Off The following connectors, buttons or functions will not work during this mode�...
  • Page 121 5. Using On-Screen Menu Turning On the Projector By Applying Computer Signal [AUTO POWER ON(COMP.)] When the projector is in Standby mode, applying a computer signal from a computer connected to the Computer In input will power on the projector and simultaneously project the computer’s image. This functionality eliminates the need to always use the Power button on the remote control or the projector cabinet to power on the projector. To use this function, first connect a computer to the projector and the projector to an active AC input. NOTE: • Disconnecting a computer signal from the computer will not power off the projector. We recommend using this function in com- bination of the POWER OFF ON NO SIGNAL function.
  • Page 122 5. Using On-Screen Menu Setting carbon footprint factor [CARBON CONVERT] Adjusts the carbon footprint factor in the carbon saving calculation. The initial setting is 0.433[kg-CO2/kWh] based on the CO Emissions from Fuel Combustion (2012 Edition) published by OECD. Selecting your currency [CURRENCY] Displays electricity pricing (available in 4 currency units). $ ���������������������������� US Dollar € ���������������������������� EU Euro JP¥ ������������������������ Japanese Yen RMB¥ �������������������� Chinese Yuan Changing currency setting and currency convert setting [CURRENCY CONVER] Changes currency setting and currency convert setting for CARBON METER.

  • Page 123: ❼ Menu Descriptions & Functions [Info.]

    TIP: Pressing the Help button on the remote control will show the [INFO.] menu items. [USAGE TIME] [LAMP LIFE REMAINING] (%)* [LAMP TIME] (H) [FILTER HOURS USED] (H) [TOTAL CO2 REDUCTION] (kg-CO2) [TOTAL COST SAVINGS] ($) * The progress indicator shows the percentage of remaining bulb life. The value informs you of the amount of lamp usage. When the remaining lamp time reaches 0, the LAMP LIFE REMAINING bar indicator changes from 0% to 100 Hours and starts counting down. If the remaining lamp time reaches 0 hours, the projector will not turn on. • The message to the effect that the lamp or the filters should be replaced will be displayed for one minute when the projector is turned on and when the Power button on the projector or the remote control is pressed. To dismiss this message, press any button on the projector or the remote control. Lamp life(H) LAMP POWER Replacement lamp Model STND. /AUTO ECO ECO1 ECO2 3500 4000 6000 Replacement Lamp Type12 RICOH PJ X5371N/WX5361N • [TOTAL CO2 REDUCTION] This displays the estimated carbon saving information in kg. The carbon footprint factor in the carbon saving cal- culation is based on the OECD (2012 Edition). (→ page 31)

  • Page 124: [Source(1)]

    5. Using On-Screen Menu [SOURCE(1)] [SOURCE NAME] [SOURCE INDEX] [HORIZONTAL FREQUENCY] [VERTICAL FREQUENCY] [SYNC TYPE] [SYNC POLARITY] [SCAN TYPE] [SOURCE(2)] [SIGNAL TYPE] [VIDEO MODE] [BIT DEPTH] [RGB INPUT RANGE] [WIRED LAN] [IP ADDRESS] [SUBNET MASK] [DEFAULT GATEWAY] [MAC ADDRESS]...

  • Page 125: [Wireless Lan]

    5. Using On-Screen Menu [WIRELESS LAN] [IP ADDRESS] [SUBNET MASK] [DEFAULT GATEWAY] [MAC ADDRESS] [SSID] [COMMUNICATION MODE] [WEP/WPA] [CHANNEL] [SIGNAL LEVEL] [VERSION(1)] [FIRMWARE] Version [DATA] Version [VERSION(2)] [FIRMWARE2] Version...

  • Page 126: [Others]

    5. Using On-Screen Menu [OTHERS] [PROJECTOR NAME] [MODEL NO.] [SERIAL NUMBER] [LAN UNIT TYPE] [CONTROL ID] (when [CONTROL ID] is set)

  • Page 127: ❽ Menu Descriptions & Functions [Reset]

    5. Using On-Screen Menu ❽ Menu Descriptions & Functions [RESET] Returning to Factory Default [RESET] The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following: [CURRENT SIGNAL] Resets the adjustments for the current signal to the factory preset levels. The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR SATURATION], [TINT], [SHARPNESS], [ASPECT], [H-POSITION], [V-POSITION], [FREQUENCY], [PHASE], and [OVERSCAN]. [ALL DATA] Reset all the adjustments and settings for all the signals to the factory preset. All items can be reset EXCEPT [LANGUAGE], [BACKGROUND ON NOSIGNAL], [FILTER MESSAGE], [SECU- RITY], [COMMUNICATION SPEED], [CONTROL ID], [STANDBY MODE], [FAN MODE], [CARBON CONVERT], [CURRENCY], [CURRENCY CONVERT], [LAMP LIFE REMAINING], [LAMP TIME], [FILTER HOURS USED], [TOTAL CO2 REDUCTION], [WIRED LAN], and [WIRELESS LAN].

  • Page 128: ❾ Application Menu

    5. Using On-Screen Menu ❾ Application Menu When [NETWORK] is selected from the [INPUT] menu, the application menu [APPLICATION MENU] will be displayed. The application menu allows you to set up the User Supportware, Network Settings (NETWORK SETTINGS) and Tools (TOOLS). The User Supportware is contained on the supplied CD-ROM. In [ADMINISTRATOR MODE], either [ADVANCED] menu or [BASIC] menu can be selected. (→ page 132) The [BASIC] menu contains minimum essentials of menus and commands. ADVANCED NETWORK / PROJECTION UTILITY This shows information for projector name, resolution, and network (wired/wireless) which are required to use Advanced Network Utility. Use this information to set up for your computer.

  • Page 129: Network Projector

    5. Using On-Screen Menu NETWORK PROJECTOR This shows information for projector name, resolution, and network (wired/wireless) which are required to use Network Projector. Use this information to set up for your computer. REMOTE DESKTOP CONNECTION This allows you to set up for computer name entry and effects for Remote Desktop. NOTE: • A USB keyboard is required to set up the Remote Desktop Connection.

  • Page 130: Network Settings

    5. Using On-Screen Menu NETWORK SETTINGS Important: • Consult with your network administrator about these settings. • When using a wired LAN connection, connect a LAN cable (Ethernet cable) to the LAN port (RJ-45) of the projector. (→ page 147) TIP: The network settings you make will not be affected even when [RESET] is done from the menu.
  • Page 131 5. Using On-Screen Menu WIRED LAN or WIRELESS LAN (ADVANCED menu only) PROFILES • Up to two settings for the LAN port or USB wireless LAN unit — can be stored in memory of the projector. Total of four settings can be stored. Five settings can be stored: two for the built-in LAN port, two for wireless LAN and one for WPS. • Select [PROFILE 1] or [PROFILE 2] and then do settings for [DHCP] and the other options. After doing this, select [OK] and press the Enter button. This will store your settings in memory. • To recall the settings from memory: After selecting [PROFILE 1] or [PROFILE 2] from the [PRO- FILES] list. Select [OK] and press the Enter button. • To execute [EASY CONNECTION] using Projection Utility or Advanced Network Utility, select [WIRELESS LAN] → [PRO- FILES] → [EASY CONNECTION]. • To stop emitting radio waves from the USB Wireless LAN Unit, select [DISABLE] from the [PROFILES] list. • Selecting [SIMPLE ACCESS POINT] will allow the projector to create an infrastructure network. The IP address of the projector will be set automatically.
  • Page 132 5. Using On-Screen Menu PROFILES • When selecting [WPS], the network will be connected by using — settings stored automatically with the WPS function. Selecting [WPS] will allow the projector to access the network by using the settings the WPS function automatically stored. DHCP Place a check mark to automatically assign an IP address to the — projector from your DHCP server. Clear this check box to register the IP address or subnet mask number obtained from your network administrator. IP ADDRESS Set your IP address of the network connected to the projector Up to 12 numeric when [DHCP] is turned off. characters SUBNET MASK Set your subnet mask number of the network connected to the Up to 12 numeric projector when [DHCP] is turned off. characters DEFAULT GATEWAY Set the default gateway of the network connected to the projector Up to 12 numeric when [DHCP] is turned off. characters WINS CONFIGURA- Set the IP address of your WINS server of the network connected Up to 12 numeric TION to the projector when [DHCP] is turned off. characters AUTO DNS Place a check mark to automatically assign the IP address of your —...
  • Page 133 5. Using On-Screen Menu SITE SURVEY Displays a list of available SSIDs for wireless LAN on site. Select — an SSID which you can access. To select an SSID, highlight [SSID] and use the SELECT → to select [OK] and press the Enter button. ����������������������� Wireless access point ����������������������� Ad Hoc PC ����������������������� WEP or WPA enabled SECURITY This will turn on or off the encryption mode for secure transmission. — To use encryption, specify a WEP key or encryption key. Select your security type appropriate for your computer and the wire- less LAN unit. DISABLE ���������������� Will not turn on the encryption feature� Your communications may be monitored by someone� WEP(64bit) ������������...
  • Page 134 5. Using On-Screen Menu When [WEP(64bit)] or [WEP(128bit)] is selected for [SECURITY] KEY SELECT Selects one WEP key from the four keys below. KEY1, KEY2, KEY3, Enter a WEP key. KEY4 • Maximum number of characters Option Alphanumeric (ASCII) Hexadecimal (HEX) WEP 64bit WEP 128bit When [WPA-PSK], [WPA-EAP], [WPA2-PSK], or [WPA2-EAP] is selected for [SECURITY] ENCRYPTION TYPE Select [TKIP] or [AES]. Enter encryption key. Key length must be 8 or greater and 63 or less.
  • Page 135 5. Using On-Screen Menu [AUTHENTICATION] (required for wireless only) Setting is required for using WPA-EAP or WPA2-EAP. Preparation before setting Select a wireless LAN compliant WPA-EAP or WPA2-EAP authentication and install a digital certificate on the projector. 1. Set [DATE AND TIME] on the projector. (→ page 136) 2. Use a computer to save digital certificates (files) for WPA-EAP or WPA2-EAP setting to your USB memory device. After completing saving the file, remove the USB memory device from the computer. Important: • Save a digital certificate (file) to the root folder of the USB memory. • The file formats of digital certificate that are supported by the projector are DER and PKCS#12 only. •...
  • Page 136 5. Using On-Screen Menu 4. Select [SITE SURVEY] and press the Enter button. The “ SSID” list will be displayed. 5. Select a connecting SSID, and then select [OK]. Finally press the Enter button. • Select the SSID for which WPA-PSK or WPA2-PSK is set. • Select [INFRASTRUCTURE ( )] for [COMMUNICATION MODE]. WPA-PSK, WPA2-PSK, WPA-EAP, or WPA2- EAP is not available when [ADHOC ( )] is selected. 6. Select the [SECURITY] tab. The [SECURITY] page will be displayed. 7. Select the [SECURITY TYPE] field and press the Enter button. The pull-down list will be displayed. 8. Select [WPA-EAP] or [WPA2-EAP] and press the Enter button. 9. Select the [TKIP/AES] field and press the Enter button. The pull-down list will be displayed. 10. S elect [TKIP] or [AES] and press the Enter button. Select [TKIP] or [AES] according to the setting for your access point.
  • Page 137 5. Using On-Screen Menu 11. Select the [AUTHENTICATION] tab. The [AUTHENTICATION] page will be displayed. Select either [EAP-TLS] or [PEAP-MSCHAPv2] for [EAP TYPE]. The setting items vary depending on the EAP type. See the table below. EAP Type Setting Item Note EAP-TLS USER NAME 1 character or more and 32 characters or less CLIENT CERTIFICATE PKCS#12 format file CA CERTIFICATE DER format file (Certificate authority’s certificate) PEAP-MSCHAPv2 USER NAME 1 character or more and 32 characters or less PASSWORD 1 character or more and 32 characters or less CA CERTIFICATE DER format file (Certificate authority’s certificate) ① Selecting [EAP-TLS] for [EAP TYPE]: The following section explains the operation for selecting [EAP-TLS]. For selecting [PEAP-MSCHAPv2], go on to Step 12 on page 125. 12. S elect the [USER NAME] field and press the Enter button. The character entry screen (software keyboard) will be displayed. Set a user name.
  • Page 138 5. Using On-Screen Menu 13. S elect [CLIENT CERTIFICATE] and press the Enter button. A list of files ([FILES] screen) will be displayed. • For operating the [FILES] screen, see "4. Using the Viewer" in the “ User’s Manual” (PDF). • To return to the [AUTHENTICATION] page, press the Back button. NOTE: Installing a digital certificate You can install each digital certificate (client certificate and CA certificate) for [PROFILE 1 (or 2)] on a file-by-file basis. •...
  • Page 139 5. Using On-Screen Menu 17. On the [FILES] screen, select a digital certificate (DER format file) saved in your USB memory device and press the Enter button. • Select your root CA certificate here. The selected digital certificate will be installed on the projector. 18. A fter completing required settings, select [OK] and press the Enter button. The [WIRELESS LAN] page will be returned. 19. S elect [RECONNECT] and press the Enter button. 20. S elect [OK] and press the Enter button. This will complete setting [EAP-TLS] for [EAP TYPE] in [WPA-EAP] or [WPA2-EAP]. TIP: Clearing the digital certificate that is installed on the projector To clear the digital certificate installed on the projector, follow the steps below. By doing the following procedure, all the digital certificates for the currently displayed profile will be cleared. 1. Select [CLEAR CERTIFICATES] in the bottom left of the [AUTHEN- TICATION] setting screen and press the Enter button. A message for confirmation will be displayed. 2. Select [YES] and press the Enter button. The digital certificates will be cleared. TIP: •...
  • Page 140 5. Using On-Screen Menu 15. A fter completing setting a user name, select the [PASSWORD] field and press the Enter button. The character entry screen (software keyboard) will be displayed. Set a password. • A password must be 32 characters or less. 16. A fter completing setting the password, select [CA CERTIFICATE] field and press the Enter button. The drive list screen will be displayed. • For operating the [FILES] screen, see "4. Using the Viewer" in the “ User’s Manual” (PDF). • To return to the [AUTHENTICATION] page, press the Back button. NOTE: Installing a digital certificate You can install each digital certificate (client certificate and CA certificate) for [PROFILE 1 (or 2)] on a file-by-file basis. • Install a root CA certificate for a CA certificate. • If you install a digital certificate over your existing digital certificate, the existing digital certificate will be overwritten with the new digital certificate.
  • Page 141 5. Using On-Screen Menu TIP: Clearing the digital certificate that is installed on the projector To clear the digital certificate installed on the projector, follow the steps below. By doing the following procedure, all the digital certificates for the currently displayed profile will be cleared. 1. Select [CLEAR CERTIFICATES] in the bottom left of the [AUTHEN- TICATION] setting screen and press the Enter button. A message for confirmation will be displayed. 2. Select [YES] and press the Enter button. The digital certificates will be cleared. TIP: Entering WEP keys (Switching between Alphanumeric characters and hexadecimal) To enter from [KEY1] to [KEY4], do the following: 1. Select one of [KEY 1], [KEY 2], [KEY 3] and [KEY 4] and press the Enter button. The character entry screen (software keyboard) will be displayed. 2. Use the , , , or  button to select a character and press the Enter button. • To enter a WEP key or passphrase, use alphanumeric characters (ASCII) or hexadecimal (HEX). To enter a PSK key, use alphanumeric characters (ASCII).
  • Page 142 5. Using On-Screen Menu When the wireless LAN access point connected to the projector supports WPS (Wi-Fi Protected Setup ), you can use PIN method or push button method to set up the wireless LAN for the projector. PIN TYPE Set a 4-digit or 8 digit-PIN code of WPS for your access point to complete setting for the SSID security. PUSH BUTTON TYPE Press the dedicated button of the access point and the projector’s wireless LAN unit to complete setting for the SSID security. NETWORK INFORMATION The following information will be displayed when the projector is connected to a network (wired LAN or wireless LAN). PROJECTOR NAME HOST NAME DOMAIN NETWORK INFOR- CONNECTION STATUS, IP ADDRESS, SUBNET MASK, DEFAULT GATEWAY, WINS, MATION (WIRED DNS, MAC ADDRESS, SSID, COMMUNICATION MODE, WEP/WPA, CHANNEL, SIG- LAN/WIRELESS LAN) NAL LEVEL, AUTHENTICATION, AUTHENTICATION PERIOD DISPLAY THE INFOR- Turn on or off the display of the network information. MATION IN APPLICA- TION MENU The meanings of these status statements are described below. Statement Authentication status AUTHENTICATED Authentication is done correctly. FAILURE Authentication failed. AUTHENTICATING Authentication is in process. EXPIRED The digital certificate is expired. Or [DATE AND TIME SETTINGS] is not set correctly. TIME ERROR The [DATE AND TIME SETTINGS] has been cleared. Set the correct date and time.
  • Page 143 5. Using On-Screen Menu PROJECTOR NAME (ADVANCED menu only) PROJECTOR NAME Set a unique projector name. Up to 16 alphanu- meric characters and symbols DOMAIN (ADVANCED menu only) Set a host name and domain name of the projector. HOST NAME Set a host name of the projector. Up to 15 alphanumeric characters DOMAIN NAME Set a domain name of the projector. Up to 60 alphanumeric characters...
  • Page 144 Placing a checkmark will turn on the Alert Mail feature� Clearing a checkmark will turn off the Alert Mail feature� Sample of a message to be sent from the projector: The lamp and filters are at the end of its usable life. Please replace the lamp and filters. Projector Name: RICOH Projector Lamp Hours Used: 100 [H] HOST NAME Type in a host name. Up to 15 alphanumeric...
  • Page 145 5. Using On-Screen Menu NETWORK SERVICE (ADVANCED menu only) HTTP SERVER Set a password for your HTTP server. Up to 10 alphanumeric characters PJLink The Projector Management Utility on the utility CD-ROM uses Up to 32 alphanumeric PJLink. Set a password for PJLink to use this utility, if necessary. characters NOTE: • Do not forget your password. However, if you forget your password, consult with your dealer. •...

  • Page 146: Tools

    5. Using On-Screen Menu TOOLS ADMINISTRATOR MODE This allows you to select MENU MODE, save settings, and set a password for the administrator mode. MENU MODE Select either [BASIC] or [ADVANCED] menu. — (→ page 85) Placing a check mark will not save your projector settings� NOT SAVE SETTING — VALUES Clear this check box to save your projector settings� NEW PASSWORD/ Assign a password for the administrator mode. Up to 10 alphanumeric CONFIRM PASS- characters WORD TIP: To return to the ADVANCED menu from the BASIC menu, do the following: 1. Use the Input button on the cabinet or press the Network button on the remote control to select [NETWORK]...
  • Page 147 5. Using On-Screen Menu PROGRAM TIMER This option turns on/off the projector and changes video signals, and selects ECO mode automatically at a specified time. NOTE: • Before using [PROGRAM TIMER], make sure that the [DATE AND TIME] feature is set. (→ page 136) • Make sure that the projector is in the stand by condition with the POWER cord connected. •...
  • Page 148 5. Using On-Screen Menu TIME ���������������������� Set the time to execute the program� Enter time in 24-hour format� FUNCTION ������������� Select a function to be executed� Selecting [POWER] will allow you to turn on or off the projector by setting [ADVANCED SETTINGS]�...
  • Page 149 5. Using On-Screen Menu Activating the program timer 1. Select [ENABLE] on the [PROGRAM TIMER] screen and press the Enter button. The [ENABLE] will be activated. 2. Select [OK] and press the Enter button. The [PROGRAM TIMER] screen will be changed to the [TOOLS] screen. NOTE: • Clearing [ENABLE] will disable the Program Timer even when a program is marked with a check mark on [PROGRAM LIST] screen. • When [ENABLE] is selected, the [PROGRAM LIST] cannot be edited. To edit the programs, select [ENABLE] to turn off the Program Timer.

  • Page 150: Date And Time

    5. Using On-Screen Menu DATE AND TIME You can set the current time, month, date, and year. NOTE: The projector has a built-in clock. The clock will keep working for about 2 weeks after the main power is turned off. If the main power is off for 2 weeks or more, the built-in clock will cease. If the built-in clock ceases, set the date and time again. The built-in clock will not cease while in the standby mode.

  • Page 151: Installation And Connections

    To the wall outlet. ❶ Setting Up the Screen and the Projector Selecting a Location [RICOH PJ X5371N] The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is ap- proximately 25" (0.64 m) measured diagonally when the projector is roughly 35 inches (0.9 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 435 inches (11.0 m) from the wall or screen. Screen Size (Unit: cm/inch) 609.6(W) 457.2(H) / 240(W) 180(H)
  • Page 152 6. Installation and Connections [RICOH PJ WX5361N] The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is ap- proximately 25" (0.64 m) measured diagonally when the projector is roughly 37 inches (0.9 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 459 inches (11.7 m) from the wall or screen. Screen Size (Unit: cm/inch) 646.2(W) 403.9(H) / 254(W) 159(H) Screen Size 0 " 516.9(W) 323.1(H) / 204(W) 127(H) 0 " 430.8(W) 269.2(H) / 170(W) 106(H) 0 " 387.7(W) 242.3(H) / 153(W) 95(H) 0 "...

  • Page 153: Throw Distance And Screen Size

    0–2057 7456 12411 -81–0 -2057–0 0�0–15�4 0�0–9�4 7620 6096 4572 0–90 0–2286 8290 13795 -90–0 -2286–0 0�0–15�4 0�0–9�4 [RICOH PJ WX5361N] Screen Size α Diagonal Width Height wide tele wide tele inch inch inch inch inch inch inch degree degree 0–8...

  • Page 154: Reflecting The Image

    6. Installation and Connections WARNING Reflecting the Image * Installing your projector on the ceiling must be done Using a mirror to reflect your projector’s image enables by a qualified technician. Contact your Ricoh dealer you to enjoy a much larger image when a smaller space for more information. is required. Contact your Ricoh dealer if you need a mirror * Do not attempt to install the projector yourself. system. If you’re using a mirror system and your image • Only use your projector on a solid, level surface. If the is inverted, use the Menu and  buttons on your projector falls to the ground, you can be injured and projector cabinet or your remote control to correct the the projector severely damaged. orientation. (→ page 101) • Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 41°F (5°C) and 104°F (40°C) (Eco mode selected automatically at 95°F to 104°F/35°C to 40°C).

  • Page 155: ❷ Making Connections

    6. Installation and Connections ❷ Making Connections NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC. In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.
  • Page 156 6. Installation and Connections • Select the source name for its appropriate input connector after turning on the projector. Input button on the projector Input connector Button on the remote control cabinet Computer In COMPUTER Computer 1 HDMI 1 In HDMI1 HDMI HDMI 2 In HDMI2 HDMI USB (PC) USB DISPLAY USB Display NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan converter.

  • Page 157: Connecting An External Monitor

    6. Installation and Connections Connecting an External Monitor Computer cable (VGA) (not supplied) Stereo mini-plug audio cable (not supplied) Computer cable (VGA) (supplied) You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you’re projecting. NOTE: • Daisy chain connection is not possible. • When audio equipment is connected, the projector speaker is disabled.

  • Page 158: Connecting Your Dvd Player Or Other Av Equipment

    6. Installation and Connections Connecting Your DVD Player or Other AV Equipment Connecting Video/S-Video Input S-Video cable (not supplied) Video cable (not supplied) Audio cable (not supplied) Audio equipment Audio cable (not supplied) • Select the source name for its appropriate input connector after turning on the projector. Input button on the projector Input connector Button on the remote control cabinet Video In VIDEO Video S-Video In S-Video S-VIDEO NOTE: The Audio In L and R jacks (RCA) are shared between the Video and S-Video inputs. NOTE: Refer to your owner’s manual for more information about your equipment’s video output requirements.

  • Page 159: Connecting Component Input

    6. Installation and Connections Connecting Component Input Monitor cable Mini D-sub 15P-BNC (not supplied) Stereo mini plug - to - RCA audio cable (not supplied) Audio Equipment Conversion adapter BNC-pin (not supplied) To Y/Cb/Cr output Green(Y)/ Blue(Cb)/Red (Cr) DVD player Audio cable (not supplied) A component signal will be automatically displayed. If not, from the menu, select [SETUP] → [OPTIONS(1)] → [SIGNAL SELECT] → [COMPUTER], and then place a check mark in the Component radio button. • Select the source name for its appropriate input connector after turning on the projector. Input button on the projector Input connector Button on the remote control cabinet Computer In COMPUTER Computer 1 NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements.

  • Page 160: Connecting Hdmi Input

    6. Installation and Connections Connecting HDMI Input You can connect the HDMI output of your DVD player, hard disk player, Blu-ray player, or notebook type PC to the HDMI In connector of your projector. NOTE: The HDMI 1 In/HDMI 2 In connector supports Plug & Play (DDC2B). HDMI cable (not supplied) Use High Speed HDMI Cable. ® Audio cable (not supplied) Input button on the projector Input connector Button on the remote control cabinet HDMI 1 In HDMI1 HDMI HDMI 2 In HDMI2 HDMI TIP: For users of audio video equipment with an HDMI connector: Select “Enhanced”...

  • Page 161: Connecting To A Wired Lan

    6. Installation and Connections Connecting to a Wired LAN The projector comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable. To use a LAN connection, you are required to set the LAN on the projector menu. Select [APPLICATION MENU] → [NETWORK SETTINGS] → [WIRED LAN]. (→ page 117) Example of LAN connection Example of wired LAN connection Server LAN cable (not supplied) NOTE: Use a Category 5 or higher LAN cable.

  • Page 162: Connecting To A Wireless Lan (Sold Separately)

    6. Installation and Connections Connecting to a Wireless LAN (sold separately) The separately sold wireless LAN unit allows you to use a wireless LAN environment. When using the projector in a wireless LAN environment, the IP address and other settings must be made on the projector. Important: • If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, remove the USB Wireless LAN Unit from the projector. • Buy the appropriate USB Wireless LAN Unit for your country or area. NOTE: • The green LED on the USB Wireless LAN Unit flashes to show that the USB Wireless LAN Unit is working. •...
  • Page 163 6. Installation and Connections Prepare a Phillips screw driver beforehand. 1. Press the Power button to turn off the projector and set it into standby condition, and disconnect the power cord. 2. Remove the USB (LAN) port cover. Loosen the screw securing the port cover. • The screw is not removable. 3. Slowly insert the USB Wireless LAN Unit into the USB (LAN) port. Wireless LAN unit - Remove the wireless LAN unit’s cap, set the unit with the front (the side with the indicator) facing upwards, hold the back edge and insert the unit gently. Next, press the wireless LAN unit in with a finger. - The cap you have removed will be used when the wireless LAN unit is removed, so store it in a safe place. NOTE: If the wireless LAN unit is hard to insert, do not push it in by force. 4. Put the USB (LAN) port cover back into place. Insert the catch of the USB (LAN) port cover into the groove of the projector cabinet, and then tighten the screw to secure the port cover.
  • Page 164 6. Installation and Connections Example of wireless LAN connection (Network Type → Infrastructure) PC with wireless PC with built-in wireless LAN card inserted LAN function USB Wireless LAN Unit Wireless access point Wired LAN Use the HTTP server function to make the settings. (→ page 42) Example of wireless LAN connection (Network Type → Ad Hoc) USB Wireless LAN Unit PC with wireless PC with built-in wireless LAN card inserted LAN function To enable direct communication (i.e., peer-to-peer) between computers and projectors, you need to select the Ad Hoc mode. Use the HTTP server function to make the settings. (→ page 42)

  • Page 165: Maintenance

    7. Maintenance This section describes the simple maintenance procedures you should follow to clean the filters, the lens, the cabinet, and to replace the lamp and the filters. ❶ Cleaning the Filters The air-filter sponge keeps dust and dirt from getting inside the projector and should be frequently cleaned. If the filter is dirty or clogged, your projector may overheat. NOTE: The message for filter cleaning will be displayed for one minute after the projector is turned on or off. When the message is displayed, clean the filters. The time to clean the filters is set to [OFF] at time of shipment. To cancel the message, press any button on the projector cabinet or the remote control.
  • Page 166 7. Maintenance (2) P ush the left end of each filter and remove the hard two honeycomb filters (large and small). • T he large filter cannot be removed by pushing on its right end. 4. Use a vacuum cleaner to vacuum all the dust inside. Get rid of dust in the accordion filter. NOTE: • Whenever you vacuum the filter, use the soft brush attachment to vacuum. This is to avoid damage to the filter. •...
  • Page 167 7. Maintenance 7. Put the filter unit back to the projector cabinet. Make sure that the filter unit is placed in the correct orientation. 8. Put the filter cover back to the projector cabinet. Insert two catches of the top side of the filter cover into the groove of the cabinet, and push the buttons on the left and right to close the filter cover. • Push the filter cover until it clicks into place. 9. Clear the filter usage hours. Plug the power cord into the wall outlet, and then turn on the projector. From the menu, select [RESET] → [CLEAR FILTER HOURS]. (→ page 113) The interval time to clean the filters is set to [OFF] at time of shipment. When using the projector as it is, you do not clear the filter usage.

  • Page 168: ❷ Cleaning The Lens

    7. Maintenance ❷ Cleaning the Lens • Turn off the projector before cleaning. • The projector has a plastic lens. Use a commercially available plastic lens cleaner. • Do not scratch or mar the lens surface as a plastic lens is easily scratched. • Never use alcohol or glass lens cleaner as doing so will cause damage to the plastic lens surface. ❸ Cleaning the Cabinet Turn off the projector, and unplug the projector before cleaning. • Use a dry soft cloth to wipe dust off the cabinet. If heavily soiled, use a mild detergent. • Never use strong detergents or solvents such as alcohol or thinner. • When cleaning the ventilation slits or the speaker using a vacuum cleaner, do not force the brush of the vacuum cleaner into the slits of the cabinet. Vacuum the dust off the ventilation slits. • Clogged ventilation slits may cause a rise in the internal temperature of the projector, resulting in malfunction. • Do not scratch or hit the cabinet with your fingers or any hard objects. • Contact your dealer for cleaning the inside of the projector. NOTE: Do not apply volatile agent such as insecticide on the cabinet, the lens, or the screen. Do not leave a rubber or vinyl product in prolonged contact with it.

  • Page 169: ❹ Replacing The Lamp And The Filters

    7. Maintenance ❹ Replacing the Lamp and the Filters When the lamp reaches the end of its life, the Lamp indicator in the cabinet will blink red and the message “THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP. USE THE SPECIFIED LAMP FOR SAFETY AND PERFORMANCE.”...
  • Page 170 Keep finger prints off the glass surface on the lamp unit. Leaving finger prints on the glass surface might cause an unwanted shadow and poor picture quality. • The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. If this happens, be sure to replace the lamp. If you continue to use the lamp after the lamp reaches the end of its life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your Ricoh dealer for lamp replacement. *NOTE: This message will be displayed under the following conditions: • for one minute after the projector has been powered on • when the (Power) button on the projector cabinet or the Power Standby button on the remote control is pressed To turn off the message, press any button on the projector cabinet or the remote control.
  • Page 171 7. Maintenance To replace the lamp: 1. Remove the lamp cover. (1) L oosen the lamp cover screw. • The lamp cover screw is not removable. (2) P ush and slide the lamp cover off. 2. Remove the lamp unit. (1) L oosen the two screws securing the lamp unit until the phillips screwdriver goes into a freewheeling condition. • The two screws are not removable. • T here is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this inter- lock. (2) R emove the lamp unit by holding it. CAUTION: Make sure that the lamp unit is cool enough to before removing it. Interlock...
  • Page 172 7. Maintenance 3. Install a new lamp unit. (1) I nsert a new lamp unit until the lamp unit is plugged into the socket. (2) P ush the top center of the lamp unit to secure it. (3) S ecure it in place with the two screws. • Be sure to tighten the screws. 4. Reattach the lamp cover. (1) S lide the lamp cover back until it snaps into place. (2) T ighten the screw to secure the lamp cover. • Be sure to tighten the screw. This completes the lamp replacement. Go on to the filter replacement. NOTE: When you continue to use the projector for another 100 hours after the lamp has reached the end of its life, the projector cannot turn on and the menu is not displayed.
  • Page 173 7. Maintenance To replace the filters: Four filters are packaged with the replacement lamp. Honeycomb filter (coarse mesh): Large and small sizes (attached to the outside of the filter unit) Accordion filter (fine mesh): Large and small sizes (attached to the inside of the filter unit) NOTE: • Replace all four filters at the same time. • Before replacing the filters, wipe off dust and dirt from the projector cabinet. • The projector is precision equipment. Keep out dust and dirt during filter replacement. •...
  • Page 174 7. Maintenance (2) P ush the left end of each filter and remove the hard two honeycomb filters (large and small). • The large filter cannot be removed by pushing on its right end. 4. Remove dust from the filter unit and the filter cover. Clean both outside and inside. 5. Attach four new filters to the filter unit. (1) I nsert the left end of each hard honeycomb filter (large and small) first and then the right end of each hard honeycomb filter to the filter unit. • T he large filter cannot be fitted if its right end is inserted. (2) T urn the filter unit over. • A ttach the two soft accordion filters (large and small). Each accordion filter has a slit on it. Align the slit with each protrusion of the filter unit. 6. Put the filter unit back to the projector cabinet. Make sure that the filter unit is placed in the correct orientation. 7. Put the filter cover back to the projector cabinet. Insert two catches of the top side of the filter cover into the groove of the cabinet, and push the buttons on the left and right to close the filter cover. Push the filter cover until it clicks into place. This completes the filter replacement. Go on to the clearing lamp and filter hour meters. To clear the lamp usage hours and the filter usage hours: 1. Place the projector where you use it.

  • Page 175: User Supportware

    8. User Supportware ❶ Installing Software Program Installation for Windows software The software programs except Projection Utility for Mac OS support Windows 8, Windows 7, Windows Vista, and Windows XP. • S upport for Windows XP Our projector’s will no longer support Windows XP, in line with Microsoft’s end of support for Windows XP. NOTE: • To install or uninstall each software program, the Windows user account must have “Administrator” privilege (Windows 8, Win- dows 7, Windows Vista) or “Computer Administrator”...
  • Page 176 8. User Supportware 2 Click a software program you wish to install on the menu window. The installation will start. • Follow the instructions on the installer screens to complete the installation. TIP: Uninstalling a Software Program Preparation: Exit the software program before uninstalling. To uninstall the software program, the Windows user account must have “Administrator” privilege (Windows 8, Windows 7 , and Windows Vista) or “Computer Administrator” privilege (Windows XP). • For Windows 7/Windows Vista 1 Click “Start” and then “Control Panel” . The Control Panel window will be displayed. 2 Click “Uninstall a program” under “Programs” . The “ Programs and Features” window will be displayed. 3 Select the software program and click it. 4 Click “Uninstall/Change” or “Uninstall” . • When the “ User Account Control” windows is displayed, click “ Continue” . Follow the instructions on the screens to complete the uninstallation.
  • Page 177 1. Insert the accompanying utility CD-ROM into your CD-ROM drive. The CD-ROM icon will be displayed on the desktop. 2. Double-click the CD-ROM icon. The CD-ROM window will be displayed. 3. Double-click the “Mac OS X” folder. 4. Double-click “Projection Utility.dmg” . The installer will start. 5. Click “Next” . “END USER LICENSE AGREEMENT” screen will be displayed. 6. Read “END USER LICENSE AGREEMENT” and click “Next” . The confirmation window will be displayed. 7. Click “I accept the terms in the license agreement” . Follow the instructions on the installer screens to complete the installation. TIP: • Uninstalling a software program 1. Put the “Projection Utility” folder to the Trash icon. 2. Put the configuration file of Projection Utility for Mac OS to the Trash icon. • The configuration file of Projection Utility for Mac OS is located in “ /Users/your user name/Library/Preferences/ jp.co.Ricoh.Projection-Utility.plist” .

  • Page 178: ❷ Projecting Your Computer's Screen Image Or Video From The Projector Over A Lan (Projection Utility)

    8. User Supportware ❷ Projecting Your Computer’s Screen Image or Video from the Projector over a LAN (Projection Utility) Using Projection Utility allows you to send the computer’s screen image to the projector over a USB cable or a wired or wireless LAN. Projection Utility is a program compatible with Windows. Projection Utility for Mac OS is a program compatible with Mac OS. (→ page 170) This section will show you an outline about how to connect the projector to a LAN and to use Projection Utility. For the operation of Projection Utility, see the help of Projection Utility. Step 1: install Projection Utility on the computer. Step 2: Connect the projector to a LAN. Step 3: Start Projection Utility. TIP: • Projection Utility (for Windows) can be started from most commercially available removable media such as USB memory devices or SD cards without the need to install on your computer.
  • Page 179 8. User Supportware Using on Windows Step 1: Install Projection Utility on the computer. NOTE: • To install or uninstall the program, the Windows user account must have “Administrator” privilege (Windows 8, Windows 7, Windows Vista and Windows XP). • Exit all running programs before installation. If another program is running, the installation may not be completed. •...
  • Page 180 8. User Supportware Step 2: Connect the projector to a LAN. Connect the projector to the LAN by following the instructions in "Connecting to a Wired LAN" (→ page 147), "Connecting to a Wireless LAN (sold separately)" (→ page 148) and "❾ Controlling the Projector by Using an HTTP Browser" (→ page 42) Step 3: Start Projection Utility. 1. On Windows, click “Start” → “All programs” → “Ricoh Projector User Supportware” → “Projection Utility” → “Projection Utility” . Projection Utility will start. The select window for network connection will be displayed. 2. Select Network and click “OK” . The select window for destination will show a list of connectable projectors. • When connecting the computer directly to the projector by one-to-one, “ Easy Connection” is recommended. • When one or more networks for “EASY CONNECTION” are found, the “Easy Connection Selection Screen” window will be displayed. • To check for the network available for connected projectors, from the menu, select [INFO.] → [WIRELESS LAN] → [SSID]. 3. Select the network you wish to connect, and click “Select” .
  • Page 181 8. User Supportware 5. Operate the control window. (2) (3) (4) (5) (Streaming) Displays the streaming window� Movie files on the PC can be transferred to the projector via the network and played on the projector� Refer to “Movie streaming function” in the help file of Projection Utility� (Source) �����...
  • Page 182 8. User Supportware TIP: Viewing the “Help” file of Projection Utility • Displaying the Help file of Projection Utility while it is running. Click the [?] (help) icon on the control window. The Help screen will be displayed. • Displaying the Help file of GCT while it is running. Click “ Help” → “ Help” on the edit window. The Help screen will be displayed. • Displaying the help file using the Start Menu. Click “ Start” → “ All programs” → “ Ricoh Projector User Supportware” → “ Projection Utility” → “ Projection Utility Help” . The Help screen will be displayed.

  • Page 183: Starting Projection Utility From A Usb Memory Or Sd Card

    Starting Projection Utility from a USB Memory or SD Card Projection Utility can be started from commercially available removable media such USB memory or SD cards if it is copied beforehand. This will eliminate the trouble of installing Projection Utility to your computer. 1. Copy Projection Utility to removable media. Copy all the folders and files (total size approx. 6MB) from the “ Projection_Utility (removable-media)” folder in the supplied RICOH Projector CD-ROM to the root directory of your removable media. 2. Insert your removable media into your computer. The “ AutoPlay” screen will be displayed on your computer. TIP: • If the “AutoPlay” screen is not displayed, open the folder from “Computer” (“My Computer” for Windows XP).
  • Page 184 8. User Supportware Using on Mac OS Step 1: Install Projection Utility for Mac OS on the computer 1. Insert the accompanying utility CD-ROM into your CD-ROM drive. The CD-ROM icon will be displayed on the desktop. 2. Double-click the CD-ROM icon. The CD-ROM window will be displayed. 3. Double-click the “Mac OS X” folder. 4. Double-click “Projection Utility.dmg” . The “ Projection Utility” window will be displayed. 5. Drag and drop the “Projection Utility” folder to your Applications folder in Mac OS. Step 2: Connect the projector to a LAN Connect the projector to the LAN by following the instructions in "Connecting to a Wired LAN" (→ page 147), "Connecting to a Wireless LAN (sold separately)" (→ page 148) and "❾ Controlling the Projector by Using an HTTP Browser" (→ page 42) Step 3: Start Projection Utility for Mac OS...

  • Page 185: ❸ Projecting An Image From An Angle

    8. User Supportware ❸ Projecting an Image from an Angle (Geometric Correction Tool in Projection Utility) The Geometric Correction Tool (GCT) function allows you to correct distortion of images projected even from an angle. What you can do with GCT • The GCT feature includes the following three functions • 4-point Correction: You can fit a projected image within the border of the screen easily by align the four corners of an image to the ones of the screen. • Multi-point Correction: You can correct a distorted image on the corner of a wall or irregular shaped screen by using many separated screens to correct the image as well as 4-point Correction. • Parameters Correction: You can correct a distorted image by using a combination of transformational rules prepared in advance. This section will show an example for use with 4-point Correction. For information about “Multi-point Correction” and “Parameters Correction” , see the help file of Projection Utility. (→ page 168) • Your correction data can be stored in the projector or your computer which can be restored when necessary.
  • Page 186 8. User Supportware 3. Use the mouse to click the [ • ] mark of which corner you wish to move. The currently selected [ • ] mark will turn red. (In the above example, Windows screens are omitted for clarification.) 4. Drag the selected [ • ] mark to the point you wish to correct and drop it. • When you click somewhere within the project image area, the nearest [ • ] mark will go to the position where the mouse cursor is. 5. Repeat Step 3 and 4 to correct the distortion of the projected image. 6. After completing, right-click the mouse. The green frame and the mouse pointer will disappear from the projected image area. This will complete the cor- rection. 7. Click the “X” (close) button on the “4-point Correction” window. The “ 4-point Correction” window will disappear and the 4-point correction will take effect. 8. Click the “   ” button on the control window to exit the GCT. TIP: • After performing the 4-point correction, you can save the 4-point correction data to the projector by clicking “File” → “Export to the projector…”...

  • Page 187: ❹ Projecting Images From The Projector Over A Lan (Advanced Network Utility)

    8. User Supportware ❹ Projecting Images from the Projector over a LAN (Advanced Network Utility) What you can do with Advanced Network Utility • Using Advanced Network Utility allows you to send the screens of your computers to the projector via wired/wire- less LAN. The difference from Projection Utility is that projected images can be sent from a computer to not only one projector but also to two or more projectors at the same time. When “Meeting Mode” is used, projected images can be sent and received between two or more computers. • High-speed, high-quality image transmissions based on compression technology adoption Compression technology adoption allows high-quality images to be sent over the network at high speed, from your computer to the projector.

  • Page 188: Connecting The Projector To A Lan

    8. User Supportware • Projected images can be transferred and saved to computers. When “Meeting Mode” is used, projected images can be sent to the computers of all the participants (attendants) of a “Meeting” . The received images can be saved to your computer with a memo (text data) attached. Attendant Attendant Presenter Attendant • 1-click switching of presenter When switching to another presenter during the conference, the participants (attendants) can simply click a button to switch over to the new presenter. • Central management of the projecting computer Using the Training Mode allows you to use a single computer (Manager) to manage which computer (Attendant) projects. Possible operation includes switching projecting computers to project from, as well as temporarily termi- nating communication with the projector. Mr. D, please start your presentation. Manager Attendant A Attendant D...

  • Page 189: Basic Operation Of Advanced Network Utility

    8. User Supportware Basic Operation of Advanced Network Utility This section explains the following three cases as examples of operating Advanced Network Utility. (1) Transferring images to the projector (2) Holding a conference (3) Participating in a conference Sending Images to Projector • Connecting projector 1 Turn on the power to the projector for which LAN has been set. 2 Click Windows [Start] → [All Programs] → [Ricoh Projector User Supportware] → [Advanced Network Util- ity] → [Advanced Network Utility], in that order. The “ Selection Of Network Connections” window will be displayed. A list of the network equipment connected to your computer will be displayed. 3 Select the network equipment that is to be used and click [OK]. Select the network device displaying “Easy Connection” if the product LAN setting is for “Easy Connection. ” This will call up the “ Projector List” window. 4 Check( ) the projector to connect and click [Connect].
  • Page 190 8. User Supportware • Stopping or resuming the transmission of images The transmission of the screen of the computer to the projector can be temporarily stopped and then resumed. 1 Click the projector icon ( ) on the Windows taskbar. A pop-up menu will be displayed. 2 Click [Stop Sending]. The projector icon on the taskbar will change ( → NOTE: Even if the screen of the computer is changed in this status, the image projected from the projector does not change. To manipulate the screen that should not be disclosed (projected from the projector), stop transmission.

  • Page 191: Holding Conferences

    To manipulate a screen that should not be shown (not projected), temporarily stop the transmission (→ page 176). • Ending conference 1 Click [File] in the presenter window, and click [Exit]. You can also end the conference by clicking [×] at the upper right of the presenter window. Participating in Conference • Participating in conferences 1 Click Windows [Start] → [All Programs] → [Ricoh Projector User Supportware] → [Advanced Network Util- ity] → [Advanced Network Utility], in that order. The “ Selection Of Network Connections” window will be displayed. A list of the network equipment connected to your computer will be displayed. 2 Select the network equipment that is to be used and click [OK]. Select the network device displaying “Easy Connection” if the product LAN setting is for “Easy Connection. ” This will call up the “...
  • Page 192 8. User Supportware • Saving received images 1 Click [Memo] in the attendant window. A memo pane will be displayed. 2 Click [Save Image] in the attendant window. The image displayed in the attendant window will be saved. • The saved image is added to the memo list and a thumbnail is displayed. • A memo can be attached to the saved image. REFERENCE: • In case of Windows XP, a created file is saved to “My Documents\Advanced Network\” under the default settings. In case of Windows 7/Windows Vista, “"Document\Advanced Network\"”...

  • Page 193: ❺ Converting Presentation Files To Jpeg Files Using Jpeg Conversion Tool

    8. User Supportware ❺ Converting Presentation Files to JPEG Files Using JPEG Con- version Tool Microsoft PowerPoint presentation files can be converted to JPEG files, which are compatible with the projector. You can do presentations without a computer if you save converted JPEG files to a USB memory device and then display the slides using the projector. The converted files can also be transferred to a server. Operating environment Supported OS Windows XP Professional, Home Edition, SP3 or later (32-bit version) Windows XP Professional x64 Edition SP2 or later (64-bit version) Windows Vista Ultimate, Business, Home Premium, Home Basic, SP2 or later (32-bit and 64-bit versions) Windows 7 Home Premium, Professional, Ultimate, Enterprise (32-bit and 64-bit versions) Windows 8, Pro, Enterprise (32-bit and 64-bit versions) Memory Recommended memory size for the operating system of the computer you are using • S upport for Windows XP Our projector's will no longer support Windows XP, in line with Microsoft's end of support for Windows XP. Installing JPEG Conversion Tool NOTE: •...
  • Page 194 8. User Supportware 2 Click “JPEG Conversion Tool” on the menu window. The installation will start. • Follow the instructions on the installer screens to complete the installation. • To start JPEG Conversion Tool, double-click the shortcut icon on the desktop or "RICOH JPEG Conversion Tool TypeA.exe" in the folder. • See the JPEG Conversion Tool Help for how to use JPEG Conversion Tool. TIP: • To convert PowerPoint files, Microsoft PowerPoint 2003, 2007 , 2010, or 2013 must be installed on the computer to you are using. • JPEG Conversion Tool is compatible with still images that have a ".ppt" or ".pptx" extension. Animations and audio are not compatible. • To convert PowerPoint files with the ".pptx" extension, Microsoft PowerPoint 2007 or later must be installed on the computer you are using. • The number of JPEG files created is equivalent to the number of slides. The file name after conversion is "slide + File Number + .jpg". • For the settings method when saving converted files to the server, refer to the JPEG Conversion Tool Help.

  • Page 195: ❻ Managing The Projector Using Projector Management Utility

    8. User Supportware ❻ Managing the Projector Using Projector Management Utility Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be managed using one computer. Operating environment Supported OS Windows XP Professional, Home Edition, SP3 or later (32-bit version) Windows Vista Ultimate, Business, Home Premium, Home Basic, SP2 or later (32-bit and 64-bit versions) Windows 7 Home Premium, Professional, Ultimate, Enterprise (32-bit and 64-bit versions) Windows 8, Pro, Enterprise (32-bit and 64-bit versions) Windows Server 2008 Standard SP2 or later (32-bit and 64-bit versions) Windows Server 2008 R2 Standard SP1 or later (64-bit version) Memory Recommended memory size for the operating system of the computer you are using Resolution 800 × 600 pixels or more Installing Projector Management Utility Projector Management Utility is included on the supplied utility CD-ROM. NOTE: • This software is to control and monitor projectors manufactured by our company. The software may not work properly when used to control other projectors.

  • Page 196: Appendix

    9. Appendix ❶ Troubleshooting This section helps you resolve problems you may encounter while setting up or using the projector. Indicator Messages Power Indicator Indicator Condition Projector Condition Note – The main power is off Blinking light Blue 0.5 sec On, The projector is getting ready to turn on. Wait for a moment. 0.5 sec Off –...

  • Page 197: Common Problems & Solutions

    9. Appendix Common Problems & Solutions (→ "Power Indicator"/"Status Indicator"/"Lamp Indicator" on page 182.) Problem Check These Items Does not turn on • Check that the power cord is plugged in and that the Power button on the projector cabinet or the remote control or shut down is on.

  • Page 198: If There Is No Picture, Or The Picture Is Not Displayed Correctly

    9. Appendix If there is no picture, or the picture is not displayed correctly. • Power on process for the projector and the PC. Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC. In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up. NOTE: You can check the horizontal frequency of the current signal in the projector’s menu under Information. If it reads “0kHz”, this means there is no signal being output from the computer.

  • Page 199: ❷ Specifications

    9. Appendix ❷ Specifications This section provides technical information about projector’s performance. Optical Model Number RICOH PJ X5371N RICOH PJ WX5361N LCD Panel 0.63 inch LCD with Micro Lens Array (Aspect Ratio 0.59 inch LCD with Micro Lens Array (Aspect Ratio 4:3) 16:10) Resolution* 1024 × 768 pixels (XGA) 1280 × 800 pixels (WXGA) Lens Manual zoom and focus Zoom Ratio = 1.7 F1.7–2.2 f = 17.4–29.0 mm Lens Shift (Vertical) 0-0.5V 0-0.6V Lamp 270 W AC (214 W in ECO1) (163 W in ECO2) Light Output* 5000 lumens 4500 lumens ECO1: 80% ECO1: 80% ECO2: 60%*...
  • Page 200 9. Appendix Model Number RICOH PJ X5371N RICOH PJ WX5361N Scan Rate* Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over) Vertical: 50 Hz to 120 Hz (HDMI: 50 Hz to 85 Hz) Sync Compatibility Separate Sync Built-in Speaker 16 W (monaural) Power Requirement 100–240V AC, 50/60Hz Input Current 4.2 A-1.7 A Power ECO 374 W (100-130 V)/357 W (200-240 V) Consump- MODE tion OFF (Typical ECO1 304 W (100-130 V)/292 W (200-240 V) value) ECO2 260 W (100-130 V)/248 W (200-240 V) STANDBY 10 W (100-130 V/200-240 V) (NOR- MAL) STANDBY 2.4 W (100-130 V)/2.8 W (200-240 V)

  • Page 201: ❸ Cabinet Dimensions

    9. Appendix ❸ Cabinet Dimensions Unit: mm (inch) 398 (15.7) 134 (5.3) Lens center Lens center 24 (0.9) 175 (6.9) Holes for ceiling mount 200 (7.9)

  • Page 202: ❹ Pin Assignments Of D-Sub Computer Input Connector

    9. Appendix ❹ Pin Assignments of D-Sub Computer Input Connector Mini D-Sub 15 Pin Connector Pin No. RGB Signal (Analog) YCbCr Signal 11 12 13 14 15 Green or Sync on Green Blue Ground Ground Signal Level Red Ground Cr Ground Video signal : 0.7Vp-p (Analog) Green Ground Y Ground Blue Ground Cb Ground Sync signal : TTL level No Connection Sync Signal Ground No Connection...

  • Page 203: ❺ Compatible Input Signal List

    50/60 SDTV (480p) 720 × 4:3/16:9 SDTV (576p) 720 × 4:3/16:9 SDTV (480i) 720 × 4:3/16:9 SDTV (576i) 720 × 4:3/16:9 *1 Native resolution on XGA model (RICOH PJ X5371N) Composite Video/S-Video *2 Native resolution on WXGA model (RICOH PJ WX5361N) *3 The projector may fail to display these signals correctly when [NOR- Refresh Rate Signal Aspect Ratio MAL] is selected for [ASPECT] in the on-screen menu. ( Hz ) The factory default is [NORMAL] for [ASPECT]. To display these NTSC signals, select [16:9] for [ASPECT]. *4 WXGA MODE: OFF PAL60...

  • Page 204: ❻ Pc Control Codes And Cable Connection

    9. Appendix ❻ PC Control Codes and Cable Connection PC Control Codes Function Command Return Power On #PON[CR] =PON[CR] Power Off #PDN[CR] =PDN[CR] Input Select Computer #INP:1[CR] =INP:1[CR] Input Select HDMI 1 #INP:5[CR] =INP:5[CR] Input Select HDMI 2 #INP:6[CR] =INP:6[CR] Input Select Video #INP:9[CR] =INP:9[CR]...
  • Page 205 © 2013 Ricoh Co., Ltd.
  • Page 206 Y039-6221A...

This manual is also suitable for:

Pj x5371n

Table of Contents
