RICOH PJ X5770 / WX5770 / WU5760

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P WU5760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ricoh P WU5760

Summary of Contents for Ricoh P WU5760

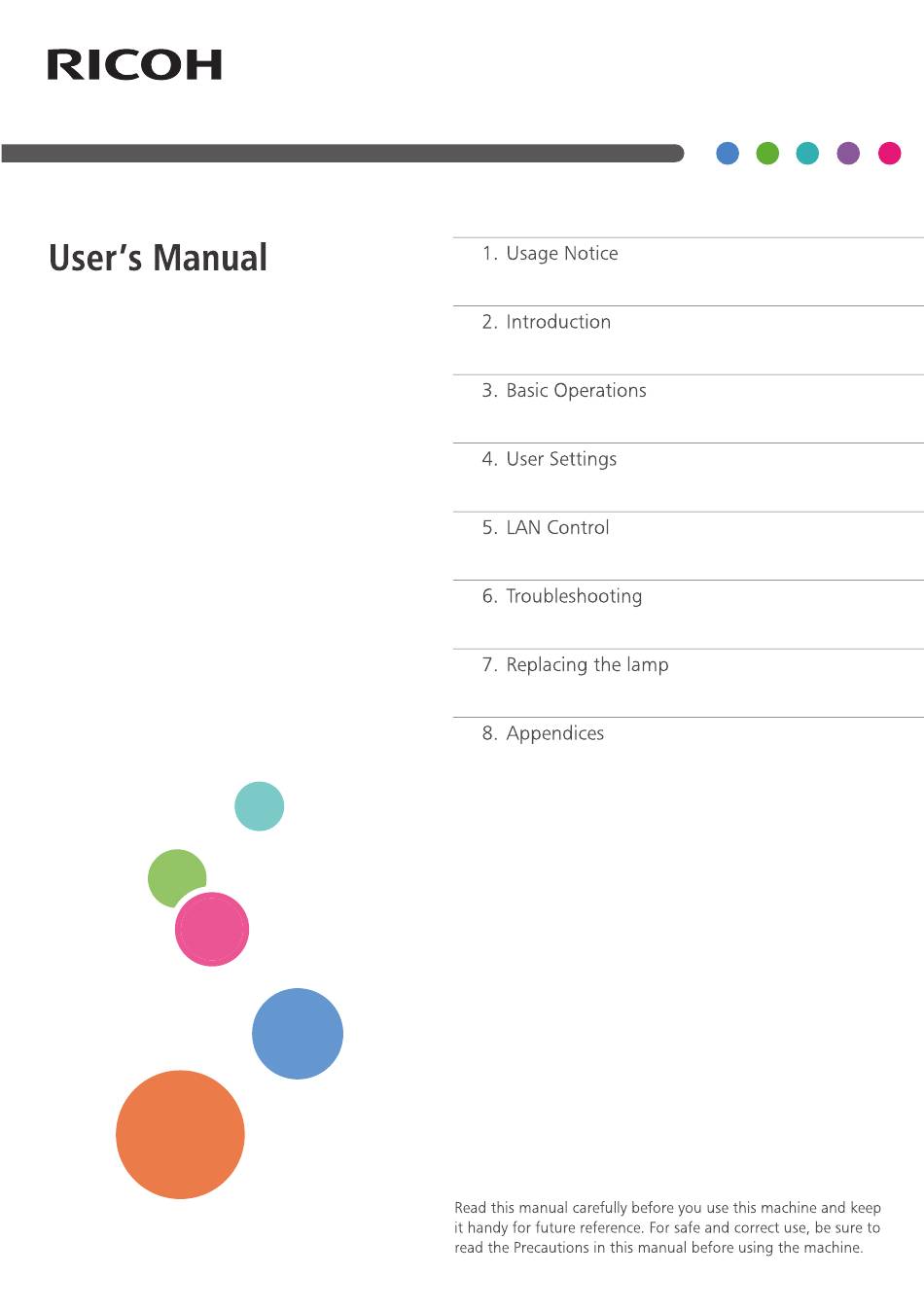

  • Page 1 RICOH PJ X5770 / WX5770 / WU5760...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ......1 LAN Control ........60 Controlling this Device with Web Usage Notice ........2 Browser ..........60 Precautions .........2 Connecting to the device ...... 60 Safety Labels of This Machine ..12 Log in............ 61 Regulation & Safety Notices .....13 System Status ........

  • Page 4: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. ■ Indicates a potentially hazardous situation which, if in- Warning- structions are not followed, could result in death or serious injury.
  • Page 5 Usage Notice ■ There are burn marks on the plug. ■ The prongs on the plug are deformed. If any of the above conditions exist, do not use the plug and consult your dealer or service representative. Use of the plug could result in fire or electric shock. ■...
  • Page 6 Usage Notice ■ Warning- If metal objects, or water or other fluids fall inside this machine, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem.
  • Page 7 Usage Notice b) Do not open the lamp cover of a machine that is installed on a wall or ceiling. Doing so may cause the lamp cover to fall down. If the lamp is broken, pieces of glass may fall and cause an injury. c) Contact your sales or service representative to clean or replace parts for a machine that is installed on a wall or ceiling.
  • Page 8 Usage Notice ■ Caution- Do not place the machine in a location where air flow is poor. Doing so may cause fire due to internal components becoming overheated. ■ Caution- Do not place or store the machine in a location where direct sunlight or heat generation might occur.
  • Page 9 Failing to take these precautions could result in fire or electric shock. ■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product. ■ Caution-...
  • Page 10 Usage Notice ■ Caution- Unauthorized substitutions may result in fire, electric shock, or other hazards. (Only the replacement of the lamp should be made by users.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.
  • Page 11 Usage Notice ABOUT THE LAMP ■ Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”.
  • Page 12 Usage Notice ■ If the lamp explodes, a very small amount of mercury vapor in the lamp tube and broken glass pieces may be ejected from the vents or other opening. What to do if a lamp has exploded If the lamp explodes, remove the power cord from the projector, leave the room while making sure it is thoroughly ventilated.
  • Page 13 Usage Notice REMOTE CONTROL BATTERY Warning • Never throw batteries into a fire. Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor.

  • Page 14: Safety Labels Of This Machine

    Usage Notice Safety Labels of This Machine 1. To replace the lamp, unplug the power cord and then wait for 60 minutes. 2. Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyesight. 3.

  • Page 15: Regulation & Safety Notices

    This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ X5770 / WX5770 / WU5760 TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ X5770 / WX5770 / WU5760...
  • Page 16 Usage Notice RESPONSIBLE PARTY: Ricoh USA, Inc. 70 Valley Stream Parkway Malvern, Pennsylvania 19355 Phone: 610-296-8000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority,...
  • Page 17 Low Voltage Directive 2014/35/EU Notice: Users in EU countries CE Marking Traceability Information (For EU Countries Only) Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: Ricoh Europe PLC 20 Triton Street, London. NW1 3BF, United Kingdom...
  • Page 18 Usage Notice • The lamp contains mercury. Please dispose of this product or used lamps in accordance with local regulations. The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available.
  • Page 19 Usage Notice Notice: Users in the EU Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.

  • Page 20: Other Information

    Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •...

  • Page 21: Introduction

    Introduction Product Features Outstanding features include: True 1024 x 768 (XGA) / 1280 x 800 (WXGA) / ■ 1920 x 1200 (WUXGA) resolution, 1073M for XGA / WXGA/ WUXGA True colors Light weight <10.36lbs (4.7 kg) ■ Manual focus projection 1:1.6 zoom lens ■...

  • Page 22: Package Overview

    Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. AV Mute Auto Input Enter Menu Keystone Volume Computer Video HDMI Digital A Digital B Magnify Aspect...

  • Page 23: Product Overview

    Introduction Product Overview 1. Control panel 9. AC In socket 2. Lens shift ring 10. Connection ports 3. Air filter 11. Zoom ring 4. Ventilation (inlet) 12. Remote receiver 5. Speakers 13. Lens cap 6. Lamp cover 14. Lens 7. Adjustable feet 15.

  • Page 24: Connection Ports

    Introduction Connection Ports 2 3 4 1. HDMI 3/MHL terminal 9. Audio2 In terminal  The interface is (for dongle) 10. Audio Out terminal subject to model’s specifications. 2. LAN terminal 11. R/Audio1 In terminal  Compatible with 3. Service terminal 12. Video terminal MHL version 2.2, (for firmware upgrade) the charging current...

  • Page 25: Control Panel

    Introduction Control Panel Power indicator Indicate the projector’s power status. Lamp indicator Indicate the projector’s lamp status. Temp indicator Indicate the inside of the projector’s temperature status. Menu Press “Menu” to launch the on screen display (OSD), or go back to the previous menu.

  • Page 26: Remote Control

    Introduction Remote Control AV Mute Auto Input Enter Menu Keystone Volume Computer Video HDMI Digital A Digital B Magnify Aspect Freeze Status Picture Power Refer to the “Power On/Off the Projector” section. (See pages 30~31) Input Press “Input” to choose your desired input source.
  • Page 27 Introduction Dim the projector lamp which will lower power consumption and extend the lamp life. Volume +/- Increase or decrease speaker volume. Video Press “Video” to choose between Video and S-Video terminal. HDMI Press “HDMI” to choose between HDMI1/MHL, HDMI2, HDMI3/MHL terminal.

  • Page 28: Remote Control Battery Installation

    Introduction Remote Control Battery Installation Push the clip to Install new batteries (AAA/ Close the battery cover release the battery R03). Ensure that you have and press it down until it cover. the batteries’ polarity (+/–) clicks into place. Do not mix aligned correctly.

  • Page 29: Remote Control Operating Range

    Introduction Remote Control Operating Range Point the remote control toward the projector (Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 23.0’ (7m) and ±30° (horizontally), ±20° (vertically) in front of the projector. 23.0’ (7m) ±30°...

  • Page 30: Basic Operations

    Basic Operations Connecting the Projector Connect to Computer/Notebook Monitor  Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.  The AC outlet must be near this equipment and must be easily accessible.

  • Page 31: Connect To Av Equipment

    Basic Operations Connect to AV Equipment  Make sure that the DVD player, HDTV receiver power plug is fully inserted into both the projector AC inlet and the wall outlet.  The AC outlet must be near this equipment and must be easily accessible.

  • Page 32: Powering On/Off The Projector

    Basic Operations Powering On/Off the Projector Powering On the Projector 1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. 2. Remove the lens cap.  3 Turn on the lamp by pressing the Power button on the control panel or the button on the remote control.

  • Page 33: Powering Off The Projector

    Basic Operations Powering Off the Projector 1. Press the Power button and you will see a message as below on the on-screen display. Power Off? Press power key again. 2. Press the Power button to turn off the projector lamp. 3.

  • Page 34: Warning Indicator

    Basic Operations Warning Indicator When the “Temp” indicator lights red, it indicates the  projector has overheated. The projector will automatically shut itself down. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C. When the “Lamp”...

  • Page 35: Adjusting The Projected Image

    Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with adjustable feet to raise and lower the image to fill the screen. 1. Locate the adjustable foot you wish to modify on the underside of the projector.

  • Page 36: Adjusting The Projector Zoom, Focus, And Lens Shift

    Basic Operations Adjusting the Projector Zoom, Focus, and Lens Shift To zoom in or out the image, rotate the zoom ring. To focus the image, rotate the focus ring until the image is clear. To adjust the vertical position of the projected image, rotate the lens shift ring.

  • Page 37: Adjusting Projection Image Size

    Basic Operations Adjusting Projection Image Size Projection Image Size for XGA:  - Wide: Adjustable from 35” to 300” (Focus range) (Diagonal). - Tele: Adjustable from 22” to 180” (Focus range) (Diagonal). Projection Image Size for WXGA:  - Wide: Adjustable from 42” to 300” (Focus range) (Diagonal).
  • Page 38 User Settings RICOH PJ X5770 Screen Size W x H Projection Distance (D) Offset (Hd) Diagonal length (inch) (feet) (cm) (feet) (inch) size of 4:3 Width Height Width Height Wide Tele Wide Tele Screen 0.61 0.46 24.00 18.00 -0.03 0.23 0.81...
  • Page 39 User Settings RICOH PJ WU5760 Screen Size W x H Projection Distance (D) Offset (Hd) Diagonal length (inch) (feet) (cm) (feet) (inch) size of 16:10 Width Height Width Height Wide Tele Wide Tele Screen 0.64 0.40 25.20 15.90 -0.08 0.09 0.86...

  • Page 40: User Settings

    User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control.

  • Page 41: Picture

    User Settings Picture Picture Mode Standard Brightness Contrast Saturation Sharpness Gamma Color Temperature PICTURE Advanced Select Enter Exit Picture Mode There are factory presets optimized for various types of images. The available options: Picture Mode Bright Standard Vivid sRGB DICOM SIM. Bright: Mode for emphasizing brightness.
  • Page 42 User Settings Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Contrast Press the key to decrease the contrast. ...
  • Page 43 User Settings NCE (Natural Color Enhancer) Use this function to enhance color and reproduce vivid colors.  On: Enable NCE. Off: Disable NCE.  Advanced Configure the advanced image settings. Advanced Wall Color White NCE Settings Select Enter Exit Wall Color: Use this function to obtain an optimized screen ...
  • Page 44 User Settings - Color: Use the key to adjust the red, green, blue, cyan, yellow, magenta, and white color of the image. - Hue: Use the key to adjust the color balance of red and green. - Saturation: Use the key to adjust the color saturation.

  • Page 45: Screen

    User Settings Screen Aspect Ratio Auto Phase Clock H. Position V. Position Keystone Projection Normal Advanced SCREEN Select Enter Exit Aspect Ratio Use this function to choose your desired aspect ratio. Aspect Ratio Auto Auto: Automatically selects the appropriate display format. ...
  • Page 46 User Settings H. Position (Horizontal Position) Shift the projected image position horizontally. H. Position Press the key to move the image left.  Press the key to move the image right.  V. Position (Vertical Position) Shift the projected image position vertically. V.
  • Page 47 User Settings Four Corners: Compensate for image distortion by adjusting  one corner at a time. Four Corners Select Enter Exit Reset: Return the keystone settings to the factory default values.  Reset Exit Projection Mode Use this function to select the projector mode, depending upon how the projector is mounted.
  • Page 48 User Settings Advanced Configure the advanced screen settings. Advanced Magnify RGB Input Range Auto Start-up Screen Logo Screen Capture Background Color Logo Test Pattern Select Enter Exit Magnify: Use the key to zoom in or zoom out the image.  Magnify a.
  • Page 49 User Settings Use this function to choose your desired Start-up Screen:  start-up screen. Start-up Screen Logo User - Logo: Display logo on the start-up screen. - User: Customized start-up screen. - Off: Display an empty start-up screen. Screen Capture: Press “Enter” to capture an image of the ...

  • Page 50: Setting

    User Settings Setting Language English Auto Power Off (Min) Monitor Out (Standby) Network (Standby) Network Security Reset SETTING Select Enter Exit Language Choose the multilingual OSD. Press “Enter” to open the sub menu and then use the key to select your preferred language.
  • Page 51 User Settings Monitor Out (Standby) Enable/Disable the Monitor output function. Monitor Out (Standby)  On: Enable the Monitor Out function at projector standby status. Off: Disable the Monitor Out function at projector standby  status. Network (Standby) Enable/Disable the network function. Network (Standby) ...
  • Page 52 User Settings IP Address: Set an IP address or display IP address provided  from DHCP server when DHCP is set to “On”. IP Address IP Address Subnet Mask: Set subnet mask number or display subnet mask  number provided from DHCP server when DHCP is set to “On”.
  • Page 53 User Settings Security: Select “On” to use the security verification when the  turning on the projector. Select “Off” to be able to switch on the projector without a password verification. Security Change Password: Set the password.  Security Enter Security Code (6 Digits) Exit Reset Return the adjustments and settings to the factory default values.
  • Page 54 User Settings Audio Mute Volume Audio Input Default AUDIO Select Enter Exit Mute Temporarily turn off the sound.  “Mute” function affects both internal and external speaker Mute volume.  Choose “On” to mute the sound.  Choose “Off” to turn mute off. Volume Adjust the volume level.
  • Page 55 User Settings Audio Input Adjust the audio input. Audio Input Default Audio In 1 Audio In 2 Default: Please refer to the following table:  Input Source Audio Input HDMI/HDBaseT Vide/S-Video Audio 1 In Computer Audio 2 In Audio 1: Audio 1 In. ...

  • Page 56: Options

    User Settings Options Auto Source Input Source Lamp Settings Filter Settings High Altitude Power Settings Information OPTIONS Select Enter Exit Auto Source When this function is turned “On”, the projector will search for other signals if the current input signal is lost. When this function is turned “Off”, it will only search a specified connection port.
  • Page 57 User Settings WU5760 Input Source Computer1 Computer2 HDMI 1 HDMI 2 / MHL HDMI 3 / MHL Video S-Video HDBaseT Select Exit Enter Lamp Settings Use this option to view the lamp life status and configure the lamp settings. Press the ► key to enter the sub menu and configure the desired settings.
  • Page 58 User Settings Lamp Life Reminder: Choose this function to show or to hide  the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp. Lamp Life Reminder Filter Settings Use this option to view the filter status and configure the filter settings.
  • Page 59 User Settings High Altitude When “On” is selected, the fans will spin faster. Set High Altitude mode to “On” when the projector is used over 2500ft (750m) elevation. High Altitude Power Settings Use this option to configure the power settings. Press the ► key to enter the sub menu and configure the desired settings.
  • Page 60 User Settings Information Display the projector information. Information Source Resolution Color Space No Data Filter Hours Used 0 hr Lamp Time 0 hr Lamp Power Normal FW Version Enter Exit Source: Display the input source that is currently connected to. ...
  • Page 61 User Settings 3D Sync Invert 3D Format Auto Select Enter Exit 3D Sync Invert Use this option to enable/disable the 3D sync invert function.  Compatible 3D source, 3D content and Optical 3D glasses 3D Sync Invert are required for 3D viewing.

  • Page 62: Lan Control

    LAN Control LAN Control Controlling this Device with Web Browser You can control this device from a PC by using a web browser. Connecting to the device 1. Confirmation of the IP address of the device Select the “Setting” → “Network” in the menu of this device, and verify the IP address.

  • Page 63: Log In

    LAN Control Log in 1. When you open the web page, you will see a screen like the one below. When you are  connecting the device If you are controlling by web browser, select "Admin". to an existing network, When controlling by Crestron, choose "Crestron".

  • Page 64: System Status

    LAN Control When you log in, a navigation bar for setting the projector will be displayed on the left side of the home screen. System Status The current status of the projector is displayed. You can check information such as firmware version number of the projector and IP address.

  • Page 65: General Settings

    LAN Control General Settings You can change the projector name and password with this item. The version name  displayed on the web page in the diagram may differ from the actual display. ► Changing projector name. Enter the new projector name in the “Projector Name” field. Click “Apply”.

  • Page 66: Control

    LAN Control Control The projector name  set here is also used in PJLink control. Only alphanumeric  characters and symbols can be used as projector name. The maximum number of characters is You can use  only alphanumeric characters and symbols in the password.
  • Page 67 LAN Control Adjustment button: Projector can be adjusted by +/ - button. Input Select input signal from the pull-down list. Brightness Adjust brightness by +/ - button. Value will return to the initial value when you click the Reset button. Contrast Adjust contrast by +/- button.

  • Page 68: Network Settings

    LAN Control Network Settings Set the network of the projector. ► Automatically configuring the network settings from DHCP. Check automatic setting and then click “Apply”. IPV6 cannot be used  ► Configuring the network settings manually. in this device. Check manual setting, enter appropriate values in the IP address, Subnet Mask, Default Gateway (Gateway) and DNS Server fields, and then click "Apply".

  • Page 69: Alert Settings

    LAN Control Alert Settings You can send email alerts when an error occurs. You can carry out settings for alert mail in this section. ► Alert types Check the type of error for which you want to send alert mail. ►...

  • Page 70: Crestron

    LAN Control Enter the IP address of projector in *xxx.xxx.xxx.xxx. Send Test Mail Only alphanumeric  When you click [Send Test Mail], test email will be sent. characters and symbols can be used The text will be "Email Test xxx.xxx.xxx.xxx *". in the password.

  • Page 71: Crestron Tools

    LAN Control Crestron Tools You can perform settings of the projector network and Crestron Room View. Crestron Info You can display information about the firmware version of the projector and status of the lamp. When projector is in  standby mode, only the “Power”...

  • Page 72: Contacting The It Administrator Of Crestron

    LAN Control Contacting the IT administrator of Crestron You can contact the IT administrators who are using X-Panel. After setting the  user password, you will be able to access Crestron’s page by entering the password. After enabling the  Admin password, you will be able to access the page of Crestron...

  • Page 73: Reboot System

    LAN Control Reboot System You can restart the system. Press the Report button. Crestron offers the  following two types of files. a)RoomViewExpress _6_3_3_7.exe b)Xpanel.exe English English...

  • Page 74: Control The Projector Via The Projector Management Utility

    LAN Control Control the Projector via the Projector Management Utility Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be managed using one computer. Projector Management Utility operating environment is This software ...
  • Page 75 LAN Control 6. Install the application by following the on-screen instruction. 7. When the installation is complete, exit the installer. A shortcut icon is created on the desktop. Register projectors 1. Registers the projectors with Auto search -Click [Register Projector] button. -Click [Auto Search] button.
  • Page 76 LAN Control -List of projectors which support PJLink are displayed in the window. Projector name is displayed as “********” until authorization if password is enable. -Select the desired projector and click [Register] button. Password authorization is required if password of the projector is set to enable.

  • Page 77: Control The Projector With The Projector Management Utility

    LAN Control 2. Directly specifies the IP address and registers the projector. -Enter IP address of the desired projector and click [Confirm] button then the projector name will be displayed. After confirming the projector name, click [Register] button. Control the projector with the projector Management Utility Click [Remote Control] tab and select the desired projector in the list.

  • Page 78: Troubleshooting

    Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 79 Troubleshooting Problem: The screen of the Notebook computer is not displaying a presentation If you are using a Notebook PC:  Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
  • Page 80 Troubleshooting Problem: Lamp burns out or makes a popping sound When the lamp reaches its end of life, it will burn out and may  make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp”.
  • Page 81 Troubleshooting Problem: Message Reminders Temperature Error - the projector is overheat inside. Check the  environmental condition. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C. Replacing the lamp - the lamp is about to reach its maximum ...

  • Page 82: Replacing The Lamp

    Replacing the lamp The projector will detect the lamp life itself. It will show you a warning message Warning! Lamp Lamp is approaching the end of its useful life. R e p l a c e m e n t S u g g e s t e d ! When you see this message, change the lamp as soon as possible.
  • Page 83 Replacing the lamp See the lamp’s manual for instructions on resetting the lamp time. Used Lamps This projector’s lamp contains trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose of them in accordance with local regulations or contact your sales representative.

  • Page 84: Appendices

    Appendices List of Compatible Signals A. VGA Analog (1) VGA Analog - PC Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 480 31.47 640 x 480 37.86 640 x 480 37.5 640 x 480 43.27 800 x 600 35.2 800 x 600 37.88 SVGA...
  • Page 85 Appendices A. VGA Analog (2) VGA Analog - Extended Wide Timing V.Frequency H.Frequency Modes Resolution (Hz) (kHz) WSVGA 1024 x 600 37.3 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 44.8 1280 x 800 49.6 1366 x 768 47.71...
  • Page 86 Appendices B. HDMI (1) HDMI - PC Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 480 31.47 640 x 480 37.86 640 x 480 37.5 640 x 480 43.27 800 x 600 35.2 800 x 600 37.88 SVGA 800 x 600 48.08 800 x 600 46.88...
  • Page 87 Appendices B. HDMI (2) HDMI - Extended Wide Timing V.Frequency H.Frequency Modes Resolution (Hz) (kHz) WSVGA 1024 x 600 37.3 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 44.8 1280 x 800 49.6 1366 x 768 47.71...
  • Page 88 Appendices C. 3D Timing Input timing 1280 x 720P @ 50Hz Top - and - Bottom 1280 x 720P @ 60Hz Top - and - Bottom HDMI 3D 1280 x 720P @ 50Hz Frame packing Input (with 3D 1280 x 720P @ 60Hz Frame packing Info Frame 1920 x 1080i @ 50 Hz...

  • Page 89: Configurations Of Terminals

    Appendices Configurations of Terminals Terminal: Computer In (Mini D-sub 15 pin) [Monitor Out] Red (R/Cr) Input [R Output] DDC 5V [NC*] Green (G/Y) Input [G Output] Ground (Ver. sync.) Blue (B/Cb) Input [B Output] DDC Data [NC*] Ground (Horiz.sync.) Horiz. sync. Input [Output] (Composite H/V sync.

  • Page 90: Specifications

    Appendices Specifications ■ List of general specifications RICOH PJ X5770 RICOH PJ WX5770 RICOH PJ WU5760 Item DLP chip 0.55” DMD XGA 0.65” DMD WXGA 0.67” DMD WUXGA Lamp Type 365W lamp Projection Lens F#2.5 - 3.26, f=20.9109 - 32.624mm @ 60”, 1.60x Zoom Lens Projection 1.3 ~ 11.2m (Mechanical...

  • Page 91: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm Holes for ceiling mount Screw size and max. length: M4 x 12.5mm English English...

  • Page 92: Trademarks

    Appendices Trademarks • DLP is trademarks or registered trademark of Texas Instruments. • Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. • HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

This manual is also suitable for:

Pj wx5770Pj x5770
