Summary of Contents for Ricoh PJ X5260

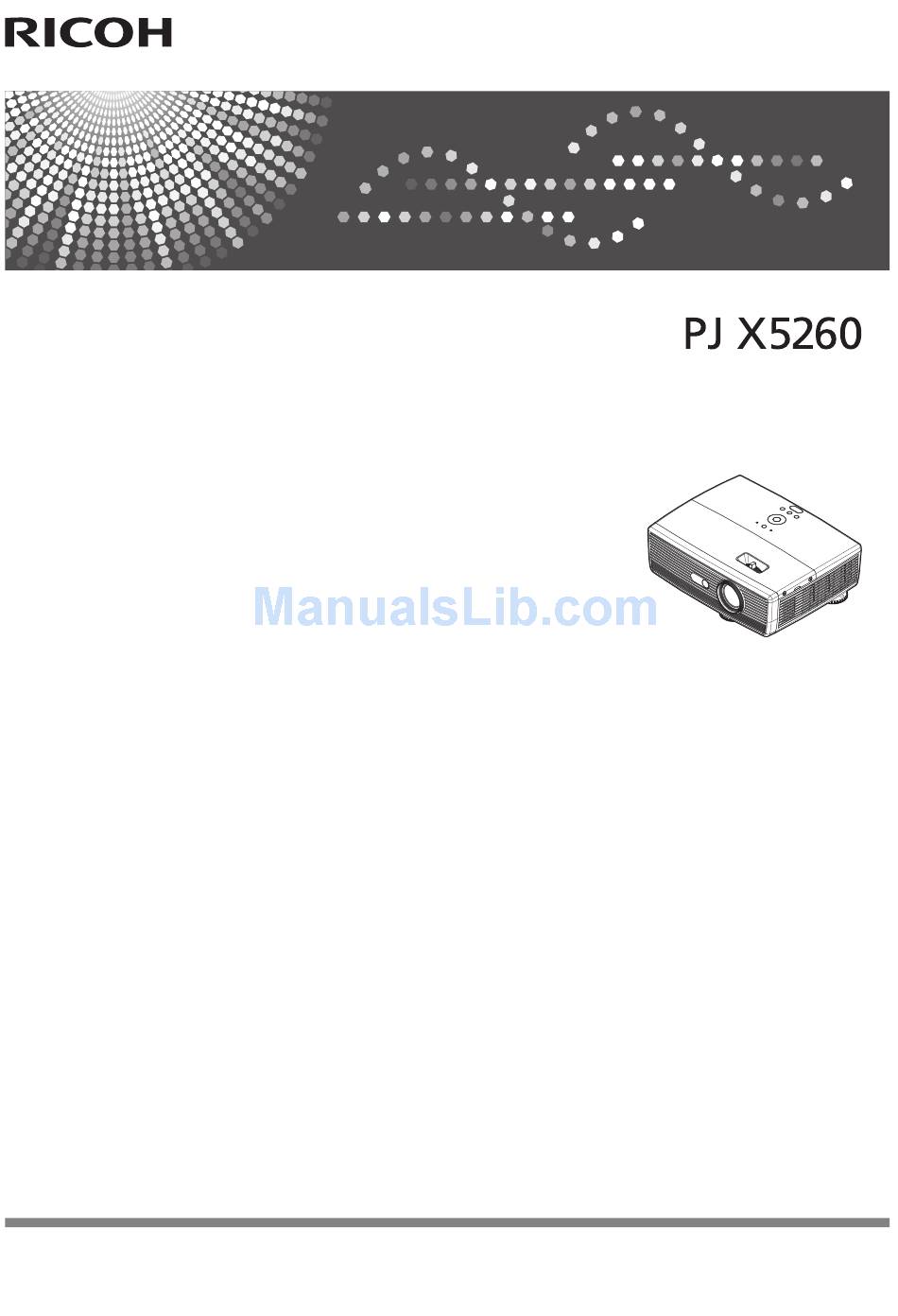

- Page 1 User’s Manual For safe and correct use, be sure to read the “Usage Notice” before using the projector.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ......1 Default.Settings.2........38 Default.Settings.2.|.3D.Projection..41 Usage Notice ........2 Default.Settings.2.|.Network.Setting..42 Precautions..........2 Display.Status........43 Safety.Labels.of.This.Machine.....6 Controls via Network.....44 Regulation.&.Safety.Notices....7 Troubleshooting ......46 Other.Information.......12 Introduction ........13 Replacing the lamp......51 Product.Features.......13 Cleaning the filter ......52 Package.Overview. -
Page 3: Usage Notice
Usage Notice Precautions Follow all warnings, precautions and maintenance as recom- mended in this user’s guide to maximize the life of your unit. ■ Warning- This apparatus must be earthed. ■ Warning- Do not look into the projector’s lens when the lamp is on. - Page 4 Usage Notice ■ Caution- Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thun- der, never touch the unit, cables and/or periph- erals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit.
- Page 5 Usage Notice ■ Caution- This product incorporates glass components, in- cluding a lens and a lamp. If these should break, please handle with care to avoid injury and con- tact your sales representative for repair service. Avoid any broken pieces of glass since they may cause injury.
- Page 6 Usage Notice ■ After unpacking this product, read the manual carefully, and follow all the operating and other instructions. ■ Turn off the product before cleaning. ■ Use a soft cloth moistened with mild detergent to clean the display housing. ■...
-
Page 7: Safety.labels.of.this.machine
Usage Notice Safety Labels of This Machine 1 Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating. Do not place your hands, face, or other objects near the air exhaust, the lamp cover or the bottom of the unit. -
Page 8: Regulation.&.Safety.notices
Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: PJ X5260 TRADE NAME: PROJECTOR MODEL NAME: PJ X0 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules. -
Page 9: Declaration Of Conformity For Eu Countries
Usage Notice RESPONSIBLE PARTY: Ricoh Americas Corporation Dedrick Place, West Caldwell, NJ 000 Phone: 9--000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority,... -
Page 10: Overseas Affiliates And Noise Emission Information
Usage Notice CE Marking Traceability Information (For EU Countries Only) Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Authorized representative: Ricoh Europe PLC 20 Triton Street, London. NW1 3BF, United Kingdom Overseas Affiliates and Noise Emission Information In accordance with TUV “GS Symbol”... -
Page 11: Remote Control Batteries
Usage Notice This product contains substances which are harmful to humans and the environment. • The lamp contains mercury. Please dispose of this product or used lamps in accordance with local regulations. The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. - Page 12 Usage Notice Following information is only for EU-member states: [Disposal of batteries and/or accumulators] The crossed out wheeled dust bin symbol indicates that batteries and/or accu- mulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.
-
Page 13: Other.information
Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •... -
Page 14: Introduction
Introduction Product Features Outstanding features include: True XGA(1024×768) addressable pixels ■ Single chip DLP technology ® ■ NTSC3.58/NTSC4.43/PAL(M/N) and SDTV(480i/ ■ 576i), EDTV(480p/576p), HDTV(720p/1080i/1080p) compatible Multi-Auto functions: Auto detection, Auto image and ■ Auto saving the adjustments Full function remote control ■... -
Page 15: Package.overview
Introduction Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immedi- ately if anything is missing. Due to the difference Projector with lens cap Wireless Remote Control Batteries for Remote in applications for Control (AAA/R03) -
Page 16: Product.overview
Introduction Product Overview Control panel Lamp cover Zoom lever Ventilation (inlet) Speaker Focus ring Ventilation (outlet) Remote sensor Lens cap Lens Connection ports Adjustable feet Filter English... -
Page 17: Connection.ports
Introduction Connection Ports LAN terminal DVI-D In terminal HDMI In terminal Computer 1 In terminal Monitor Out terminal S-Video In terminal terminals (Component) Service Port AC In socket Computer 2 In terminal PC Control terminal (RS232 Compliant) Video In terminal Audio In terminals (From left to right) (1) For Y/P (Component) -
Page 18: Control.panel
Introduction Control Panel Power and Refer to the “Power On/Off the Pro- Power indicator jector” section. (See pages 23~24); Indicate the projector’s power status. Lamp indicator Indicate the projector’s lamp status. Temp indicator Indicate the inside of the projector’s temperature status. Volume - Decrease speaker volume. -
Page 19: Remote.control
Introduction Remote Control Infrared trans- Sends signals to the projector. mitter Indicator Enter Select or confi rm settings. Four to select items or Directional make adjustments to your selection. Select Keys AV Mute Momentarily turn off/on the audio and video. Freeze Pause the screen image. - Page 20 Introduction Dim the projector lamp which will lower power consumption and extend the lamp life. Volume +/- Increase/decrease speaker volume. Video Press “Video” to choose Video in ter- minal. HDMI Press “HDMI” to choose HDMI in terminal. Magnify Enlarge part of the screen image. You cannot use this function when “Native”...
-
Page 21: Remote.control.battery.installation
Introduction Remote Control Battery Installation Press firmly and Install new batteries (AAA/ Slip the cover back over the slide the battery R03). Ensure that you have batteries until it snaps into cover off. the batteries’ polarity (+/–) place. Do not mix different aligned correctly. -
Page 22: Basic Operations
Basic Operations Connecting the Projector Connect to Computer/Notebook Make sure that the power plug is fully inserted into both the projector AC Monitor Output inlet and the wall outlet. The AC outlet must be near this equip- ment and must be easily accessible. -
Page 23: Connect.to.av.equipment
Basic Operations Connect to AV Equipment Make sure that the DVD player, Set-top Box power plug is fully HDTV receiver S-Video Output inserted into both the projector AC inlet and the wall outlet. The AC outlet must be near this equip- ment and must be easily accessible. -
Page 24: Powering.on/Off.the.projector
Basic Operations Powering On/Off the Projector Powering On the Projector Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. Remove the lens cap. Turn on the lamp by pressing “Power” on the control panel or the remote control. -
Page 25: Powering.off.the.projector
Basic Operations Powering Off the Projector Press the “Power” and you will see a message as below on the on-screen display. Press the “Power” again to turn off the projector lamp. The cooling fan continues to operate for about 60 seconds for cooling cycle and the Power indicator will fl ash red. -
Page 26: Warning.indicator
Basic Operations Warning Indicator When the “Temp” indicator lights red, it indicates the projector has overheated. The projector will automatically shut itself down. When the “Lamp” indicator lights red, and you see the message below displays on-screen, the projector has detected that the lamp is approaching its end of life. -
Page 27: Adjusting.the.projected.image
Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with adjustable feet to raise and lower the image to fill the screen. Use to fine-tune the display angle You can raise the ... -
Page 28: Adjusting.the.projector.zoom.and.. Focus
Basic Operations Adjusting the Projector Zoom and Focus You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear. Focus at distances from 4.3 to 48 feet (1.3 to 15 meters). ... - Page 29 Basic Operations Screen Size WxH Projection Distance (D) Offset (Hd) Diagonal (inch) (feet) length (inch) Width Height Width Height wide tele wide tele (feet) 0.65 0.49 25.6 19.2 0.10 0.81 0.61 32.0 24.0 0.12 1.22 0.91 48.0 36.0 0.18 1.42 1.07 56.0 42.0...
-
Page 30: User Settings
User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that al- lows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control. -
Page 31: Image.adjustment
User Settings Image Adjustment Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Press the to decrease the contrast. ... -
Page 32: Picture Mode
User Settings Picture Mode There are many factory presets optimized for various types of im- ages. Use the to select the item. Bright: Mode for emphasizing brightness. Standard: Mode for optimizing the balance between bright- ness and color reproduction. Natural: Mode for emphasizing color reproduction. -
Page 33: Image.adjustment|.Position
User Settings Image Adjustment| Position Phase Eliminate fl icker from the image displayed. Use the “Position” is only adjust the value. supported for Analog RGB signal Frequency which is input from Adjust the number of total dots in one horizontal period. Use the Computer1 or Com- to adjust number to match your PC image. -
Page 34: Display.settings
User Settings Display Settings Aspect Use this function to choose your desired aspect ratio. Normal: Enlarge an input image to fi t the screen without changing the aspect ratio of video signals. Full: Displays an input image in 1024 × 768 dot resolution by ... - Page 35 User Settings Start-up Screen Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered On: Display the startup screen. Off: No logo is displayed. User Logo User logos can be displayed in the start-up screen or as the back- ground when there are no input signals.
- Page 36 User Settings Confirm Logo: Display the registered user logo. Reset Logo: Return to the default logo. Image.format: • Only.capture.of.external.source.is.supported. • Capture.of.background.color.is.not.supported. • If.the.source.image.resolution.is.bigger.than.2368512.bytes.(24-bit.WXGA.image. resolution).image.size,.the.splash.image.will.be.captured.after.center-cropping.the. source.image.to.a.maximum.of.2368512.bytes.by.retaining.the.source.aspect.ratio. • If.user.had.been.captured.image,.the.image.data.captured.will.be.overwritten.by.the. new.one. • 3D.image.is.not.supported. English...
-
Page 37: Default.settings.1
User Settings Default Settings 1 Power Off on No Signal Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has fi nished. -
Page 38: Projection Mode
User Settings Control Method PC Control: Allow PC control using PC control terminal. (Default setting) LAN: Allow projector control via web browser (Internet Ex- plorer) using the network. Language Choose the multilingual OSD. Press into the sub menu and then use the key to select your preferred lan- guage. -
Page 39: Default.settings.2
User Settings Default Settings 2 High Altitude Mode When “On” is selected, the fans will spin faster. Set High Alti- tude mode to “On” when the projector is used over 2500ft (750m) elevation. Key Lock When the keypad lock function is “On”, the control panel will be locked other than “Power”... -
Page 40: Closed Caption
User Settings Enter the new password and press “ENTER” to confirm. Enter new password again and press “ENTER” to confirm. ■ Change Password The password has to Press “ENTER” to input old password. be 6 digits. Use number button to enter current password and then Use number button ... -
Page 41: Network Setting
User Settings Due.to.the.different.broadcasting.or.signaling.system,.it.may.not.operate.correctly.in. other.regions.or.countries.where.TV.programs.do.not.support.closed.captioning. Closed.Caption.may.not.appear.correctly.depending.on.the.signal.conditions.or.the. recording.conditions.of.videotapes. When.you.switch.channels.of.broadcasting.programs.or.play.a.videotape.using.“trick. play”.functions.such.as.rewind.or.fast-forward,.the.operations.in.the.connected.device. may.cause.the.Caption.to.remain.on.the.screen.for.a.while. Closed.Caption.is.available.for.Video.and.S-Video.input.images. 3D Projection Refer to next page. Network Setting Refer to page 42. Reset All Return the adjustments and settings to the factory default values. English... -
Page 42: Default.settings.2.|.3D.projection
User Settings Default Settings 2 | 3D Projection 3D Projection Off: Choose “Off” to display normal (2D) picture. Compatible 3D source, 3D content On: Choose “On” to display 3D format. and active shutter DLP Link glasses are required for 3D viewing. -
Page 43: Default.settings.2.|.Network.setting
User Settings Default Settings 2 | Network Setting Connection Status Display the network connection status. Be sure to set “Control Method” to MAC Address “LAN” before start- Display MAC address. ing to set Network setting. DHCP If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open. -
Page 44: Display.status
User Settings Display Status Input Input source name. Resolution Resolution (in dots). Picture Mode Display the setting of Picture mode. Lamp Time Time of lamp use. Total Time Total Time, including Eco mode and Standard mode. Lamp Reset Count Display the number of projector replacement lamps. Firmware Version Display Firmware version. -
Page 45: Controls Via Network
Open your web browser and type in the IP address you checked. For example, type “http://192.168.0.100” when IP address is displayed as the screen above. Then the web page will display as below: 2.1 Login: PJ X5260 - This web page is available only in ■... -
Page 46: Installing Projector Management Utility
Controls via Network Managing the Projector Using Projector Management Utility Projector Management Utility conforms to the PJLink class 1 stan- dards, and is compatible with all class 1 commands. A maximum of 100 projectors connected to the network can be man- aged using one computer. -
Page 47: Troubleshooting
Troubleshooting If you experience trouble with the projector, refer to the follow- ing information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ... - Page 48 Troubleshooting Problem: The screen of the Notebook or PowerBook com- puter is not displaying a presentation If you are using a Notebook PC: Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
- Page 49 Troubleshooting Problem: Image is reversed Select “Default Settings 1-->Projection Mode” from the OSD and adjust the projection direction. Problem: Lamp burns out or makes a popping sound When the lamp reaches its end of life, it will burn out and may ...
- Page 50 Troubleshooting Problem: Indicator lighting message POWER TEMP LAMP indicator indicator indicator Message (Red/Blue) (Red) (Red) Standby (Input power cord) (Red) Normal (Power on) (Blue) Powering up (Warming up) Flashing Blue (0.5 sec) Power off (Cooling Down) Flashing Red (0.5 sec) Temperature Error (Over temp.
- Page 51 Troubleshooting Problem: Message Reminders Temperature Error - the projector is overheat inside. Check the environmental condition. Replacing the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon. Fan Error - the cooling system fan is not working. ...
-
Page 52: Replacing The Lamp
Replacing the lamp The projector will detect the lamp life itself. It will show you a warning message. When you see this message, change the lamp as soon as possi- Warning: To avoid ble. Make sure the projector has been cooled down for at least burns, allow the 60 minutes before changing the lamp. -
Page 53: Cleaning The Filter
Cleaning the filter We recommends cleaning the dust filter every three months; clean it more often if the projector is used in a dusty environ- ment. Cleaning the Filter Procedure: Switch off the power to the projector by pressing the “Power”. Disconnect the power cord. -
Page 54: Appendices
Appendices List of Compatible Signals PC Signal / HDMI Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 350 31.5 640 x 480 31.5 640 x 480 35.0 640 x 480 37.9 640 x 480 37.5 720 x 400 31.5 720 x 576 35.91 SVGA... - Page 55 Appendices PC Signal / HDMI Signal SXGA+ 1400 x 1050 63.98 1440 x 900 65.32 1440 x 900 70.64 UXGA 1600 x 1200 MAC LC 13” 640 x 480 66.66 34.98 MAC 16” 832 x 624 74.55 49.725 MAC 19” 1024 x 768 60.24 1152 x 870...
-
Page 56: Configurations Of Terminals
Appendices Configurations of Terminals Terminal: Computer in 1/2 (Mini D-sub 15 pin) Red (R/Cr) Input/R Output DDC 5V / NC* Green (G/Y) Input/G Output Ground (Ver. sync.) Blue (B/Cb) Input/B Output DDC Data / NC* Ground (Horiz.sync.) Horiz. sync. Input / Output (Composite H/V sync. -
Page 57: Mini D Sub 15 Pin
Appendices Specifications ■ List of general specifications Item Specification Consumption Power 290W (ECO mode) / 384W (Full mode) Weight 14.3lbs (6.5kg) Dimensions (WxHxD) 398×147×311mm (with protruding parts) Environmental Considerations Operational Temperatures: 41° to 95°F (5° to 35°C), 20% to 80% humidity (non-condensing) Storage Temperatures: -4°... -
Page 58: Trademarks
Appendices Trademarks • DLP is trademarks of Texas Instruments. • IBM is a trademark or registered trademark of International Business Machines Corporation. • Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries. •... - Page 59 © 2012...
- Page 60 EN GB Y017-6220...
