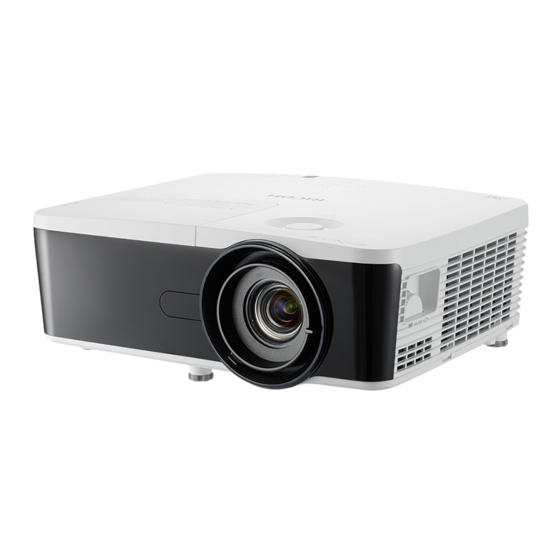

Ricoh PJ X5580 User Manual
  1. Manuals
  2. Brands
  3. Ricoh Manuals
  4. Projector
  5. PJ X5580
  6. User manual

Ricoh PJ X5580 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
RICOH PJ X5580/WU5570
1.
Usage Notice
2.
Introduction
3.
Basic Operations
4.
User Settings
5.
LAN Control
6.
Troubleshooting
7.
Replacing the lamp
8.
Appendices
Read this manual carefully before you use this machine and keep
it handy for future reference. For safe and correct use, be sure to
read the Precautions in this manual before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ X5580 and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh PJ X5580

Summary of Contents for Ricoh PJ X5580

  • Page 1 RICOH PJ X5580/WU5570 User’s Manual Usage Notice Introduction Basic Operations User Settings LAN Control Troubleshooting Replacing the lamp Appendices Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ......1 OPTIONS ..........51 3D ............55 Usage Notice ........2 LAN Control ........56 Precautions .........2 Controlling this Device with Web Safety Labels of This Machine ..12 Browser ..........56 Regulation & Safety Notices .....13 Connecting to the device ...... 56 Other Information ......18 Log in............

  • Page 4: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. ■ Indicates a potentially hazardous situation which, if in- Warning- structions are not followed, could result in death or serious injury.
  • Page 5 Usage Notice ■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following: ■ There are burn marks on the plug. ■ The prongs on the plug are deformed. If any of the above conditions exist, do not use the plug and consult your dealer or service representative.
  • Page 6 Usage Notice After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock. ■...
  • Page 7 - Use brackets that are strong enough to support the projector. * PJ X5580/WU5570 Series weighs less than 6.35kg. - The projector must be installed in a location that is sturdy enough to support the full weight of the projec- tor and brackets.
  • Page 8 Usage Notice ponents becoming overheated. ■ Caution- Do not place or store the machine in a location where direct sunlight or heat generation might occur. The heat may deform or wear out the exterior parts or negatively affect internal parts. Doing so could result in fire.
  • Page 9 Failing to take these precautions could result in fire or electric shock. ■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause haz- ards or damage to the product. ■ Caution-...
  • Page 10 Usage Notice lens may overheat and burn or start a fire. ■ Caution- Unauthorized substitutions may result in fire, electric shock, or other hazards. (Only the replacement of the lamp should be made by users.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.

  • Page 11: About The Lamp

    Usage Notice ABOUT THE LAMP ■ Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this hap- pens, the projector will not turn back on until the lamp module has been replaced.
  • Page 12 Usage Notice cury vapor in the lamp tube and broken glass pieces may be ejected from the vents or other opening. What to do if a lamp has exploded If the lamp explodes, remove the power cord from the projector, leave the room while making sure it is thoroughly ventilated.

  • Page 13: Remote Control Battery

    Usage Notice REMOTE CONTROL BATTERY Warning • Never throw batteries into a fire. Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor.

  • Page 14: Safety Labels Of This Machine

    Usage Notice Safety Labels of This Machine 1 To replace the lamp, unplug the power cord and then wait for 60 minutes. 2 Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire.

  • Page 15: Regulation & Safety Notices

    Regulation & Safety Notices This appendix lists the general notices of your Projector. Notice: Users in the United States of America FCC notice MODEL NAME: RICOH PJ X5580/WU5570 TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ X5580/WU5570 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules.
  • Page 16 Usage Notice RESPONSIBLE PARTY: Ricoh Americas Corporation 5 Dedrick Place, West Caldwell, NJ 07006 Phone: 973-882-2000 Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority,...

  • Page 17: Declaration Of Conformity For Eu Countries

    Low Voltage Directive 2006/95/EC Notice: Users in EU countries CE Marking Traceability Information (For EU Countries Only) Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: Ricoh Europe PLC 20 Triton Street, London. NW1 3BF, United Kingdom...
  • Page 18 Usage Notice • The lamp contains mercury. Please dispose of this product or used lamps in accordance with local regulations. The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available.
  • Page 19 Usage Notice Notice: Users in the EU Note for the Battery and/or Accumulator Symbol In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.

  • Page 20: Other Information

    Usage Notice Other Information Copyrights to Images When projecting images using the projector, be careful not to infringe the copyright of protected materials. The following are examples that may infringe the copyright of protected materials. • Broadcasting images or movies for commercial purposes •...

  • Page 21: Introduction

    Introduction Product Features Outstanding features include: 1024x768(XGA) : X5580/1920x1200(WUXGA) : WU5570 ■ Weight <6.35kg(14lbs) ■ Manual focus and 1.8X manual zoom ■ Built-in full screen NTSC/PAL/SECAM video capability ■ with S-video/Composite component through D-sub terminals UXGA / WXGA / Quad VGA / SXGA+ / SXGA / XGA ■...

  • Page 22: Package Overview

    RGB Cable Read This First  About the CD-ROM Contains the user’s manual in PDF format and the projector management software. Support languages of the user’s manual are English, Japanese and Chinese. For the other languages, visit RICOH Web site. English...

  • Page 23: Product Overview

    Introduction Product Overview 1. LED indicators 8. Focus ring 2. Remote Receiver 9. Adjustable feet 3. Control panel 10. Connection ports 4. Filter 11. Lens Shift lever 5. Ventilation (inlet) (up/down) 6. Lens Shift lever 12. Lens cap (left/right) 13. Lens 7.

  • Page 24: Connection Ports

    Introduction Connection Ports  The interface is subject to model’s specifications.  When using Video 1. LAN terminal or S-Video input source, connect the 2. Service terminal audio input cable to 3. HDMI 1/MHL In terminal the Composite Audio Input (left & right) 4.

  • Page 25: Control Panel

    Introduction Control Panel Four to select items or Directional make adjustments to your selection. Select Keys Power Refer to the “Power On/Off the Projector” section. (See pages 31~32) Menu Press “Menu” to launch the on screen display (OSD), or go back to the previous menu.

  • Page 26: Led Indicators

    Introduction LED Indicators Temp indicator Indicate the inside of the projector’s temperature status. Lamp indicator Indicate the projector’s lamp status. Power indicator Indicate the projector’s power status. English...

  • Page 27: Remote Control

    Introduction Remote Control Power Enter Menu AV Mute Input Auto Set Control Keystone Volume Picture Computer Video HDMI DisplayPort S-Video Magnify Freeze Infrared Send signals to the projector. transmitter Enter Confirm your section of items in sub menu operation. Four to select items or Directional make adjustments to your selection.
  • Page 28 Introduction Dim the projector lamp which will lower power consumption and extend the lamp life. MHL Control Press “MHL Control” to control your MHL device. Number (0~9) Input numbers. Volume +/- Increase/decrease speaker volume. Video Press “Video” to choose Video in terminal.

  • Page 29: Remote Control Battery Installation

    Introduction Remote Control Battery Installation Press firmly and Install new batteries (AAA/ Slip the cover back over the slide the battery R03). Ensure that you have batteries until it snaps into cover off. the batteries’ polarity (+/–) place. Do not mix different aligned correctly.

  • Page 30: Remote Control Operating Range

    Introduction Remote Control Operating Range Point the remote control toward the projector (Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 23.0’ (7m) and ±30° (horizontally), ±20° (vertically) in front of the projector. 19.7' (7m) ±30°...

  • Page 31: Basic Operations

    Basic Operations Connecting the Projector Connect to Computer/Notebook Router / Network Switch Powered Speaker  Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.  The AC outlet must be near this equipment and must be easily accessible.

  • Page 32: Connect To Av Equipment

    Basic Operations Connect to AV Equipment  Make sure that the DVD player, HDTV receiver power plug is fully inserted into both the projector AC inlet and the wall outlet.  The AC outlet must be near this equipment Component and must be easily Powered Speaker accessible.

  • Page 33: Powering On/Off The Projector

    Basic Operations Powering On/Off the Projector Powering On the Projector 1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red. 2. Remove the lens cap.  3. Turn on the lamp by pressing the “ ” button on the control panel or the remote control.

  • Page 34: Powering Off The Projector

    Basic Operations Powering Off the Projector 1. Press the “ ” button and you will see a message as below on the on-screen display. Power Off? Press power key again. 2. Press the “ ” button again to turn off the projector lamp. 3.

  • Page 35: Warning Indicator

    Basic Operations Warning Indicator When the “Temp” indicator lights red, it indicates the  projector has overheated. The projector will automatically shut itself down. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C. When the “Lamp”...

  • Page 36: Adjusting The Projected Image

    Basic Operations Adjusting the Projected Image Adjusting the Position of Projector Image The projector is equipped with adjustable feet to raise and lower the image to fill the screen. 1. Locate the adjustable foot you wish to modify on the underside of the projector.

  • Page 37: Adjusting The Projection Position Using Lens Shift

    The projection position cannot be moved more than the range indicated in the illustration below. Image width (W) Lens Shift (Horizontal shift range) Lens Shift (Horizontal shift Maximum_0.1W range) Maximum_0.1W Lens Shift (Vertical shift range) Maximum_0.1H (PJ X5580) Maximum_0.2H (PJ WU5570) Image height (H) Offset (Hd) English English...

  • Page 38: Adjusting The Projector Zoom And Focus

    You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear. XGA (PJ X5580): Focus at distances from 3.28 to 44.29 feet  (1.0 to 13.5 meters).
  • Page 39 Basic Operations XGA (PJ X5580) Screen Size W x H Projection Distance (D) Offset (Hd) Diagonal (inch) (feet) (cm) (feet) length (inch) size of 4:3 Width Height Width Height wide tele wide tele Screen 0.61 0.46 4.27 2.286 -2.286 0.075 -0.075...

  • Page 40: User Settings

    User Settings Using the On Screen Display (OSD) The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings. How to operate To open the OSD, press “Menu” on the Control Panel or Remote Control.

  • Page 41: Picture

    User Settings Picture Picture Mode Standard Wall Color White Brightness Contrast Sharpness Saturation Tint PICTURE Select Enter Exit Picture Mode There are many factory presets optimized for various types of images. The available options: Bright: Mode for emphasizing brightness.  Standard: Mode for optimizing the balance between brightness ...
  • Page 42 User Settings Contrast The contrast controls the degree of difference between the lightest  “Sharpness”, and darkest parts of the picture. Adjusting the contrast changes the “Saturation” and amount of black and white in the image. “Tint” functions are only supported under Video/S-Video/ Contrast Composite Signal...

  • Page 43: Screen

    User Settings Screen Auto Aspect Ratio Phase Clock H. Position V. Position Digital Zoom Keystone Rear Ceiling P r o j e c t i o n M o d e SCREEN RGB Input Range Auto Select Exit Enter Aspect Ratio Use this function to choose your desired aspect ratio.

  • Page 44: Digital Zoom

    User Settings H. Position (Horizontal Position) Shift the projected image position horizontally.  “H. Position” and H. Position “V. Position” functions are only supported Press the key to move the image left.  under Computer Signal source. Press the key to move the image right. ...
  • Page 45 User Settings Keystone Use this function to make an image look visually correct when it is projected onto the screen. Keystone Auto Keystone V. Keystone H. Keystone Four Corners Reset Select Enter Exit Auto Keystone: Automatically adjust the shape of the ...

  • Page 46: Projection Mode

    User Settings b. Use the , or key to adjust the setting. Exit Reset: Resets the projected image adjustment to its original  settings. Projection Mode Use this function to select the projector mode, depending upon how the projector is mounted. Projection Mode Front Front Ceiling...
  • Page 47 User Settings RGB Input Range Adjust the color range of the HDMI image data. RGB Input Range Auto Standard Full Auto: Automatically detect RGB range.  Standard: Process the input image as standard range data.  Full: Select this mode when computer signal or full range signal ...

  • Page 48: Setting

    User Settings Setting Language English Monitor Out (Standby) Network (Standby) Network Security 12V Trigger Reset SETTING Select Enter Exit Language Choose the multilingual OSD. Press “Enter” to open the sub menu and then use the key to select your preferred language.
  • Page 49 User Settings Network  Consult network Configure the network settings. administrator for network settings. Network State Connected DHCP IP Address Subnet mask Gateway Apply Select Enter Exit Network State: Display the network connection status.  DHCP: Select “On” to allow the projector to obtain an IP ...
  • Page 50 User Settings Security Configure the security settings. Security Security Change Password Select Enter Exit Security: Select “On” to use the security verification when the  turning on the projector. Select “Off” to be able to switch on the projector without a password verification. Security Change Password: Set the password.
  • Page 51 User Settings Reset Return the adjustments and settings to the factory default values. Choose “Yes” to return the display parameters on all menus except Language and Lamp Hours Used to the factory default settings. LAN Control settings also return to the factory default. Set again after reset.

  • Page 52: Volume

    User Settings Volume Mute Volume MIC Volume Line1 Audio Input VOLUME Select Enter Exit Mute Temporarily turn off the sound.  “Mute” function affects both internal  Choose “On” to mute the sound. and external speaker  volume. Choose “Off” to turn mute off. Volume Adjust the volume level.

  • Page 53: Options

    User Settings Options Auto Source Input Auto Power Off (Min) Lamp Settings High Altitude Dust Filter Reminder Logo OPTIONS I n f o r m a t i o n Select Exit Enter Auto Source When this function is turned “On”, the projector will search for other signals if the current input signal is lost.

  • Page 54: Lamp Settings

    User Settings Lamp Settings Use this option to view the lamp life status and configure the lamp settings. Press the ► key to enter the sub menu and configure the desired settings. Lamp Settings Lamp Hours Used (Normal) Lamp Life Reminder Lamp Power Mode Normal Image Eco...

  • Page 55: Dust Filter Reminder

    User Settings Dust Filter Reminder Use this option to view the filter status and configure the filter settings. Press the ► key to enter the sub menu and configure the desired settings. This item is disabled for the projector sold in some regions. Dust Filter Reminder Filter Reminder (Hour) Cleaning Up Reminder...
  • Page 56 User Settings Screen Capture: Press “Enter” to capture an image of the picture  currently displayed on screen. Screen capture in progress Please wait Information Display the projector information. Information Source Computer1 Resolution Software Version Color Space No Data Aspect Ratio Auto Exit Source: Display the input source that is currently connected to.
  • Page 57 User Settings 3D Sync 3D Sync Invert 3D Format Select Enter Exit 3D Sync Use this option to disable the 3D function or select the appropriate  “3D Sync Invert” the 3D function. is only available when Off: Choose “Off” to display normal (2D) picture. 3D is enabled.

  • Page 58: Lan Control

    LAN Control Controlling this Device with Web Browser When you are  connecting the device You can control this device from a PC by using a web browser. to an existing network, set according to the Connecting to the device instructions of the network administrator.

  • Page 59: Log In

    LAN Control Log in 1. When you open the web page, you will see a screen like the one below. If you are controlling by web browser, select "Admin". When controlling by Crestron, choose "Crestron". 2. Enter the password in the "Password" field. You can use ...

  • Page 60: System Status

    LAN Control When you log in, a navigation bar for setting the projector will be displayed on the left side of the home screen. System Status The current status of the projector is displayed. You can check information such as firmware version number of the projector and IP address.

  • Page 61: Control

    LAN Control General Settings You can change the projector name and password with this item. The projector name  set here is also used in PJLink control. Only alphanumeric  characters and symbols can be used as projector name. The maximum number of characters is If the characters of ...
  • Page 62 LAN Control Control button: When you click a button, the corresponding function will be performed. Power ON The power of the projector turns on. To turn ON, click "Settings" → "Network (standby)". Power OFF Turns OFF the power of the projector. Auto Set The RGB signal from the computer is automatically adjusted.

  • Page 63: Network Settings

    LAN Control Volume Adjust the volume by +/- button. Value will return to the initial value when you click the Reset button. No Signal Select from the pull-down list the time to Power Off automatically turn off the power after signal is displayed.

  • Page 64: Alert Settings

    LAN Control Alert Settings Only alphanumeric  You can send email alerts when an error occurs. characters and You can carry out settings for alert mail in this section. symbols can be used in the password. The maximum number of characters is 32.

  • Page 65: Crestron

    LAN Control Enter the IP address of projector in *xxx.xxx.xxx.xxx. Email Test When you click [Email Test], test email will be sent. The text will be "Email Test xxx.xxx.xxx.xxx *". Even if an error occurs during the e-mail transmission, no error will appear in the web browser.

  • Page 66: Crestron Tools

    LAN Control Crestron Tools You can perform settings of the projector network and Crestron Room View. After setting the  user password, you will be able to access Crestron’s page by entering the password. After enabling the  Admin password, you will be able to access the page of Crestron tool only upon entering...

  • Page 67: Contacting The It Administrator Of Crestron

    LAN Control Contacting the IT administrator of Crestron Crestron offers the You can contact the IT administrators who are using X-Panel.  following two types of files. a)RoomViewExpress _6_3_3_7.exe b)Xpanel.exe Reset to Default You can reset the network to factory settings. Press the reflect button.

  • Page 68: Reboot System

    LAN Control Reboot System You can restart the system. Press the restart button. English...

  • Page 69: Controlling The Device Via The Projector Management Utility

    LAN Control Controlling the Device via the Projector Management Utility Projector management utility This software is Projector management utility conforms with the standards  for managing our of PJ Link class 1, and supports all the commands of class 1. company’s projector.

  • Page 70: Registering A Projector

    LAN Control 3. Right-click the CD-ROM icon, and then select [Open]. 4. Open the "Projector Management Utility" folder in the CD-ROM. 5. Double-click the setup.exe file in "Projector Management Utility" folder. 6. Follow the instructions on the screen and perform the installation. 7.
  • Page 71 LAN Control Click the "Auto Search" button. List of PJLink compatible projector in the network will be displayed. Select the projector you want to control, and then click the “Register” button. Return to the previous screen by clicking the [OK] button. English English...
  • Page 72 LAN Control The registered projector will be displayed. 2. Registering a projector by directly entering the IP address. Upon entering the IP address of the projector and clicking the "Confirm" button, the projector name will be displayed. If there is no problem, click the [Register] button. Projector will be registered.

  • Page 73: Controlling The Projector With The Projector Management Utility

    LAN Control Controlling the projector with the projector management utility To control the projector, switch to remote control screen by pressing the "Remote Control" tab. Select the projector (/ group) that you want to control from displayed list and control with the button at the bottom of the screen.
  • Page 74 LAN Control [Mute] button Turn "on/off" the mute function of the projector and group selected from the projectors (/ group) list. This device supports mute of video only or audio only. Therefore, mute will change upon selecting video or audio. [Information] button Detailed information screen for the selected projector will be displayed.

  • Page 75: Controlling The Projector With The Projector Management Utility Via Pj Link

    LAN Control Controlling the projector with the projector management utility via PJ Link 1. Open the web page and select General Setup. Then configure PJ Link settings. - On the PJLink Password option, click Enable to enable this function. - On the Current password field, enter the current password. - On the New password and Confirm password fields, enter the new password.
  • Page 76 LAN Control 2. Open the PJ Link software and click Register Projector. 3. Click Auto search. List of PJLink compatible projectors in the network will be displayed. English...
  • Page 77 LAN Control 4. Select the projector you want to control and click Register. When prompted, enter your password. If the password verification is successful, the "unlock" icon will appear on the screen. English English...

  • Page 78: Troubleshooting

    Troubleshooting If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 79 Troubleshooting Problem: The screen of the Notebook computer is not displaying a presentation If you are using a Notebook PC:  Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated.
  • Page 80 Troubleshooting Problem: Image is reversed Select “SCREEN > Projection Mode” from the OSD menu to  adjust the image. Problem: Lamp burns out or makes a popping sound When the lamp reaches its end of life, it will burn out and may ...
  • Page 81 Troubleshooting Problem: Indicator lighting message POWER TEMP LAMP indicator indicator indicator Message (Red/Blue) (Red) (Red) Standby (Input power cord) (Red) Normal (Power on) (Blue) Powering up (Warming up) Flashing Blue (0.5 sec) Power off (Cooling Down) Flashing Red (0.5 sec) Programming (Blue and Red) Temperature Error (Over...

  • Page 82: Environmental Condition

    Troubleshooting Problem: Message Reminders Temperature Error - the projector is overheat inside. Check the  environmental condition. Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C. Replacing the lamp - the lamp is about to reach its maximum ...

  • Page 83: Replacing The Lamp

    Replacing the lamp The projector will detect the lamp life itself. It will show you a warning message Warning! Lamp Lamp is approaching the end of its useful life. R e p l a c e m e n t S u g g e s t e d ! When you see this message, change the lamp as soon as possible.

  • Page 84: Appendices

    Appendices List of Compatible Signals A. VGA Analog (1) VGA Analog - PC Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 480 31.47 640 x 480 37.86 640 x 480 37.5 640 x 480 43.27 800 x 600 35.2 800 x 600 37.88 SVGA...
  • Page 85 Appendices A. VGA Analog (2) VGA Analog - Extended Wide Timing V.Frequency H.Frequency Modes Resolution (Hz) (kHz) WSVGA 1024 x 600 37.3 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 44.8 1280 x 800 49.6 1366 x 768 47.71...
  • Page 86 Appendices B. HDMI (1) HDMI and Displayport - PC Signal V.Frequency H.Frequency Modes Resolution (Hz) (kHz) 640 x 480 31.47 640 x 480 37.86 640 x 480 37.5 640 x 480 43.27 800 x 600 35.2 800 x 600 37.88 SVGA 800 x 600 48.08...
  • Page 87 Appendices B. HDMI (2) HDMI - Extended Wide Timing V.Frequency H.Frequency Modes Resolution (Hz) (kHz) WSVGA 1024 x 600 37.3 1280 x 768 47.78 1280 x 768 60.29 1280 x 768 68.63 WXGA 1280 x 720 44.8 1280 x 800 49.6 1366 x 768 47.71...
  • Page 88 Appendices C. 3D Timing Input timing 1280 X 720P @ 50Hz Top - and - Bottom 1280 X 720P @ 60Hz Top - and - Bottom HDMI 3D 1280 X 720P @ 50Hz Frame packing Input (with 3D 1280 X 720P @ 60Hz Frame packing Info Frame 1920 X 1080i @ 50 Hz...

  • Page 89: Configurations Of Terminals

    Appendices Configurations of Terminals Terminal: Computer In 1/2 (Mini D-sub 15 pin) [Monitor Out] Red (R/Cr) Input [R Output] DDC 5V [NC*] Green (G/Y) Input [G Output] Ground (Ver. sync.) Blue (B/Cb) Input [B Output] DDC Data [NC*] Ground (Horiz.sync.) Horiz.

  • Page 90: Terminal: Vesa 3D Sync

    Appendices Terminal: VESA 3D sync + 5V DC @ 750 mA Stereo Sync(TTL) Ground English...

  • Page 91: Specifications

    Appendices Specifications ■ List of general specifications PJ X5580 PJ WU5570 Item DLP chip 0.70” XGA 0.67” WUXGA Lamp Type 365W Projection Lens 1.8X Manual Zoom Lens and Manual Focus Projection Distance 1.0~13.5m 1.0~13.8m (Focus range) Throw Ratio 1.243 (wide) ~ 2.238 (tele) 1.2 (wide) ~ 2.16 (tele)

  • Page 92: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm 424.00 100.00 Holes for ceiling mount 200.00 Screw size and max. length: M4 x 12.5mm English...

  • Page 93: Trademarks

    Appendices Trademarks • DLP is trademarks or registered trademark of Texas Instruments. • IBM is a trademark or registered trademark of International Business Machines Corporation. • Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries. •...
