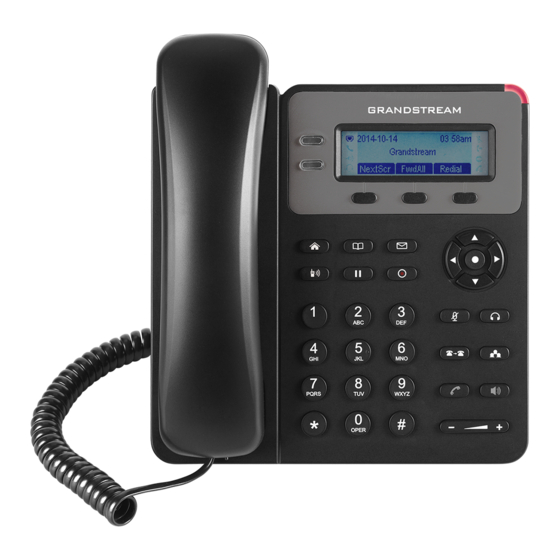

Grandstream Networks, Inc. GXP1610/1620/1625/1628 BroadWorks Xsi Directories and Call Logs User Guide GXP1610/1620/1625/1628 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 2: Table Of Contents
GXP1610/1620/1625/1628 BroadWorks Xsi Directories and Call Logs User Guide Index INTRODUCTION ..................3 BROADWORKS XTENDED SERVICES INTRODUCTION ......4 ARCHITECTURE AND MESSAGING ....................4 BROADWORKS XSI DIRECTORY AND CALL LOGS CONFIGURATION 5 BROADWORKS SERVER CONFIGURATION ..................5 GXP PHONE CONFIGURATION ......................5 BROADWORKS XSI DIRECTORIES .................... - Page 3 Table of Figures GXP1610/1620/1625/1628 BroadWorks Xsi Directories and Call Logs User Guide Figure 1: Xsi-Actions Requests-Response ....................4 Figure 2: Web-GUI – Broadsoft Directories Feature Show on the Phone ............ 6 Figure 3: LCD Configuration Menu - Contacts ....................7 Figure 4: Contact Page ..........................
-
Page 4: Introduction
Grandstream GXP1610/1620/1625/1628 SIP phone supports the BroadWorks Xtended Services Interfaces (Xsi) Directories and Call Log features. This User Guide will describe how to configure and use the BroadWorks Xsi Directories and Call Logs features on GXP1610/1620/1625/1628. To learn more about GXP1610/1620/1625/1628 features, please visit http://www.grandstream.com/support... -
Page 5: Broadworks Xtended Services Introduction
The BroadWorks Xsi Directories and Xsi Call Logs feature allows user to access the phonebook and call log entries managed by BroadWorks Servers via the Xsp server. GXP1610/1620/1625/1628 Page 4 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 6: Broadworks Xsi Directory And Call Logs Configuration
Directory’s default name is “Group Directory” if it keeps blank. If the user files “Grandstream” into the blank, the phone will display “Grandstream” to for the Group Directory. The following figure shows an example of how to configure the Broadsoft Directories settings on the GXP1610/1620/1625/1628 phones: GXP1610/1620/1625/1628 Page 5 of 15... -
Page 7: Broadworks Xsi Directories
After configuration, users can use Broadsoft Xsi Directories features on GXP phones. Please do as the following steps: 1. Press the Menu button on the pad to enter the configuration menu. 2. Select the “Phone Book”. GXP1610/1620/1625/1628 Page 6 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 8: Figure 3: Lcd Configuration Menu - Contacts
Figure 3: LCD Configuration Menu - Contacts 3. Select Broadsoft Phonebook to enter the Directory page. Figure 4: Contact Page GXP1610/1620/1625/1628 Page 7 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 9: Figure 5: Broadsoft Phonebook Page
GXP phone display the Group Common directory entries. It is also able to select one entries and press the “Dial” to make an outbound call to the contact via the Account 1 registered on the phone. GXP1610/1620/1625/1628 Page 8 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 10: Figure 6: Broadsoft Group Common
6. Select a contact and press the Menu/OK button to view more details about the contact. The following figure shows an example of details of a contact: Figure 7: Broadsoft Contact Entry Page GXP1610/1620/1625/1628 Page 9 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 11: Figure 8: Broadsoft Phonebook Save To Phonebook
If the phone displays “No Available Item”, it indicates there is no directory entries match the keyword. GXP1610/1620/1625/1628 Page 10 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 12: Broadworks Xsi Call Logs
After configuration, users can use Broadsoft Xsi Call Logs features on GXP phones. Please follow the following steps: 1. Press the Menu button on the pad to enter the configuration menu. 2. Select the “Call History”. GXP1610/1620/1625/1628 Page 11 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 13: Figure 10: Lcd Configuration Menu - Call History
Figure 10: LCD Configuration Menu – Call History 3. Select the “Broadsoft Call Log”. Figure 11: Call History Page GXP1610/1620/1625/1628 Page 12 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 14: Figure 12: Broadsoft Call Log Page
GXP phone displays the Placed Call Logs. It is also able to select one entries and press the “Dial” to make an outbound call to the contact via the Account 1 registered on the phone. GXP1610/1620/1625/1628 Page 13 of 15 BroadWorks Xsi Directories and Call Logs User Guide... -
Page 15: Figure 13: Btbc - Type Im&P Presence Status
6. Select a call log and press the Menu/OK button to view more details about the call log. The following figure shows an example of details of a call log. Figure 14: BroadWorks Call Log Entry Details GXP1610/1620/1625/1628 Page 14 of 15 BroadWorks Xsi Directories and Call Logs User Guide... - Page 16 7. On this page, select the “Delete” and press the Menu/OK button; then the phone will send a delete request to the BroadWorks sever to remove the call log entry from it. After deleting, the GXP phone will update the Call Logs automatically. GXP1610/1620/1625/1628 Page 15 of 15 BroadWorks Xsi Directories and Call Logs User Guide...
