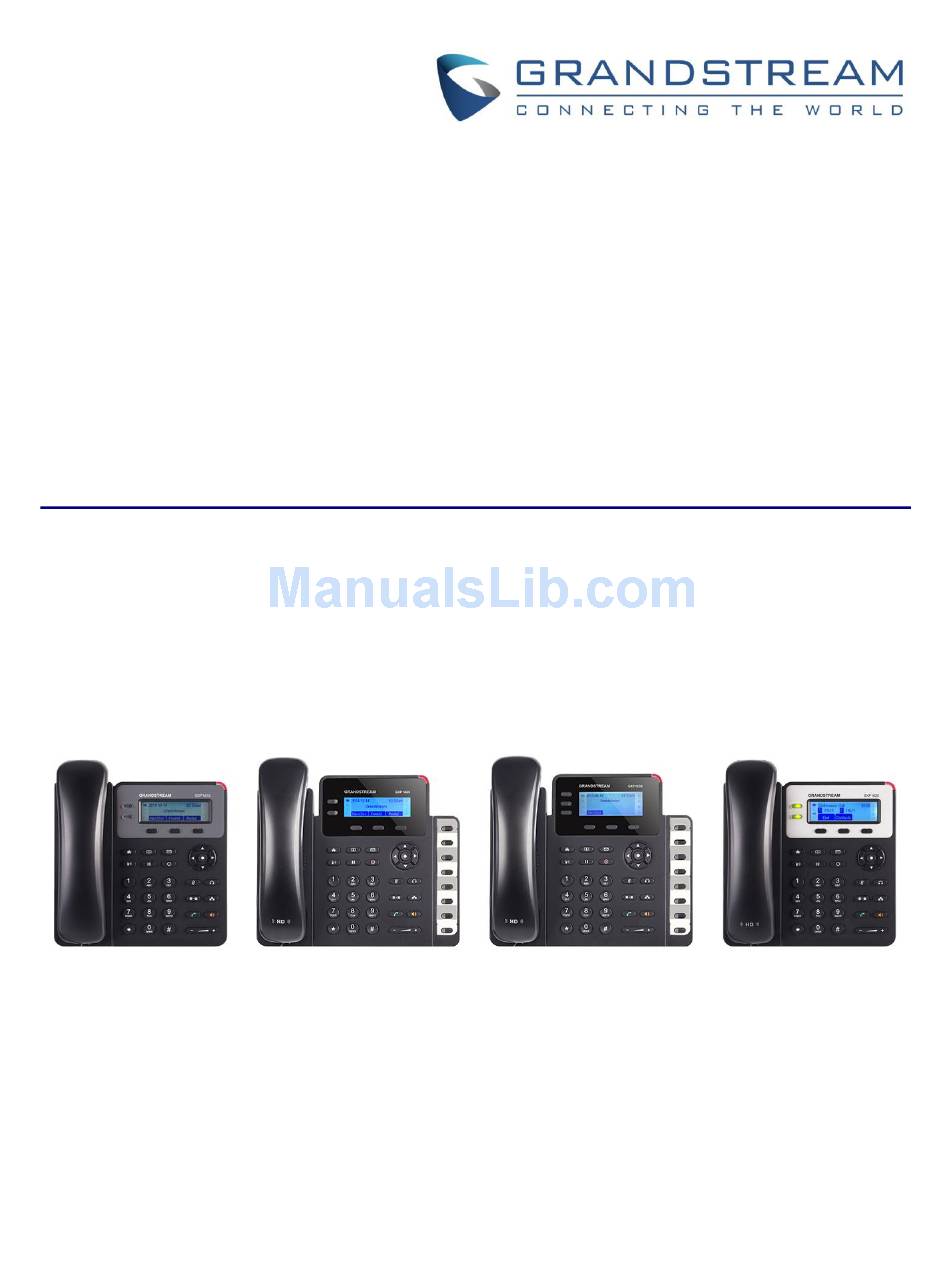

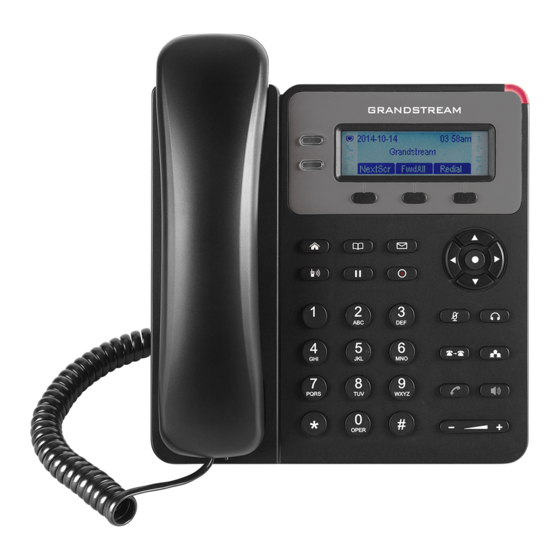

  • Page 1 Grandstream Networks, Inc. GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 IP Small Business IP Phone Administration Guide GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Administration Guide...

  • Page 2: Table Of Contents

    FIRMWARE VERSION 1.0.1.14 ......................9 FIRMWARE VERSION 1.0.1.10 ......................9 WELCOME ....................10 PRODUCT OVERVIEW ................12 FEATURE HIGHTLIGHTS (GXP1610/GXP1620/GXP1625/GXP1628) ..........12 FEATURE HIGHTLIGHTS (GXP1630) ....................12 GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 TECHNICAL SPECIFICATIONS ...... 13 CONFIGURATION GUIDE ................ 17 CONFIGURATION VIA KEYPAD ......................17 CONFIGURATION VIA WEB BROWSER ...................
  • Page 3 UPGRAGE VIA KEYPAD MENU ......................46 UPGRAGE VIA WEB GUI ........................46 NO LOCAL TFTP/HTTP SERVERS ....................47 CONFIGURATION FILE DOWNLOAD ....................47 RESTORE FACTORY DEFAULT SETTINGS ........... 49 EXPERIENCING THE GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 ....51 GXP1610/GXP1620/GXP1625/GXP1628/ Page 2 of 52 GXP1630 Administration Guide...
  • Page 4 Table of Tables GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Administration Guide Table 1: GXP1610 Technical Specifications ....................13 Table 2: GXP1620/GXP1625 Technical Specifications ................14 Table 3: GXP1628 Technical Specifications ....................14 Table 4: GXP1630 Technical Specifications……………………………………………………………...…….. 16 Table 5: GXP1610/GXP1620/GXP1625/GXP1628/1630 Menu Options ............ 17...
  • Page 5 Table of Figures GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Administration Guide Figure 1: Keypad MENU Flow ........................20 Figure 2: Web Service ..........................42 Figure 3: Web GUI- Phonebook->Contacts ....................44 Figure 4: Click-to-Dial ..........................45 GXP1610/GXP1620/GXP1625/GXP1628/ Page 4 of 52 GXP1630 Administration Guide...

  • Page 6: Document Purpose

    DOCUMENT PURPOSE This document describes how to configure GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 features via phone’s LCD menu and Web GUI menu. The intended audiences of this document are phone administrators. To learn the basic functions of GXP1610/GXP1620/GXP1625/GXP1628/GXP1630, please visit http://www.grandstream.com/support to download the latest “GXP16XX series User Guide”.

  • Page 7: Gui Interface Examples

    1. Screenshot of Login Page 2. Screenshots of Status Pages 3. Screenshots of Accounts Pages 4. Screenshots of Settings Pages 5. Screenshots of Network Pages 6. Screenshots of Maintenance Pages 7. Screenshots of Phonebook Pages GXP1610/GXP1620/GXP1625/GXP1628/ Page 6 of 52 GXP1630 Administration Guide...

  • Page 8: Gnu Gpl Information

    GNU GPL INFORMATION GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license.

  • Page 9: Change Log

    CHANGE LOG This section documents significant changes from previous versions of user manuals for GXP1610/GXP1620/GXP1625/GXP1628/GXP1630. Only major new features or major document updates are listed here. FIRMWARE VERSION 1.0.2.26 New features:  Added ability to filter characters from dial numbers FIRMWARE VERSION 1.0.2.24...

  • Page 10: Firmware Version 1.0.1.14

    FIRMWARE VERSION 1.0.1.14 New features:  Backup Outbound Proxy  Enable OPTIONS Keep Alive  OPTIONS Keep Alive Interval  OPTIONS Keep Alive Max Lost FIRMWARE VERSION 1.0.1.10  This is the initial version. GXP1610/GXP1620/GXP1625/GXP1628/ Page 9 of 52 GXP1630 Administration Guide...

  • Page 11: Welcome

    GXP1620/GXP1625 features 2 lines with 2 SIP accounts, superior HD wideband audio, 132 x 48 backlit graphical LCD; the GXP1610 supports 2 lines with 1 SIP account, 132 x 48 graphical LCD; GXP1630 supports 3 lines with 3 SIP accounts, 132x64 backlit graphical LCD.
  • Page 12 Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose without the express written permission of Grandstream Networks, Inc is not permitted. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 13: Product Overview

    & format using XML, and advanced Web and enterprise applications, local weather service  Dual switched 10/100 Mbps ports on GXP1610/GXP1620/GXP1625, dual switched auto-sensing 10/100/1000 Mbps Ethernet ports on GXP1628, integrated PoE on GXP1625/GXP1628 ...

  • Page 14: Gxp1610/Gxp1620/Gxp1625/Gxp1628/Gxp1630 Technical Specifications

    Humidity: 10％ to 90% Non-condensing Physical Dimension:209mm（L）x 184.5mm（W）x 76.2mm（H） (with handset) Unit Weight: 0.74kg Package Weight: 1.1kg GXP1610 phone, handset with cord, base stand, universal power supply, Package Content network cable, Quick Installation Guide, brochure, GPL license FCC: Part 15 (CFR 47) Class B...

  • Page 15: Table 2: Gxp1620/Gxp1625 Technical Specifications

    RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1 Table 3: GXP1628 Technical Specifications Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, GXP1610/GXP1620/GXP1625/GXP1628/ Page 14 of 52 GXP1630 Administration Guide...

  • Page 16: Table 4: Gxp1630 Technical Specifications

    60950.1 Table 4: GXP1630 Technical Specifications Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP GXP1610/GXP1620/GXP1625/GXP1628/ Page 15 of 52 GXP1630 Administration Guide...
  • Page 17 Quick Installation Guide, brochure, GPL license, BLF label cards FCC: Part 15 (CFR 47) Class B Compliance CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950- RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1 GXP1610/GXP1620/GXP1625/GXP1628/ Page 16 of 52 GXP1630 Administration Guide...

  • Page 18: Configuration Guide

    CONFIGURATION GUIDE The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 can be configured via two ways:  LCD Configuration Menu using the phone's keypad;  Web GUI embedded on the phone using PC's web browser. CONFIGURATION VIA KEYPAD To configure the LCD menu using phone's keypad, follow the instructions below: ...
  • Page 19  LCD Contrast Adjusts LCD contrast by pressing left/right arrow key. Preference  LCD Brightness(Not applicable to GXP1610) Adjusts LCD brightness of idle state and active state by pressing left/right arrow key.  Download SRC XML Triggers the phone to download the XML idle screen file immediately.
  • Page 20 Displays connected UCM server List.  Input Server IP Manually Specifies Protocol, IP and Port of the target UCM server Reboot Reboots the phone The following picture shows the keypad MENU configuration flow. GXP1610/GXP1620/GXP1625/GXP1628/ Page 19 of 52 GXP1630 Administration Guide...

  • Page 21: Figure 1: Keypad Menu Flow

    Gateway Reset Vlan Config DNS Server 1 Back DNS Server 2 Reboot 802.1X Back Forward All Forward Busy Exit Forward No Answer Account X No Answer Timeout Figure 1: Keypad MENU Flow GXP1610/GXP1620/GXP1625/GXP1628/ Page 20 of 52 GXP1630 Administration Guide...

  • Page 22: Configuration Via Web Browser

    CONFIGURATION VIA WEB BROWSER The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow a user to configure the IP phone through a Web browser such as Microsoft’s IE, Mozilla Firefox and Google Chrome. To access the GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Web GUI: 1.

  • Page 23: Definitions

    Program Version. This is the main firmware release number, which is always used for identifying the software system of the phone;  Locale Version. This is the version of localization language package;  Recovery Version. GXP1610/GXP1620/GXP1625/GXP1628/ Page 22 of 52 GXP1630 Administration Guide...

  • Page 24: Account Page Definations

    Core dump file that could be downloaded for troubleshooting purpose. ACCOUNT PAGE DEFINATIONS The GXP1610 has one account, GXP1620/GXP1625/GXP1628 has two accounts, and GXP1630 has three accounts that can be configured to accommodate independent SIP accounts. Every SIP account has an individual configuration page.
  • Page 25 Specifies the interval to retry registration if the process is failed. The default Failure Retry Wait Time value is 20 seconds. SIP T1 Timeout SIP T1 Timeout. The default setting is 0.5 seconds. GXP1610/GXP1620/GXP1625/GXP1628/ Page 24 of 52 GXP1630 Administration Guide...
  • Page 26 Conference URI Configures the conference URI when using Broadsoft N-way calling feature. Music On Hold URI Music On Hold URI to call when a call is on hold if server supports it GXP1610/GXP1620/GXP1625/GXP1628/ Page 25 of 52 GXP1630 Administration Guide...
  • Page 27 Choose whether the domain certificates will be checked or not when Certificates TLS/TCP is used for SIP Transport. The default setting is “No”. Validate Certification Choose whether certification chain will be validated when TLS/TCP mode is Chain used. GXP1610/GXP1620/GXP1625/GXP1628/ Page 26 of 52 GXP1630 Administration Guide...
  • Page 28 Selects whether or not to enable early dial. If it's set to "Yes", the SIP proxy Early Dial must support 484 response. The default setting is "No". Dial Plan Prefix Sets the prefix added to each dialed number. GXP1610/GXP1620/GXP1625/GXP1628/ Page 27 of 52 GXP1630 Administration Guide...
  • Page 29 LCD for Account 1. Configures Call Log setting on the phone. You can log all calls, only log Call Log incoming/outgoing calls or disable call log. The default setting is "Log All GXP1610/GXP1620/GXP1625/GXP1628/ Page 28 of 52 GXP1630 Administration Guide...

  • Page 30: Settings Page Definations

    DND Call Feature On Defines the feature code to turn on DND. DND Call Feature Off Defines the feature code to turn off DND. SETTINGS PAGE DEFINATIONS GXP1610/GXP1620/GXP1625/GXP1628/ Page 29 of 52 GXP1630 Administration Guide...
  • Page 31 When it's set to "Yes", the DTMF digits entered during the call will not display. Display The default setting is "No". Enable Sending DTMF Allows certain MPKs to send DTMF in-call. This option does not affect Dial via specific MPKs DTMF. GXP1610/GXP1620/GXP1625/GXP1628/ Page 30 of 52 GXP1630 Administration Guide...
  • Page 32 Headset icon will display on the screen in dialing/talking status.  When there is an incoming call, press HEADSET button to pick up the call using headset. GXP1610/GXP1620/GXP1625/GXP1628/ Page 31 of 52 GXP1630 Administration Guide...
  • Page 33 Configures the LCD backlight brightness level (from 0 to 8) for phone's active status. The default value is 6. Backlight Brightness: Active Note: This option is not applicable to GXP1610. Configures the LCD backlight brightness level (from 0 to 8) for phone's idle status. The default value is 2. Backlight Brightness: Idle Note: This option is not applicable to GXP1610.
  • Page 34 Regular line key to open up a line and switch line. The Value field can be Line Key X left blank.  Shared Line Share line for Shared Line Appearance feature. Select the Account GXP1610/GXP1620/GXP1625/GXP1628/ Page 33 of 52 GXP1630 Administration Guide...
  • Page 35 (GXP1628/GXP1630 left blank. only)  Shared Line Share line for Shared Line Appearance feature. Select the Account registered as Shared line for the line key. The Value field can be left blank. GXP1610/GXP1620/GXP1625/GXP1628/ Page 34 of 52 GXP1630 Administration Guide...
  • Page 36 Settings -> Broadsoft Directories Configures XSI Directory.  Server Defines Broadsoft XSI server address with protocol.  Port. Defines the port of XSI Server.  User name. Username for Broadsoft XSI server.  Password. GXP1610/GXP1620/GXP1625/GXP1628/ Page 35 of 52 GXP1630 Administration Guide...

  • Page 37: Network Page Definitions

    Enter the Preferred DNS Server for IPv6. Network -> Advanced Settings Allows the user to enable/disable 802.1X mode on the phone. The default 802.1X mode value is disabled. It can be set to EAP-MD5, EAP-TLS or EAP- GXP1610/GXP1620/GXP1625/GXP1628/ Page 36 of 52 GXP1630 Administration Guide...

  • Page 38: Maintenance Page Definitions

    Option 66 Override phones support both TFTP and HTTP server via option 66. Users can also Server use DHCP option 43 vendor specific option to do this. DHCP option 43 approach has priorities. GXP1610/GXP1620/GXP1625/GXP1628/ Page 37 of 52 GXP1630 Administration Guide...
  • Page 39 Selects the level of logging for syslog. The default setting is "None". There Syslog Level are 4 levels: DEBUG, INFO, WARNING and ERROR. Syslog messages are sent based on the following events: GXP1610/GXP1620/GXP1625/GXP1628/ Page 38 of 52 GXP1630 Administration Guide...
  • Page 40 STAR * key for 4 seconds and press OK to unlock the phone. Configures the password to lock/unlock the keypad. The password field Password to lock/unlock allows number with up to 32 characters. GXP1610/GXP1620/GXP1625/GXP1628/ Page 39 of 52 GXP1630 Administration Guide...

  • Page 41: Phonebook Page Definitions

    Configures the bind "Username" for querying LDAP servers. Some LDAP User Name servers allow anonymous binds in which case the setting can be left blank. Password Configures the bind "Password" for querying LDAP servers. The field can be GXP1610/GXP1620/GXP1625/GXP1628/ Page 40 of 52 GXP1630 Administration Guide...
  • Page 42 Configures the display name when LDAP looks up the name for incoming call or outgoing call. This field must be a subset of the LDAP Name Attributes. Lookup Display Name Example: cn sn description GXP1610/GXP1620/GXP1625/GXP1628/ Page 41 of 52 GXP1630 Administration Guide...

  • Page 43: Nat Settings

    WEATHER UPDATE To customize GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 to display weather information for the preferred city, users could go to Web GUI->Settings->Web Service page and enter the city code in the...

  • Page 44: Public Mode

    Users could then further configure the "Update Interval" and "Degree Unit" for weather information display. PUBLIC MODE The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 supports hot desking using public mode. Under public mode, users could login the phone with the SIP account User ID and password. Please follow the steps below to configure the phone for public mode: ...

  • Page 45: Figure 3: Web Gui- Phonebook->Contacts

    The admin login password or user login password of phone's Web GUI. Add contacts Click to call this contact Click to dial from Edit contact. from the phone. available lines. Figure 3: Web GUI- Phonebook->Contacts GXP1610/GXP1620/GXP1625/GXP1628/ Page 44 of 52 GXP1630 Administration Guide...

  • Page 46: Saving The Configuration Changes

    Press the "Reboot" button on the top right corner of the web GUI page to reboot the phone remotely. The web browser will then display a reboot message. Wait for about 1 minute to log in again. GXP1610/GXP1620/GXP1625/GXP1628/ Page 45 of 52...

  • Page 47: Upgrading And Provisioning

    UPGRADING AND PROVISIONING The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP or HTTP/HTTPS; the server name can be FQDN or IP address.

  • Page 48: No Local Tftp/Http Servers

    Firmware upgrading takes around 60 seconds in a controlled LAN or 5-10 minutes over the Internet. We recommend completing firmware upgrades in a controlled LAN environment whenever possible. Note: Please do not interrupt or power cycle the GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 during upgrading process. NO LOCAL TFTP/HTTP SERVERS For users that would like to use remote upgrading without a local TFTP/HTTP server, Grandstream offers a NAT-friendly HTTP server.
  • Page 49 P2 is associated with the "Admin Password" in the Web GUI->Maintenance->Web/Telnet Access page. For a detailed parameter list, please refer to the corresponding firmware release configuration template. When GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 boots up, it will send TFTP or HTTP/HTTPS files, “cfg000b82xxxxxx” and“cfg000b82xxxxxx.xml”,...

  • Page 50: Restore Factory Default Settings

     RESTORE TO FACTORY DEFAULT VIA THE WEB GUI  Login GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Web GUI;  Direct At the top right corner of the web page, click “Factory Reset” button to reset the device. GXP1610/GXP1620/GXP1625/GXP1628/ Page 49 of 52...
  • Page 51 GXP1610/GXP1620/GXP1625/GXP1628/ Page 50 of 52 GXP1630 Administration Guide...

  • Page 52: Experiencing The Gxp1610/Gxp1620/Gxp1625/Gxp1628/Gxp1630

    EXPERIENCING THE GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Please visit our website: http://www.grandstream.com to receive the most up- to-date updates on firmware releases, additional features, FAQs, documentation and news on new products. We encourage you to browse our product related documentation, FAQs User and Developer Forum for answers to your general questions.
