XVision XHC1080VB Instruction Manual

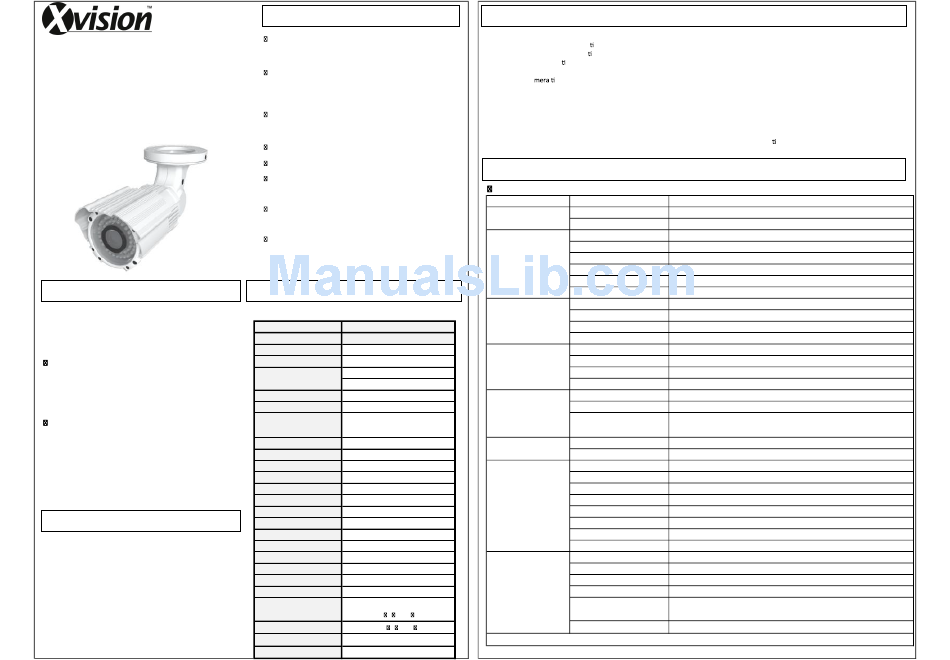

INSTRUCTION MANUAL

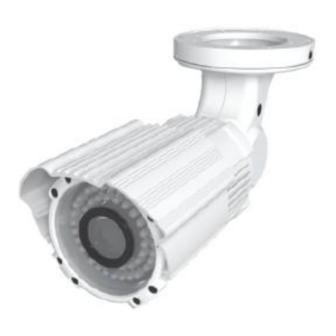

HD-SDI IR Bullet CAMERA
XHC1080VB
About this manual
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for later reference.

TROUBLESHOOTING

Before sending the camera out for repair, check the items
below. If the problem persists after checking these items,
contact your service center.
If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt of fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly?
CAMERA LENS SETTINGS
1.
Please open the DOME bubble case.
Opening notc h located rear side of dome camera base case.
2.
To adjust the focus, Spin the focus adjust lever on the Lens.
To adjust the zoom, spin the zoom adjust lever on the Lens.
3.
Please tighten the focus & zoom wheel screw after the adjustment
in
4.
Please close the dome bubble cover.
PRECAUTIONS
Do not open or modify
Do not open the cabinet exet during maintenance and
installation, as it may be dangerous and cause damages.
Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get insdie the camera. It could cause fire, short-circuits or
damages.
Be careful when handling the unit
To prevent damage, do not drop the camera or subject
it to strong shock or vibration.
Install away from electric or magnetic fields.
Protect from humidity and dust.
Protech from high temperature
Be careful when installing colose to the ceiling , in a kitchen
or boiler room, as the temperature may raise to high levels.
Cleaning
Dirt can be removed from the cabinet only by wiping it
with a soft cloth moistened with a soft detergent solution.
Mounting Surface
The mounting surface material must be strong enough to
secure the camera.
SPECIFICATION
Model name XHC1080VB
Feature 2.1M Pixels, HD-SDI Bullet Camera
Sensor 1/3" 2M Pixels Progressive Sensor
Effeiency pixels number 1080P/720P
0.1 Lux @F1.2 Without DSS
Min illumination
0.00001Lux @F1.2 (LED ON)
Resolution 900 TV Lines
Scanning System 30/25P(1080P), 60/50P(720P)
S/N Ratio More than 50dB
Shutter speed 1/7 ~ 1/30,000sec
Day & Night Auto/Day/Night(ICR)
Lens mount type f=2.8~10mm, F1.2
Lens type DC/Manual
White Balance Auto / Manual / Push
ON/OFF
2D, 3D-DNR
WDR/BLC/ACE ON/OFF
HLM(High light masking) ON/OFF
White Balance AWB/ MANUAL/ PUSH LOCK
MIRROR OFF / H, V, HV MIRROR
PRIVACY
32 ZONE / SIZE / COLOR
DC 12V
Voltage
Power Consumption
Max 6 [W]
Current Ampere
IR OFF (280mA), IR ON(500mA)
Operation temp 0 +55
In storage temp -20 +70
Dimensions (mm) 140(H), 120(W), 254(D)
Weight 1.95Kg
Feature
1/3" Panasonic Progressive CMOS Image Sensor
2.1M Pixels Full-HD Video resolu on
Supported true day & night func on (only D/T model)
Supported DC-IRIS func on (only D/T model)
Supported 8 areas privacy masking
Supported ca tle display
Supported BLC
Supported DSS
Supported WDR
Supported High Light Masking
Supported DNR & 3D DNR
Excellent Video Quality of 1080p 30fps/25fps & 720P 60fps/50fps
Supported Analog Composite Video Out simultaneously for easy service & easy camera installa on
IP 66 Compatible
O.S.D
O.S.D (On Screen Display) Menu
MENU SUB MENU
DC-IRIS
Lens TYPE
1. 1.
MA-IRIS
EXP-TPYE
EXP-AREA
DSS SPEED
EXPOSURE
FLKLESS
AGC
BRIGHTNESS
D&N MODE
TDN THRESHOLD
DAY & NIGHT
1.
TDN MARGIN
CHANGE-DELAY
DNR
3D DNR
IMAGE QUALITY
3D DNR MODE
1.
SHARPNESS
SATURATION
IMAGE TONE
COLOR
WHITE BALANCE
CAM TITLE
TITLE&MASKING
1.
PRIVACY-MASKING
BLC/WDR MODE
ACE
H/L MASKING
1.
D ZOOM
ADVANCED FUNC
D ZOOM DISPLAY
DEFOG
MOTION
SMART IR
INFORMATION
IMAGE SIZE
IMAGE REVERSE
COLOR BAR
SYSTEM
RS485
INITIALIZATION
EXIT MENU
DESCRIPTION
Select to DC-IRIS Lens [IN_NORMAL, IN_DEBLUR, OUTDOOR1,
Select to Manual-IRIS Lens
Exposure type [AUTO, MANUAL]
Set the Exposure value [FULL, TOP, MIDDLE, BOTTOM]
Digital Slow Shutter limitation
Flkless ON/OFF
Auto Gain Control , [0~20]
[0~20]
[AUTO,COLOR-DAY,B/W-NIGHT,EXT_IN,EXT_OUT]
[0~20]
[0~20]
TDN DELAY TIME at the AUTO mode
[HIGH,MIDDLE, LOW, OFF]
[HIGH,MIDDLE, LOW, OFF]
[AUTO, NIGHT]
[0~20]
[0~20]
[DEEPLY, CLEARLY]
[AUTO, AUTO_EXT, MANUAL(TEMPERATURE, RED GAIN, BLUE
GAIN), PUSH]
[TITLE SET, TITLE DISPLAY, TITLE COLOR]
Supports 32 Quantity masking area
[OFF, BLC, WDR]
[OFF, ON]
HIGH LIGHT MASKING [OFF, ON]
[X1.0 ~ X4.0]
[OFF, ON]
[OFF, ON(0~10)]
[OFF, ON(SENSITIVITY (0~10), OBJECT DISPLAY (OFF, ON),
[OFF, ON]
F/W VERSION
[1080p/30, 1080p/25, 720p/60, 720p/50]
[OFF,V,H,HV]
[OFF, ON]
[PROTOCOL, BAUDRATE(2400,4800,9600,14400,19200,115200),
ID(0~127)]
ENTER
