Summary of Contents for Postium OBM-Q Series

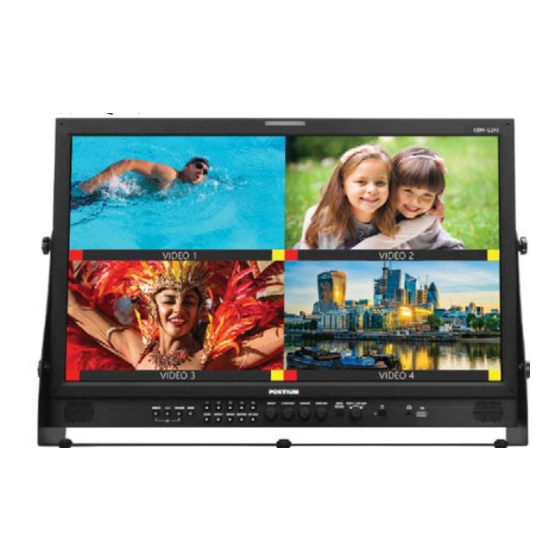

- Page 1 User Manual OBM-Q Series Quad-Split Monitors OBM-Q240 OBM-R210Q Operational Instructions OBM-Q240 OBM-R210Q Ver02...
-
Page 2: Table Of Contents
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality Table of Contents 1. Precaution 2. Main Features 3. Location and Function of Parts and Controls Front Panel Rear Panel 4. Using the Menu 5. Adjustment Using the Menus 6. OSD Menu Operations... -
Page 3: Precaution
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 1. Precaution Always use set voltage. OBM-Q240 : AC 100 ~ 230V, 50/60Hz. DC 12V OBM-R210Q : DC 24V All these instruc ons should be read and understood before opera ng the unit. - Page 4 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualified service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteris cs and performance as the original parts.
-
Page 5: Main Features
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 2. Main Features The OBM-Q240 and OBM-R210Q split and display the input videos up to 4 x 3G/HD/SD-SDI signals. The OBM-Q240 and OBM-R210Q have the various quad-split modes, and can display Waveform, Vector Scope, Time Code display, UMD, OSD Tally, Audio Level Meter for the four different input channels independently. -
Page 6: Location And Function Of Parts And Controls
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 3. Location and Function of Parts and Controls Front Panel (OBM-Q240) Front Panel A : Layout Select Bu ons/Lamp (OBM-R210Q) Press the LAYOUT bu on to display each screen layout. *① Key Layout... - Page 7 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality B : CH1 ~ CH4 Bu on/Lamp *When ①, ③ Layout mode is selected, [CH1] Button/Lamp - When you push this bu on, the input signal which is adjusted in the menu [Channel Source Se ng >...
- Page 8 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality E : Rotary encoder (OBM-Q240 Only) [BRIGHT] knob Press this knob to display the adjustment screen and adjust the picture brightness. Press again to hide the adjustment screen. Turn the knob right to increase the brightness and turn le to decrease it.
-
Page 9: Rear Panel
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality (headphone) jack & Speaker and USB connector Headphone jack & Speaker - The audio signal which is selected using the input select bu on is output in stereo sound. - When SDI signals are input, the audio signals of the channels selected with SDI Audio Se ng in the User Configura on menu are output. - Page 10 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality F : PARALLEL REMOTE connector(RJ-45, 8-pin) Forms a parallel switch and controls the monitor externally. **Note - For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instruc ons about this port.
-
Page 11: Using The Menu
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc. 2. Turn SELECT/VOLUME knob to select a menu, 1. -
Page 12: Adjustment Using The Menus
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) Channel Source menu Format Channel Source Se ng Color Temp... - Page 13 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality User Configura on menu Remote menu Load User Preset Se ng Parallel Remote Save 1 Pin Func on Bu on Se ng 2 Pin F1 Bu on 3 Pin F2 Bu on 4 Pin...
-
Page 14: Osd Menu Operations
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 6. OSD Menu Operations Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input Iden fier SDI Payload ID Sampling... -
Page 15: Color Temp/Color Space/Gamma Menu
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality Color Temp/Color Space/Gamma Menu These menus are used for adjus ng or se ng the Page 2/2 color temperature, color space or gamma of the picture. Page 1/2 Color Space - Selects the color space between [ITU-R BT.709], [Na ve]. -
Page 16: Channel Source Menu
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality Channel Source Menu Color Temp/Color Space/Gamma Menu Page 1/1 PQ and HLG gamma is different, depending on each model’s luminance. OBM-Q240 : - ST 2084-200 - HLG-0.90(200) OBM-R210Q : - ST 2084-1000 - HLG-1.2(1000) Gamma Selects the appropriate gamma mode from 1.00... -
Page 17: User Configuration Menu
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality User Configuration Menu User Configura on consists of the adjustment - The following func ons are assigned in the menus such as[User Preset],[Func on Bu on factory. Se ng],[Input Se ng],[Speaker Out / Audio Level... - Page 18 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality User Configuration Menu Audio Level Meter Se ng Input Se ng Selects the embedded audio mode. 3G Signal Format : [Off], [8Ch [G1+G2]], [8Ch [G2+G3]], - Selects the format of 3G SDI input signal.
- Page 19 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality User Configuration Menu Page 5/7 Variable Aspect Allows the user to select the aspect ra o from the range between 1.00:1 and 3.00:1. - The different se ng value can be adjusted to each Channel.
- Page 20 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality User Configuration Menu Page 6/7 Page 7/7 System Se ng WFM/Vector Se ng Internal Signal WFM/Vector Generates the White Pa ern internally. - Select [On] to display the [WFM/Vector] and [Off] The selectable range is from 100%(White) to not to display.
-
Page 21: Remote Menu
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality User Configuration Menu Remote Menu Page 1/3 - When [User Parameter Lock] is set On in the [Security Se ng] menu, User Preset 1 data recalled from the USB memory is not saved to the monitor and the current User Preset 1 se ng values remain unchanged. - Page 22 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality Remote Menu Page 2/3 User Text - When [IMD Type] is selected as [User], the user can assign the IMD up to 8 characters of ASCII code. Transparency - Selects [Full] or [Half] for the background of IMD.
-
Page 23: Security Menu
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality Security Menu Remote Menu Page 3/3 Security Se ng Network Se ng Key Lock DHCP When Key Lock func on is set On, the change of - Toggle DHCP On or Off. the menu se ngs and func ons doesn’t work. -
Page 24: Available Signal Formats
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 7. Available Signal Formats This monitor is applicable to the following signal formats HD-SDI Signal System Signal Format 1920x1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i 2048 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf... -
Page 25: Product Specifications
Quad-Split Monitors OBM-Q Series Outstanding Picture Quality 8. Product Specifications OBM-Q240 ITEM OBM-Q240 BNC (SDI) 4 x 3G/HD/SD-SDI Input HDMI 1 x HDMI 2.0 Output BNC (SDI) 4 x 3G/HD/SD-SDI SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) SMPTE ST 274 1080p(30/29.97/25/24/23.98/24sF/23.98sF) - Page 26 Quad-Split Monitors OBM-Q Series Outstanding Picture Quality OBM-R210Q ITEM OBM-R210Q BNC (SDI) 4 x 3G/HD/SD-SDI Input HDMI 1 x HDMI 2.0 Output BNC (SDI) 4 x 3G/HD/SD-SDI SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) SMPTE ST 274 1080p(30/29.97/25/24/23.98/24sF/23.98sF) 1080i (60/59.94/50) SMPTE ST 296 720p(60/59.94/50)
- Page 27 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
