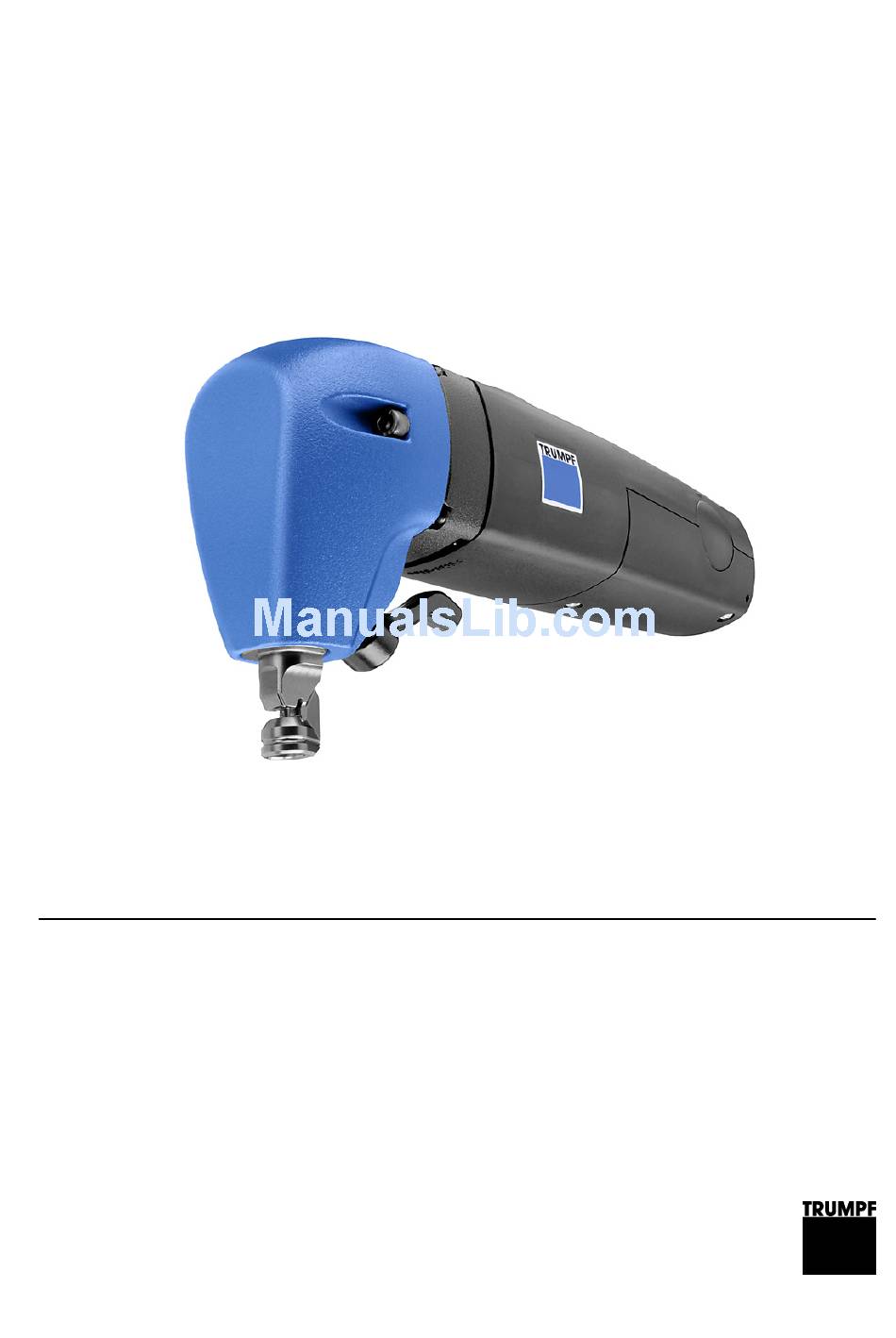

- Page 1 Operator's manual TruTool PN 130 (1A1) english...
-
Page 3: Table Of Contents
General safety information..............4 Specific safety information..............5 Description ..................6 Intended use ...................7 Noise and vibration information ............8 Technical data of the TruTool PN 130 ..........10 Setting work ................11 Select tool ..................11 Chip bag (optional)................12 Operation ..................13 Changing the cutting direction ............14 Making inner cutouts..............14... -
Page 4: Safety
Safety TruTool PN 130 (1A1) Safety General safety information Read the operator's manual and safety information in • their entirety before starting up the machine. Closely follow the instructions given. Adhere to the safety regulations in accordance with DIN •... -
Page 5: Specific Safety Information
TruTool PN 130 (1A1) Safety Read all safety warnings (order no. 0125699) and all instructions! Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Warning Risk of injury due to improper handling. Wear safety glasses, hearing protection, protective gloves and work shoes when working at the machine. -
Page 6: Description
Description TruTool PN 130 (1A1) Description Carrier (with integrated die) On/Off switch Punch Motor Lever for tool clamping Fig. 52866 TruTool PN 130 E613en_02... -
Page 7: Intended Use

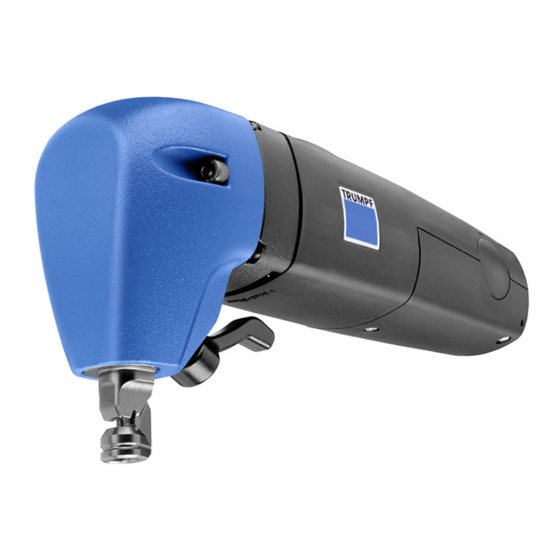

Risk of injury Only use the machine for work and materials described in "Intended use." Warning The TRUMPF Nibbler TruTool PN 130 is a handheld electric tool used for the following applications: • For slitting sectional sheets such as trapezoidal sheet, corrugated sheet, boxed sheet, offset profiled strips. -
Page 8: Noise And Vibration Information
Description TruTool PN 130 (1A1) Noise and vibration information Vibration emission value may be exceeded. Select tools correctly and replace them promptly when they show wear. WARNING Have maintenance and repair work performed by trained specialist technicians. Establish additional safety... - Page 9 TruTool PN 130 (1A1) Description Designation of measured value Unit Value in accordance with EN 60745 Vibration emission value a (vector sum of three directions) Uncertainty K for vibration emission value A-class acoustic pressure level L typically A-class acoustic power level L...
-
Page 10: Technical Data Of The Trutool Pn 130
Description TruTool PN 130 (1A1) Technical data of the TruTool PN 130 Other countries Value Value Value Value Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz Maximum thickness of the material 1.3 mm... -
Page 11: Setting Work
TruTool PN 130 (1A1) Setting work Setting work Select tool Two tool configurations are available for machining work: Standard tool Tool S Application Tool for all applications. Tool for exact and clean cuts (slow feed). Identification Yellow-coated.With re- cognition groove under the punch head. -
Page 12: Chip Bag (Optional)
Punching and nibbling oil (0.5 l, order no. 103387) Aluminum Wisura oil (1 l, order no. 125874) Table 4 Chip bag (optional) A chip sack can be used to intercept the chips. Fig. 52868 TruTool PN 130 with chip bag E613en_02... -
Page 13: Operation
Do not operate the machine above your head. Switch on Shift the On/Off switch forwards. Working with TruTool PN 130 1. Do not move the machine towards the workpiece until full speed has been reached. 2. Machine the material. -
Page 14: Changing The Cutting Direction
Operation TruTool PN 130 (1A1) Changing the cutting direction If necessary, the direction of cutting can be turned to the right or left in 8 indexed positions (every 45°) or freely. • Adjust for right-handed/left-handed operation. • Machining sectional sheets. -
Page 15: Maintenance
TruTool PN 130 (1A1) Maintenance Maintenance Risk of fatal injury from electric shock Pull the plug out of the socket whenever tools have to be replaced or prior to maintenance work on the machine. Danger Risk of injury due to repair work not being carried out properly! Machine does not work properly. -
Page 16: Replacing The Tool
Maintenance TruTool PN 130 (1A1) Replacing the tool Housing Mount Punch adapter Lever for tool clamping Punch Screw Fig. 52864 Replacing the tool Change dull punches and/or carriers. Note Dull punches cause the carrier to break. E613en_02... -
Page 17: Readjusting The Lever
TruTool PN 130 (1A1) Maintenance Disassembling the punch 1. Release the lever (5) by at least three revolutions. 2. Pull carrier (4) out of the housing (1). 3. Remove punch (3). Installing the punch 1. Lubricate the punch (3) and carrier (4) with lubricating grease "G1". -
Page 18: Replacing Carbon Brushes
Original accessories and wearing parts TruTool PN 130 (1A1) Replacing carbon brushes The motor comes to a standstill whenever the carbon brushes are worn out. Have the carbon brushes checked and replaced as required by a qualified specialist. Note Only use original replacement parts and observe the specifications on the type plate. - Page 19 Machine type. – 3. Provide complete shipping information: Correct address. – Desired delivery type (e.g. air mail, courier, express mail, ordinary – freight, parcel post). 4. Send the order to your TRUMPF representative. For TRUMPF service addresses, see www.trumpf-powertools.com. E613en_02...
- Page 20 Original accessories and wearing parts TruTool PN 130 (1A1) E613en_02...
