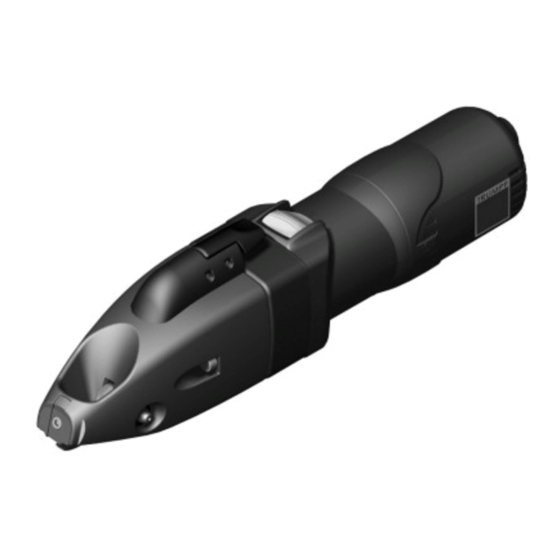

Trumpf TruTool C 250 (1B1) Operator's Manual
  1. Manuals
  2. Brands
  3. Trumpf Manuals
  4. Power Tool
  5. TruTool C 250 (1B1)
  6. Operator's manual

Trumpf TruTool C 250 (1B1) Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's manual
TruTool C 250
(1B1)
english

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TruTool C 250 (1B1) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trumpf TruTool C 250 (1B1)

Summary of Contents for Trumpf TruTool C 250 (1B1)

  • Page 1 Operator's manual TruTool C 250 (1B1) english...

  • Page 2: Table Of Contents

    Table of Contents Safety ..................3 Description .................5 Correct use ................5 Technical data ..............6 Tool assembly..............7 Tool selection...............7 Operation ................9 Working with the TruTool C 250 ........10 Maintenance ..............12 Replacing the TruTool C 250 tool........13 Replacing the cutter............14 Turning or replacing the cutter blades......14 Replacing the cut-off plate ..........15 Replacing carbon brushes ..........15 Original accessories and wearing parts......16...

  • Page 3: Safety

    Safety Read the Operator's Manual and the general safety rules USA/CAN (Material number 1239438, red document) in their entirety before starting up the machine. The directions contained therein must be followed without fail. Rest of the world Read the Operator's Manual and safety instructions (Material number 125699, red document) in their entirety before starting up the machine.
  • Page 4 Always guide the electric cord away from the back of the machine and do not pull it across sharp edges. Arrange for repairs and checks on portable electric tools to be carried out by a trained specialist. Only the original accessories provided by TRUMPF may be used. Safety E529EN_04.DOC...

  • Page 5: Description

    • Slitting straight or curved outside edges and interior cutouts. • Slitting along scribed lines. The TRUMPF TruTool C 250 also offers the option of clipping off the chip that results when machining inside the workpiece as required. Description E529EN_04.DOC...

  • Page 6: Technical Data

    Technical data Rest of the world Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz Working speed 3-10 m/min 3-10 m/min 3-10 m/min 10-33 ft/min Power rating 500 W 500 W 500 W...

  • Page 7: Tool Assembly

    Tool assembly Tool selection Note The cutters have 2 cutting edges that cannot be resharpened. Different types of cutters are required according to the thickness or tensile strength of the workpiece. (see Tab. 4, Page 8) Note If the cutter is not selected as specified, the cut quality suffers greatly.
  • Page 8 Tool type Designation Sheet thick. Radius Mat. No. [mm] Aluminum max. 250N/mm² Straight cutter 1.5 to 3.0 1.5 – 2.5 mm Steel max. 1273341 400N/mm² 1.5 to 2.5 Aluminum max. 250N/mm² Straight cutter 0.5 to 2.0 1258006 - 1.5 mm Steel max.

  • Page 9: Operation

    Operation Damage to property possible if line voltage is too high! Damage to the motor Check the power supply. The line voltage must correspond to Caution the specifications on the machine nameplate. Risk of injury due to improper handling! When working with the machine, always ensure that it has a secure base.

  • Page 10: Working With The Trutool C 250

    Working with the TruTool C 250 Switching on: Slide the ON/OFF switch forward. Note Do not engage the machine in the workpiece until full speed has been reached. 1 4 ° Marking for cut-off position Chip clipper Fig. 37735 Guide the machine to the sheet surface at an angle of approx. 14°.
  • Page 11 Working with the TruTool C 250 Chip Fig. 37734 Cutting the chips off Press the cut-off switch for about 0.5 seconds while the machine is running. The cut-off operation is terminated automatically. Note Do not cut off short chips. The minimum length of the chip must be one rotation.

  • Page 12: Maintenance

    Maintenance Risk of injury due to improper repairs! The machine does not function properly. Repairs may be carried out only by a trained specialist. Warning Maintenance point Procedure and time interval Recommended lubricant Lubricant Order number Bolt Lubricate when replacing cutter "G1"...

  • Page 13: Replacing The Trutool C 250 Tool

    Replacing the TruTool C 250 tool Lethal danger due to electric shock! Always pull the plug out of the socket before changing tools and before performing any maintenance work on the machine. Danger Bolt Cutter Cutting head Cutter blade Fastening screw Fastening screws Cut-off plate Changing the tool...

  • Page 14: Replacing The Cutter

    Replacing the cutter Damage to property possible due to blunt tools! Machine overload. Check the cutting edge of the cutter hourly for wear. Sharp Caution cutters provide good cutting performance and are easier on the machine. Replace cutters promptly. Replace the cutter if the cutting edges are blunt. 1.

  • Page 15: Replacing The Cut-Off Plate

    Replacing the cut-off plate 1. Loosen the fastening screws. 2. Replace the cut-off plate. 3. Tighten the fastening screws. Replacing carbon brushes The motor will stop if the carbon brushes are worn out. Have the carbon brushes checked and replaced as needed by a trained technician.

  • Page 16: Original Accessories And Wearing Parts

    Required delivery method (e.g. airmail, courier, express – mail, ordinary freight, parcel post). 4. Send the order to the TRUMPF representative's office. For TRUMPF service addresses, see the address list at the end of the document. Original accessories and wearing parts E529EN_04.DOC...
