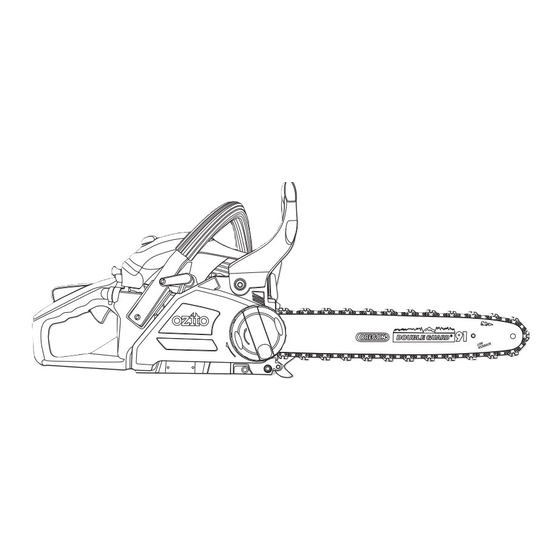

PETROL
CHAINSAW
41cc - 406mm
INSTRUCTION MANUAL
SPECIFICATIONS
Engine:
41cc 2 Stroke
Power:
1.5 kW
Bar Type:
Oregon 406mm (16")
Chain Pitch:
9.53mm (3/8")
No Load Speed:
11000/min
Chain Speed:
21 m/s
Fuel Mix
40:1
Fuel Tank Capacity:
260ml
Chain Oil Tank Capacity:
210ml
Weight:
5.40 kg
ozito.com.au
1

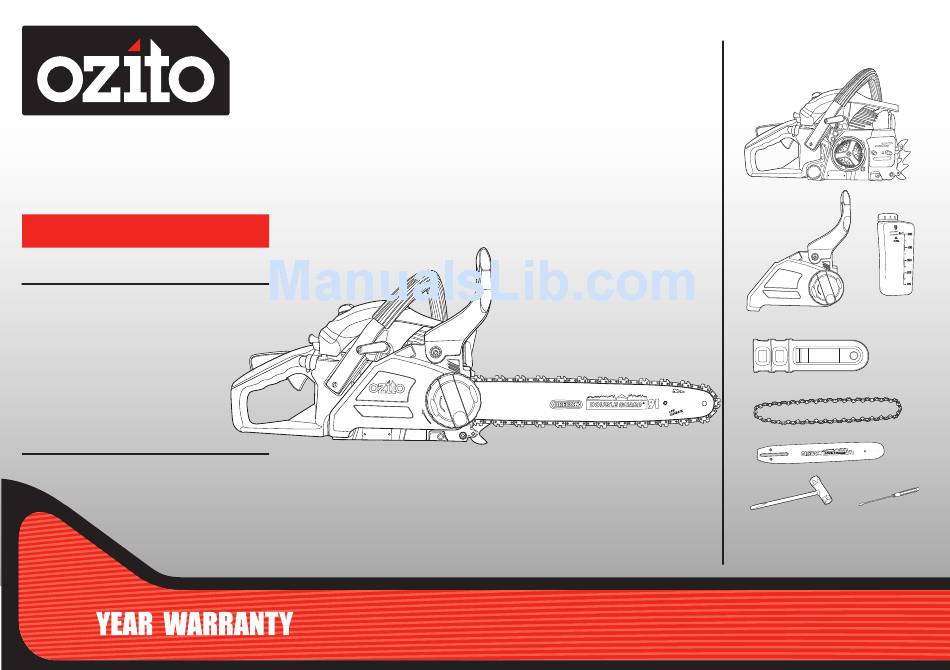

WHAT'S IN THE BOX
Chain Saw
Fuel Mixing
Bottle
Side Cover
Chain Bar Cover
Chain
Guide Bar
Spark Plug Wrench
Screwdriver
Chain File
PCS-406A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito PCS-406A
Summary of Contents for Ozito PCS-406A
- Page 1 Chain Pitch: 9.53mm (3/8”) No Load Speed: 11000/min Chain Speed: 21 m/s Chain Bar Cover Fuel Mix 40:1 Fuel Tank Capacity: 260ml Chain Oil Tank Capacity: 210ml Chain Weight: 5.40 kg ozito.com.au Guide Bar Spark Plug Wrench Screwdriver Chain File PCS-406A...
- Page 2 KNOW YOUR PRODUCT ASSEMBLY PETROL CHAINSAW 1. FITTING THE CHAIN BAR 1. Throttle Safety Lock 6. Chain Tension Dial 2. Throttle Trigger 7. Side Cover Locking Lever 3. Choke Control 8. Chain WARNING!: DO NOT START THE ENGINE UNTIL THE CHAINSAW IS FULLY ASSEMBLED.
- Page 3 SETUP & PREPARATION 2. INSTALLING THE CHAIN 3. ADJUSTING THE CHAIN TENSION Note. Proper tension of the chain is extremely important and must be CAUTION!: WEAR PROTECTIVE GLOVES AT ALL TIMES checked before starting, as well as during any cutting operation. WHEN HANDLING THE CHAIN.
- Page 4 START 4. CHAIN BRAKE & LUBRICATION 5. FUEL Chain brake/anti kickback guard BRAKE ON The chain brake operates automatically in the event of kick back. Kick WARNING!: PETROL IS VERY FLAMMABLE. DO NOT back occurs if the chain catches on the wood being cut. In the event of the SMOKING OR CAUSING ANY SPARKS OR FLAMES chain catching, the chainsaw will push back suddenly, when this happens, NEAR FUEL.
- Page 5 2. Set the ignition switch to OFF “O”. • Keep a firm grip with your left hand on the front handle, with your thumb securely below the handle. PCS-406A BRAKE OFF...
- Page 6 APPLICATIONS MAINTENANCE 8. CUTTING METHODS 9. GENERAL MAINTENANCE Felling a tree WARNING!: BEFORE CLEANING YOUR CHAINSAW WARNING!: FELLING A TREE SHOULD ONLY BE OR CARRYING OUT ANY MAINTENANCE DONE BY TRAINED OPERATORS. PROCEDURE, MAKE SURE THAT THE ENGINE IS OFF AND IS COOL.
- Page 7 1. Loosen the filter cover knob and remove the filter cover. Chain Replacement: The chain can be purchased through Ozito spare parts or from your local Bunnings Warehouse. The correct chain can be purchased by 2. Pull the spark plug lead off the spark matching the pitch, gauge and number of links as shown below: plug end.
- Page 8 Tool: 406mm Petrol Chainsaw SPARE PARTS Model No. PCS-406A The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. How To Order Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse.
- Page 9 SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. What can happen: c) Remove any adjusting key or wrench before turning the tool on. A wrench or a key •...
- Page 10 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0614...
