PETROL
CHAINSAW
25.4cc-305mm Bar
INSTRUCTION MANUAL
SPECIFICATIONS
Engine:
25.4cc 2-Stroke
Output Power:
0.9kw
No Load Idling Motor Speed: 3,500/min
Max. No Load Motor Speed: 11,000/min
Bar Length:
305mm (12")
Bar Type:
Sprocket Nose
Chain Brake:
Automatic
Oil Feed:
Automatic Pump
Fuel Mixture:
35:1
Chain Oil:
Standard Chain Bar Oil
ozito.com.au
WHAT'S IN THE BOX
Petrol Chainsaw
Guide Bar Cover
Socket Wrench and
Screwdriver
Chain File
Oil Mix Bottle
PCS-305
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito 25.4cc-305mm Bar
Summary of Contents for Ozito 25.4cc-305mm Bar
-
Page 1: Instruction Manual

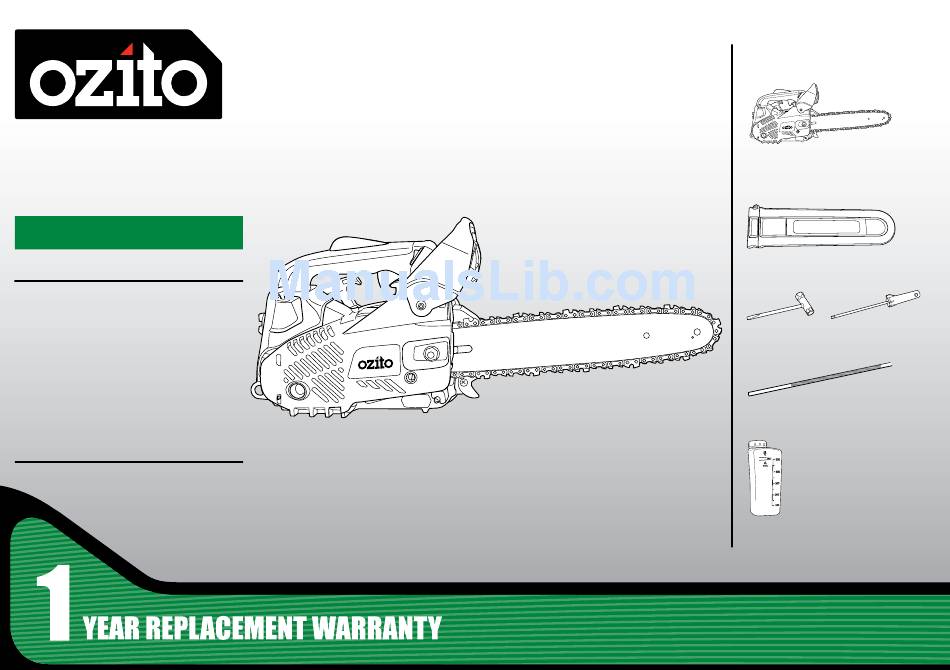

WHAT’S IN THE BOX PETROL CHAINSAW Petrol Chainsaw 25.4cc-305mm Bar INSTRUCTION MANUAL Guide Bar Cover SPECIFICATIONS Engine: 25.4cc 2-Stroke Socket Wrench and Output Power: 0.9kw No Load Idling Motor Speed: 3,500/min Screwdriver Max. No Load Motor Speed: 11,000/min Bar Length: 305mm (12”) -
Page 2: Chainsaw Overview
KNOW YOUR PRODUCT SETUP & PREPARATION 1: FUEL PETROL CHAINSAW 1 Choke control 6 Chain Tension Screw 2 Exhaust 7 Chain Drive Cover Nut WARNING!: Petrol is very flammable. Avoid smoking or 3 Chain Drive Cover 8 On/Off Switch causing any sparks or flames near fuel. Make sure that 4 Throtle Safety Lock 9 Guide Bar you stop the motor and allow it to cool before refuelling... -
Page 3: Chain Bar Oil
OPERATION 2. CHAIN BAR OIL 3. CHAIN BRAKE & CHOKE • Only use oil that is expressly labeled “Chain Bar Oil”. Chain brake / Anti kickback guard The chain brake operates automatically in the event of kick back. Kick back occurs if the chain catches on the wood being cut. -
Page 4: Cold Starting
4. COLD STARTING 5. CUTTING 1. Set the “I” ON switch to ON “I”. 2. Make sure the brake is ON when starting for 1. When ready to start cutting, release the brake, by pulling the safety, by pushing the front front guard back firmly towards the rear of the chainsaw guard forward 3. -
Page 5: Hot Starting
7. CHAIN & BAR 6. HOT STARTING Adjusting the chain tension 1. Set the switch “I” ON to ON “I”. WARNING!: The chain has sharp edges. For your safety, please use work gloves. 1. Loosen the chain drive cover nut, but do not remove the nut. Loosen 2. -
Page 6: Applications
The carburettor is factory set and should not require adjustment. Changes in operating conditions may require fine tuning of the carburettor. A special tool is required for making these adjustments. Contact Ozito Customer Service for advice and instructions. Aus: 1800 069 486... -
Page 7: Spare Parts List
Tool: 25.4cc Petrol Chainsaw SPARE PARTS Model No. PCS-305 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Guide Plate(Bar) 12”... -
Page 8: Description Of Symbols
Chain brake released (hollow arrow) and activated (solid arrow) (Position: right side of machine, on chain drive cover) Ozito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or mishandling or mistreatment of the tool. -
Page 9: Safety Warnings
SAFETY WARNINGS RISK OF EXPLOSION OR FIRE c) Remove any adjusting key or wrench before turning the tool on. A wrench or a key that is left attached to a rotating part of the petrol tool may result in personal What can happen: injury. -
Page 10: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. 0812 OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
Need help?
Do you have a question about the 25.4cc-305mm Bar and is the answer not in the manual?
Questions and answers
chain tension mechanism broken what no is this part
The part number for the chain tension mechanism is not provided in the given context.
This answer is automatically generated
how to change the chain on the Ozito 25.4 cc
Which way should a new diaphram, face in a ozito 25-4 chainsaw carby ( (with the metal round piece towards the machine or not.
