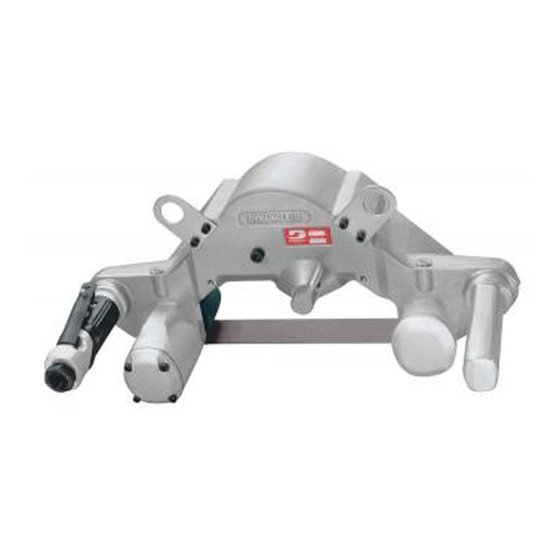

Dynabrade Dynangle II 14300 Important Operating, Maintenance And Safety Instructions

Models:
14300 – Standard Duty
14302 – Heavy-duty "Dual Motor"
14303 – Heavy-duty "Dual Motor" w/ Platen
14306 – Heavy-duty "Dual Motor" w/ Platen (2" x 45" belts)
WARNING
!
Model 14300 — for 2" x 34" belts / Standard duty — for strap polishing
A
2
43
44
42
36
37 34
35
38
33
A
8
32
31
3
A
Index Key
No. Part # Description
1 07167 Throttle Valve Assy.*
2 14064 O-Ring
3 95562 Plug (2)
4 95720 Screw (2)
5 95221 Screw (4)
6 01794 Drive Wheel (2)
7 14353 Bushing
8 14317 Retainer
9 95288 O-Ring (6)
10 14316 Idle Arm
11 95526 O-Ring (2)
12 95555 Bearing
13 14343 Step Nut
14 95565 Screw
15 14344 Tension Idler
16 95398 Bearing (2)
17 14346 Spacer
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.

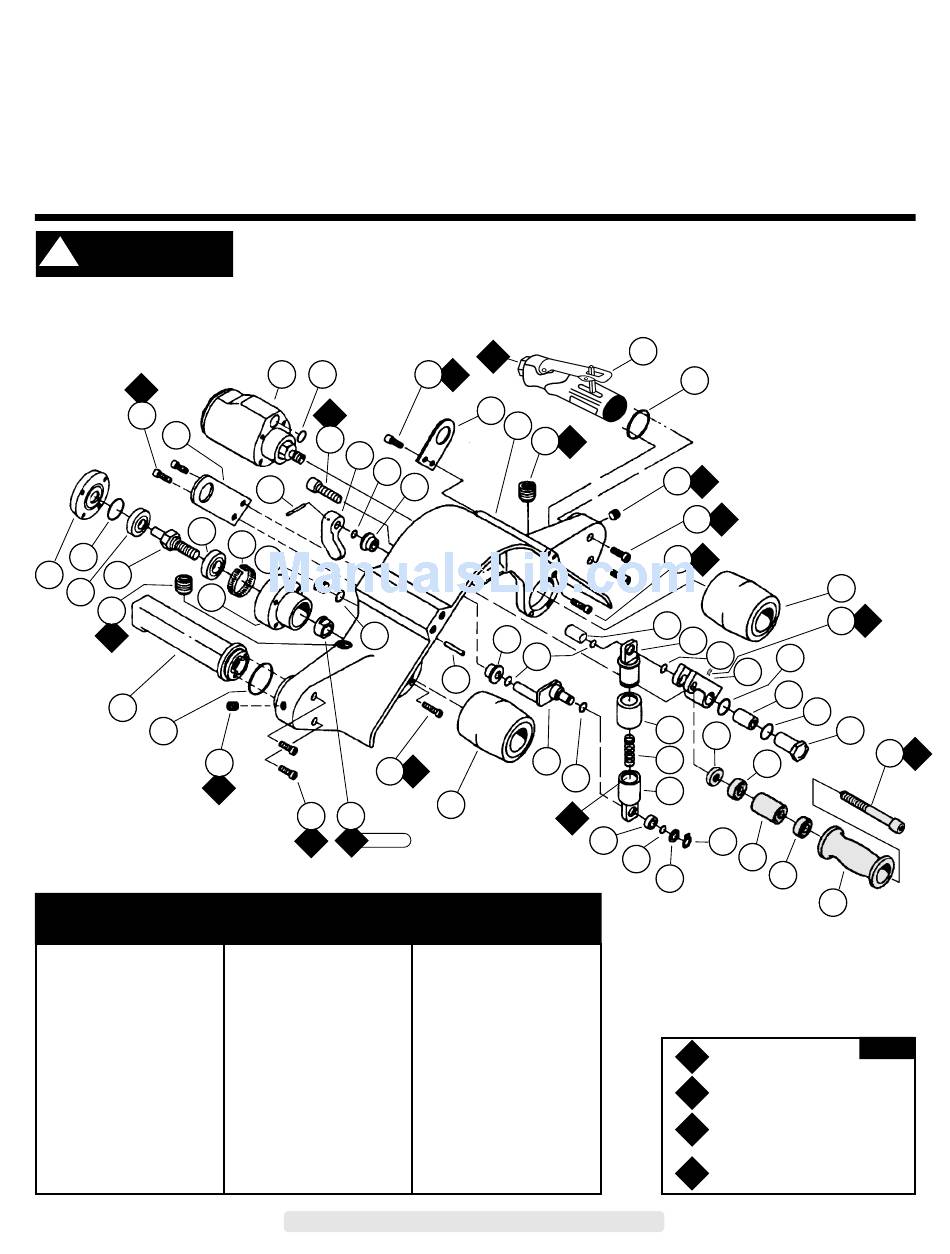

Machine Assembly
46 9
A
2
47
48
37
45
41
40
39
28
8
30 29
A
T
23 N•m
2
18 14347 Spacer
19 95558 Retaining Ring
20 95557 Washer
21 95572 Bushing
22 14318 Retainer
23 95556 Spring
24 14319 Cover
25 14324 Cam Assembly
26 95560 Bearing (2)
27 95333 Pin
28 95564 Screw (4)
29 14330 Nut
30 95720 Screw (2)
31 14064 O-Ring
32 14332 Dead Handle Assy.
33 95561 Plug (2)
34 14329 Shaft
Shaded area represents 14334 Tension Wheel Assembly.
*See page 5 for 07167 Throttle Valve and 07102 Motor Assemblies.
Dynangle
O
1
A
43
2
44
49
A
33
8
26
26
9
27
25
A
2
9
6
G
2
35 01266 Bearing
36 95584 O-Ring
37 14328 Cover
38 14327 Housing
39 01025 O-Ring (2)
40 14348 Plug
41 95583 Ring
42 02552 Bearing
43 95536 Screw (4)
44 14333 Bracket (2)
45 95164 Pin
46 07102 Motor
47 95559 Screw
48 14331 Lever
49 14320 Housing
50 95952 Set Screw
Parts Page Reorder No. PD01•93
Effective October, 2001
Supercedes PD92•04
Machine and Motor Parts
1*
2
A
3
8
A
4
2
A
5
2
7
8
9
10
24
18
23
16
22
21
19
17
9
16
20
Oil: O Air Lube
O
1 =
Grease: G
G
A
Adhesive: A
T Torque: N•m x 8.85 = In - lbs.
II
®
6
A
50
2
11
12
11
13
A
14
2
15
KEY
Loctite #771
2 =
= Loctite #271
2
A = Loctite #567
8
