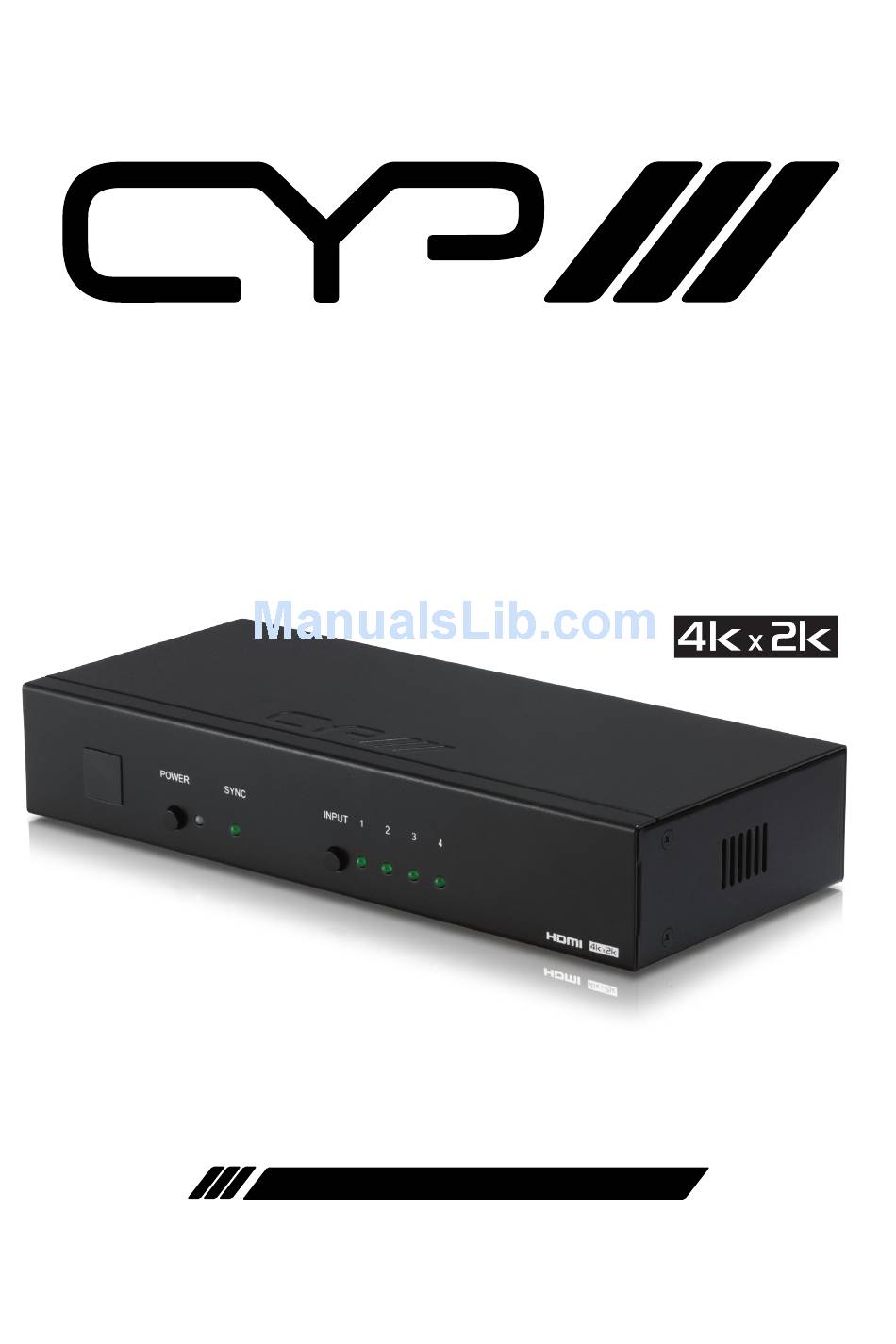

- Page 1 EL-41S-4K 4-Way HDMI Switcher with advanced EDID management, IP, RS-232, & IR Control (4K resolution support) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control ........10 6.4 RS-232 Pin Assignment......10 6.5 RS-232 &... -
Page 6: Introduction
1. INTRODUCTION The 4 by 1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver to select between four devices. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. -
Page 7: Features
5. FEATURES HDMI (with 3D & 4K2K supported) and HDCP compliant Select any one of four 4K HDMI sources and display on a 4K HDTV display with fast switching between sources Supports 3D signals pass-through Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30, 50/60 YUV_420 &... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC INPUT UHD 4 TO 1 SWITCHER CPRO-U4H1HFS IR Window: This IR Receiver receives the remote control signal from the included remote control only with IR frequency at 38kHz. POWER & LED: Press this button to turn ON the device or set the device to standby mode. -
Page 9: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V HDMI IN: Connect to HDMI source equipment such as Blu-ray/ DVD/PS3 players, Set-Top-Box or any HDMI equipped source device. The device has an auto detection function that will detect the last connected source for display on output when it is unplugged, the device will detect rotationally from 1~4 input source for display on output. -
Page 10: Remote Control
POWER: Press this button to switch ON the device or to set it to standby mode. INPUT: Press 1~4 to select input source. INPUT CR-72 6.4 RS-232 Pin Assignment EL-41S-4K Remote Control Assignment Assignment Baud Rate: 115200bps Data Bit: 8 bits... -
Page 11: Rs-232 & Telnet Commands
6.5 RS-232 & Telnet Commands Description of Command Name Description parameter Power Off (Standby) NONE Power On NONE Select Input N N=1-4 Display The Current IP IPCONFIG NONE Configure SIPADDR XXX.XXX.XXX. Set Ethernet IP Address XXX=0~255 SNETMASK XXX.XXX. Set Ethernet Net Mask XXX=0~255 XXX.XXX SGATEWAY XXX.XXX. - Page 12 Show Input N1 HDCP HDCPIN N1 N1=1-4 Status Set Input N1 HDCP On/ N1=1-4 N2=0(OFF), HDCPIN N1 N2 Off* 1(ON) SOURCEDET Show All Input Signal NONE SOURCEDET N1 Show Input N1 Signal N1=1-4 Show All Output SINKINFO NONE Information INNAME Show Input Name NONE INNAME N1 N2...
-
Page 13: Edid Content
6.6 EDID Content HDMI Output(TV) HDMI Output display EDID Build-In EDID, Deep 8/2D/PCM/720p color/2D3D/audio/native resolution 8/2D/PCM/ Same as above AC3/720p 8/2D/PCM/1080p Same as above EDID All 8/2D/PCM/ Same as above AC3/1080p EDID 8/2D/PCM/4K2K Same as above Mode 8/2D/PCM/ Same as above AC3/4K2K 8/2D/PCM/Y420 Same as above... - Page 14 6.7 WebGUI On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (the default statics IP is 192.168.5.88 or available from RS-232 or use the link application from note 4 in section 6.5 to find) on the web address entry bar. The browser will display the device’s Status, IO Status, Matrix Control, Settings and Network Configuration control pages for users to control.
- Page 15 Click on Network Configuration to set the device’s IP configuration once the changes is saved the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the WebGUI function.
- Page 16 8. CONNECTION DIAGRAM...
-
Page 17: Specifications
9. SPECIFICATIONS Frequency bandwidth 300Mbps to 3Gbps Input Ports 4 x HDMI 1 x USB (Service only) 1 x RJ45 (Control) 1 x RS-232 1 x IR Extender Output ports 1 x HDMI Resolution 480i~1080p@50/60, 1080p@24, 4K2K (3840x2160@24/25/30, 50/60 YUV_420 & 4096x2160@24, 50/60YUV_420Hz) HDMI I/O Cable Distance 15M@8/12bit, 5M@4Kx2K... - Page 18 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 ...
- Page 19 Audio Sampling Rate Up to 192 kHz HDMI input (Up to 192kHz) HDMI output LPCM 2CH LPCM 5.1CH LPCM 7.1CH Dolby Digital 2~5.1CH/ DTS 2~5.1CH Dolby TrueHD/ DTS-HD Master Audio Audio Format LPCM 2/5.1/7.1CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio HDMI input...
- Page 20 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate Nottingham NG6 8WB Tel: +44 (0)115 977 0075 | Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com v1.00...
