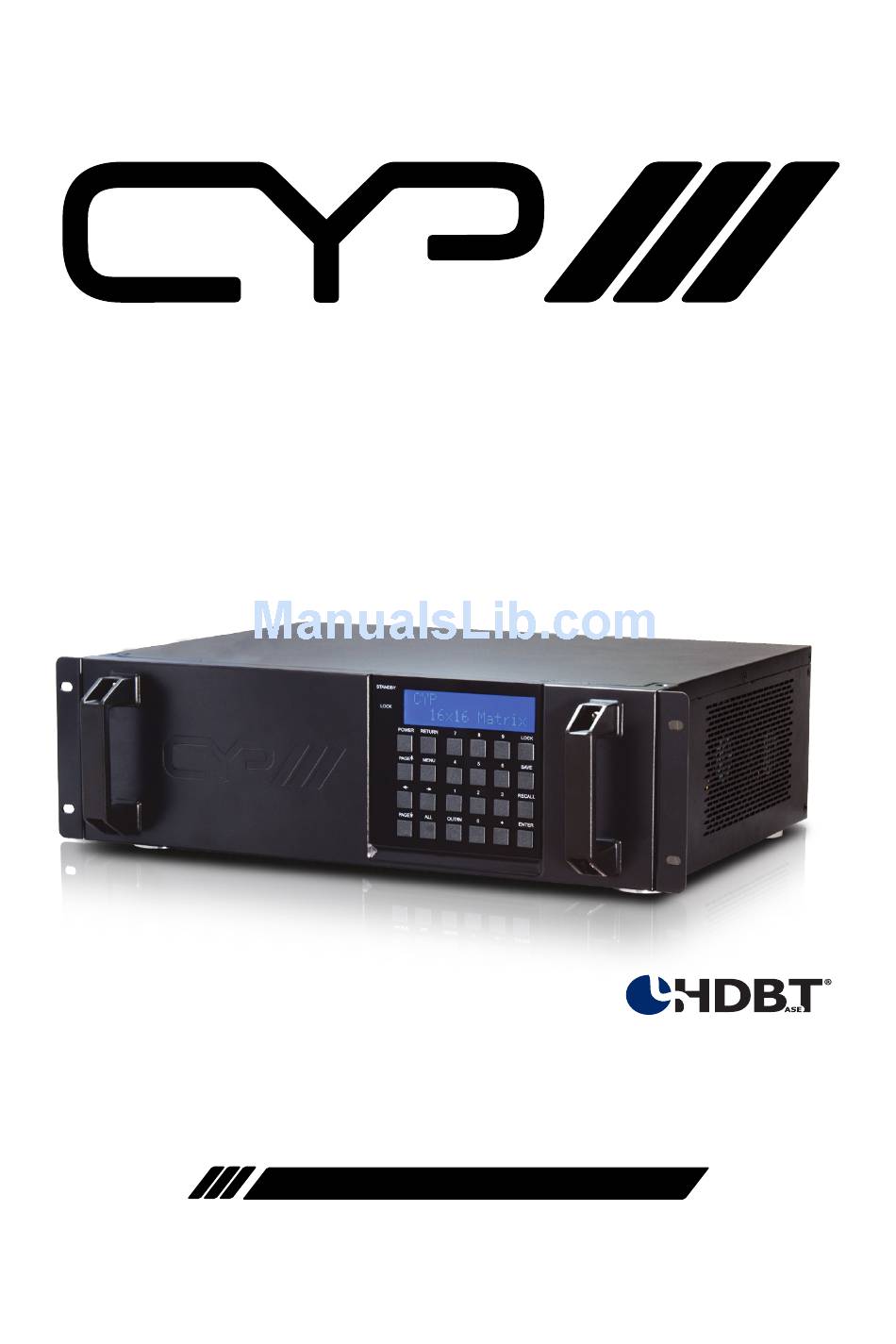

- Page 1 PU-16HBT 16 x 16 HDMI HDBaseT™ Matrix including PoE OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ...........10 6.3 RS-232 Protocols ........11 6.4 RS-232 & Telnet Command....12 6.5 Telnet Control ..........15 6.6 Web GUI Control ........17 7. -
Page 6: Introduction
1. INTRODUCTION The NEW PU-16HBT modular matrix offers unparalleled levels of flexibility and performance for systems integrators and installers in any multi-zone AV environment. Utilising the latest HDBaseT™ technologies, this device allows switching and distribution of 16 HDMI sources, 2-Way IR, RS-232, and PoE (Power over Ethernet) to lengths of up to 100m using CAT5e/6/7 cable infrastructure. -
Page 7: Features
5. FEATURES HDMI, HDCP and DVI compliant Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions : HDTV: 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz) Uncompressed data transfer over single CAT cable (100m - CAT6/7;... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel STANDBY LOCK POWER RETURN LOCK PAGE MENU SAVE RECALL PAGE OUT/IN ENTER POWER button & LED: Press this button to turn On the device or press it again to switch to standby mode. The LED will illuminate when the power is in standby mode. - Page 9 B. IP 1. IP address, 2. Netmask, 3. Gateway. C. Temperature 1. Temperature 1, 2. Temperature 2, these figures shows the temperature of the device inside. D. LCM Contrast Range from 1~4 LCM: Displays the setting information of each input and output and other setting information according to the selection.
-
Page 10: Rear Panel
6.2 Rear Panel IR IN RS232 ETHERNET IR ALL SERVICE OUTPUT 0 OUTPUT 1~16: Connect to HD or 3D TV/monitors via CAT cables to compatible receivers. a. RS-232: Connect with D-Sub 9-pin cable from the PC/Laptop device for RS-232 control over the Matrix or other connecteddevice(s). b. -
Page 11: Rs-232 Protocols
ON. Do not block this port of the device or cover it with any object. Please allow adequate space around the unit for air circulation. 6.3 RS-232 Protocols PU-16HBT Remote Controller Definition Definition Baud Rate: 19200 bps Data Bit: 8 bits... -
Page 12: Rs-232 & Telnet Command
6.4 RS-232 & Telnet Command HELP: Show Command list. Command Action Power Off Power On RESET System Reset to O1I1,O2I2,..O16I16,O00I01, Unmute ALL Output., Set HPD HIGH to ALL Input., Set EDID Mode to INTERNAL., Set HDCP Enable. ,THE PARAMETER IS OUT OF RANGE OxIx(x:01~16) Output 1~16 set to Input 1~16 ALLOUT xx(x:01~16) - Page 13 Command Action HPDLALL Set All Input HPD to Low HPDHALL Set All Input HPD to High HPDSTATUS Report ALL Input Hot-Plug-Detect signal status STATUSHPD x(x:1~16) Show HPD status of input(x) TEMPSTATUS Show temperature sensor values y1, y2 STATUSIN x(x:01~16) Report Input connection status (Source ) STATUSOUT x(x:01~16) Report Output connection status...
- Page 14 Command Action SETSNMASK <SubNet> Setting subnet mask SETGWADDR <GW> Setting gateway IP address RDIPADDR Display the current IP address RDSNMASK Display the current subnet mask RDGWADDR Display the current gateway IP address REBOOT System reboot SAVETO x Save as Preset x (x=1,2,3~10) RECALLTO x Recall Preset x (x=1,2,3~10) Display controller firmware version...
-
Page 15: Telnet Control
6.5 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 16 Once in the command line interface (CLI) type "telnet", then the IP address of the unit and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control.
-
Page 17: Web Gui Control
Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of commands, see Section 6.4). Note: Any commands will not be executed unless followed by a carriage return. - Page 18 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 19: Connection Diagram
Player Streamer Player Streamer Player Streamer HDMI Input & 2-Way IR Control IR All RS-232 IN OUT Control Control Control PU-16HBT CAT Cable PU-507RX HDMI Output & 2-Way IR Control Projector Projector Projector Projector Projector Projector Projector Projector IR Emitter... -
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Input ports 16×HDMI Output ports 16×CAT5e/6,16×IR Extender, 16×IR Blaster Video Bandwidth 300 MHz/10.2 Gbps Features Supports HDBaseT/PoE/IR/RS232 IR Frequency 30~50Hz Video resolutions PC: VGA ~ WUXGA HD: 480i~1080p Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs sample rate) Power Supply... -
Page 21: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
