- Page 1 Marshall Electronics V-R82SB-AFHD High Definition Dual Screen LCD Monitor Set Operating Instructions...
-
Page 3: Table Of Contents
Contents Product Overview..............................4 Features ..................................4 Installation and Initial Setup ........................... 5 Unpacking ................................5 Installation................................5 Connections and Power-On........................... 5 Front Panel Features ............................... 6 Power Button ................................ 6 Input Select Buttons............................... 6 On-Screen Menu Navigation Buttons ........................6 User-Definable Function Buttons........................... -
Page 4: Product Overview

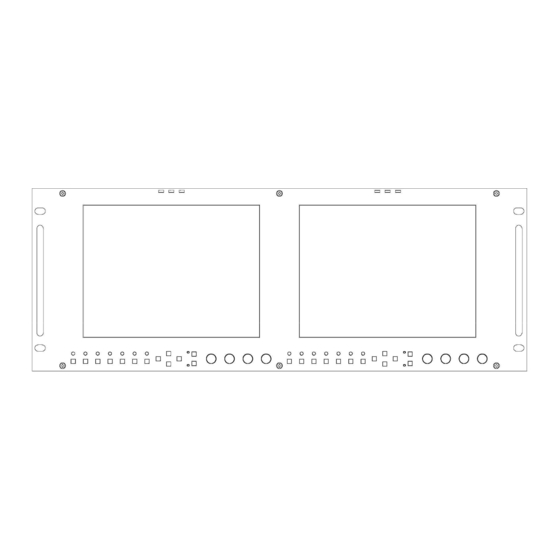

Product Overview The V-R82SB-AFHD is a dual screen high definition 8.4” LCD monitor set featuring our completely digital TFT- MegaPixel™ active matrix LCD platform designed specifically for outdoor applications or high levels of ambient light. Utilizing 8.4-inch panels with 2.4 million pixels each, the V-R82SB-AFHD provides the highest pixel density available while occupying only 4RU. -
Page 5: Installation And Initial Setup
The monitor will draw approximately 3.5 Amps at 12 Volts in operation. Connect the required cables for video signal input and output. (Power must be applied to the V-R82SB-AFHD for the active loop-though outputs to be activated.) All BNC connectors are rated at 75 . -
Page 6: Front Panel Features
Front Panel Features Top Front Panel Lower Front Panel Power Button User-Definable Function Buttons Turn the monitor on by pressing the power button. Two user-definable function buttons can be used for In the OFF state, the LED will shine red. The LED direct access to various settings. -
Page 7: Rear Panel Features
Rear Panel Features Power Input Tally Interface Connect the 12VDC input to the 2-Pin twist lock power Each tally light is activated via the HD-15 connector by input connector. Power can be supplied from the connecting the corresponding pin to ground. A variety of included power supply, or from a variety of DC sources external devices can be used to perform the contact supplying at least 3.5 Amps at 12 Volts. -
Page 8: Compatible Input Formats
Compatible Input Formats Format Composite S-Video YPbPr DVI-D NTSC ● ● ● ● 525i ● ● ● 625i ● ● ● 486p / 59.94 ● 576p / 50 ● ● 1035i / 60 ● 1035i / 59.94 ● 1080i / 60 ●... -
Page 9: On-Screen Menu
On-Screen Menu STRUCTURE OVERVIEW OFF, 13:9, 14:9, 4:3, 2.35:1, MARKER 16:9 1.85:1, 95%, 93%, 90%, 88%, 80% MARKER SETUP OFF, 95%, 93%, 90%, 88%, MARKER 4:3 MARKER BACKGROUND OFF, HALF, BLACK CENTER MARKER OFF, ON COLOR TEMP D55, D65, D93, USER RED (0-100) ADJ COLOR BIAS GREEN (0-100) -
Page 10: Marker Setup Submenu
On-Screen Menu (continued) MARKER SETUP SUBMENU Marker Setup Submenu ■ 16:9 Markers Use this setting to superimpose one of 10 markers on the screen when in 16:9 mode. This setting is disabled when the aspect ratio is set to 4:3, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled. •... -
Page 11: 4:3 Markers
On-Screen Menu (continued) MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel, Underscan, or H/V Delay is enabled. •... -
Page 12: Video Configuration Submenu
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU Video Configuration Submenu ■ Color Temperature Presets Use this setting to choose one of three color temperature presets: • D55 (5500K) • D65 (6500K) • D93 (9300K) • USER (Adjustable Color Bias and Gain) ■... -
Page 13: Monochrome Mode
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU (continued) ■ Monochrome Mode Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture. ■ Blue-Only Mode Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red and green components. -
Page 14: Aspect Ratio Setting
VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings Use to switch between 4:3 and 16:9 aspect ratios. As the V-R82SB-AFHD monitor has a native resolution of 800 x 600 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 15: System Configuration Submenu
On-Screen Menu (continued) SYSTEM CONFIGURATION SUBMENU Video Configuration Submenu ■ Internal SMPTE Color Bars Use to display internally generated SMPTE split-field color bars. ■ User-Definable Function Buttons Use the FUNCTION 1 and FUNCTION 2 menu items to define each function button on the front panel of the monitor. The following options are available for each button: •... -
Page 16: Specifications
Specifications ■ PANEL ■ TALLY Screen Size 8.4” Diagonal 3 LEDs (Green, Red, Yellow). Activation requires contact Display Area (h x v) 170.4 x 127.8 mm closure of pin to ground on the HD-15 connector: Aspect Ratio 4:3 Native (4:3/16:9 Modes) Pixels 800 x RGB x 600 Pin No. -
Page 17: Maintenance
Specifications (continued) Maintenance ■ Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro- fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. -
Page 18: Warranty
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above.
