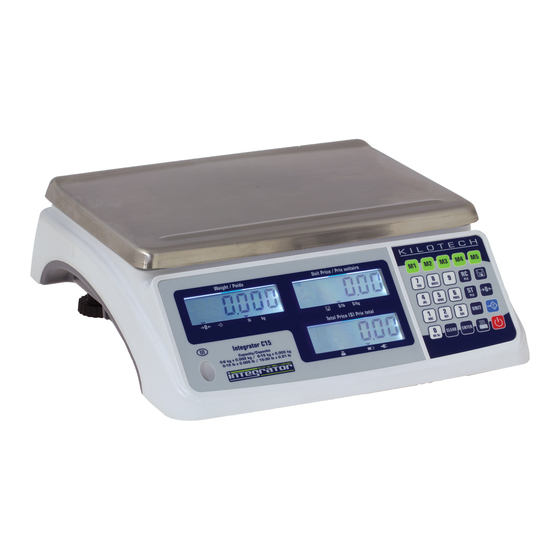

- Page 1 Integrator C15/C30 Manual Contents subject to change without notice Version 01.02 05/2015 Ce manuel est disponible en français à www.kilotech.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ........................2 Introduction ..........................3 General Precautions ........................4 Specifications..........................5 Outline ............................5 Unpacking and setup........................6 Contents ............................ 6 Display and keypad ........................7 Faceplate ..............................7 Symbols on Display ............................ 7 Keypad ................................ -
Page 3: Introduction
Introduction Thank you for choosing a Kilotech Scale. We appreciate your business and hope that you will enjoy using your scale. Should you require support, please contact your local dealer from whom you have purchased. Happy Weighing! -
Page 4: General Precautions
Avoid placing the scale near a It could cause a fluctuation to the indicator reading. heater. Always make sure to use a Kilotech approved adapter. Do not drop the scale or apply a sudden shock. Do not drag the scale. -
Page 5: Specifications
Specifications Product Number Product Name Capacity 15kg / 30lb 30kg / 60lb Graduation 0-6 kg:2g/6-15kg: 5g 0-15kg:5g/15-30kg:10g 0-15lb:0.005lb/15-30lb:0.01lb 0-30lb: 0.01lb/30-60lb:0.02lb Weighing Modes kg, lb Display 0.73”,18 digits： 6 digit for weight reading， 6 digit for unit price，6 digit for total price Back Light Yes and adjustable Auto Power Off... -
Page 6: Unpacking And Setup
Unpacking and setup • Remove the scale from the box and place it on a firm, level surface. • Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat or direct sunlight. • Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located on the front panel). -
Page 7: Display And Keypad
Display and keypad Faceplate Symbols on Display WEIGHT - Weight display window - Centre-of-zero annunciator – TARE annunciator - Weight unit annunciator UNIT PRICE - Unit price display window – Save mode annunciator - Unit price per kg/lb annunciator TOTAL PRICE($) - Total price display window - Data output annunciator - Charging annunciator... -
Page 8: Keypad
Keypad : numeric keys, Used to enter numerical data or alphabets : Direct PLU keys, Used to directly recall the stored unit price : Clear the recorded data : Confirm the operation or data entered : Save the tare weight and/or unit price : Used to set the scale to zero : Used to tare the scale. -
Page 9: Key Combinations
Key combinations Press both key simultaneously and hold down for more than three seconds. (for details on these operations, please see their respective sections in the manual) : Used to enter the business’s name setup mode : Used to enter the LCD’s contrast setup mode : Used to enter the auto-off time setup mode Used to display A/D inner code or working voltage : Used to enter RS232 parameters setup mode... -
Page 10: Weighing Operations
Weighing operations Key functions Power on/off • When the scale is off, first make sure the power switch on the bottom of the right hand side of the scale is ON. Press on/off key to power on the scale. • Press on/off for more than 3s to power off the scale. -
Page 11: Store/Program Plu's
Store/program PLU’s To cancel and return to normal mode at any time, press Total Unit Price Weight Price Keys used Comment Display Display Display 0.00 0.00 0.00 Press to start Enter address using numerical keys The system will overwrite any previous data To confirm press St.PLU... - Page 12 Total Unit Price Weight Price Keys used Comment Display Display Display Enter price using numerical keys St.PLU UNIT.P To confirm press Enter tare weight using numerical keys St.PLU Tare To confirm press Enter item code using numerical keys If the PLU data has been changed, the unit price window will briefly display St.PLU...
-
Page 13: Recall Plu
Recall PLU Recall direct PLU Recall a PLU that is stored under a speed key by pressing key, the stored unit price will be displayed in unit price window. The total price window will display “DUP. xx”, and then the actual total price will appear. -
Page 14: Parameter Setting
Parameter setting To cancel and return to normal mode at any time, press the Business name Total Price Weight Unit Price Display Keys used Comment Display Display Press both 0.00 0.00 0.00 simultaneously and hold down for more than three seconds Enter first line of Business name using numerical key... -
Page 15: Lcd Contrast
LCD contrast Total Price Weight Unit Price Display Keys used Comment Display Display Press both 0.00 0.00 0.00 simultaneously and hold down for more than three seconds X = value currently set To confirm press Setup LCd.CST 0 = always on Setup BLGT.MD 1 = always off... -
Page 16: Internal Code
Internal code Unit Price Weight Total Price Display Keys used Comment Display Display Press both 0.00 0.00 0.00 simultaneously and hold down for more than three seconds UoL.x.x = working To continue press voltage UoL.x.x CodE xxxxxx Code = A/D internal count Communication settings To cancel and return to normal mode at any time, press the... - Page 17 Unit Price Weight Total Price Display Keys used Comment Display Display Choose parity rate Parity options using numerical keys 1 = 8N1 2 = 7O1 Setup 232.dFt 3 = 7E1 To confirm press Choose format using 0 = CANADA YY-MM-DD numerical keys 1 = USA DD-MMM-YY...
-
Page 18: The System Will Automatically Reboot After Changing The Above Parameter Settings
Unit Price Weight Total Price Display Keys used Comment Display Display Choose baud rate using numerical keys Format options 1 = 8N1 Setup Usb.dft 2 = 7O1 3 = 7E1 To confirm press Choose format setting 0 = None using numerical keys 1 = SN Data will be transmitted Setup... -
Page 19: Group Code
Group code Unit Price Weight Display Display Total Price Display Keys used Comment Press both 0.00 0.00 0.00 simultaneously and hold down for more than three seconds Enter time using numerical keys Default = 00 Setup GroUP.C Range = 00~ To confirm press Back feed Unit Price... -
Page 20: Origin Setting
Origin setting Unit Price Weight Display Display Total Price Display Keys used Comment Press both 0.00 0.00 0.00 simultaneously and hold down for more than three seconds Set value using numerical keys Range = Setup orG|| 0-255 To confirm press LCD test Unit Price Weight Display... -
Page 21: Format Of Barcode For Printing
Format of barcode for printing Format Type 5I4P EAN13 4I5P EAN13 5I5P EAN13 4I6P EAN13 NOTE: If the fields ( “Price” and “Item code”) are greater than the parameters set, “OUT.P.R” (indicates it is out of printing range) will appear in the weight window. i.e. -
Page 22: Error Codes
Error codes Err01: The weight signal is too large. Err02: No proper data can be displayed. Err03: The weight signal is too small. Err04: Zero point is over the setting range. Err05: Zero point is below the setting range. Err06: Error in unit key operation. -
Page 23: Communication Output Format
Communication output format Host Group Code: Date: yy-mm-dd Time: hh:mm:ss Gross: xxxx.xxx kg/lb/oz Tare: xxx.xxx kg/lb/oz Net: xxxx.xxx kg/lb/oz Unit xxxxxx.xx $/kg($/lb) Price: ($/oz) Total xxxxxx.xx $ Price: ======================== Print format with OS-203 / 213 printer Available Label formats 1: PRTd40 = 58mm × 40mm with date 3: PRTNd4 = 58mm ×... -
Page 24: Display Character Reference
Display Character Reference... - Page 25 Troubleshooting Troubleshooting Possible causes Solution • Check if the batteries • Batteries failed • Check the power supply • No electricity with the adapter and No display after • Adapter or plug is not inserted ensure the adapter is pressing the plugged in properly at power on properly.
-
Page 26: Troubleshooting
Troubleshooting Possible causes Solution • Make sure the platform is • The platform is not installed level level • The four feet are not level • Make sure the four feet Big error • The load cell is broken between the are level •...
