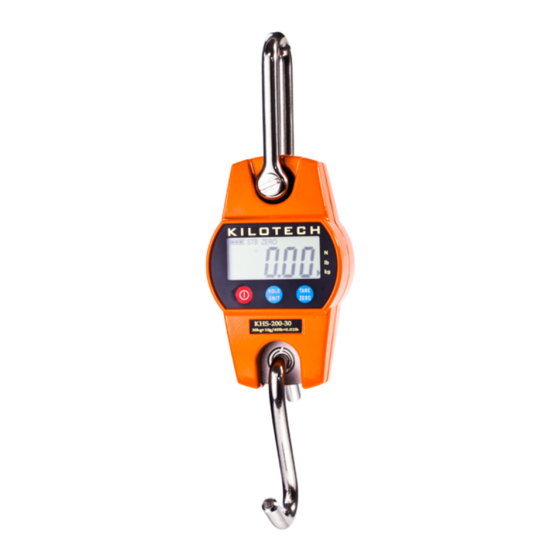

Summary of Contents for Kilotech KHS 200-30
-
Page 2: Table Of Contents
Content 1. Introduction .............. 1 Notice ........... 1 Safety Guide ........1 2. Specifications ............2 Features ..........2 Specifications ........3 Capacity and Resolution ....4 Schematic Diagram ......4 Dimension ........... 5 3. Operation Guide ............6 Power On ..........6 Power Off.......... -
Page 3: Introduction
When the scale runs out of power, replace the battery with fresh ones. Do NOT use the scale under thunder or rain. Do NOT attempt to repair the scale yourself. Contact Kilotech at 800-694-4445, 877-328-5988 or www.kilotech.com. Page 1 of 13... -
Page 4: Specifications
2. Specifications Features This scale is a combination of the sound and proven mechanical design, with today’s most advanced electronics to provide a superb feature set. It is versatile, reliable, accurate and easy to operate. Quality In accordance with OIML R76, GB/T11883-2002. -
Page 5: Specifications
Specifications Accuracy Class Chinese GB/T 11883-2002 Class III Equivalent to OIML R76 Tare Range 100% F.S. ±50% F.S. Auto Zero ±2% F.S. Manual Zero Zero-tracking 0.5e/s Reading Stable ≤10 seconds Time Auto-sleep Sable and no action in 3 sec. Auto-off Sable and no action in 3 min. -
Page 6: Capacity And Resolution
Capacity and Resolution Max. Cap. Division Model (kg/lb) (kg/lb) KHS 200-30 30/60 0.01/0.02 3,000 KHS 200-60 60/120 0.02/0.05 3,000 KHS 200-150 150/300 0.05/0.1 3,000 KHS 200-300 300/600 0.1/0.2 3,000 Schematic Diagram Loadcell Power Page 4 of 13... -
Page 7: Dimension
Dimension Page 5 of 13... -
Page 8: Operation Guide
3. Operation Guide Power On Press for 1 second to power up, battery tests and initializes. Screen shows detection message while scale detects its load and auto-zero itself. Power Off Press for 1 second to power off scale. ... -
Page 9: Tare
Tare Press to store weight as tare. “TARE” shows and weight turns zero. If weight is over 100%F.S., or less than 0, tare is not allowed. If weight is not stable or held, tare is not allowed. -
Page 10: Hold
Hold Press to lock the display. “HOLD” shows and display is frozen. Press again to resume display. “HOLD” hides and display resume refreshing. Unit Switch Press for 1 second to switch measuring unit between kg, lb and N. ... -
Page 11: Zero
Zero Press for 1 second to zero scale. “ZERO” shows and weight turns zero. If weight is tared, or not stable, or held, zero is not allowed. If weight is over Manual-Zero range, zero is not allowed. Setting ... - Page 12 Auto-Off can be set to 0 (disabled), 5 (5min), 15 (15min), 30 (30min), 60 (60min). Press to enter Auto-Zero option; and press to change Auto-Zero option. Auto-Zero can be set to 0 (disabled), 2 (2%F.S.), 4 (4%F.S.), 10 (10%F.S.), 20 (20%F.S.), 50 (50%F.S.).
- Page 13 (never). When Backlight is set to 5, 15, 30, or 60, scale turns off backlight in corresponding seconds after it is stable. When Backlight is set to off, backlight is disabled, and never turns on. When Backlight is set to on, scale never turns off backlight, no matter it is stable or not.
-
Page 14: Trouble-Shooting
4. Trouble-shooting Symptom Possible Causes Solution discharged battery replace battery blank display when defective battery On/Off is pressed defective ON/OFF press ON/OFF key for long no action taken defective TARE or clean TARE or after TARE or HOLD key HOLD key HOLD is pressed stabilize the load scale in motion... -
Page 15: Note
5. Note __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ Page 13 of 13...
