Summary of Contents for Kilotech Cyclone Series

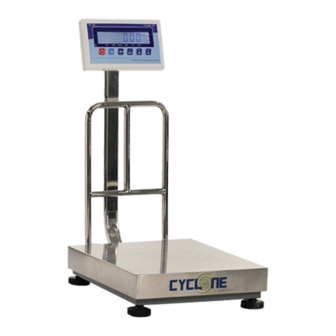

- Page 1 Cyclone Series Platform Scale Owner’s Manual Contents subject to change without notice Version 01.02 09/2015 Ce manuel est disponible en français à www.kilotech.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ........................2 Introduction ..........................3 General Precautions ........................4 Specifications ..........................5 Unpacking and setup ......................... 6 Contents ............................ 6 Display and keypad ........................7 Display ................................ 7 Symbols on Display ............................ 7 Keypad ............................... 7 Operations .......................... -
Page 3: Introduction
Introduction Thank you for choosing a Kilotech Scale. We appreciate your business and hope that you will enjoy using your scale. Should you require support, please contact your local dealer from whom you have purchased. Happy Weighing! -
Page 4: General Precautions
Avoid placing the scale near a It could cause a fluctuation to the indicator reading. heater. Always make sure to use a Kilotech approved adapter. Do not drop the scale or apply a sudden shock. Do not drag the scale. -
Page 5: Specifications
Specifications Model CYCLONE 150 CYCLONE 300 Capacity 0-60kg x 20g / 60-150kg x 50g 0-150kg x 50g / 150-300kg x 100g 0-150lb x 0.05lb / 150-300lb x 0.1lb 0-300lb x 0.1lb / 300-600lb x 0.2lb Units of Measure kg, lb, pcs Keyboard 6 Keys Audio alarm... -
Page 6: Unpacking And Setup
Unpacking and setup Remove the scale from the box and place it on a firm, level surface. Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat or direct sunlight. Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located on the front panel). -
Page 7: Display And Keypad
Display and keypad Display Symbols on Display Stable annunciator Low battery annunciator Gross Weight annunciator Net weight annunciator Tare mode Zero annunciator Check weighing annunciator Available weighting units Keypad Turn on / off. Used to recall the accumulative weight. Used to tare weight on the platter Used to add current weight to accumulative weight Used to set the scale to zero... -
Page 8: Operations
Operations Turn on/off Make sure the scale platter is empty. The switch is located on the right side of the scale. I = on O = off. The scale will start to count down from nine to zero and will display the max capacity of the scale in the WEIGHT display. -
Page 9: Counting Function
COUNTING FUNCTION This mode is used to indicate the number of pieces of an item placed on the pan. To ensure accuracy, the items that are counted must be consistent in weight. The scale uses the sampling method to determine the number of parts in a large sample of identical pieces. For example, 30kg scale, sample weight is 200g, it is 100pcs sample units. -
Page 10: Check Weighing Function
Check weighing function Activate the Check Weighing Mode 1. Activate the Check Weighing Mode by pressing the keys simultaneously for 3 seconds. The scale shows the HI / OK / LO and current weighing unit. arrow Set low limit 1. Press the &... -
Page 11: Setting Of Backlight Function
to select “On” or “OFF” to activate the audible alarm. Press Press to confirm and to go to next step. SETTING OF BACKLIGHT FUNCTION The indicator will now display . X refers to the backlight mode selection. X=0; backlight is disabled. X=1, means manual mode.
