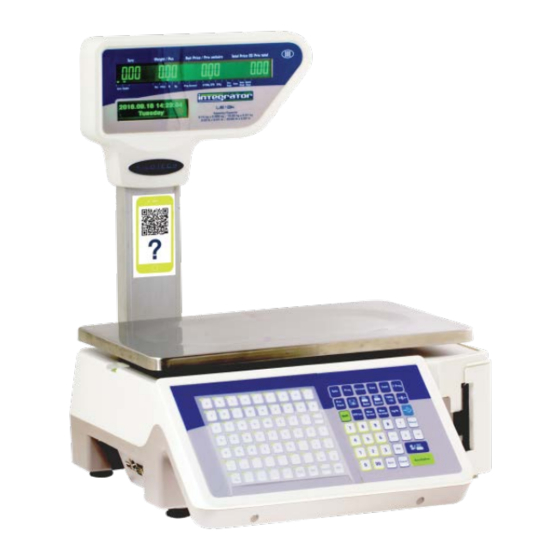

LE.3k

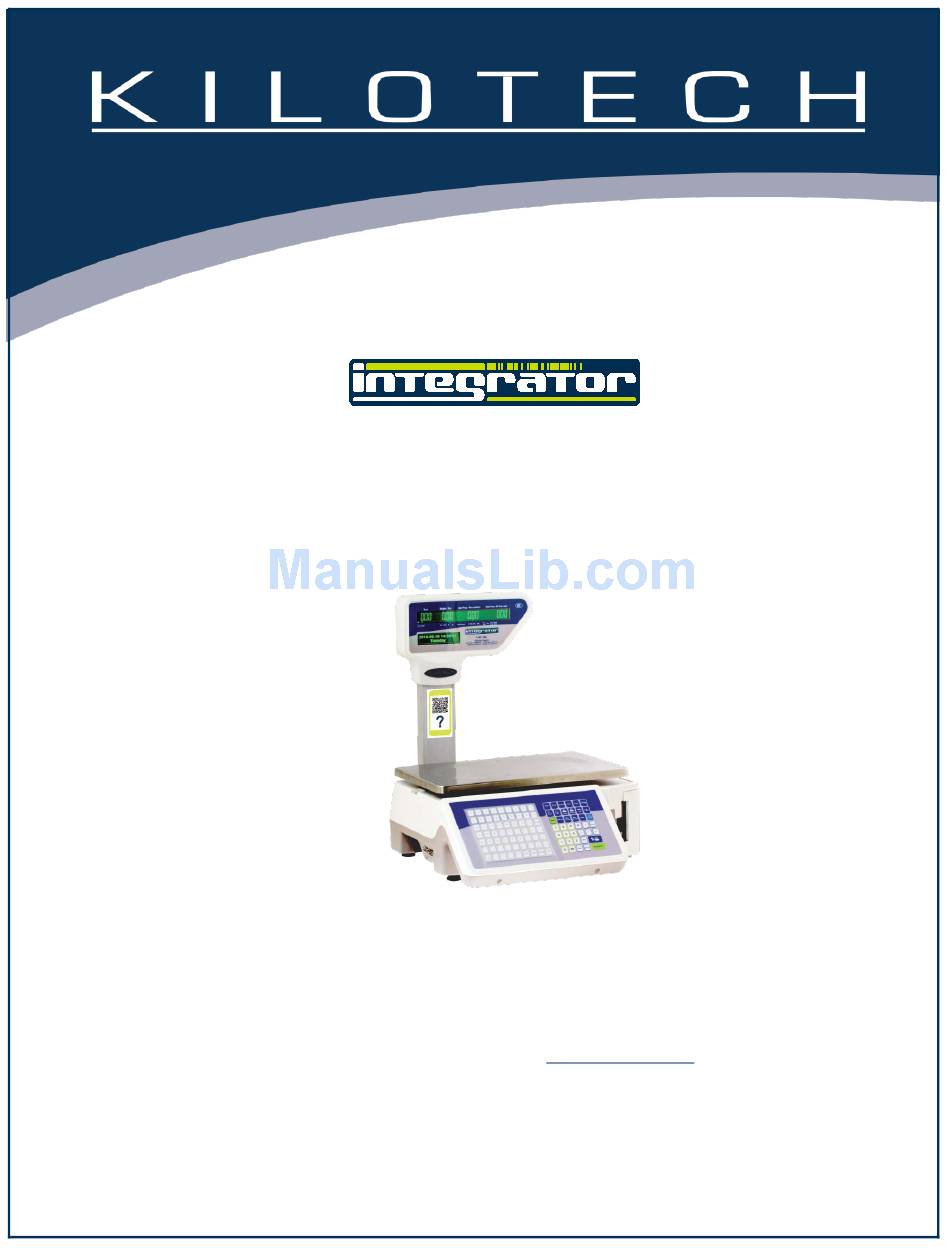

Operation Manual
Contents subject to change without notice
Version 01.02
LE.3k OPERATIONS MANUAL E 06292017
Ce manuel est disponible en français à www.kilotech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 851340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kilotech 851340

  • Page 1 LE.3k Operation Manual Contents subject to change without notice Version 01.02 LE.3k OPERATIONS MANUAL E 06292017 Ce manuel est disponible en français à www.kilotech.com...
  • Page 2: Table Of Contents

    Table of contents Table of contents ........................2 Introduction ..........................3 General Precautions ........................4 Specifications..........................5 Unpack and Setup ........................6 Contents ............................ 6 Display and Keypad ........................7 Faceplate ..............................7 Symbols on the Display ..........................7 Keypad................................ 8 Fast Program Mode ............................
  • Page 3: Introduction

    Introduction Thank you for choosing a Kilotech Scale. We appreciate your business and hope that you will enjoy using your scale. Should you require support, we have a range of video’s available on Kilotech academy or you can contact your local dealer from whom you have purchased. Happy Weighing!
  • Page 4: General Precautions

    Avoid placing the scale near a It could cause a fluctuation to the indicator reading. heater. Always make sure to use a Kilotech approved adapter. Do not drop the scale or apply a sudden shock. Do not drag the scale.
  • Page 5: Specifications

    Specifications 851340 / 881340 Product Number Product Name Integrator LE.3k Capacity 30kg / 60lb Graduation 0-15kg:5g/15-30kg:10g 0-30lb: 0.01lb/30-60lb:0.02lb Weighing Modes kg, lb Display Display Pole mounted, window displays including 4 LED screens and a dot matrix text screen for PLU descriptions...
  • Page 6: Unpack And Setup

    Unpack and Setup • Remove the scale from the box and place it on a firm, level surface. • Avoid locations with rapid temperature changes, excessive dust, moisture, air currents, vibrations, electromagnetic fields, heat or direct sunlight. • Adjust the leveling feet until the bubble is centered in the circle of the level indicator (located under the platter on the left hand side of the scale) •...
  • Page 7: Display And Keypad

    Display and Keypad Faceplate Symbols on the Display TARE Weight display window  Zero Centre-of-zero annunciator  Stable Scale stable annunciator Weight/Pcs Weight /Pieces display window  Net Net weight annunciator  PC(s) Pieces mode annunciator  lb/kg Unit price per kg/lb annunciator Unit price / Prix unitaire Unit price display window ...
  • Page 8: Keypad

    Keypad Enter sale mode Enter program mode Enter accounting mode Display current date and time Feed a label and clear printer buffer Fast program mode. Always used in combination with other keys Switch between sales modes Switch between pricing units Set the scale to zero Access second level speed keys and change Override the unit price...
  • Page 9: Fast Program Mode

    Fast Program Mode Press both key simultaneously. : Used to program the selected speed key : Used to enter PLU program mode : Used to enter the spec setting mode...
  • Page 10: Weighing Operations

    Weighing Operations Key Functions Zero The zero key is used to zero out the small difference on the weight display. The scale will display “Err” when the weight to be zeroed is outside the range. If a tare is set, the ZERO key function is not available. Tare Weight tare: Place the receptacle (box, bowl etc…) on the scale, and when the reading is stable, press tare key to tare the weight.
  • Page 11: Plu Programming

    PLU Programming PLU number Nutrition Item code Print user Unit Date PLU name Unit price Line 2 PLU Name Cost Accu/confirm Tare Type PLU name Line 2 Amend To program a PLU with the F-program press the F-prog and PLU button You can press the right and left arrow keys to navigate up and down the PLU program menu, but you must provide a PLU number.
  • Page 12: How To Program A Plu

    How to program a PLU: Press the F-prog and PLU key simultaneously → Select PLU number to be programmed and press right arrow key → Enter Item code and press right arrow key → → → → Enter weight unit code and press right arrow key →...
  • Page 13 Enter cost and press right arrow key → → → Enter tare weight and press right arrow key → To program the PLU name press the Accu/Confirm key or press the right arrow key to skip Program PLU name and press Amend and right arrow key when finished →...
  • Page 14 Program Secondary PLU name and press Amend and then right arrow key when finished → → → → → → → Program best before date 0: Do not print 1: print → Program Nutritional facts table number Press amend to save edited PLU and return to the beginning of the PLU editing screen →...
  • Page 15: Speed Key Programming

    Speed Key Programming Press F-prog and the NB: To access the second speedkey to be programmed level, press the shift key prior to selecting the speed key Input PLU number Select nexr Speedkey to be programmed Input PLU number When all Speedkeys are programmed press Amend key →...
  • Page 16: Barcodes

    Barcodes: The LE.3k has 9 predefined barcodes. To program the global barcode please do the following: Prog Accu confirm Accu confirm Look at the table and Right arrow enter barcode number Right Arrow Accu confirm X key Enter spe c flag Amend Sale Type...
  • Page 17: Backup All Data To Usb Flash Disk

    Backup All Data to USB Flash Disk Insert flash drive into scale USB port Amend Prog wait until finished Accu confirm Accu confirm Sale Note 1 Exporting data to files to USB flash drive can sometimes take a lot of time. Note 2 Press any key to exit once completed.
  • Page 18: Changing The Price Of The Plu On The Scale

    Changing the Price of the PLU on the Scale Call up the PLU by pressing it speed key or the PLU number and the PLU button Enter the new price Long press the @ price button Complete transaction Label Formats The LE.3k has 9 predefined labels barcodes.
  • Page 19 Label # Image Label # Image Type 3 (862049) (40mm) Type 4 (862050) (60mm) Type 6 (862051) (56mm FR) Type 6 (862051) (56mm EN) Type 7 (862036) (80mm FR) Type 7 (862036) NFT Type 7 (862036) (80mm EN)
  • Page 20: Print Adjust

    Print Adjust To adjust the print height, please do the following: Fprog + Prog X key Accu confirm Increase or decrease value as needed* Amend *1 increment = 1 pixel 8 pixels = 1 mm...
  • Page 21: Set Time And Date

    Set Time and Date To adjust the date and time, please do the following: Prog Accu confirm Accu confirm Set new date and time Amend Sale Select Active PLU Fields To select the fields used for PLU programming, please do the following: Prog Right Arrow Accu confirm...
  • Page 22: Error Codes

    Available fields PLU Number Parent Class Print User Date Item Code PLU Name Print Pack date PLU Index PLU Name Line 2 User Date Unit Ingredients Line 1 Lower Discount Unit price Ingredients Line 2 Higher Discount Cost Ingredients Line 3 DAO Sort Tare Ingredients Line 4...
  • Page 23: Firmware Update

    St.PLU: To set and store the indirect unit price. ADDR. : PLU address. Unit: Weighing units. Rc.PLU: Recall indirect unit price. OUT.P.R: Data is out of printed barcode range. Data.ch: Data has been changed. Save: Data is being saved. O.RANGE: The data has been entered or the weight for tare weight is out of range.
  • Page 24: Spec Setting: User Mode

    Spec Setting: User Mode SpecID Description Note 0 Label: Item Print Format Print formats. 0 = no print, 1~xxxx = selected print format 1 Label: Item Barcode Format Barcode formats. 0 = no print, 1~xxxx = selected barcode format 2 Label: Item Barcode Flag Default 2 3 Label: Item Print Times Default 1...
  • Page 25: Display Character Reference

    Display Character Reference...
  • Page 26: Troubleshooting

    Troubleshooting Error Possible cause Solution code E0.01 Scale is not stable at start-up Make sure the tray is empty and stable Zero point signal is over or below the Make sure there are no goods on the platter and E0.02 limitation platter is correctly installed E1.01...
  • Page 27: Notes

    Notes...
