Messoa SCR368-HN5 Instruction Manual

Please read this manual thoroughly before use, and keep it handy for future reference

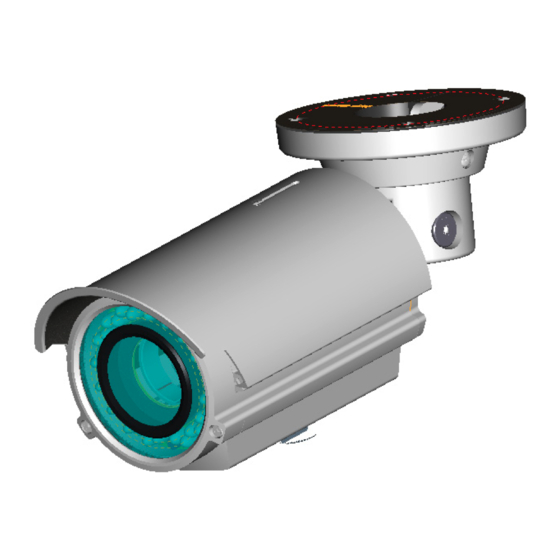

IR Bullet Camera

1. Overview

PACKAGE CONTENTS
• IR Bullet Camera x1
• Self tapping screw (TP4-25L) x 4
• Plastic anchor (1/4"x 1 3/8") x 4
• Torx wrench (T10)
• Video monitor out cable
• Mounting template

• Instruction manual

FEATURES
1. Color 700 TVL high resolution on 1/3" SONY CCD.
2. Easy to install and adjust.
3. Minimum illumination:
IR LED off:0.03lux (F1.6, AGC on, 50 IRE) IR LED
ON: 0lux
4. All-in-one function excellent for both indoor & outdoor
applications.
5. Water proof of IP66 makes it ideal for outdoor
surveillance applications.
6. Externally adjustable focal length & focus
7. Mechanical ICR design for keeping Day & Night
performance
8. Cable management for waterproof
9. 32 IR LEDs to provide 50M (164 ft) seeing range in
complete darkness
CAUTIONS
1. Do not touch the lens surface of the sensor. Use soft
cloth moistened with alcohol to clean the surface if it
is accidentally touched .
2. Ensure the supply voltage is correct as specified
before operation.
3. Do not expose the camera to rain, moisture or to the
temperature which exceeds the specified limit, without
a suitable housing.
4. Avoid aiming the camera at very bright objects such
as the sun or electric lights for an extended period.
5. Only service this unit personally with authorization.
Opening or removing cover may expose yourself to
the dangerous voltage or other hazards.

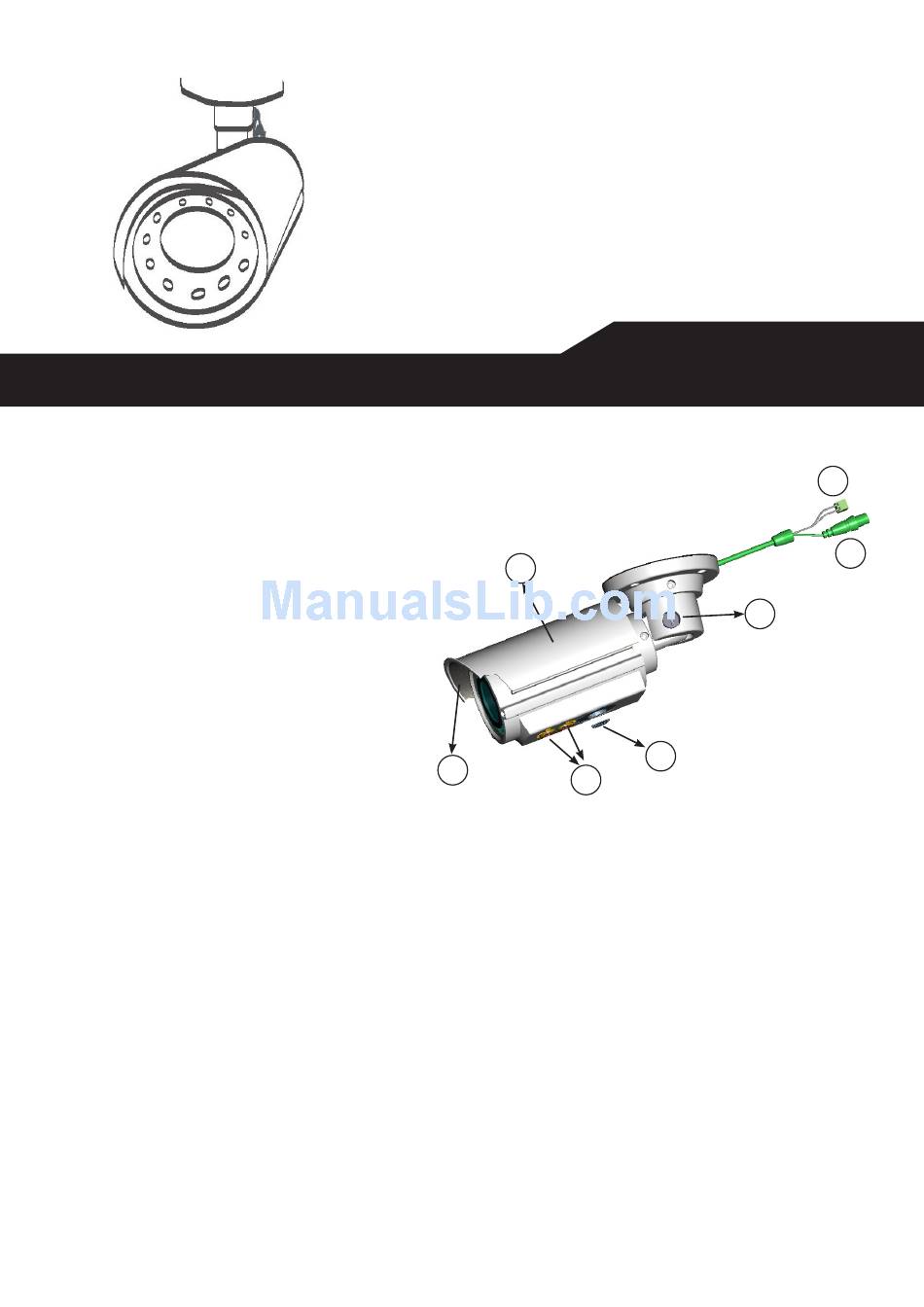

NAMES OF THE PARTS AND FUNCTIONS
x1
x1
x1
x 1
1. Camera main body
2. Sun shield
3. Externally adjustable focal length & focus
4. OSD menu joystick
5. Mount bracket
6. BNC connector
Connects to the VIDEO IN connector of the Monitor Video Connector
7. Power connector (DC12V/AC24V)
Connects to the external power source.

CONNECTIONS

Connects the BNC connector and the power connector to the respective
connectors.
ZEIM-4000513G 368 A.1
1
2
3
1
Instruction
Manual
5
4
7
6
