Summary of Contents for Messoa SDF418

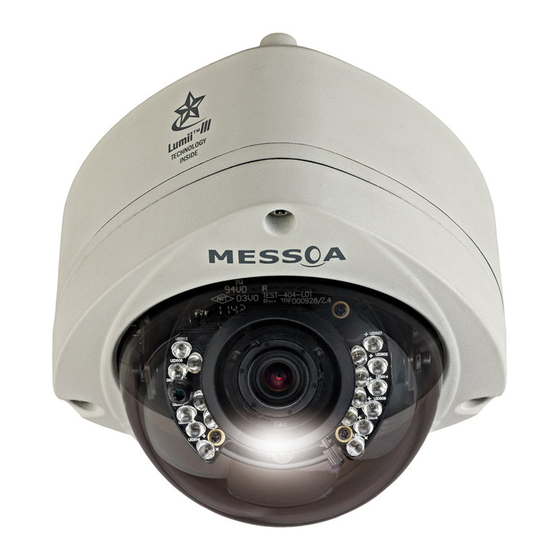

- Page 1 Mounting Installation Guide SDF418/SDR437 Dome Camera Rev A1...
-
Page 2: Table Of Contents
Mounting Installation Guide Table of Contents 1. Introduction .....................3 Before Installation ..................3 2. Ceiling Flush Mount ................3 3. L-Type Wall Mount..................4 Dimensions – SAB749-1W ..............5 4. Cable Management Wall Mount.............6 Dimensions – SAB755................7 Dimensions – SAD712 ................9 5. Pendant Mount ..................10 Dimensions –... -
Page 3: Introduction
1. Introduction This mounting installation guide is intended to provide installers with basic instructions of how to mount the SDF418/SDR437 dome camera (hereafter referred to as the camera) using optional accessories. Some specialized mounting accessories or tools may require unique installation instructions. For detailed instructions on how to install the camera and the accessories, please refer to the instruction document supplied with the product. -
Page 4: L-Type Wall Mount
Mounting Installation Guide 3. L-Type Wall Mount Before beginning the following procedure, please make sure to have these items ready: L-Type Wall Mount Bracket M4x15mm flathead machine screw (SAB749-1W) x3 (User-supplied) 1. Remove the dome cover, the inner liner (for IR model only) and then Base Casing the middle casing of the camera. -
Page 5: Dimensions - Sab749-1W
Mounting Installation Guide 4. Re-attach the middle casing to the base casing and connect all the cables. Note: Adjust the lens to the desired angle before next step. 5. Re-attach the inner liner (for IR model only) and dome cove. Dimensions –... -
Page 6: Cable Management Wall Mount
Mounting Installation Guide 4. Cable Management Wall Mount Before beginning the following procedure, please make sure to have these items ready: Cable Management Wall Mount Bracket Adapter M4x15 flathead Bracket (SAB755) Plate (SAD712) machine screw x4 (User-supplied) 1. Remove the dome cover, the inner liner (for IR model only) Base Casing and then the middle casing of... -
Page 7: Dimensions - Sab755
Mounting Installation Guide 3. Attach the bracket adapter plate to the dome cap first using four flathead M4x15 machine-type screws (user-supplied). Once secured, attach the base casing to the bracket using three screws of the same specification (user-supplied). 4. - Page 8 Mounting Installation Guide 8 ...
-
Page 9: Dimensions - Sad712
Mounting Installation Guide Dimensions – SAD712 Unit:mm... -
Page 10: Pendant Mount
Mounting Installation Guide 5. Pendant Mount Before beginning the following procedure, please make sure to have these items ready: Dome Cap Bracket Adapter M4x15 flathead Pendant pipe (SAB755M) Plate (SAD712) (User-supplied) machine screw x4 (User-supplied) 1. Remove the dome cover, the inner liner (for IR model only) Base Casing and then the middle casing of... -
Page 11: Dimensions - Sab755M
Mounting Installation Guide 3. Attach the bracket adapter plate to the cable management bracket first using four flathead M4x15 machine-type screws (user-supplied). Once secured, attach the base casing to the bracket using three screws of the same specification (user-supplied). ... -
Page 12: Dimensions - Sad712
Mounting Installation Guide Dimensions – SAD712 Unit: mm 12 ...
