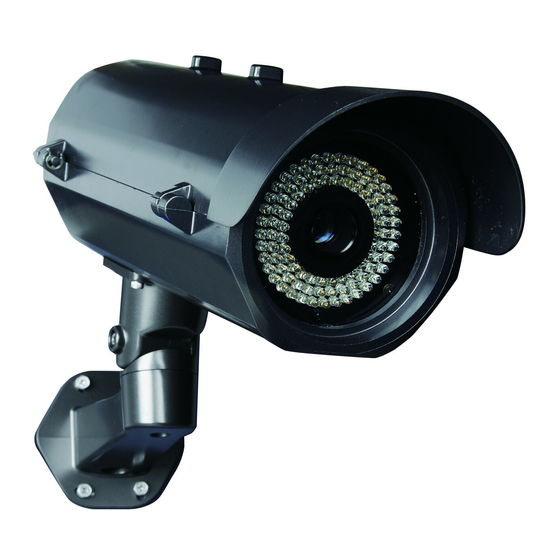

License Plate Capture Camera
CONTENTS
SAFETY INFORMATION... ..................................................
PART DESCRIPTION & DIMENSION.....................................
INSTALLATION..................................................................
SPECIFICATION................................................................
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
Instruction Manual
P32-510010-000A 510 A.2
1
3
4
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Messoa SCR510HB-HN2
Summary of Contents for Messoa SCR510HB-HN2
-
Page 1: Instruction Manual
License Plate Capture Camera Instruction Manual P32-510010-000A 510 A.2 CONTENTS SAFETY INFORMATION............. PART DESCRIPTION & DIMENSION........INSTALLATION..............SPECIFICATION..............Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. -
Page 3: Safety Information
SAFETY INFORMATION Safety Information: 1. Read this Instruction Manual: Before using the product, please carefully read through the safety information and operation instructions. 2. Keep this Instruction Manual: Safely store the Instruction Manual for future reference. 3. Follow instructions: When operating the unit, please follow instructions on the Instruction Manual. - Page 4 SAFETY INFORMATION 11. Maintenance: When the following occurs, please first power off the unit and then perform maintenance by qualified maintenance staff: (a). Damaged power cable or socket (b). Liquid spills or foreign objects in the unit (c). Inoperable unit when proper instructions are followed (d).
-
Page 5: Part Description & Dimension
PART DESCRIPTION & DIMENSION 1. Structure Illustration: The figure above is the illustration of KIT, which consists of License Plate Capture BW camera with IR lamp and color overview camera with IR lamp, these two cameras can be used separately. 2. -
Page 6: Installation
INSTALLATION 3. How to install the camera and bracket: First of all, take out the bracket from the box and put the power cable and video cable through the bracket then fix the bracket to the wall (Fig 3). (Loose the screws of the bracket for easy assembly if necessary.) Fig. - Page 7 INSTALLATION Put the power cable and video cable through the bottom of the housing and let them pass from the hole. (Fig 5) Fig. 5 Attention: Two solutions are available for waterproof: (1) User can take out the spacer from the accessory pack and stick it right by the outlet (Fig 6) or (2) use the three glands cover and let the power cable and video cable pass through the hole of glands cover (Fig7).
- Page 8 INSTALLATION Plug and fix the power cable to the terminal and plug the video cable to video output of the camera (Fig 8). Power board Connection AC24V input RS 485 control Connector board Connection (Hi voltage AC90-260V model only) Fig. 8 AC 90-260V Lock the three glands tightly for waterproof Connect the BNC cable to Pin 202 for LED driver board.
- Page 9 INSTALLATION Next, use the provided screws to fix the housing on the bracket with hexagon screw driver (Fig 10) . Fig. 10 Loosen the pan and tilt adjustment screw of the bracket to modify the angle of the hosing and then tighten the screw (Fig 11) .
- Page 10 INSTALLATION Replace the side cover and tighten the screws (Fig 12, 13). Fig. 12 Fig. 13...
-
Page 11: Specification
SPECIFICATION INFRARED ILLUMINATOR HOUSING LICENSE PLATE CAPTURE CAMERA Model No SLI070HB-2 SLI070HB-7 Model Type Power Input Voltage AC 24 V AC 90-260 V Radiant Distance 70 m(230ft) 70M (230ft) Glass Thickness 6 mm tempered glass IR LED Wave Length 850 nm Quantity 96 Units Minimum illumination...
