Messoa SPD970 User Manual

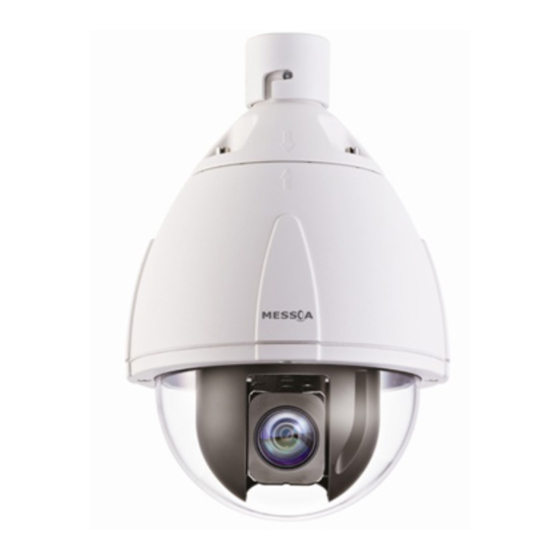

Ptz dome network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

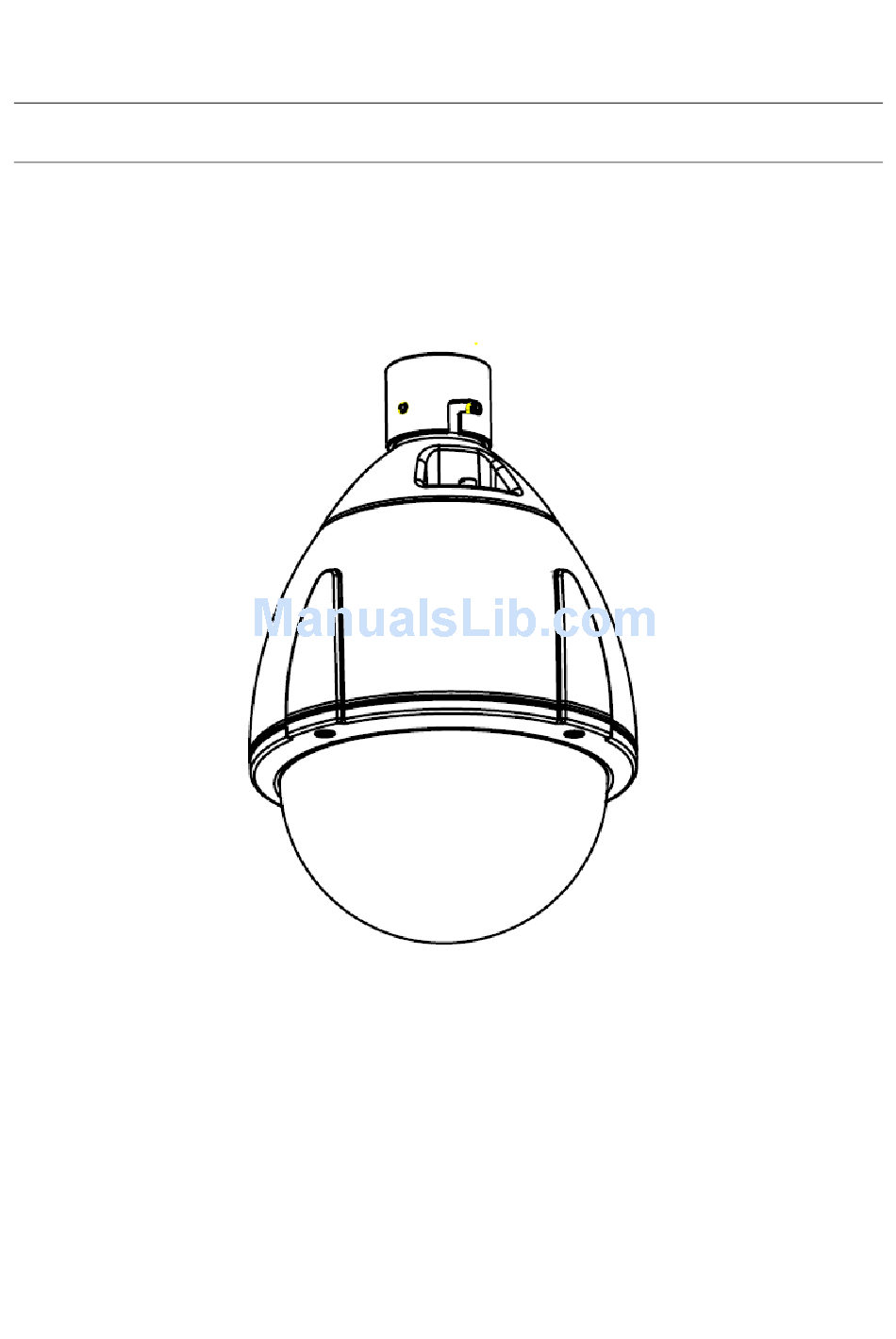

PTZ Dome Network Camera
User Manual
A.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPD970 and is the answer not in the manual?

Questions and answers

Related Manuals for Messoa SPD970

Summary of Contents for Messoa SPD970

  • Page 1 PTZ Dome Network Camera User Manual...
  • Page 2 NOTICE Please read this manual thoroughly and save it for future use before attempting to connect or operate this unit.

  • Page 3: Table Of Contents

    Table of Content Product Overview Physical Characteristics Installation and Connection Unpack Everything Installation 2.2.1 Checking Appearance 2.2.2 Installing the Camera 2.2.3 Connecting the wires 2.2.4 Network Topology 2.2.5 System Requirements Connection 2.3.1 Default IP address 2.3.2 Connecting from a computer & Viewing Preparation IP Finder Administration and Configuration Live View...
  • Page 4 WARNING  This unit operates at AC 24V/ PoE+.  Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty.  To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. ...

  • Page 5: Fcc Compliance Statement

    FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a ClassA digital device pursuant to Part 15B of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Preface This user manual is designed as a reference for the installation and manipulations of the unit including the camera‟s features, functions, and detailed explanation of the menu tree. The reader is supposed to be able to get following information in the manual. Product Overview: the main functions and system requirements of the unit.

  • Page 7: Product Overview

    1 Product Overview 1.1 Physical Characteristics...
  • Page 8 1-1: P ABLE ICTORIAL NDEX EFINITION Index # Connector Descriptions Ethernet/PoE+ connection. Cabling this port to the RJ-45 RJ-45 jack of standard network devices for connection or PoE+ compatible devices for power supply to the unit as well. Connecting the power terminal with a power supply. Make Power Input Terminal sure to wire the terminals to correct jacks (Red+/White–).
  • Page 9 Alarm In 3 (Yellow) Connecting to the device that triggers alarm signals. Alarm in 4 (Orange) Connecting to the device that responds to setting factory Default (Pink/Gray) default. Main signal connector Sending/receiving signals information. Safety Wire Keeping the camera from falling off. Caution Never connect more than one type of power supply (PoE+ IEEE802.3at Ethernet Class 4 or AC 24V power plug) at the same time to avoid damage to the unit.

  • Page 10: Installation And Connection

    2 Installation and Connection 2.1 Unpack Everything Check everything in the packing box matches to the order form and the packing slip. In addition to this manual, items below are included in the packing box.  One PTZ Dome Network Camera ...

  • Page 11: Installing The Camera

    2.2.2 Installing the Camera Take off the dome cover. Take out EPE before power on the unit. 2-1: D IGURE ISASSEMBLING THE AMERA  Use a soft and lint-free cloth to wipe the dome cover clean and remove fingerprints, reattach the housing, and turn the power on after installed the unit.

  • Page 12: Connecting The Wires

    2.2.3 Connecting the wires Power  AC 24V: Connect the power terminals with AC 24V power source.  PoE+: Connect the RJ-45 jack to a PoE compatible network device that supplied power through the Ethernet cable. Note Please make sure the power source is AC 24V / PoE+. Although the camera can be powered via a PoE+ connection, the PoE+ power source will not be able to drive the camera with its equipped heater being operating simultaneously.

  • Page 13: Network Topology

    2.2.4 Network Topology The camera can deliver video images and audio in real time using the Internet and Intranet. It's equipped with Ethernet RJ-45 network interface. 2-2: N Ⅰ IGURE ETWORK OPOLOGY 2-3: N Ⅱ IGURE ETWORK OPOLOGY...

  • Page 14: System Requirements

    2.2.5 System Requirements Below table lists the minimum requirement to implement and operate the camera. No hardware/software component underestimated is recommended. 2-1: S ABLE YSTEM EQUIREMENTS System Hardware Intel Pentium 4 2.4GHz or equivalent 1 GB Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500 System Software Operating System Microsoft Windows XP, Windows Vista, or Windows 7...

  • Page 15: Connection

    2.3 Connection 2.3.1 Default IP address Since this is a network-based unit, an IP address must be assigned at the very first. The unit‟s default IP address is 192.168.1.30. However, if you have a DHCP server in your network, the unit would obtain an IP address automatically from the DHCP server so that you don‟t need to change the camera‟s IP address.

  • Page 16: Viewing Preparation

    Viewing Preparation Images of the unit can be viewed through Microsoft Internet Explorer 8 or above. Before viewing, follow these steps to enable the display. Enable Cookies as instructions below In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 17  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】 Prompt (recommended) 【Download unsigned ActiveX controls】 Prompt 【Initialize and script ActiveX not marked as safe for scripting】 Prompt 【Automatic prompting for ActiveX controls】 Enable...
  • Page 18 【Run ActiveX controls and plug-ins】 Enable 【Script ActiveX controls marked safe for scripting*】 Enable  Press OK to save the settings.  Close all Microsoft Internet Explorer Windows and restart a new window. This will allow the new settings taking effect. Type your setting IP address into the browser.

  • Page 19: Ip Finder

    Please note that IP Finder works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7. Steps to get the utility program running are listed below. Download IP Finder from MESSOA Website to the computer. Double click on IPFinder.exe in computer‟s IP Finder folder, and the IP Finder window should pop out.

  • Page 20: Administration And Configuration

    3 Administration and Configuration Live View Figure 3 - 1: First Login Page After accessing and login to the IP address of the unit, the screen will be shown as the above screenshot. There are 2 main options on the upper left side: “Live View” and “Configuration”. While the upper right side indicates your current login user level with “Logout”...

  • Page 21: Ptz Panel

    Profiles & Streams” for more details. The following icons within the table, which are on the top of live view screen, are for some functions activating and alarm warning status. Please refer to the detailed definitions below for more understanding. Icon Definition The “Full Screen”...

  • Page 22: Configuration

    Configuration After clicking the “Configuration” option, the screen will be shown as below with several menu options for users to configure on the left side. We will thoroughly introduce them one by one in the following chapters. Figure 3 - 4: Configure 3.3.1 Information Users can view, after clicking “Information”, the detailed information related to the unit including Firmware Version, MAC Address, MCU Version, Model Name, Company and Serial Number in the middle of the screen.
  • Page 23 Codec  Edit Profiles & Streams: Basically, this unit offers two choices of video codec for real-time viewing: H.264 or MJPEG. By default, there are up to 6 profiles, which have own respective sub settings including Resolution, Codec, Frame Rate, GOP Length, QoS (DSCP) Codepoint, Rate Control and Bit Rate, can be chosen. And each profile contains up to 3 concurrent streams arrangement depending on your settings: Stream1, Stream2, and Stream3, which can be configured separately to send video signals for simultaneous triple streams with optimized quality and bandwidth based on your network environment.
  • Page 24 Table 3 - 2: Edit Profile Options Item Option Description MJPEG: Each video frame is individually compressed as single jpeg image with full-scale contents itself and can be retouched freely with ease. However, due to completeness of each frame, it brings about larger file size and thus easily MJPEG tends to lose frames under limited network bandwidth.
  • Page 25 Table 3 - 3: Correlations of Resolution/Streams/FPS/Codes - NTSC Resolution Single stream Double stream Triple stream 2048x1536 @ 15fps, 1280x720 @ 15fps 2048x1536 @ 15fps, 1280x720 @ 15fps, 640x480 @ 15fps 2048x1536 @ 15fps, 800x600 @ 15fps 2048x1536 @ 15fps, 800x600 @ 15fps, 640x480 @ 15fps 2048×1536 @ 2048x1536 @ 15fps, 640x480 @ 15fps 2048x1536 @ 15fps, 640x480 @ 15fps, 640x480 @ 15fps...
  • Page 26 Exposure Figure 3 - 7: Exposure Settings  Type Exposure modes control the light intensity of picture. There are four modes, Manual, AES (Automatic Electronic Shutter), ALC, and Flickerless, for adjustment depending on conditions. When in Manual mode, Shutter Speed is adjustable. ...

  • Page 27: White Balance

     AGC Max AGC (Auto Gain Control) is used to set AGC level of the unit. The circuit gain can be selected from 0to42 where the sensitivity characteristic increases in the same order. Noise in the dark will be more noticeable when setting is toward the highest "42".If sensitivity is still too low after setting AGC, try setting the upper bound of Slow Shutter value to further increase sensitivity and thus to enhance clearness.
  • Page 28 Basic Color Figure 3 - 9: Basic Color Settings  Brightness Set picture brightness from level -255 to 255.  Contrast Set picture contrast from level 0 to 255.  Set picture hue from level -15~15.  Saturation Saturation describes the difference of a color from the gray of the same lightness. Increasing saturation deepens the colors of your images, making reds redder and blues bluer.
  • Page 29 to see. The area size illustrations are roughly as follows. Figure 3 - 11: BLC Area Designation  Figure 3 - 12: WDR Settings It is intended to provide clear images even under backlight circumstances where intensity of illumination can vary excessively, namely where there are both very bright and very dark areas simultaneously in the field of view.

  • Page 30: Privacy Zone

    Privacy Zone Privacy Zone enables users to black out a specific portion of the screen for privacy concern. There are up to 8 sets of privacy zones for users to define. After setting up a privacy zone, the live view screen will appear a frame, whose color, size and position can be customized by users‟...
  • Page 31 Figure 3 - 16: Privacy Zone Diagram Note  It is recommended to set the privacy zone slightly larger than the actual area, to ensure that privacy area is not revealed during movement.  Please click the save button to save your settings. Remote Lens Control Figure 3 - 17: Lens Focus Settings ...

  • Page 32: Network Settings

    3.3.3 Network Settings Network Below explains how to configure a wired network connection for the unit. Figure 3 - 18: Network Settings  Camera Name Enter a desired name or use the default name for the unit.  DHCP If selected, the unit will automatically obtain an available dynamic IP address from the DHCP server each time it connects to the LAN.
  • Page 33  HTTP Port This protocol allows for TCP protocol quality without having to open specific ports for streaming. Users inside a firewall can utilize this protocol to allow streaming data through. It is recommended to use the default port number 80; however, it is required to change the port number, please contact your system administrator with options ranging from 1025 to 65535.
  • Page 34 RTSP To enable RTSP, first of all simply enter port number for RTSP, and select “ON” in Authentication field and enter the Login ID with Password for privileged control. Figure 3 - 20: RTSP Settings  Transfer Type Transfer type can be either “Unicast” or “Multicast”. IGMP will be supported if in “Multicast” mode. ...
  • Page 35 SNMP SNMP (Simple Network Management Protocol) is an Internet standard protocol on top of application layer that restructures the exchange of management information among network-attached nodes, which helps administrators to remotely manage network devices and master network problems with ease. Figure 3 - 21: SNMP Settings ...
  • Page 36  Read Community String SNMPv1/2 uses community name to authenticate the identity. “Public” is the default password for the server to get info from the camera. “Private” is the default password for the serer to modify values of the camera. You can respectively set alternative passwords as your community name. ...
  • Page 37 802.1X 802.1X is an IEEE Standard for Port-based Network Access Control and defines the encapsulation of the Extensible Authentication Protocol (EAP) over IEEE 802 which is known as EAP over LAN. Simply click “ON” to activate it and further select its related EAP protocol types. Figure 3 - 22: 802.1X Settings ...
  • Page 38 Firewall Firewall permits or denies access rights to defined IP addresses. When enabled, IP addresses in the list will be either allowed or denied access according to the selection made in the Mode drop-down list Allow/Deny the following IP addresses. Select OFF to disable. The administrator can add up to 10 IP address entries to the list.
  • Page 39 IPv6 Figure 3 - 24: IPv6 Settings To set your IP address with further settings under IPv6 here.  Enable Tick “ON” or “OFF” to enable or disable. If enabled, the unit will receive an IP address according to the configuration in the network router. ...

  • Page 40: System Settings

    3.3.4 System Settings Audio Figure 3 - 25: Audio Input Settings  Type Two audio codecs G711-Alaw/G711-Ulaw can be chosen from.  Enable Set to "ON" when receiving audio from a microphone plugged into the unit.  Level The sound levels are selectable from Low/Middle/High. Please click the save button to save your settings.
  • Page 41  Time Zone (-12~12) Input the time difference between Greenwich Mean Time and where the unit is located.  NTP Server Select NTP mode first, and date / time will be synchronized with the assigned NTP server here.  Synchronization Period Select synchronization period between 1 and 24 by 6 of each interval.

  • Page 42: Account Management

    Account Management  Admin The unit privileged control can be defined under Admin level right here. The default settings for admin Login ID and Password are:  User Name: admin  Password: 1234 You can revise password by entering desired password into “Password”&“Confirm Password” fields here. Figure 3 - 27: Admin Settings ...
  • Page 43 Firmware Users can update system firmware if available. All unit motions will be stopped during firmware update. Please close any other screens before firmware update. Never disconnect power or LAN cable during the updating process. It takes approximately 3 minutes for the unit to reboot after firmware update process. Please reboot the computer as well after firmware updated.
  • Page 44  System Type Select “NTSC” or “PAL” as required. Flickering by fluorescent light can be reduced by selecting “PAL” if the power frequency is 50Hz, “NTSC”, if 60Hz.  Export File Press “Export” to download configuration settings to local host. ...

  • Page 45: Event Settings

    3.3.5 Event Settings Alarm There are a set of alarm ports on the unit including 6 inputs and 1 output. The input port can be configured with 128 preset points and 4 auto patrols. Once triggered, the unit will immediately execute the predefined actions by users.

  • Page 46: Motion Detection

    Motion Detection This function is designed to record video once the unit detects a motion. Figure 3 - 35: Motion Detection Settings 1/2  Enable: Select “ON” to activate this function.  Area: Set the desired area to trigger motion detection. The motion setup screen will be popped out for defining the detection area by dragging the mouse.

  • Page 47: Ftp Recording

    FTP Recording Users can save video files via an FTP server by setting FTP recording condition in advance. Figure 3 - 37: FTP Record Basic Settings  Recording Mode: You can store the video files by either mode including Scheduled recording, Alarm Input triggered recording or recording triggered by Motion detection.
  • Page 48 To schedule recording to the camera FTP server, configure these settings:  Monday….Sunday: For each day you can select Stop to disable the recording or to record according to your schedules. You are allowed to set two schedules: Schedule1 and Schedule2. ...
  • Page 49 SD Recording Image files can be saved onto the memory card through well setting in the section. Please make sure to insert an appropriate memory card prior to enabling this function. Figure 3 - 41: SD Card Recording Settings  Recording Mode Choose one of the mode to enable the SD card recording: Alarm, Motion, or Network Loss.
  • Page 50 SMTP Recording Figure 3 - 43: SMTP Recording  Recording Mode: Users can receive Alarm or Motion triggered event via email notification by setting here. Figure 3 - 44: Recording Mode  Authentication Figure 3 - 45: Authentication Select an authentication type as following details: ...
  • Page 51  Alarm, Motion Event When either Motion detection or Alarm is activated, users can edit the related sending mail settings below:  Subject: To preset a subject of sending email.  Message: To preset message contents of sending email. Attach Image: Select “ON” to enable attach the detected image to the sending email. ...

  • Page 52: Pan/Tilt Control

    3.3.6 Pan/Tilt Control Figure 3 - 48: Pan/Tilt Control Settings  Auto Flip The limit of tilt degree for the unit is within 1° to 85°; however, if there is a moving object directly beneath the unit over the -90° angle of view, please turn Auto Flip “ON” to allow the unit reposition itself by panning 180°...
  • Page 53 Recover Time User can configure the camera to perform a selected action when the camera run without any command for a certain time. Figure 3 - 50: Recover Time Mode Settings  Enable Set "ON" to activate the recover time. ...

  • Page 54: Auto Pan

    Auto Pan Figure 3 - 53: Auto Pan Settings  Type Choose “Auto Pan/ Stepping Pan/ Random Pan” for Auto Pan Action.  Tilt Angle Set the tilt angle of tilt from 1° ~85° .  Pan Speed Set the speed of pan from 1° ~90° /s. ...

  • Page 55: Sd Card Information

    3.3.7 SD Card Information Figure 3 - 55: SD Card Information  Mount Status To show memory card mounting status  Format Status To show format status of the inserted memory card  Start Format Click “Format” to perform memory card formatting procedure. ...

  • Page 56: Appendix Specifications

    Appendix Specifications Video Sensor Type 1/2.8” image sensor (CMOS) Active Pixels 2304 x 1536 (HxV) Compression H.264 / MJPEG Streaming Triple simultaneous streams with multiple video profile QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x 600), Resolution VGA(640x480), 640x360, QVGA(320x240), 320x180 3MP 4:3 (2048x1536) at 15 fps Max.
  • Page 57 Audio Audio Communication One-Way audio Compression G711-Alaw, G711-Ulaw, PCM, 8kHz Audio In/Out External microphone Image Enhancement AES, AWB, AGC Exposure Mode: AES / ALC / Flickerless / Manual; White Balance: Auto / Manual; Image Settings Backlight Compensation; Configurable Brightness, Contrast, Hue, Saturation, and Sharpness; Gamma Correction 3DNR Enhanced digital WDR...
  • Page 58 ONVIF Browser Internet Explorer, Chrome, Firefox, Safari Multiple user access levels with password protection, IP address filtering; Security IEEE 802.1X network access control, HTTPS encryption, and digest authentication I/O & Controls Power 2-pin Terminal Block / Male RJ-45 Alarm In/Out Terminal Block 6 in/1 out Network Male RJ-45...
