Ironton 46177 Owner's Manual

3in. cut-off tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

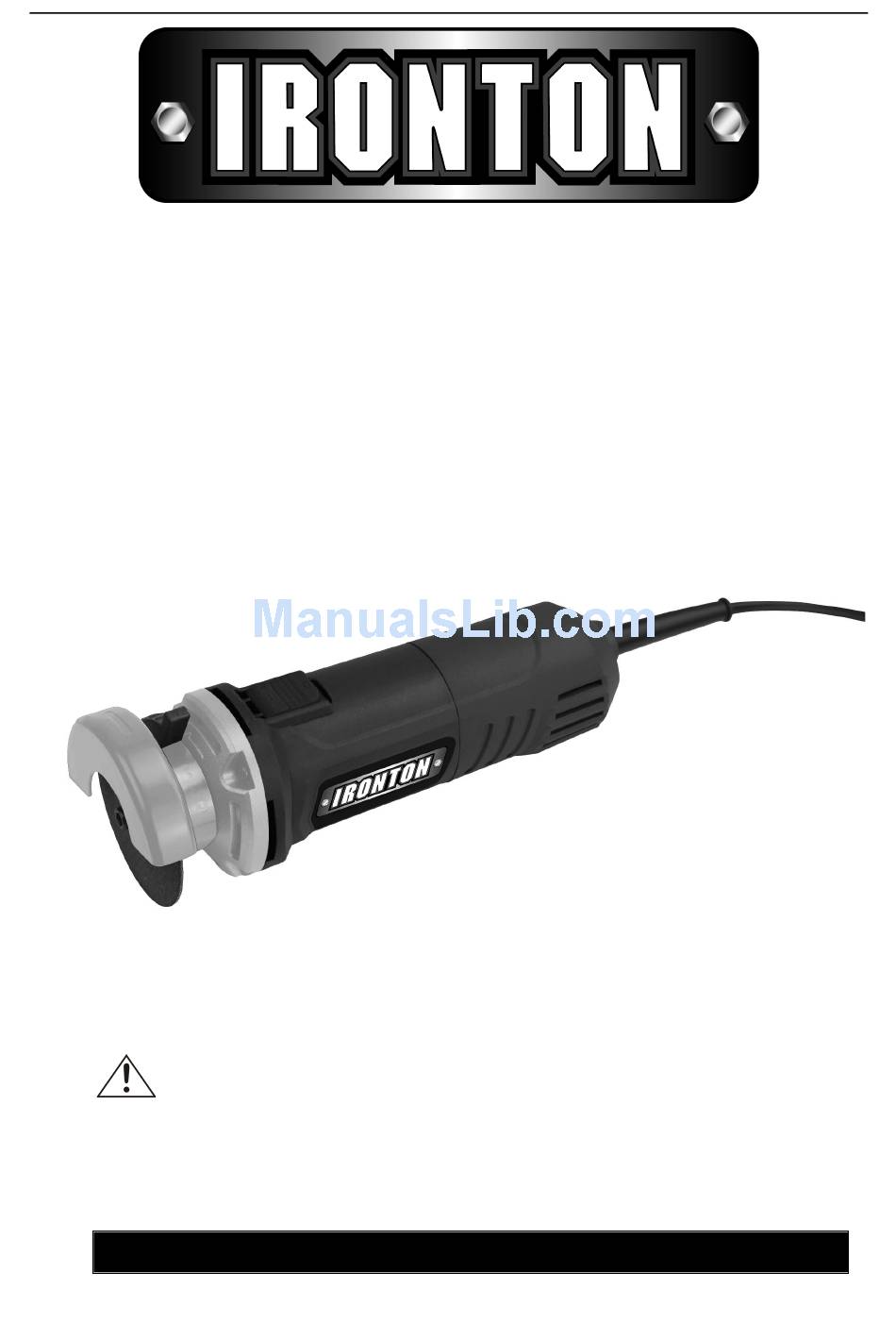

3
I N . C U T - O F F T O O L
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item# 46177

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 46177 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironton 46177

Summary of Contents for Ironton 46177

  • Page 1 I N . C U T - O F F T O O L OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 46177...

  • Page 2: Intended Use

    Thank you very much for choosing an IRONTON product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.

  • Page 3: Work Area Safety

    WORK AREA SAFETY: • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Inspect work area for hazards before using tool. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 4 • Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. Air vents may cover moving parts and should be avoided. •...

  • Page 5: Extension Cords

    other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury. • Use recommended accessories. Using accessories and attachments not recommended by the manufacturer or intended for use on this type tool may cause damage to the tool or result in personal injury to the user.
  • Page 6 Double insulated tools can use either a two or three wire extension cord. As the distance from the power supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage.
  • Page 7 that comply with ANSI safety standard Z87.1. Everyday glasses have only impact resistant lenses. They ARE NOT safety glasses. • Do not use accessories which are not designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

  • Page 8: Kickback And Related Warnings

    • Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. • Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

  • Page 9: Additional Safety Instructions For Cutting-Off Operations

    • Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. • The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator.

  • Page 10: Unpacking And Contents

    • Use extra caution when making a ″pocket cut″ into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. or Extension Cords (120 Volt) SAVE THESE INSTRUCTIONS FIG 1 KNOWING YOUR CUT-OFF SAW (FIG 1) 1.
  • Page 11 ASSEMBLY WARNING: Always be sure that the tool is switched off before adjusting, adding accessories, or checking a function on the tool. INSTALL THE GUARD WARNING: The guard must be installed and properly positioned before installing a cutting disc or operating the tool. 1.

  • Page 12: General Cutting

    between you and the cutting disc and turn the tool ON. If the cutting disc wobbles or the tool vibrates, turn the tool OFF immediately and investigate and correct the cause. OPERATION ON/OFF SWITCH WARNING: Before starting the tool, make sure the cutting disc is in good condition, is properly installed and not in contact with any surface.
  • Page 13 CLEANING Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean clothes to remove dirt, dust, oil, grease, etc. WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts.

  • Page 14: Parts List

    Parts List Part # Part Name Quantity Part # Part Name Quantity Housing Bearing 608ZZ Switch button spring Fan baffle Switch button Stator Shank spring Locking lever Page of 16...

  • Page 15: Two Year Warranty

    Switch shank Locking lever cover Switch Rivet 4X10 Tapping screw ST3.9X10 Locking bolt Cord clamp Square washer Back cover Grinding wheel guard Brush assembly Washer 5mm Carbon brush Nut 5mm Tapping screw Hex socket head cap ST3.9X10 screw M6X13 Grinding wheel flat Cord guard washer Cord...
  • Page 16 accident. The original purchaser is covered by this warranty and it is not transferable. Prior to returning your tool to store location of purchase, please call our Toll-Free Help Line for possible solutions. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.
