Ironton 57521 Owner's Manual

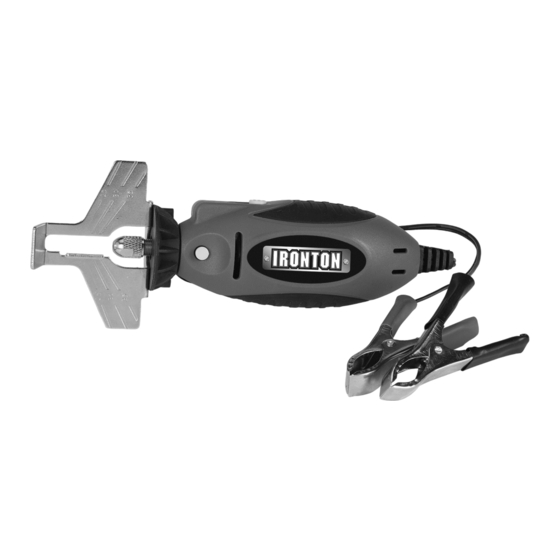

12v chainsaw sharpener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12V Chainsaw Sharpener
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #57521
READ & SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57521 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironton 57521

Summary of Contents for Ironton 57521

  • Page 1 12V Chainsaw Sharpener Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #57521 READ & SAVE THESE INSTRUCTIONS...
  • Page 2 Thank you very much for choosing an Ironton™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.

  • Page 3: Table Of Contents

    Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 6 Main Parts of Sharpener ........................6 Assembly Instructions .......................... 6 Before Each Use ............................ 9 Operating Instructions .......................... 9 After Each Use .............................

  • Page 4: Intended Use

    Intended Use The Ironton 12 Volt Chainsaw Sharpener is designed to sharpen most types of chainsaw chains. Technical Specifications Property Specification Voltage Standard 12 V Battery (not included) Motor 12V DC/55W/25,000 RPM Important Safety Information ⚠WARNING  Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage.
  • Page 5 ⚠WARNING PERSONAL SAFETY  Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury.

  • Page 6: Specific Operation Warnings

     Keep guards in place and in working order. Never operate the product without the guards in place.  Do not leave the tool running unattended. Specific Operation Warnings ⚠WARNING  Wear ANSI Z87.1 compliant safety goggles.  Do not use grinding wheels that have a max RPM less than the marked RPM rating on the tool. ...
  • Page 7  5/32” (smallest diameter stone) fits saws with 1/4 pitch or 3/8”s low profile chain  3/16” (medium diameter stone) fits saws with .325 pitch chain  7/32” (largest diameter stone) fits saws with 3/8” pitch chain 3. You can identify the size of each stone by sizing it with the multi-wrench included. Once you have identified the correct stone for your chainsaw, remove the collet cap from the end of your sharpener (see photo).
  • Page 8 6. Tighten the chuck using the provided multi-wrench. 7. Screw on the chainsaw’s sharpening guide and adjust: 8. The sharpening guide must be adjusted up or down on the mounting plate so the correct amount of the stone’s diameter will be exposed. 9.

  • Page 9: Before Each Use

    Before Each Use ⚠WARNING  Double check the lock nut for correct, secure grinding-stone installation before each use. Operating Instructions ⚠WARNING  Wear ANSI Z87.1 compliant safety goggles.  Do not use grinding wheels that have a max RPM less than the marked RPM rating on the tool. ...

  • Page 10: After Each Use

    Always sharpen the saw away from your body. Sharpen chainsaw’s cutting teeth or cutters as shown below. The sharpening guide should lay flat on the chain with the stone positioned in the cutter at the angle recommended by the manufacturer. Use the guide lines on the top of the sharpening guide for reference.

  • Page 11: Troubleshooting

    Troubleshooting Use the table below to troubleshoot problems before contacting service personnel or your local dealer. If the problem continues after troubleshooting, call your local dealer for assistance. Failure Possible Cause Corrective Action Cord not connected. Check that cord is plugged in. Check power at outlet.

  • Page 12: Parts List

    Parts List Reference Part Description Quantity Body Cord Lock Button Pliers Sharpening Guide Shank Collect Cover Chuck Wrench Multi-wrench Replacement Parts  For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.  Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence.

  • Page 13: Limited Warranty

    Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of 90 days from date of purchase.
  • Page 14 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China. Page 14 of 14...
